GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1008)

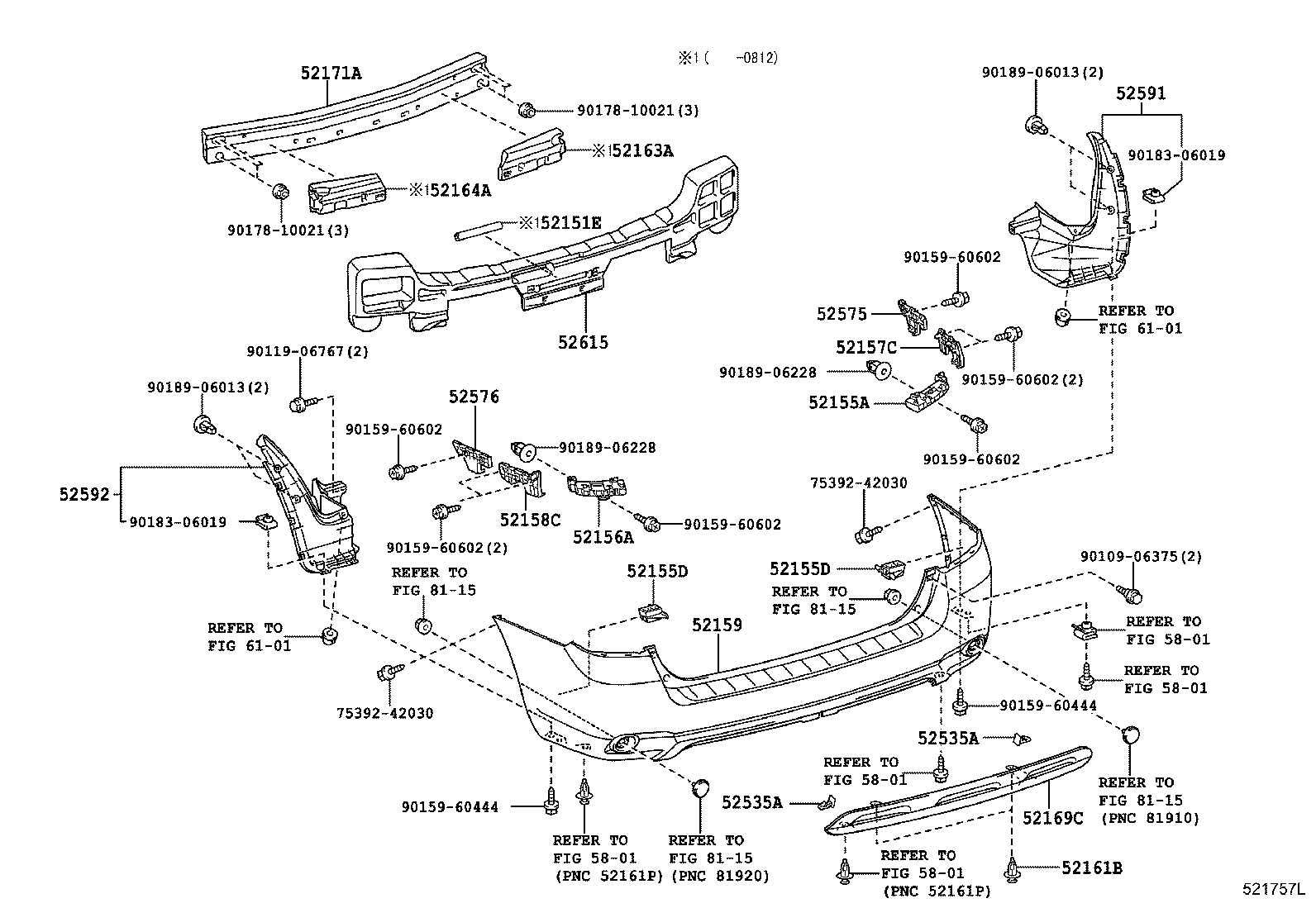

Click highlighted areas on diagram

diagram 52151E 52155A 52155D 52155D 52156A 52157C 52158C 52159 52161B 52163A 52164A 52169C 52171A 52535A 52535A 52575 52576 52591 52592 52615 5801 5801 5801 5801 5801 6101 6101 7539242030 7539242030 8115 8115 8115 8115 9010906375 9011906767 9015960444 9015960444 9015960602 9015960602 9015960602 9015960602 9015960602 9015960602 9017810021 9017810021 9018306019 9018306019 9018906013 9018906013 9018906228 9018906228
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52151-48030

ASU40,GSU4#,MHU48

NO PAINT REQ.

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-48020

ASU40,GSU4#,MHU48

 1
52155D - SUPPORT, REAR BUMPER SIDE
52154-48010

ASU40,GSU4#,MHU48

 2
52155D - SUPPORT, REAR BUMPER SIDE
52154-48010

ASU40,GSU4#,MHU48

 2
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-48020

ASU40,GSU4#,MHU48

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-48010

ASU40,GSU4#,MHU48

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-48010

ASU40,GSU4#,MHU48

 1
52159 - COVER, REAR BUMPER
52159-48912

ASU40,GSU4#,MHU48

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

ASU40,GSU4#,MHU48

 2
52163A - PLATE, REAR BUMPER, RH
52163-48010

ASU40,GSU4#,MHU48

 1
52164A - PLATE, REAR BUMPER, LH
52164-48010

ASU40,GSU4#,MHU48

 1
52169C - COVER, REAR BUMPER, LOWER
52169-48010

ASU40,GSU4#..GD,STD

NO PAINT REQ.

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-48151

ASU40,GSU4#,MHU48

 1
52171-48150

GSU4#,MHU48

CANADA SPEC

 1
52171-48151

ASU40,GSU4#,MHU48

CANADA SPEC

 1
52171-48150

ASU40,GSU4#,MHU48

 1
52535A - RETAINER, REAR BUMPER SIDE, RH
52535-28020

ASU40,GSU4#,MHU48

 2
52535A - RETAINER, REAR BUMPER SIDE, RH
52535-28020

ASU40,GSU4#,MHU48

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-48030

ASU40,GSU4#,MHU48

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-48030

ASU40,GSU4#,MHU48

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-48080

ASU40,GSU4#,MHU48

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-48010

ASU40,GSU4#,MHU48

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-48110

ASU40,GSU4#,MHU48

 1
Common parts
75392-42030
90109-06375
90119-06767
90159-60444
90159-60602
90178-10021
90183-06019
90189-06013
90189-06228
Linked diagrams
5801
6101
8115
