GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705-1007)ASU40,GSU40

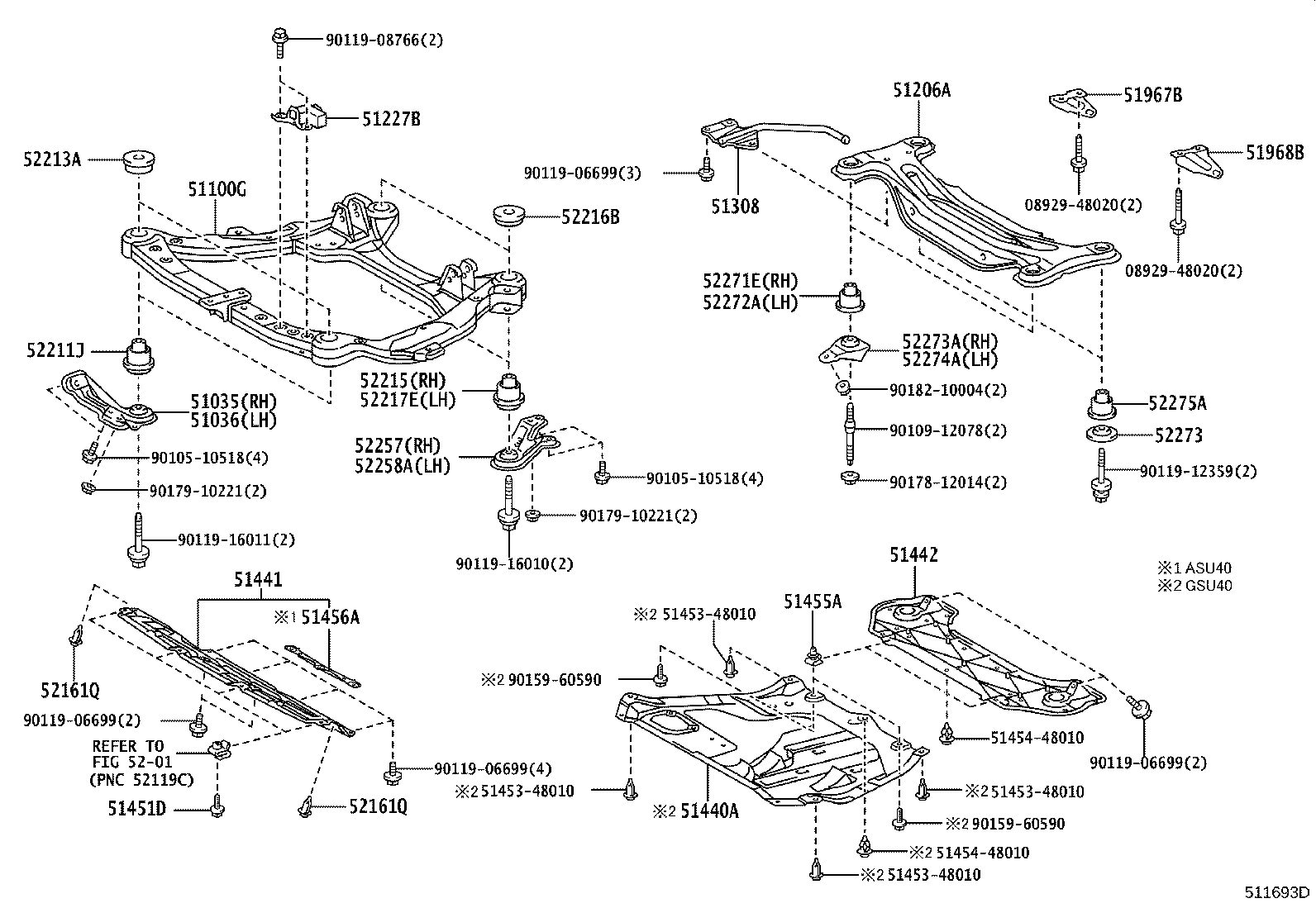

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-48070 |
GSU4# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-48070 |
ASU40,GSU40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-48031 |
ASU40,GSU4# |
1 | ||
| 51308 - BRACKET SUB-ASSY, EXHAUST PIPE CLAMP | ||||
| 51308-48022 |
GSU40 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-48070 |
GSU4# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-48060 |
GSU4#,MHU48 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60444 |
ASU40,GSU4#,MHU48 |
4 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52161Q - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52161Q - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-33030 |
ASU40,GSU40 |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52272-33040 |
ASU40,GSU40 |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-33010 |
ASU40,GSU40 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-48010 |
ASU40,GSU40 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-48010 |
ASU40,GSU40 |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-33050 |
ASU40,GSU40 |
2 | ||
| Common parts | ||||
| 08929-48020 | ||||
| 51453-48010 | ||||
| 51454-48010 | ||||
| 90105-10518 | ||||
| 90109-12078 | ||||
| 90119-06699 | ||||
| 90119-08766 | ||||
| 90119-12359 | ||||
| 90119-16010 | ||||
| 90119-16011 | ||||
| 90159-60590 | ||||
| 90178-12014 | ||||
| 90179-10221 | ||||
| 90182-10004 | ||||
| Linked diagrams | ||||
| 5201 | ||||
