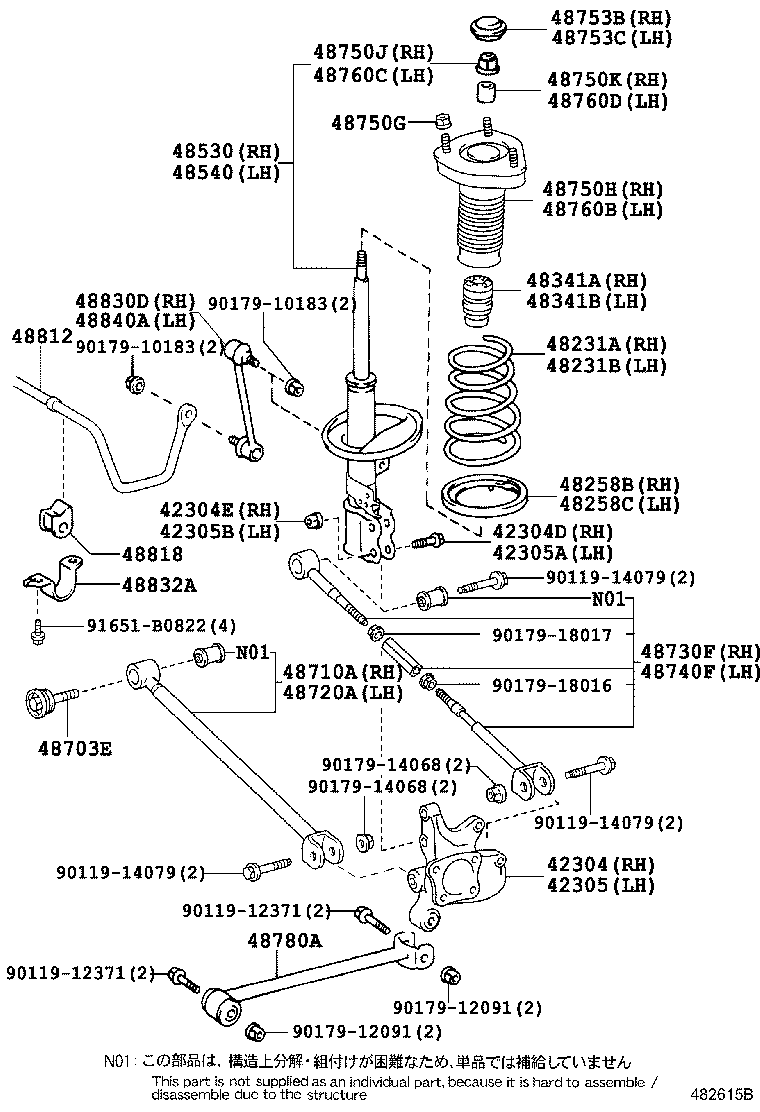

GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
(0705- )ASU40,GSU40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-48040 |
ASU40,GSU40 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-17012 |
ASU40,GSU4#,MHU48 |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90178-17002 |
ASU40,GSU4#,MHU48 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-48040 |
ASU40,GSU40 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-17012 |
ASU40,GSU4#,MHU48 |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90178-17002 |
ASU40,GSU4#,MHU48 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-48430 |
ASU40;GSU40..GD,LIMD |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-48430 |
ASU40;GSU40..GD,LIMD |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80428 |
GSU40..GD,LIMD,STD MARK 48530-48330 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-80004 |
GSU40..GD,LIMD,STD MARK 48540-48330 |
1 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19045 |
ASU40,GSU40 *14-1.50PX76-36 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-48060 |
ASU40,GSU40 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-48060 |
ASU40,GSU40 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-48150 |
ASU40,GSU40 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-48040 |
ASU40,GSU40 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10018 |
ASU40,GSU4#,MHU48 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-48070 |
GSU40 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-48170 |
ASU40,GSU40 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-48010 |
ASU40,GSU40 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-33020 |
ASU40,GSU40 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-12371 | ||||
| 90119-14079 | ||||
| 90179-10183 | ||||
| 90179-12091 | ||||
| 90179-14068 | ||||
| 90179-18016 | ||||
| 90179-18017 | ||||
| 91651-B0822 | ||||
