GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

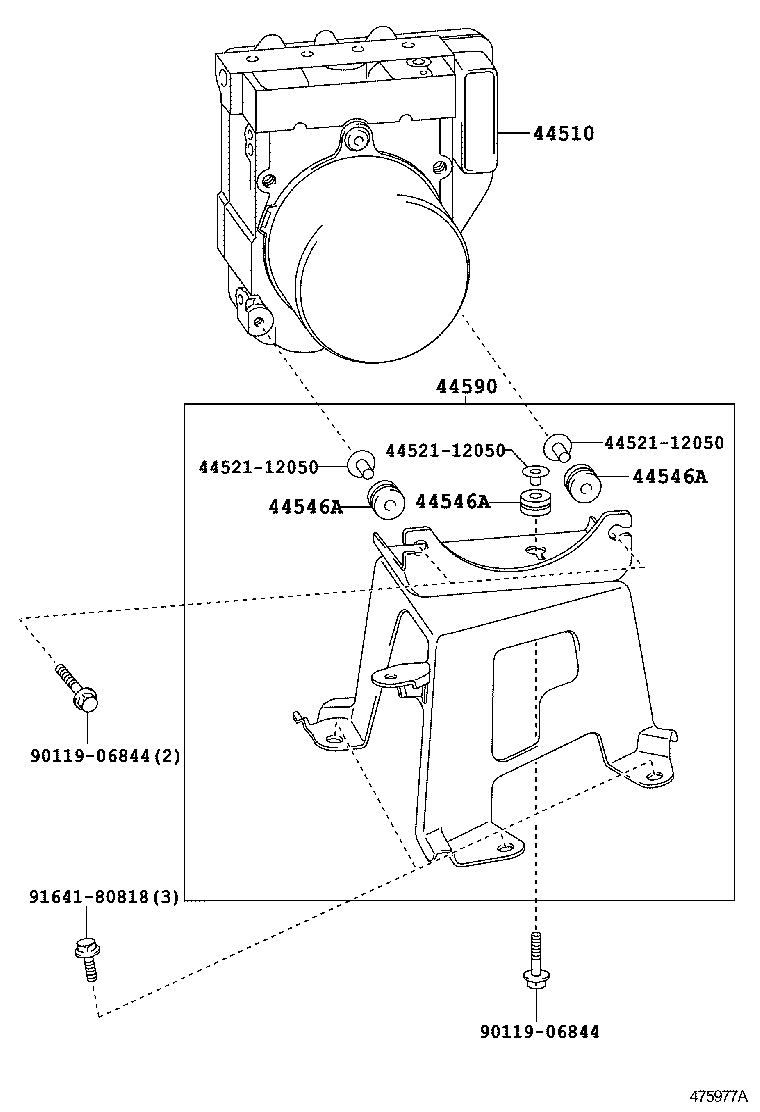

ILLUST NO. 2 OF 2(0705- )ASU40,GSU4#

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9164180818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48330

GSU40

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ASU40,GSU4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ASU40,GSU4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ASU40,GSU4#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48190

ASU40,GSU4#

 1
Common parts
44521-12050
90119-06844
91641-80818

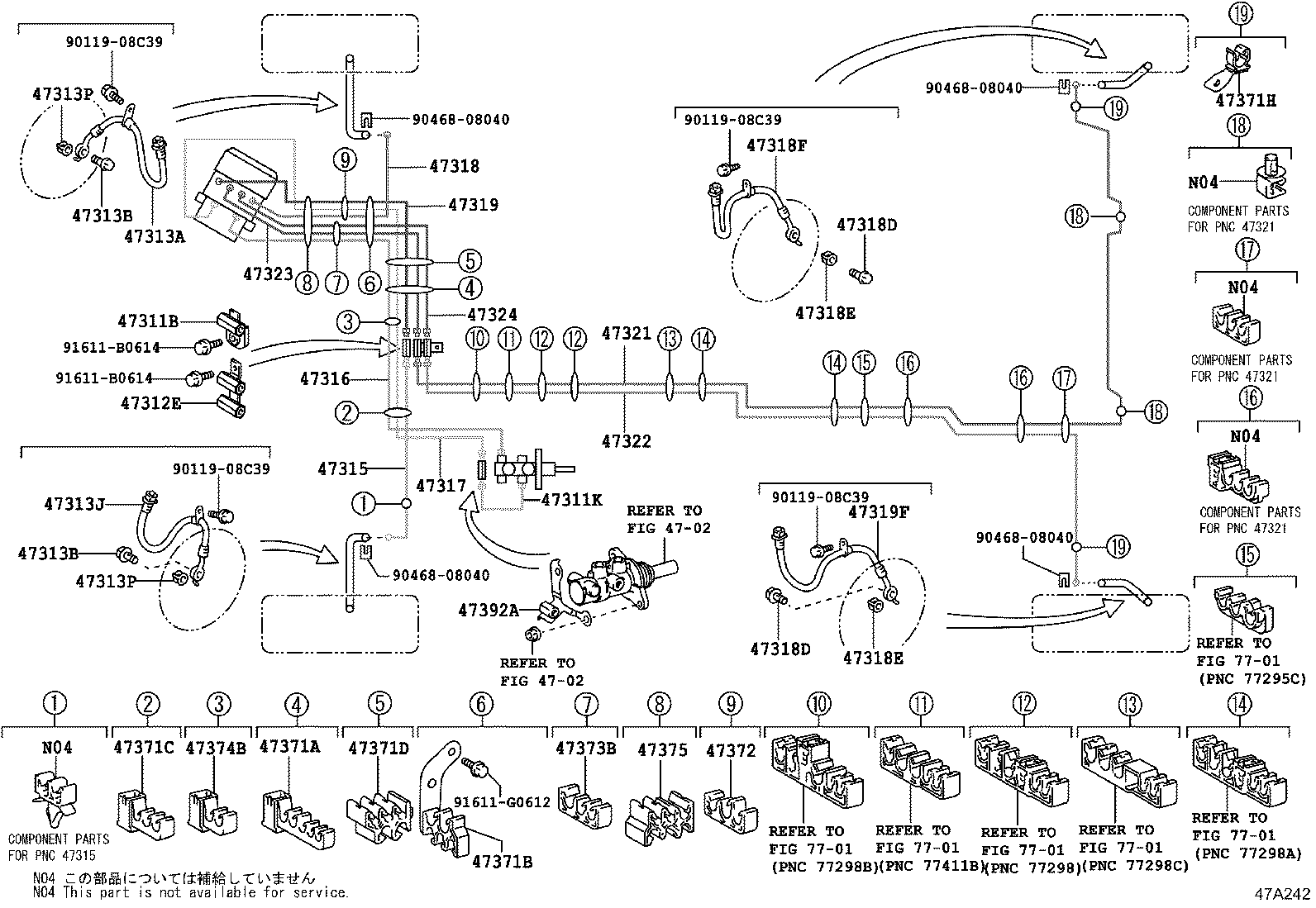

ILLUST NO. 1 OF 2(0705- )ASU40,GSU40

Click highlighted areas on diagram

diagram 4702 4702 47311B 47311K 47312E 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47371D 47371H 47372 47373B 47374B 47375 47392A 7701 7701 7701 7701 7701 7701 9011908C39 9011908C39 9011908C39 9011908C39 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ASU40,GSU4#

 1
47311K - TUBE, BRAKE MASTER CYLINDER TO WAY
47311-48040

ASU40,GSU4#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

ASU40,GSU4#,MHU48

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E94

ASU40,GSU4#,MHU48

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ASU40,GSU4#,MHU48

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ASU40,GSU4#,MHU48

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E95

ASU40,GSU4#,MHU48

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ASU40,GSU4#,MHU48

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ASU40,GSU4#,MHU48

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48160

GSU4#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48270

ASU40,GSU4#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48270

ASU40,GSU4#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48170

ASU40,GSU4#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ASU40,GSU4#,MHU48

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ASU40,GSU4#,MHU48

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ASU40,GSU4#,MHU48

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ASU40,GSU4#,MHU48

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E96

ASU40,GSU40

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48250

ASU40,GSU4#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E97

ASU40,GSU40

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48080

ASU40,GSU4#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48090

ASU40,GSU4#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48280

ASU40,GSU4#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48280

ASU40,GSU4#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D51

ASU40,GSU4#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-04045

ASU40,GSU4#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D50

ASU40,GSU4#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D53

ASU40,GSU4#

 1
47371H - CLAMP, BRAKE TUBE, NO.12
90949-04028

ASU40,GSU40

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00893

GSU4#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00894

ASU40,GSU4#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D49

ASU40,GSU4#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D52

ASU40,GSU4#

 1
47392A - WAY, BRAKE TUBE, NO.2
47392-48010

ASU40,GSU4#

 1
Common parts
90119-08C39
90468-08040
91611-B0614
91611-G0612
Linked diagrams
4702
7701
