GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

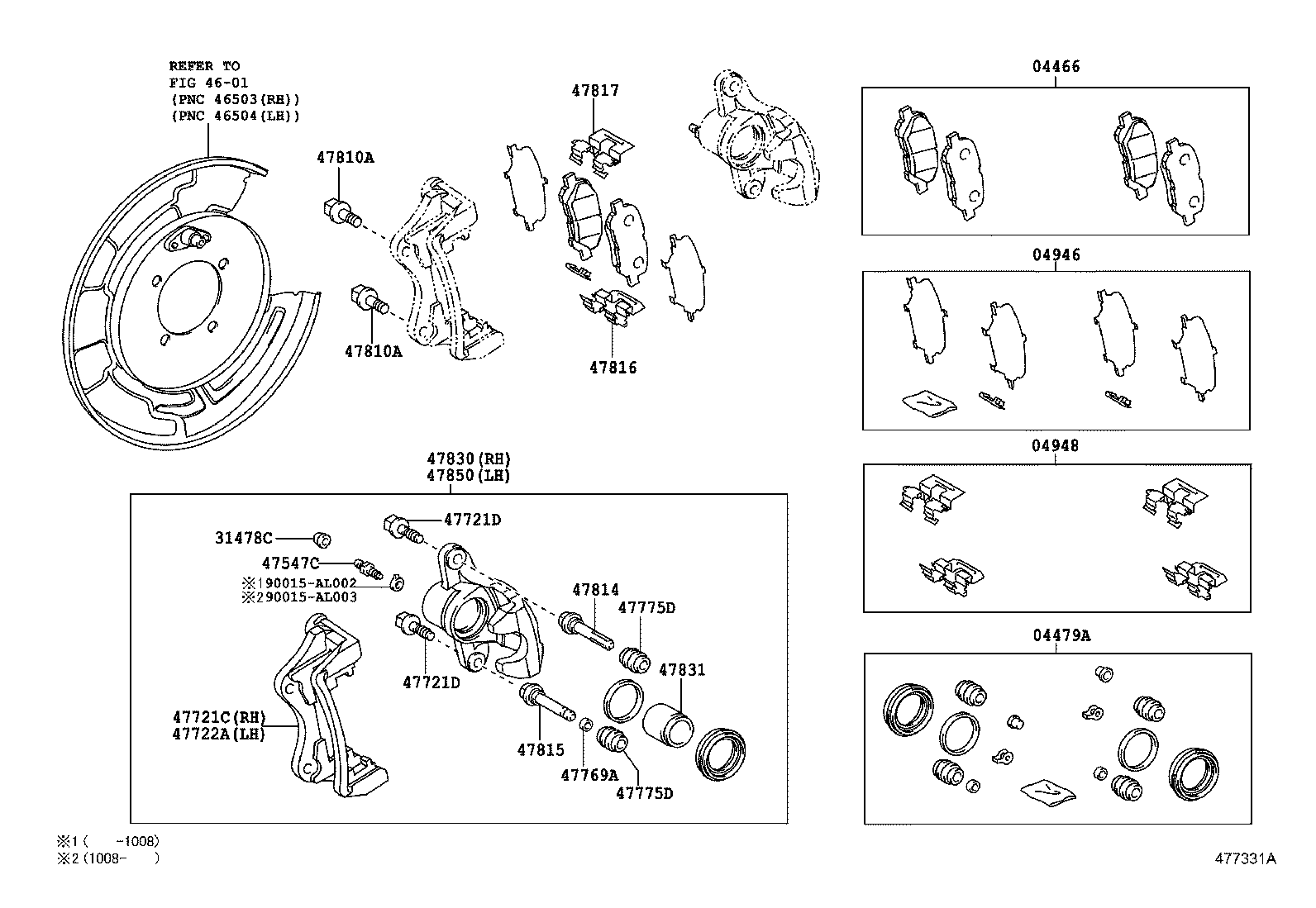

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-48120 |
ASU40,GSU4#,MHU48 MARK AK PA561 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08346 |
ASU40,GSU4#,MHU48 *8-1.00PX21.5-10.5 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08346 |
ASU40,GSU4#,MHU48 *8-1.00PX21.5-10.5 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-33020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-48090 |
ASU40,GSU4#,MHU48 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-48090 |
ASU40,GSU4#,MHU48 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ASU40,GSU4#,MHU48 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ASU40,GSU4#,MHU48 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-48090 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-48090 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-48090 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE) | ||||
| 47817-48090 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-48090 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90015-AL002 | ||||
| 90015-AL003 | ||||
| Linked diagrams | ||||
| 4601 | ||||
