GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

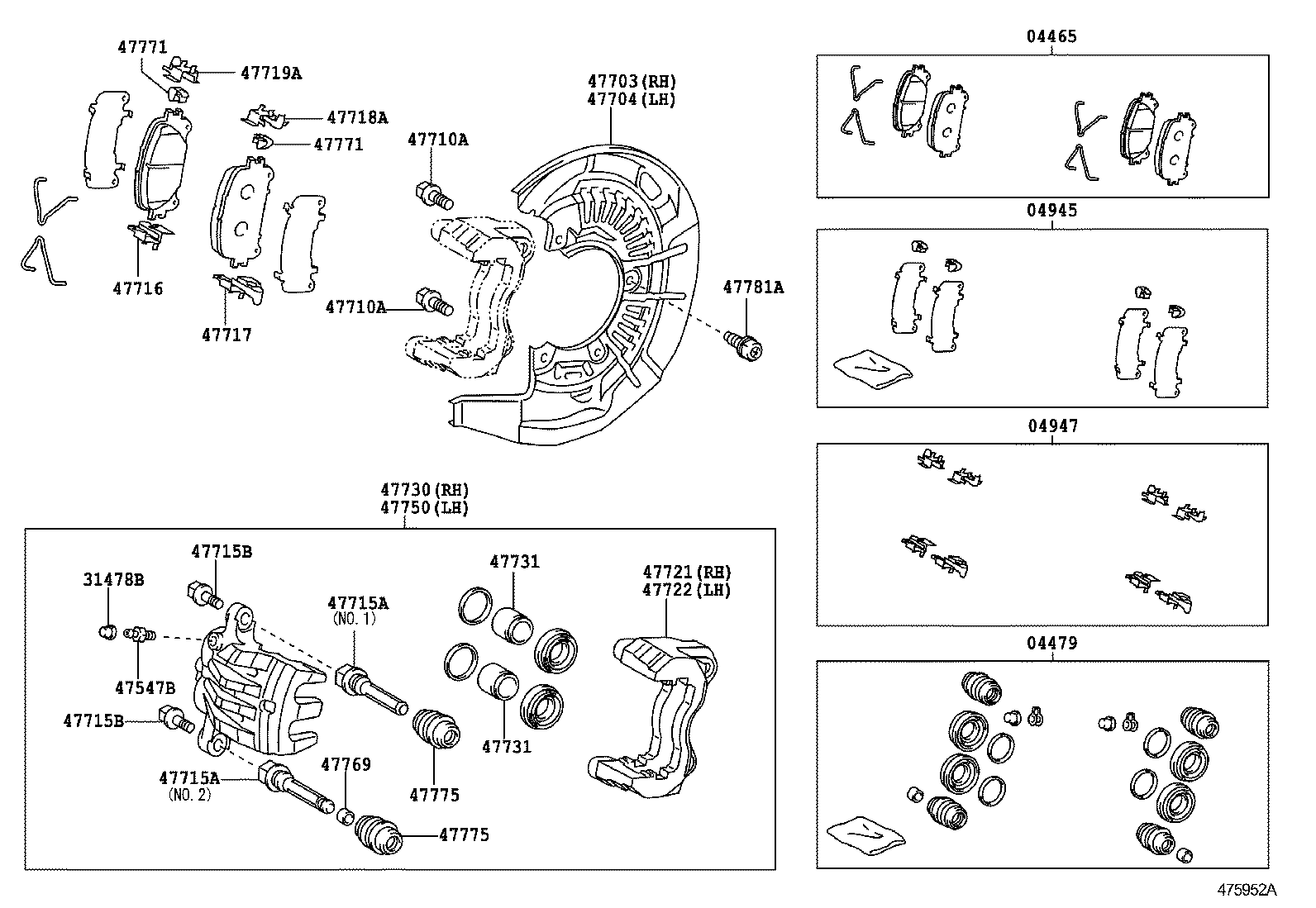

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731 47750 47769 47771 47771 47775 47775 47781A
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-48150

ASU40,GSU4#,MHU48

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-48150

ASU40,GSU4#,MHU48

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-48150

ASU40,GSU4#,MHU48

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-48080

ASU40,GSU4#,MHU48

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ASU40,GSU4#,MHU48

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

GSU4#,MHU48

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-48010

ASU40,GSU4#,MHU48

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-48010

ASU40,GSU4#,MHU48

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ASU40,GSU4#,MHU48

*12-1.25PX29.5-23

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ASU40,GSU4#,MHU48

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48150

ASU40,GSU4#,MHU48

NO.2

 2
47715-48150

ASU40,GSU4#,MHU48

NO.1

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48150

ASU40,GSU4#,MHU48

NO.2

 2
47715-48150

ASU40,GSU4#,MHU48

NO.1

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA602

ASU40,GSU4#,MHU48

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA602

ASU40,GSU4#,MHU48

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-48150

ASU40,GSU4#,MHU48

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-48150

ASU40,GSU4#,MHU48

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47718-48150

ASU40,GSU4#,MHU48

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47719-48150

ASU40,GSU4#,MHU48

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-48150

ASU40,GSU4#,MHU48

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-48140

ASU40,GSU4#,MHU48

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-48150

ASU40,GSU4#,MHU48

 1
47731 - PISTON, FRONT DISC BRAKE
47731-48150

ASU40,GSU4#,MHU48

 4
47731 - PISTON, FRONT DISC BRAKE
47731-48150

ASU40,GSU4#,MHU48

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-48110

ASU40,GSU4#,MHU48

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-48150

ASU40,GSU4#,MHU48

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48150

ASU40,GSU4#,MHU48

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48150

ASU40,GSU4#,MHU48

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48150

ASU40,GSU4#,MHU48

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48150

ASU40,GSU4#,MHU48

 4
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ASU40,GSU4#,MHU48

 8
