GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GSU4#

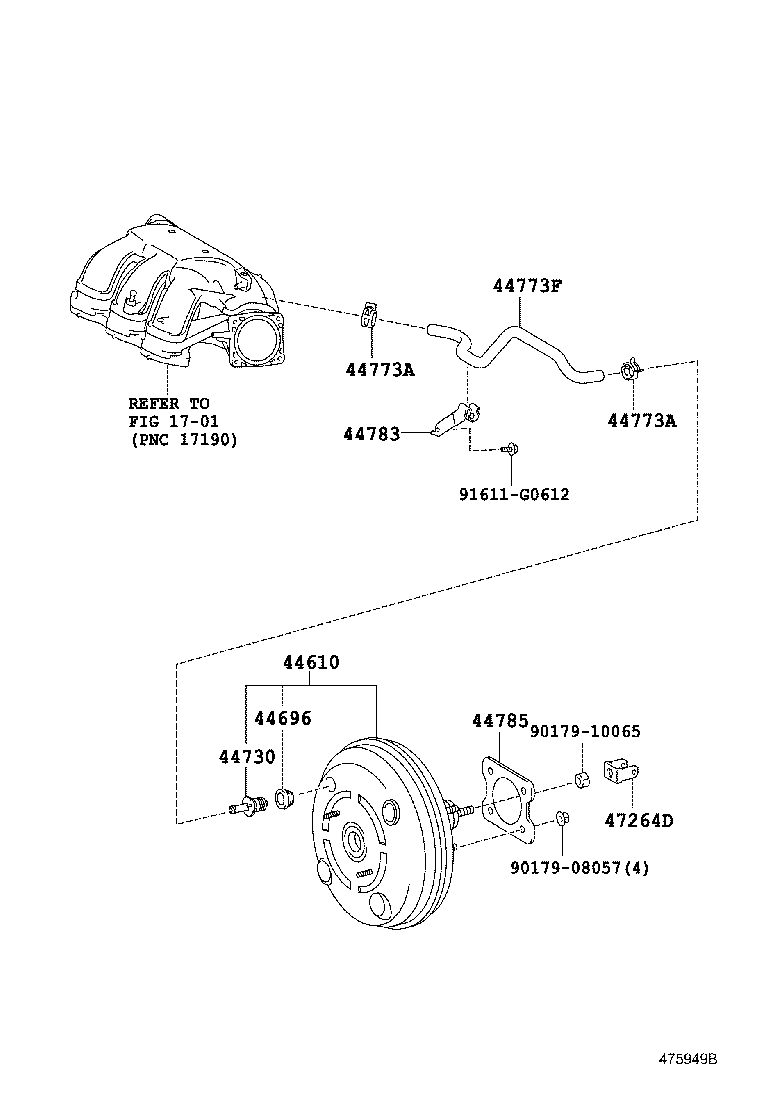

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773A 44773A 44773F 44783 44785 47264D 9017908057 9017910065 91611G0612
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-48291

GSU4#

 1
44610-48290

GSU4#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GSU4#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

GSU4#

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014

GSU4#

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014

GSU4#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-48160

GSU4#

 1
44783 - CLAMP, VACUUM HOSE
44783-48010

GSU4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ASU40,GSU4#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

ASU40,GSU4#

 1
Common parts
90179-08057
90179-10065
91611-G0612
Linked diagrams
1701
