GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ASU40,GSU4#

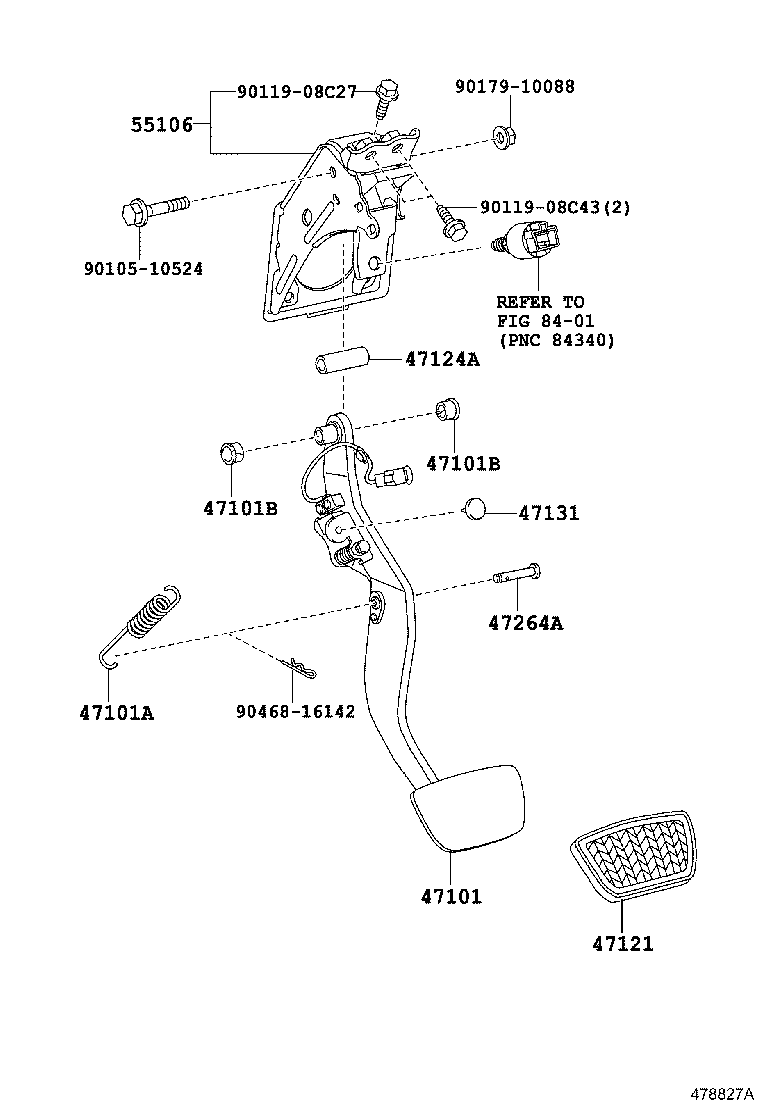

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124A 47131 47264A 55106 8401 9010510524 9011908C27 9011908C43 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47106-48060

ASU40,GSU4#

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15004

ASU40,GSU4#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ASU40,GSU4#,MHU48

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ASU40,GSU4#,MHU48

 2
47121 - PAD, BRAKE PEDAL
47121-50020

ASU40,GSU4#,MHU48

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

ASU40,GSU4#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

ASU40,GSU4#,MHU48

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

ASU40,GSU4#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-48160

ASU40,GSU4#

 1
Common parts
90105-10524
90119-08C27
90119-08C43
90179-10088
90468-16142
Linked diagrams
8401
