GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

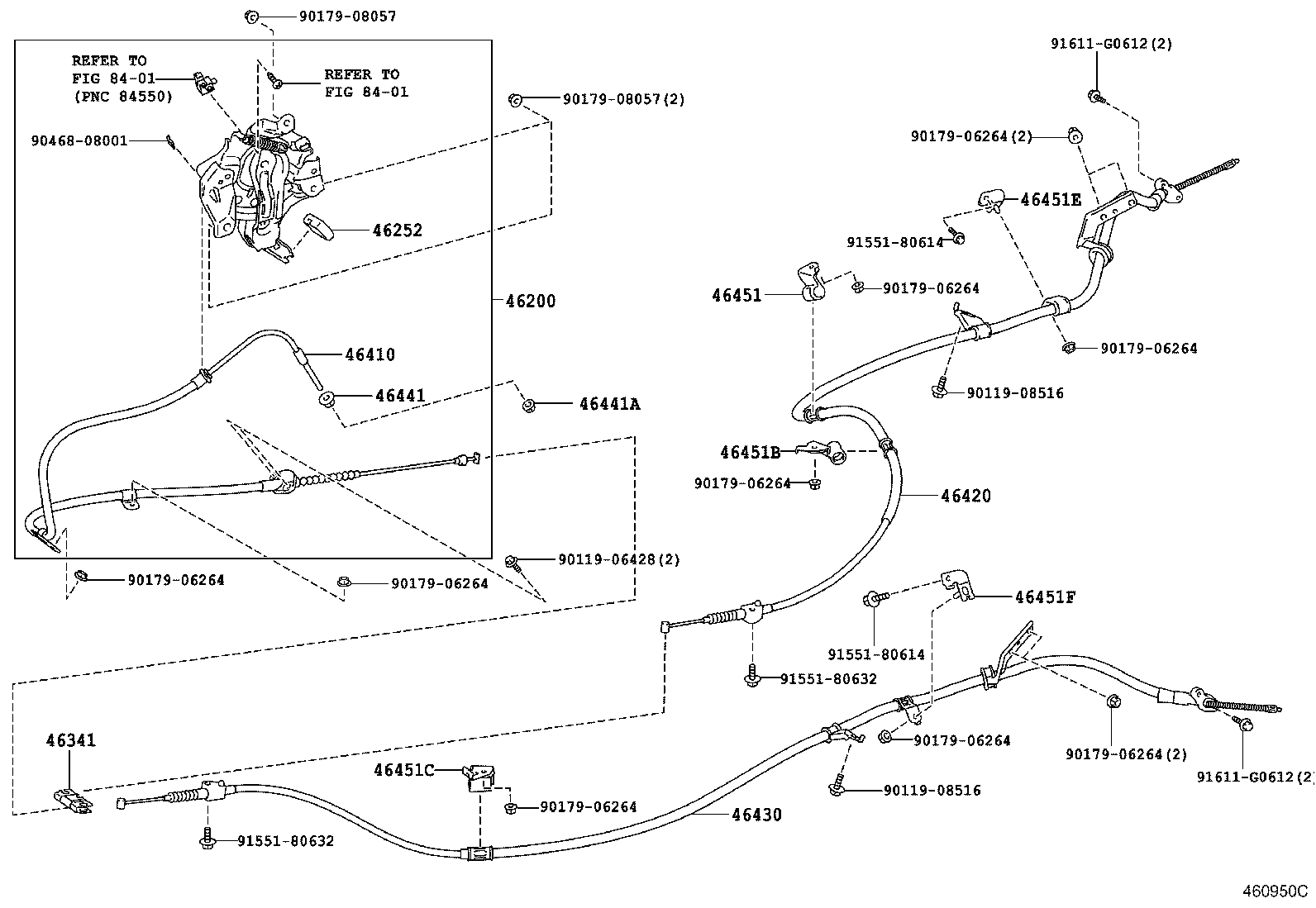

ILLUST NO. 1 OF 2(0705- )ASU40,GSU4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-48121 |
ASU40,GSU4# |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-22010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-48130 |
ASU40,GSU4# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-48150 |
ASU40,GSU4# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-48150 |
ASU40,GSU4# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 94151-80600 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-48050 |
ASU40,GSU4# |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-48060 |
ASU40,GSU4# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-48070 |
ASU40,GSU4# |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-08516 | ||||
| 90179-06264 | ||||
| 90179-08057 | ||||
| 90468-08001 | ||||
| 91551-80614 | ||||
| 91551-80632 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

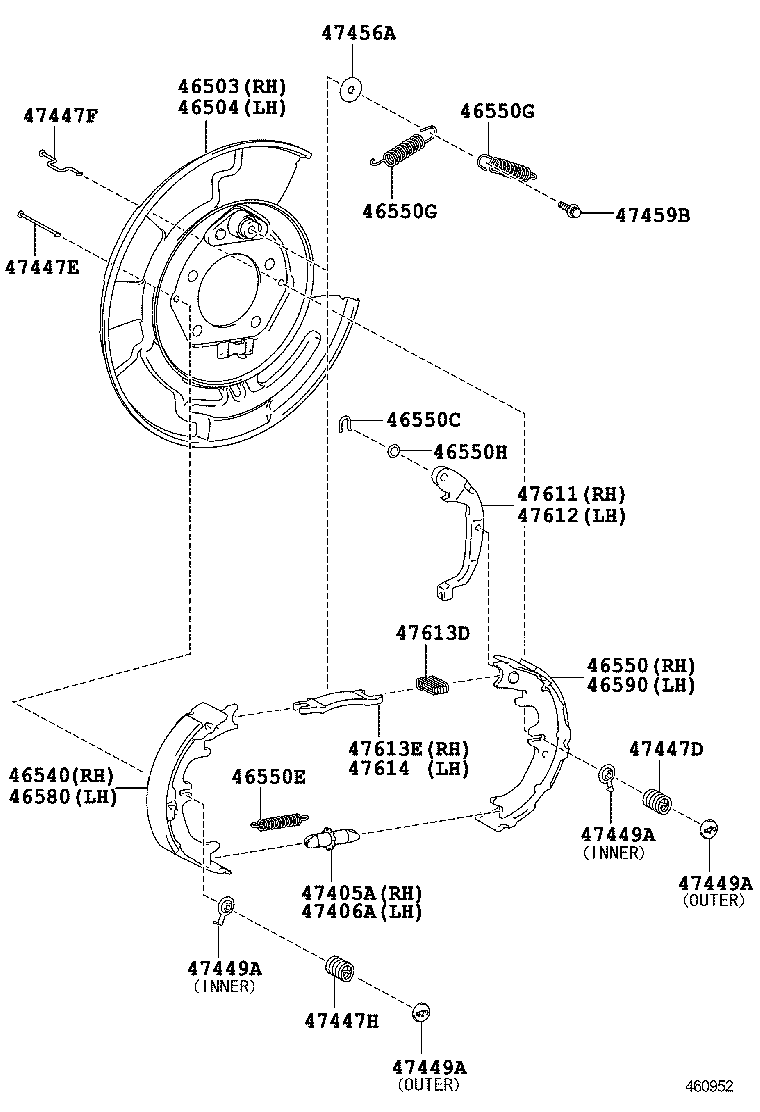

ILLUST NO. 2 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
ASU40,GSU4#,MHU48 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
ASU40,GSU4#,MHU48 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ASU40,GSU4#,MHU48 |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ASU40,GSU4#,MHU48 |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
ASU40,GSU4#,MHU48 T=0.9 |
1 | ||
| 90564-09184 |
ASU40,GSU4#,MHU48 T=0.3 |
1 | ||
| 90564-09185 |
ASU40,GSU4#,MHU48 T=0.6 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16118 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
ASU40,GSU4# |
1 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ASU40,GSU4#,MHU48 OUTER |
4 | ||
| 47449-40010 |
ASU40,GSU4#,MHU48 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ASU40,GSU4#,MHU48 OUTER |
4 | ||
| 47449-40010 |
ASU40,GSU4#,MHU48 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ASU40,GSU4#,MHU48 OUTER |
4 | ||
| 47449-40010 |
ASU40,GSU4#,MHU48 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ASU40,GSU4#,MHU48 OUTER |
4 | ||
| 47449-40010 |
ASU40,GSU4#,MHU48 INNER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46611-0E010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46621-0E010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ASU40,GSU4#,MHU48 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
