GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GVU48,MHU48 ; (0705- )GSU4#..GD,LIMD,SPO

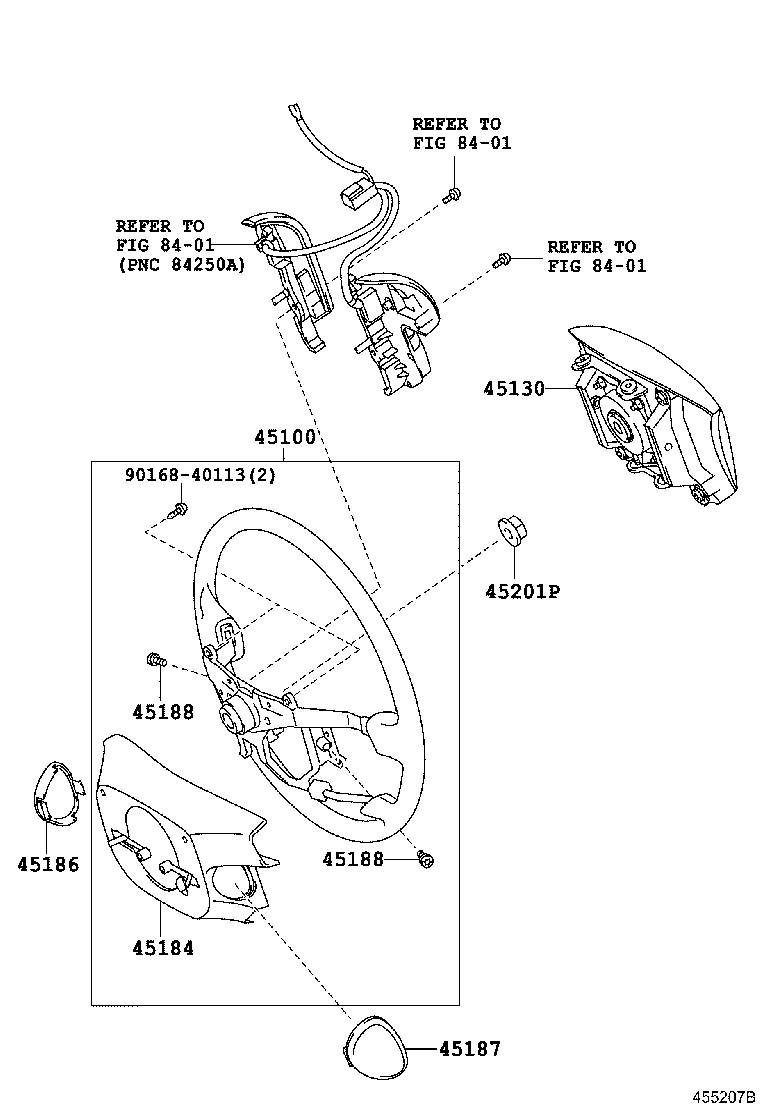

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45184 45186 45187 45188 45188 45201P 8401 8401 8401 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-48430C0

GSU4#..GD,LIMD,SPO

4-SPOKE, LEATHER,BLACK,TRIM1#,2#

 1
45100-48430E0

MHU48;GSU4#..GD,LIMD,SPO

4-SPOKE, LEATHER,DK. BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-48190C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
45130-48190E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-33100E1

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
45184-33100C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33070E1

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
45186-33070C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33050C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
45187-33050E1

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ASU40,GSU4#,MHU48

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ASU40,GSU4#,MHU48

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ASU40,GSU4#,MHU48

 1
Common parts
90168-40113
Linked diagrams
8401
