GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ASU40,GSU4#,GVU48..GD,SPO,STD

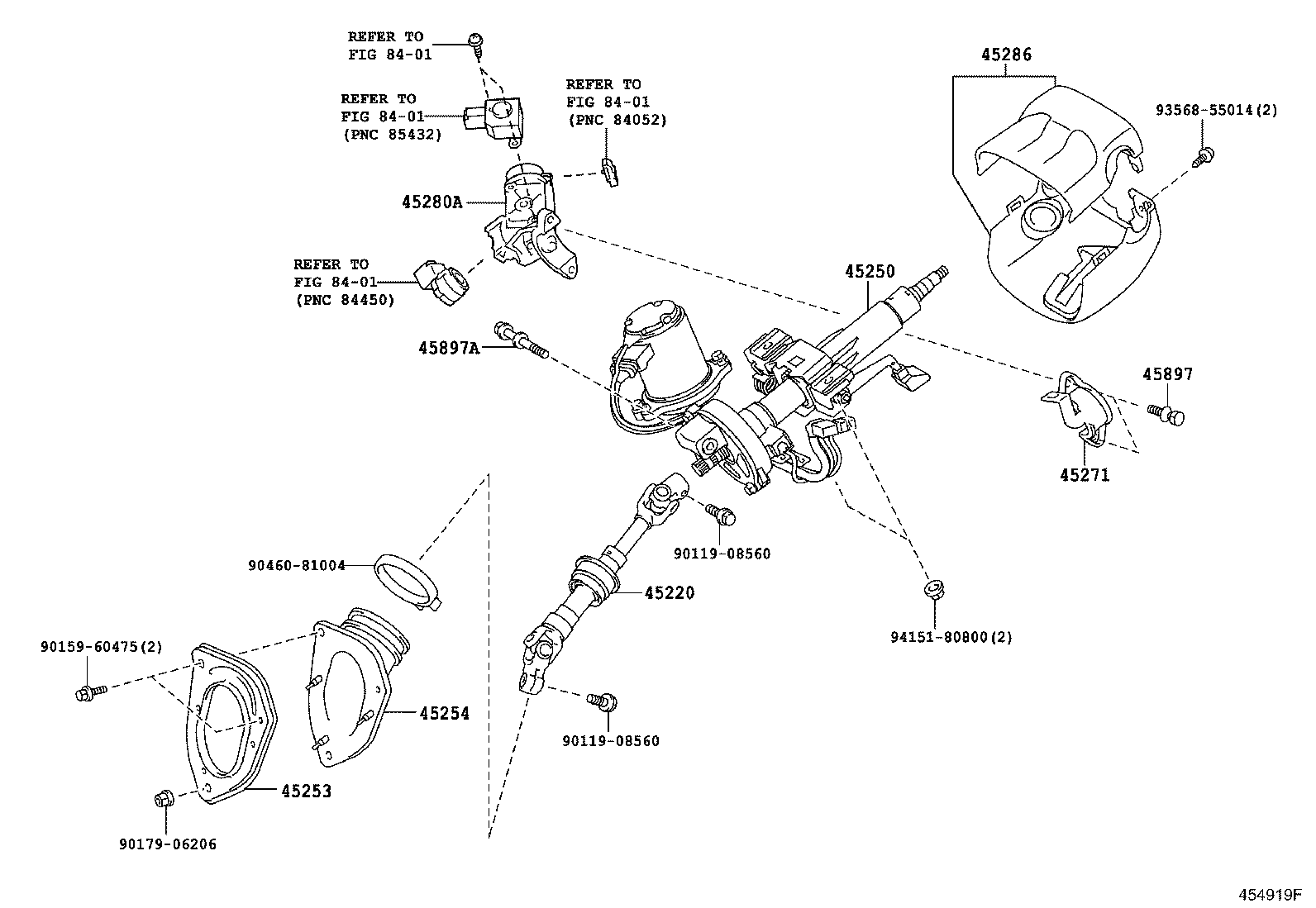

Click highlighted areas on diagram

diagram 45220 45250 45253 45254 45271 45280A 45286 45897 45897A 8401 8401 8401 8401 9011908560 9011908560 9015960475 9017906206 9046081004 9356855014 9415180800
Part # Description Qty Price
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-48170

ASU40,GSU4#,MHU48

 1
45250 - COLUMN ASSY, STEERING
45250-48160

ASU40,GSU4#..GD,SPO,STD

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48050

ASU40,GSU4#,MHU48

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48050

ASU40,GSU4#,MHU48

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-22020

ASU40,GSU4#,MHU48

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-22510

ASU40,GSU4#..GD,SPO,STD

 1
45286 - COVER, STEERING COLUMN
45286-48908C0

GSU4#..GD,SPO

BLACK,TRIM1#,2#

 1
45286-48908E1

ASU40,GSU4#..GD,SPO,STD

DK.BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ASU40,GSU4#,MHU48

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ASU40,GSU4#,MHU48

 1
Common parts
90119-08560
90159-60475
90179-06206
90460-81004
93568-55014
94151-80800
Linked diagrams
8401
