GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

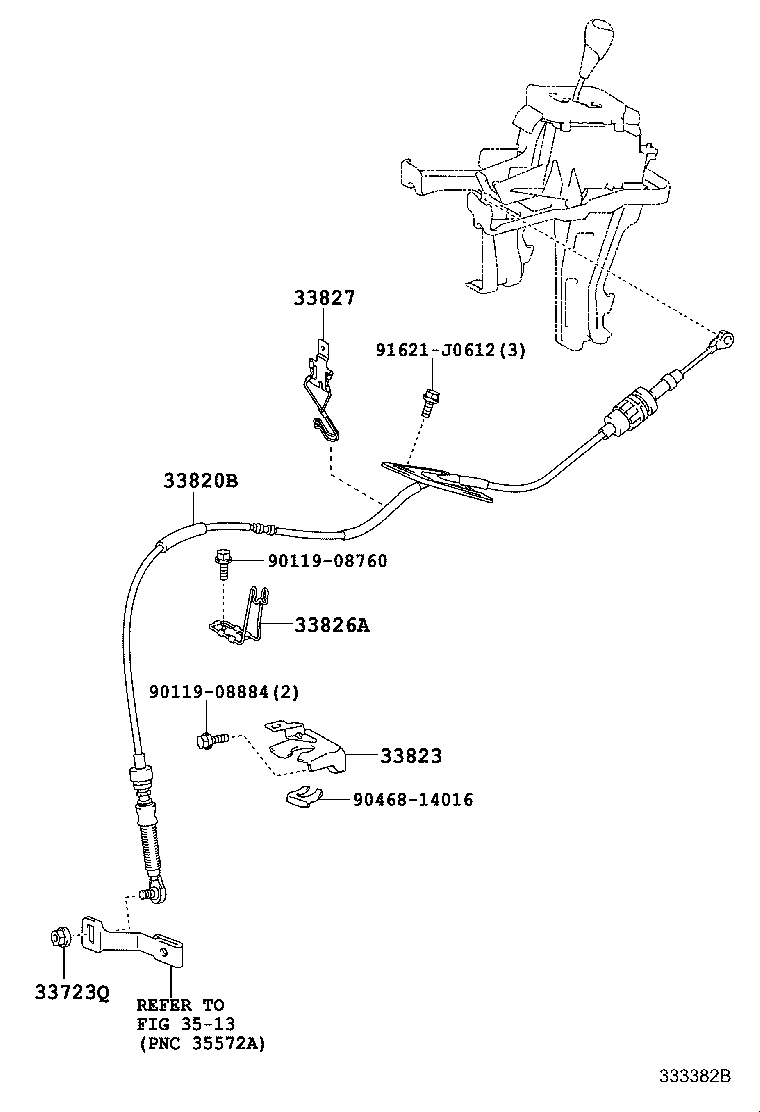

ILLUST NO. 2 OF 2(0705- )GSU4#

Click highlighted areas on diagram

diagram 33723Q 33820B 33823 33826A 33827 3513 9011908760 9011908884 9046814016 91621J0612
Part # Description Qty Price
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054

ASU40,GSU4#,MHU48

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48250

GSU4#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48060

GSU4#

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-48090

GSU4#

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-48020

GSU4#,MHU48

 1
Common parts
90119-08760
90119-08884
90468-14016
91621-J0612
Linked diagrams
3513

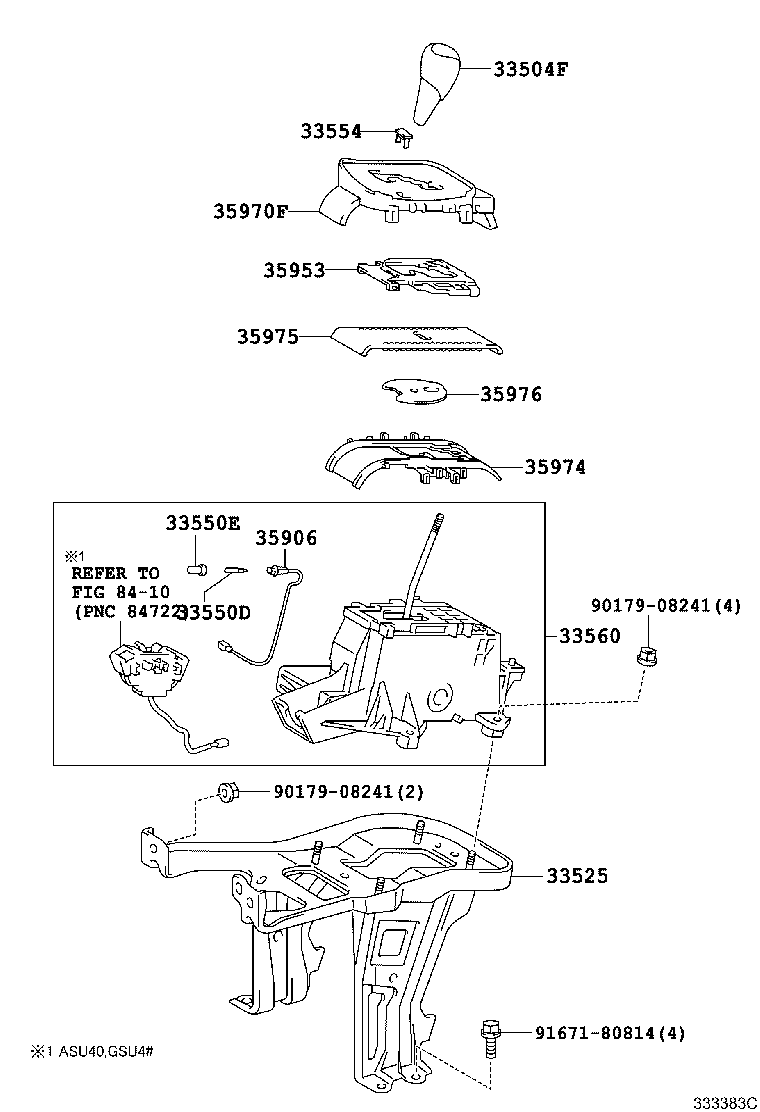

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 33504F 33525 33550D 33550E 33554 33560 35906 35953 35970F 35974 35975 35976 8410 9017908241 9017908241 9167180814
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-48060C0

GSU4#..GD,SPO

BLACK,TRIM1#,2#

 1
33504-48060E0

GSU4#..GD,SPO

DK. BROWN,TRIM4#

 1
33525 - SUPPORT, SHIFT LEVER
58123-48010

ASU40,GSU4#,MHU48

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ASU40,GSU4#,MHU48

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

ASU40,GSU4#,MHU48

 1
33554 - CAP, SHIFT LEVER
33554-48040

ASU40,GSU4#,MHU48

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-48310

ASU40,GSU4#..GD,SPO,STD

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-48090

ASU40,GSU4#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-48080

ASU40,GSU4#,MHU48

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-48100

ASU40,GSU4#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48090

ASU40,GSU4#,MHU48

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-48060

ASU40,GSU4#,MHU48

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48040

ASU40,GSU4#,MHU48

 1
Common parts
90179-08241
91671-80814
Linked diagrams
8410
