GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-0812)1ARFE,2GRFE

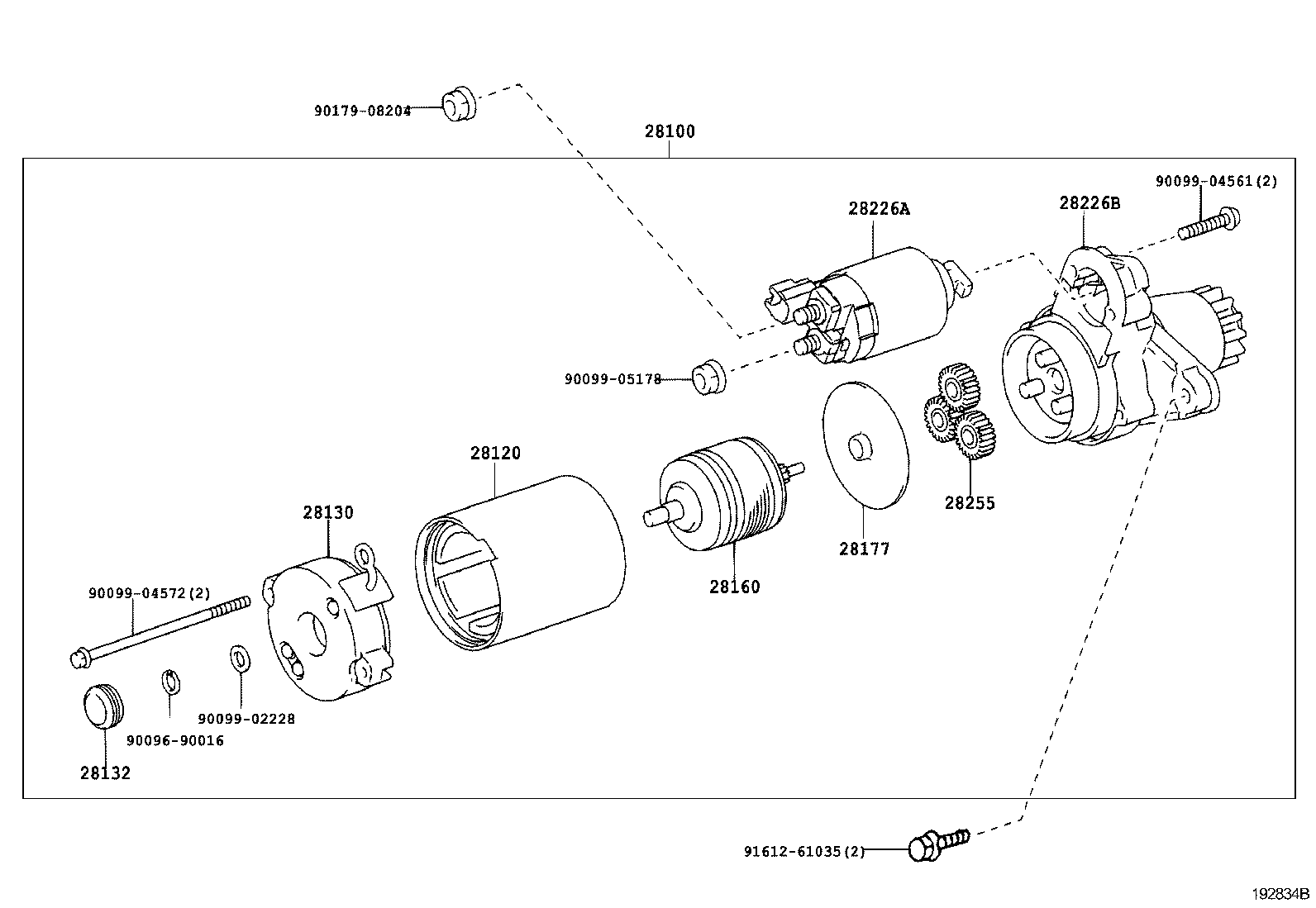

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28120 28130 28132 28160 28177 28226A 28226B 28255 9009690016 9009902228 9009904561 9009904572 9009905178 9017908204 9161261035
Part # Description Qty Price
28100 - STARTER ASSY
28100-28072

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-20020

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-28070

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-28071

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28120-28040

2GRFE..GSU4#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-20020

1ARFE,2GRFE..ASU40,GSU4#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28160 - ARMATURE ASSY, STARTER
28160-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-28051

1ARFE,2GRFE..ASU40,GSU4#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28226-28041

1ARFE,2GRFE..ASU40,GSU4#

 1
28255 - GEAR, PLANET
28255-20020

1ARFE,2GRFE..ASU40,GSU4#

 3
Common parts
90096-90016
90099-02228
90099-04561
90099-04572
90099-05178
90179-08204
91612-61035

(0812- )1ARFE,2GRFE

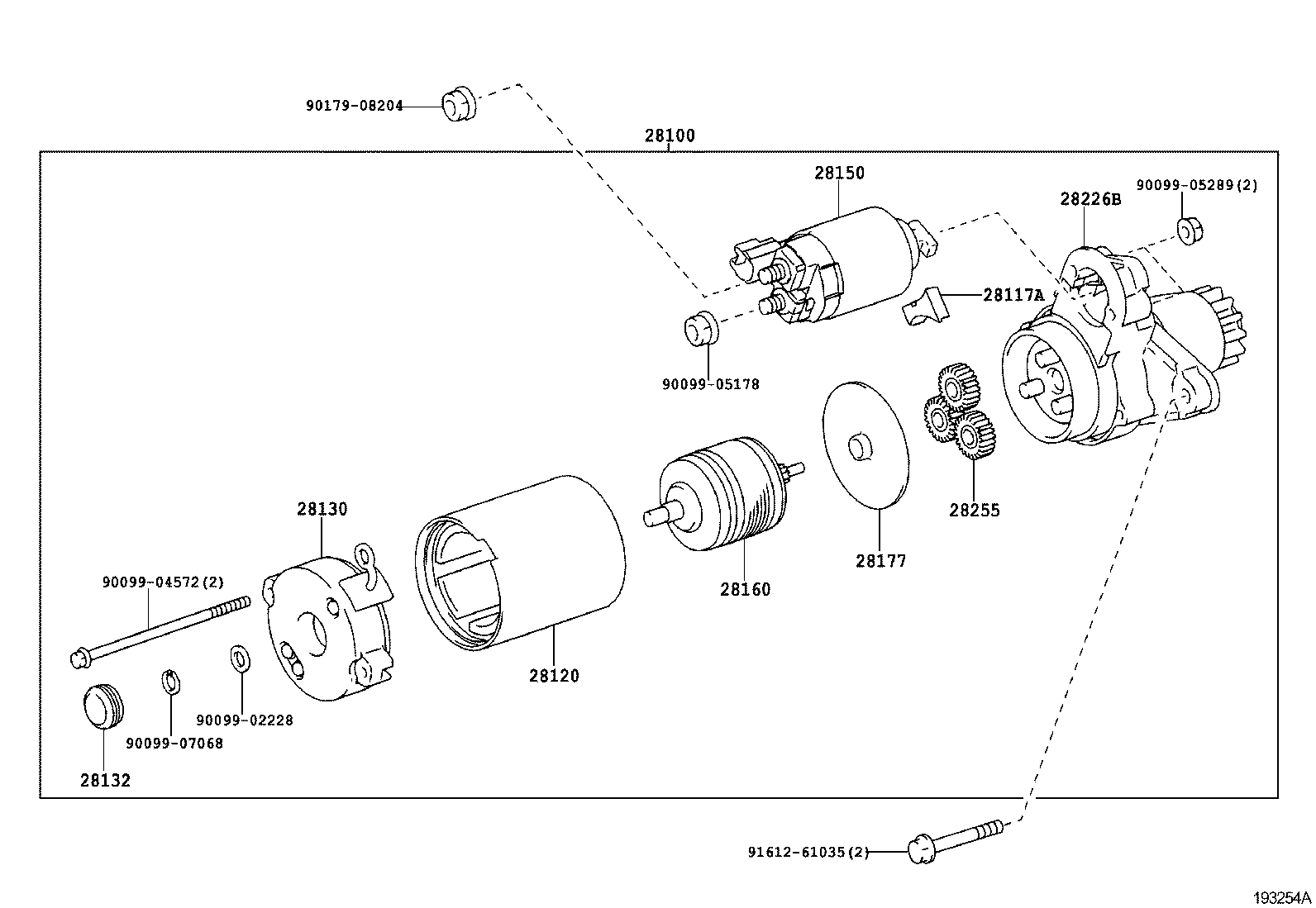

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28117A 28120 28130 28132 28150 28160 28177 28226B 28255 9009902228 9009904572 9009905178 9009905289 9009907068 9017908204 9161261035
Part # Description Qty Price
28100 - STARTER ASSY
28100-28072

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-20020

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-28070

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28100-28071

1ARFE,2GRFE..ASU40,GSU4#

12V 1.7KW

 1
28117A - SEAL, RUBBER
28117-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28120 - YOKE ASSY, STARTER
28120-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28120-28040

2GRFE..GSU4#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-20020

1ARFE,2GRFE..ASU40,GSU4#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090

1ARFE,2GRFE..ASU40,GSU4#

 1
28150-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28160 - ARMATURE ASSY, STARTER
28160-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1ARFE,2GRFE..ASU40,GSU4#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-28060

1ARFE,2GRFE..ASU40,GSU4#

 1
28226-28041

1ARFE,2GRFE..ASU40,GSU4#

 1
28255 - GEAR, PLANET
28255-20020

1ARFE,2GRFE..ASU40,GSU4#

 3
Common parts
90099-02228
90099-04572
90099-05178
90099-05289
90099-07068
90179-08204
91612-61035
