GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )2GR#

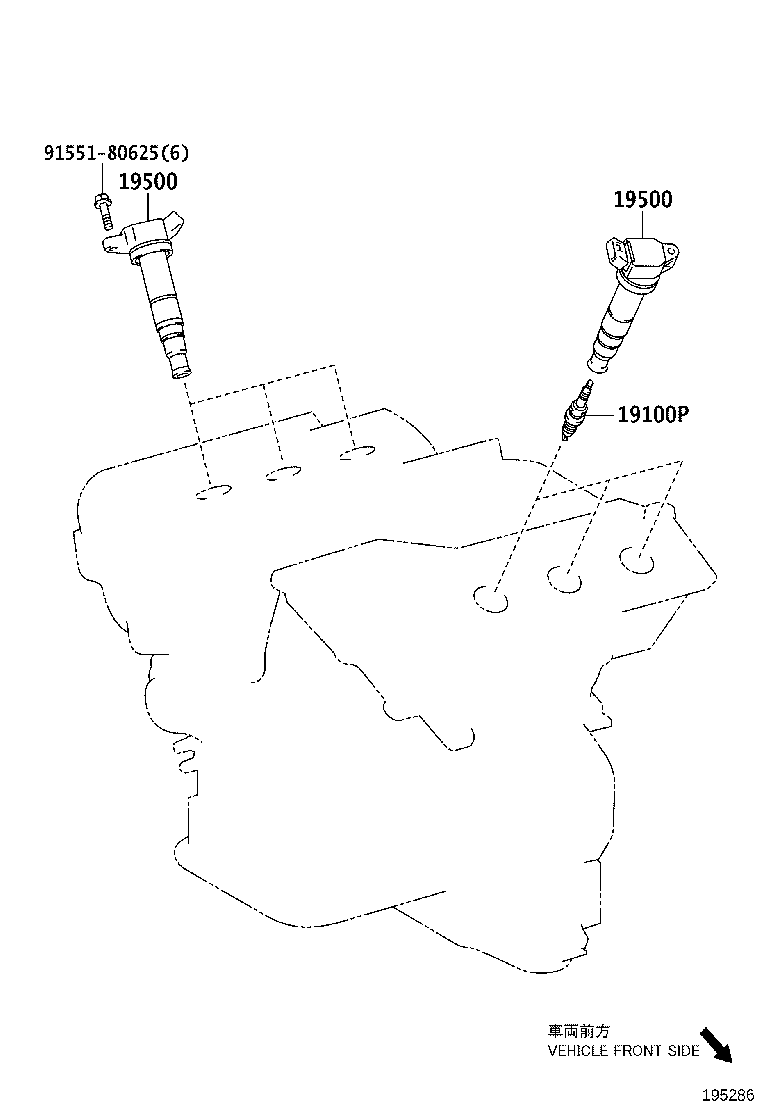

Click highlighted areas on diagram

diagram 19100P 19500 19500 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01247

2GRFE..GSU4#

FK20HR11

 6
19500 - COIL ASSY, IGNITION
90919-02251

2GRFE..GSU4#

 6
19500 - COIL ASSY, IGNITION
90919-02251

2GRFE..GSU4#

 6
Common parts
91551-80625
