GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1008)2GRFE

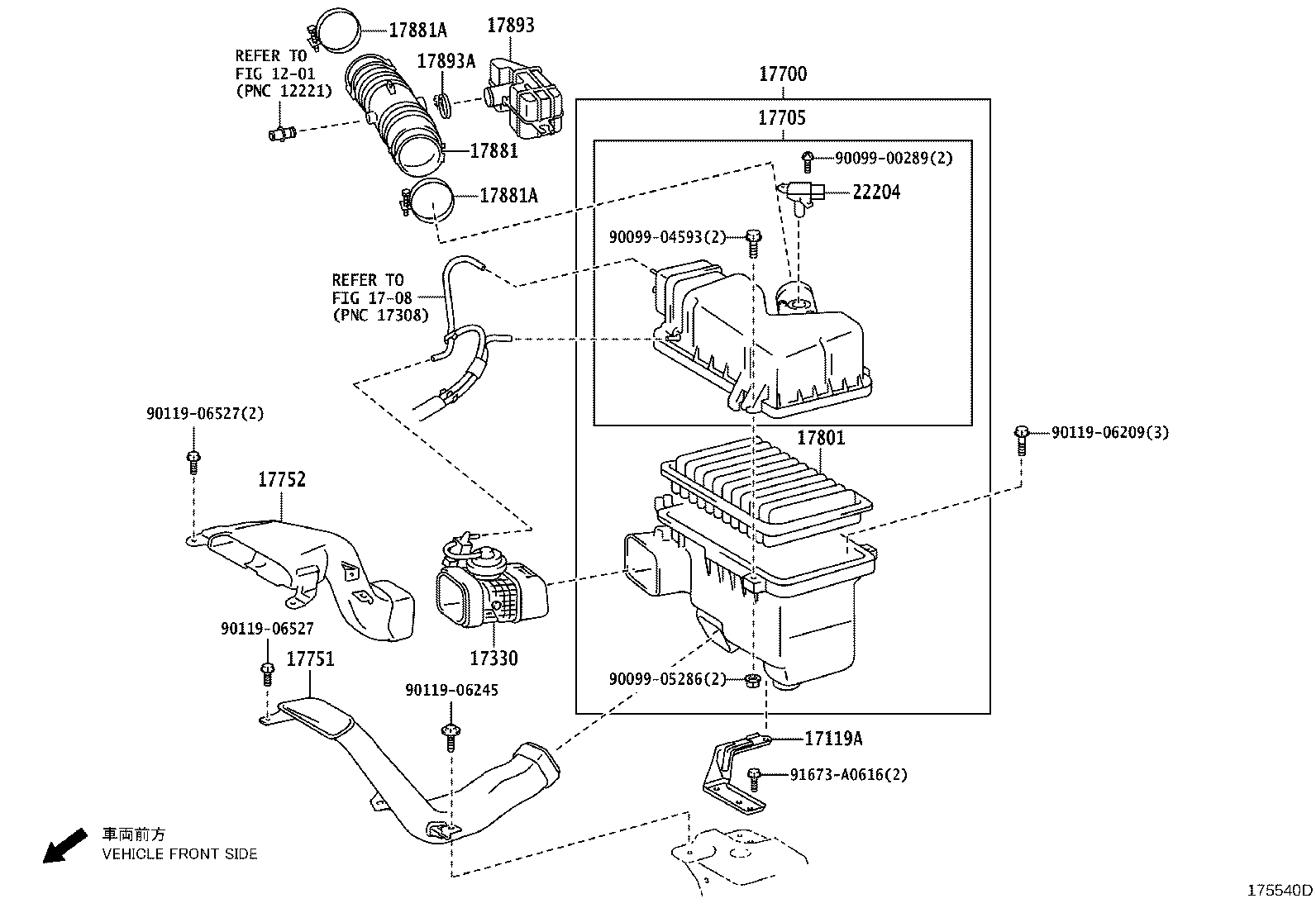

Click highlighted areas on diagram

diagram 1201 1708 17119A 17330 17700 17705 17751 17752 17801 17881 17881A 17881A 17893 17893A 22204 9009900289 9009904593 9009905286 9011906209 9011906245 9011906527 9011906527 91673A0616
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-28050

2GRFE..GSU4#

 1
17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3
17330-20010

2GRFE..GSU4#

 1
17700 - CLEANER ASSY, AIR
17700-31671

2GRFE..GSU4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31211

2GRFE..GSU4#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31200

2GRFE..GSU4#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31080

2GRFE..GSU4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0H020

2GRFE..GSU4#

(L)

 1
17801-20040

2GRFE..GSU4#

(J)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-31190

2GRFE..GSU4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSU4#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSU4#

 2
17893 - RESONATOR, INTAKE AIR
17893-31090

2GRFE..GSU4#

 1
17893A - CLAMP, HOSE
96111-10450

2GRFE..GSU4#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31020

2GRFE..GSU4#

 1
Common parts
90099-00289
90099-04593
90099-05286
90119-06209
90119-06245
90119-06527
91673-A0616
Linked diagrams
1201
1708
