GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

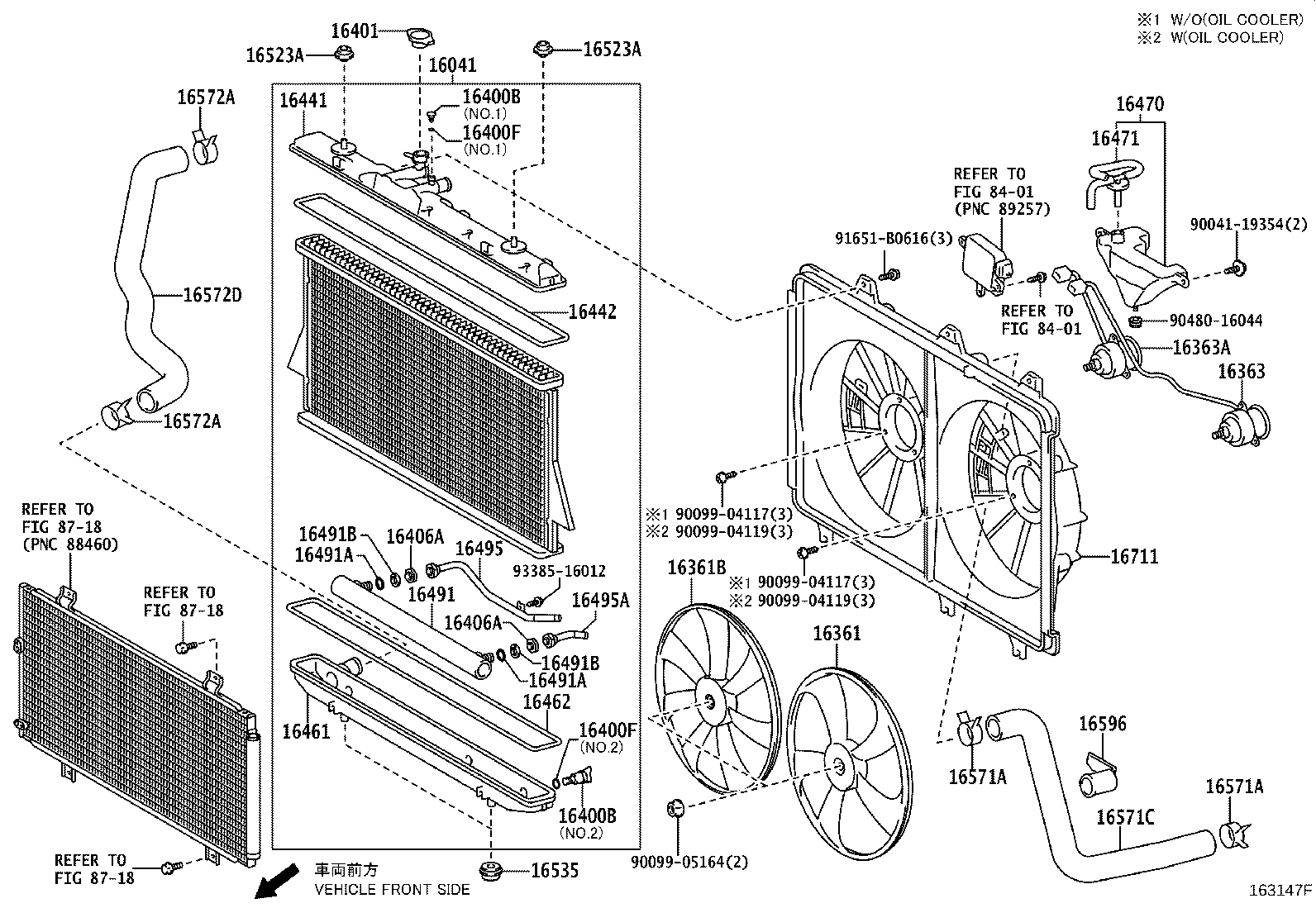

ILLUST NO. 1 OF 2(0705-1008)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-31550 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16041-31540 |
2GRFE..GSU4# |
1 | ||
| 16361 - FAN | ||||
| 16361-31280 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16361-31260 |
2GRFE..GSU4# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31270 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16361-31250 |
2GRFE..GSU4# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31210 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16363-31270 |
2GRFE..GSU4# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31280 |
2GRFE..GSU4# |
1 | ||
| 16363-46170 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
2GRFE..GSU4# NO.2 |
1 | ||
| 16417-28530 |
2GRFE..GSU4# NO.1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
2GRFE..GSU4# NO.2 |
1 | ||
| 16417-28530 |
2GRFE..GSU4# NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSU4# NO.2 |
1 | ||
| 16418-20290 |
2GRFE..GSU4# NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSU4# NO.2 |
1 | ||
| 16418-20290 |
2GRFE..GSU4# NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
2GRFE..GSU4# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2GRFE..GSU4# |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2GRFE..GSU4# |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-31540 |
2GRFE..GSU4# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-31410 |
2GRFE..GSU4# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-31540 |
2GRFE..GSU4# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-31410 |
2GRFE..GSU4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31090 |
2GRFE..GSU4# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31060 |
2GRFE..GSU4# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
2GRFE..GSU4# |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2GRFE..GSU4# |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2GRFE..GSU4# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2GRFE..GSU4# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2GRFE..GSU4# |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-31540 |
2GRFE..GSU4# |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16495-31550 |
2GRFE..GSU4# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
2GRFE..GSU4# |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
2GRFE..GSU4# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSU4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSU4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSU4# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31230 |
2GRFE..GSU4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2GRFE..GSU4# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2GRFE..GSU4# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31270 |
2GRFE..GSU4# |
1 | ||
| 16596 - STAY, RADIATOR PIPE | ||||
| 16596-31010 |
2GRFE..GSU4# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31360 |
2GRFE..GSU4# |
1 | ||
| 16711-31370 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| Common parts | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90480-16044 | ||||
| 91651-B0616 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||

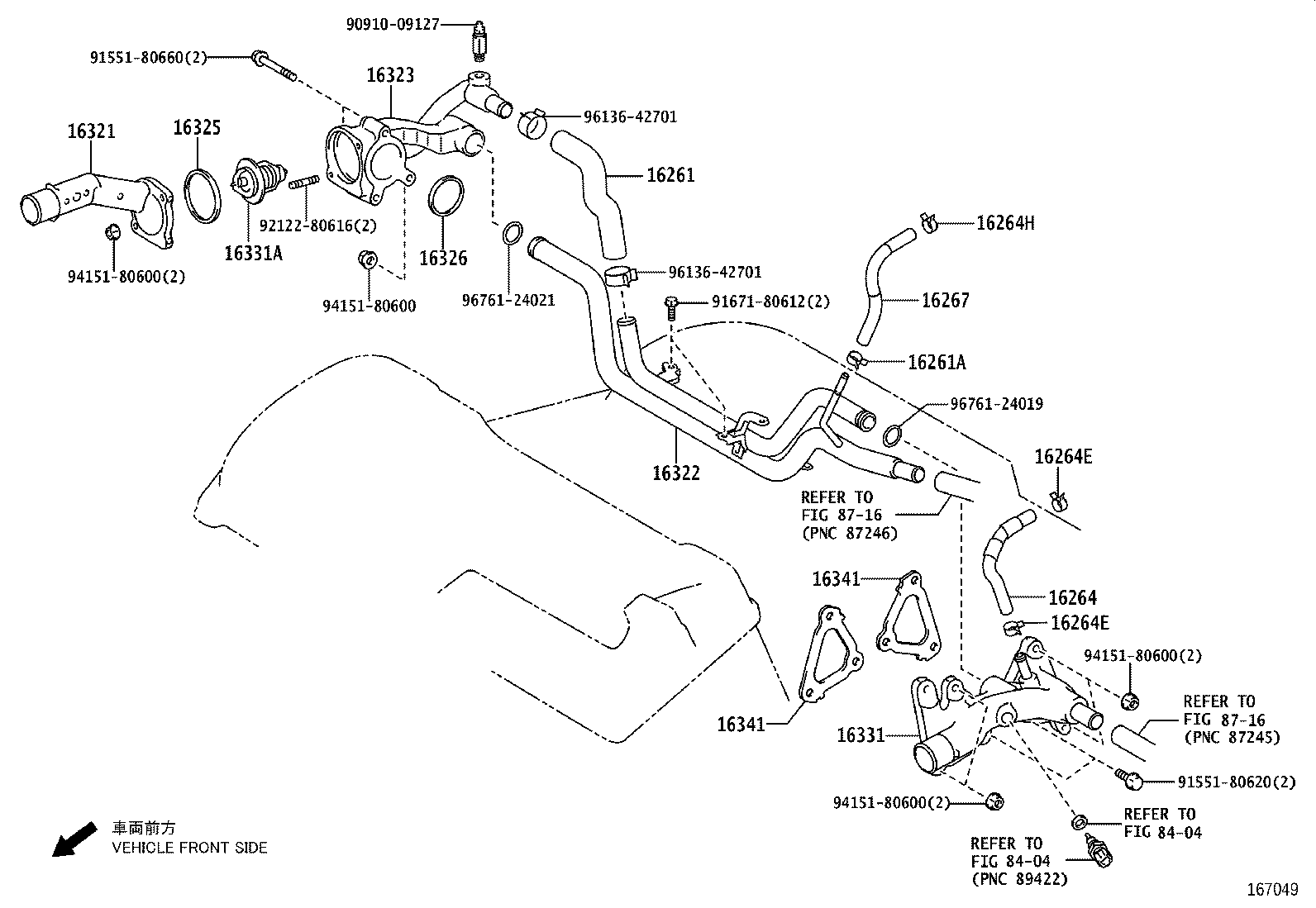

ILLUST NO. 2 OF 2(0705-1008)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSU4# |
1 | ||
| 16261-31050 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2GRFE..GSU4# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSU4# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSU4# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSU4# |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSU4# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16267-31040 |
2GRFE..GSU4# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31011 |
2GRFE..GSU4# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31030 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16322-31010 |
2GRFE..GSU4# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0W011 |
2GRFE..GSU4# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSU4# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GSU4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31150 |
2GRFE..GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 16331-31140 |
2GRFE..GSU4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03133 |
2GRFE..GSU4# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSU4# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSU4# |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
