GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

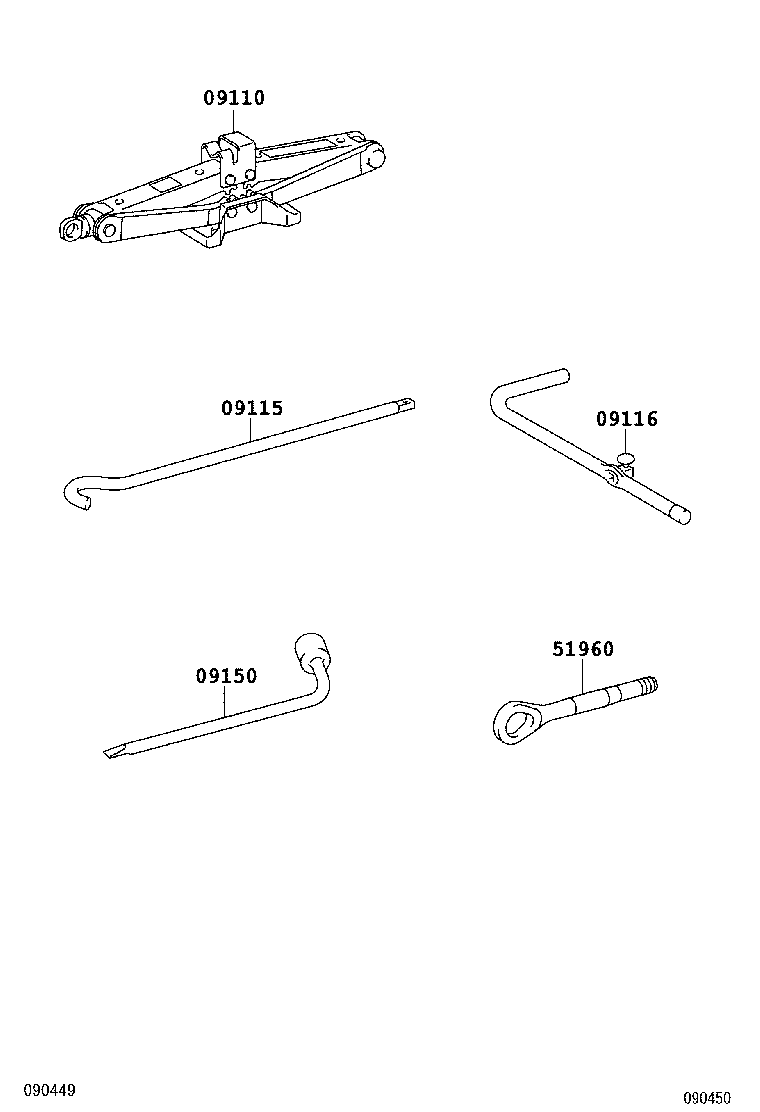

diagram 09110 09115 09116 09150 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-0W110

ASU40,GSU4#,MHU48

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-48010

ASU40,GSU4#,MHU48

 1
09116 - LEVER, JACK HANDLE
09116-48010

ASU40,GSU4#,MHU48

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

ASU40,GSU4#,MHU48

 1
51960 - HOOK ASSY, FRONT
51961-30020

ASU40,GSU4#,MHU48

 2
