GSU40L-BRAGKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ASU40,GSU40

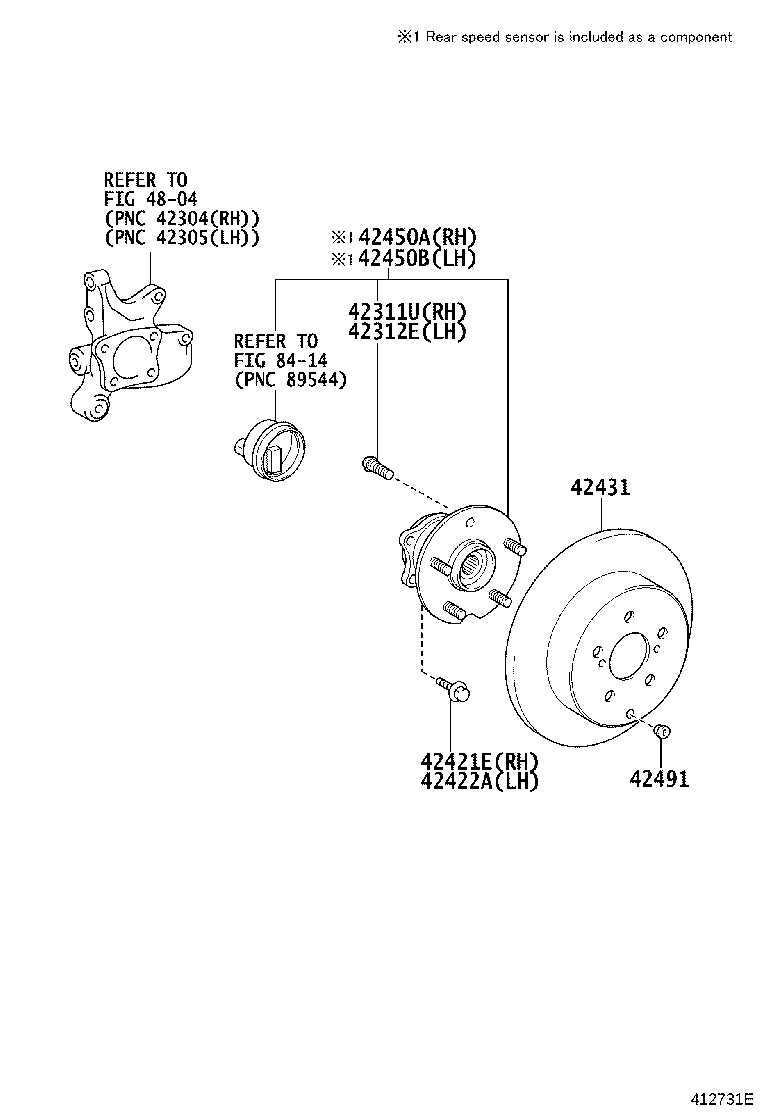

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 42491 4804 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

ASU40,GSU4#,MHU48

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

ASU40,GSU4#,MHU48

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12332

ASU40,GSU4#,MHU48

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12332

ASU40,GSU4#,MHU48

 4
42431 - DISC, REAR
42431-48060

ASU40,GSU4#,MHU48

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-48040

ASU40,GSU40

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42460-48040

ASU40,GSU40

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ASU40,GSU4#,MHU48

 2
Linked diagrams
4804
8414
