MCU25L-BWPNKA (2000)

Toyota Highlander

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

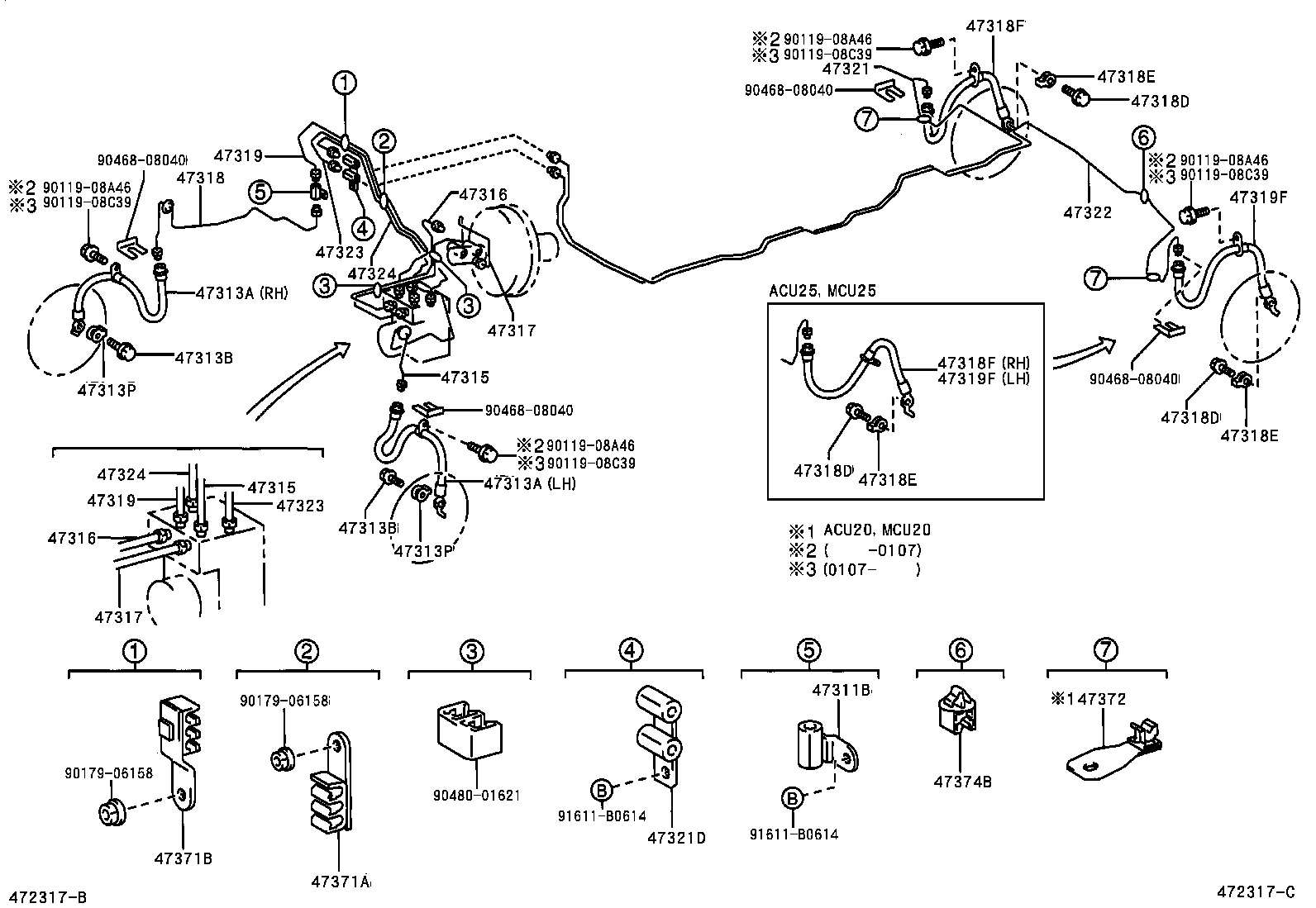

ILLUST NO. 1 OF 2(0011-0308)

Click highlighted areas on diagram

diagram 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47315 47315 47316 47316 47317 47317 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47321D 47322 47323 47323 47324 47324 47371A 47371B 47372 47374B 9011908A46 9011908A46 9011908A46 9011908A46 9011908C39 9011908C39 9011908C39 9011908C39 9017906158 9017906158 9046808040 9046808040 9046808040 9046808040 9048001621 91611B0614 91611B0614
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C60

ACU2#,MCU2#

LH

 1
90947-02A51

ACU2#,MCU2#

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C60

ACU2#,MCU2#

LH

 1
90947-02A51

ACU2#,MCU2#

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48060

ACU2#,MCU2#

W(VSC)

 1
47315-48050

ACU2#,MCU2#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-48060

ACU2#,MCU2#

W(VSC)

 1
47315-48050

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48130

ACU2#,MCU2#

 1
47316-48140

ACU2#,MCU2#

W(VSC)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48130

ACU2#,MCU2#

 1
47316-48140

ACU2#,MCU2#

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48130

ACU2#,MCU2#

 1
47317-48140

ACU2#,MCU2#

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48130

ACU2#,MCU2#

 1
47317-48140

ACU2#,MCU2#

W(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48070

ACU2#,MCU2#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48120

ACU2#,MCU2#

W(VSC)

 1
47319-48110

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48120

ACU2#,MCU2#

W(VSC)

 1
47319-48110

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48030

ACU2#,MCU2#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10158

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48040

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48140

ACU2#,MCU2#

W(VSC)

 1
47323-48130

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48140

ACU2#,MCU2#

W(VSC)

 1
47323-48130

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48140

ACU2#,MCU2#

W(VSC)

 1
47324-48130

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48140

ACU2#,MCU2#

W(VSC)

 1
47324-48130

ACU2#,MCU2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-48010

ACU2#,MCU2#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-48120

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-48050

ACU2#,MCU2#

 1
90469-07017

ACU2#,MCU2#

 1
Common parts
90119-08A46
90119-08C39
90179-06158
90468-08040
90480-01621
91611-B0614

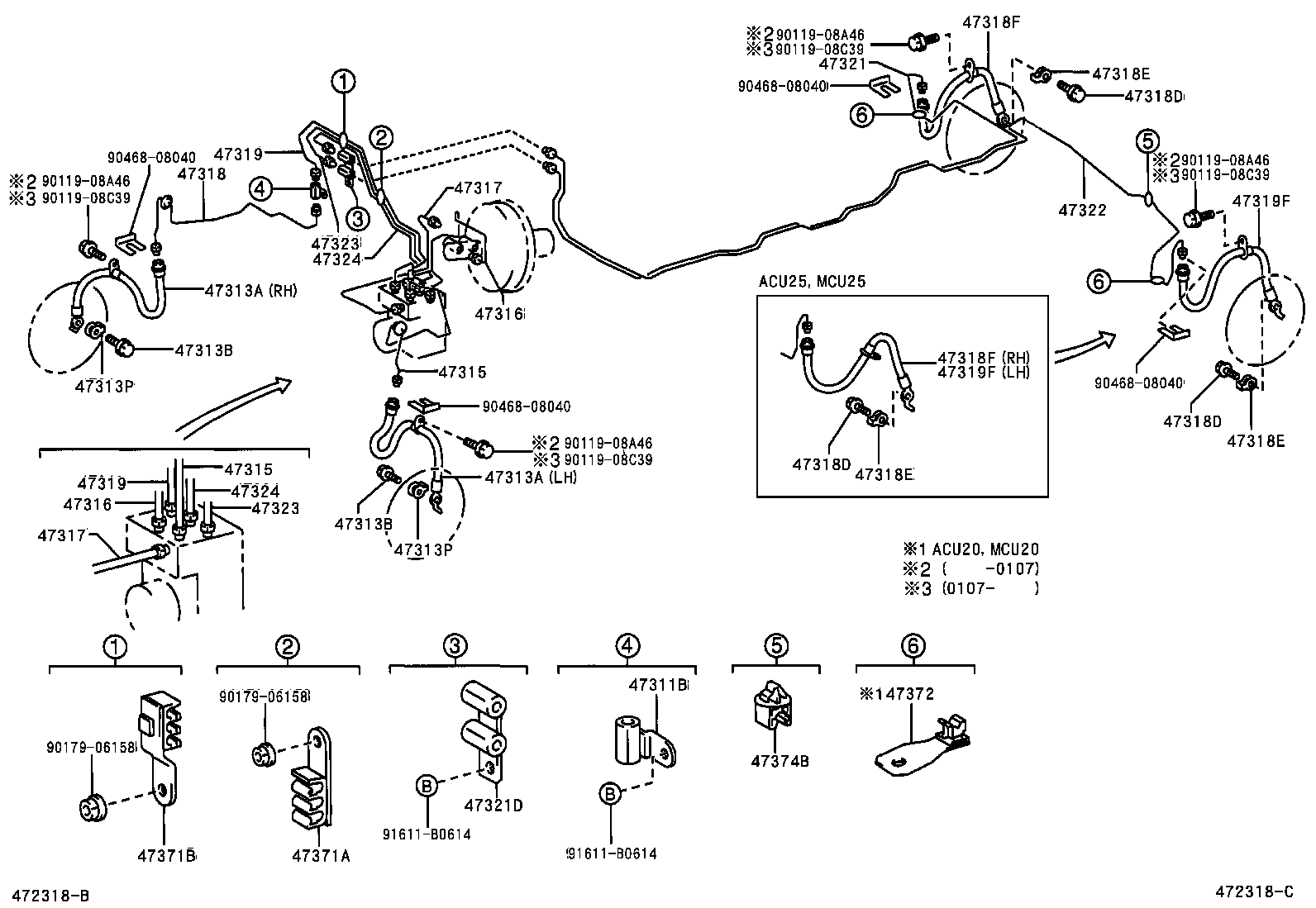

ILLUST NO. 1 OF 2(0011-0308)

Click highlighted areas on diagram

W(VSC)

diagram 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47315 47315 47316 47316 47317 47317 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47321D 47322 47323 47323 47324 47324 47371A 47371B 47372 47374B 9011908A46 9011908A46 9011908A46 9011908A46 9011908C39 9011908C39 9011908C39 9011908C39 9017906158 9017906158 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C60

ACU2#,MCU2#

LH

 1
90947-02A51

ACU2#,MCU2#

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C60

ACU2#,MCU2#

LH

 1
90947-02A51

ACU2#,MCU2#

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48060

ACU2#,MCU2#

W(VSC)

 1
47315-48050

ACU2#,MCU2#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-48060

ACU2#,MCU2#

W(VSC)

 1
47315-48050

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48130

ACU2#,MCU2#

 1
47316-48140

ACU2#,MCU2#

W(VSC)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48130

ACU2#,MCU2#

 1
47316-48140

ACU2#,MCU2#

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48130

ACU2#,MCU2#

 1
47317-48140

ACU2#,MCU2#

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48130

ACU2#,MCU2#

 1
47317-48140

ACU2#,MCU2#

W(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48070

ACU2#,MCU2#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48120

ACU2#,MCU2#

W(VSC)

 1
47319-48110

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48120

ACU2#,MCU2#

W(VSC)

 1
47319-48110

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48030

ACU2#,MCU2#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10158

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48040

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48140

ACU2#,MCU2#

W(VSC)

 1
47323-48130

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48140

ACU2#,MCU2#

W(VSC)

 1
47323-48130

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48140

ACU2#,MCU2#

W(VSC)

 1
47324-48130

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48140

ACU2#,MCU2#

W(VSC)

 1
47324-48130

ACU2#,MCU2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-48010

ACU2#,MCU2#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-48120

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-48050

ACU2#,MCU2#

 1
90469-07017

ACU2#,MCU2#

 1
Common parts
90119-08A46
90119-08C39
90179-06158
90468-08040
91611-B0614

ILLUST NO. 2 OF 2(0011-0308)

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 44590 9009905277 9009905277 9017908249 9017908249 9162660825 9162660825 9162660825 9162660825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48010

ACU2#,MCU2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

ACU2#,MCU2#

W(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

ACU2#,MCU2#

W(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48060

ACU2#,MCU2#

W(VSC),NO.1

 1
44590-48040

ACU2#,MCU2#

NO.1

 1
44590-48070

ACU2#,MCU2#

NO.2

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48060

ACU2#,MCU2#

W(VSC),NO.1

 1
44590-48040

ACU2#,MCU2#

NO.1

 1
44590-48070

ACU2#,MCU2#

NO.2

 1
Common parts
90099-05277
90179-08249
91626-60825

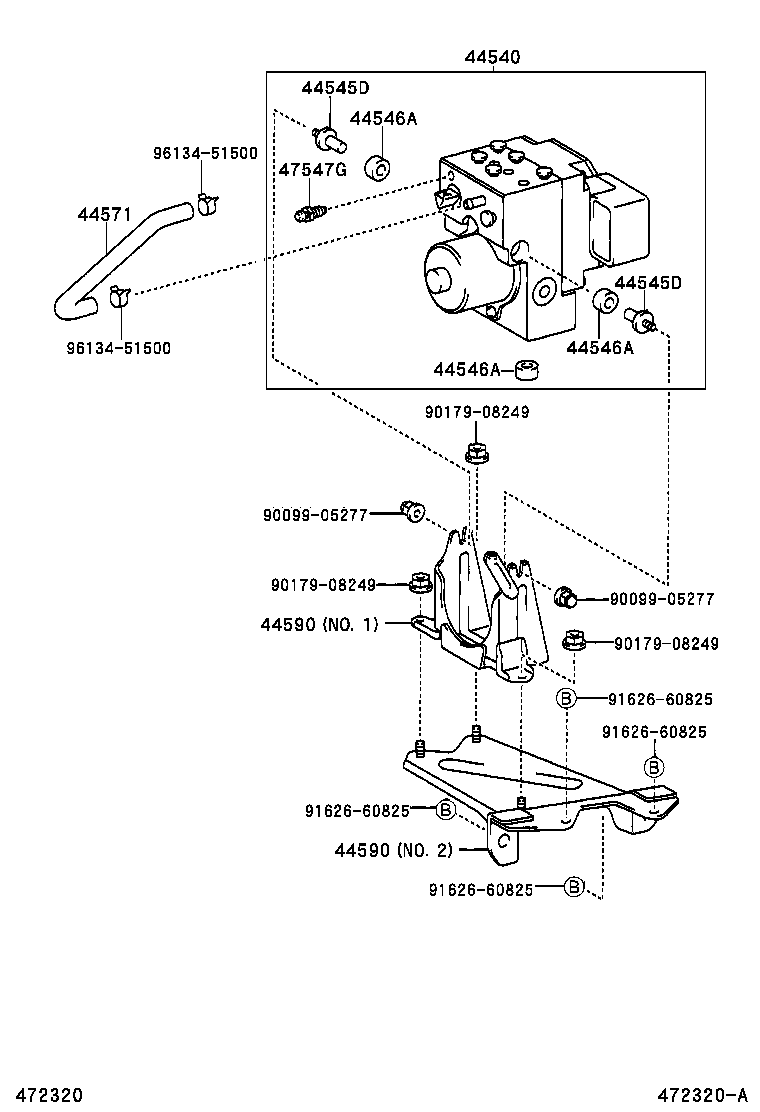

ILLUST NO. 2 OF 2(0011-0308)

Click highlighted areas on diagram

W(VSC)

diagram 44540 44545D 44545D 44546A 44546A 44546A 44571 44590 44590 47547G 9009905277 9009905277 9017908249 9017908249 9017908249 9162660825 9162660825 9162660825 9162660825 9613451500 9613451500
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-48030

ACU2#,MCU2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

ACU2#,MCU2#

W(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

ACU2#,MCU2#

W(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

ACU2#,MCU2#

W(VSC)

 3
44546-42090

ACU2#,MCU2#

 3
44571 - HOSE, BRAKE ACTUATOR
44571-48060

ACU2#,MCU2#

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48060

ACU2#,MCU2#

W(VSC),NO.1

 1
44590-48040

ACU2#,MCU2#

NO.1

 1
44590-48070

ACU2#,MCU2#

NO.2

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48060

ACU2#,MCU2#

W(VSC),NO.1

 1
44590-48040

ACU2#,MCU2#

NO.1

 1
44590-48070

ACU2#,MCU2#

NO.2

 1
47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)
47547-27030

ACU2#,MCU2#

 1
Common parts
90099-05277
90179-08249
91626-60825
96134-51500
