MCU25L-BWPNKA (2000)

Toyota Highlander

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)1MZFE

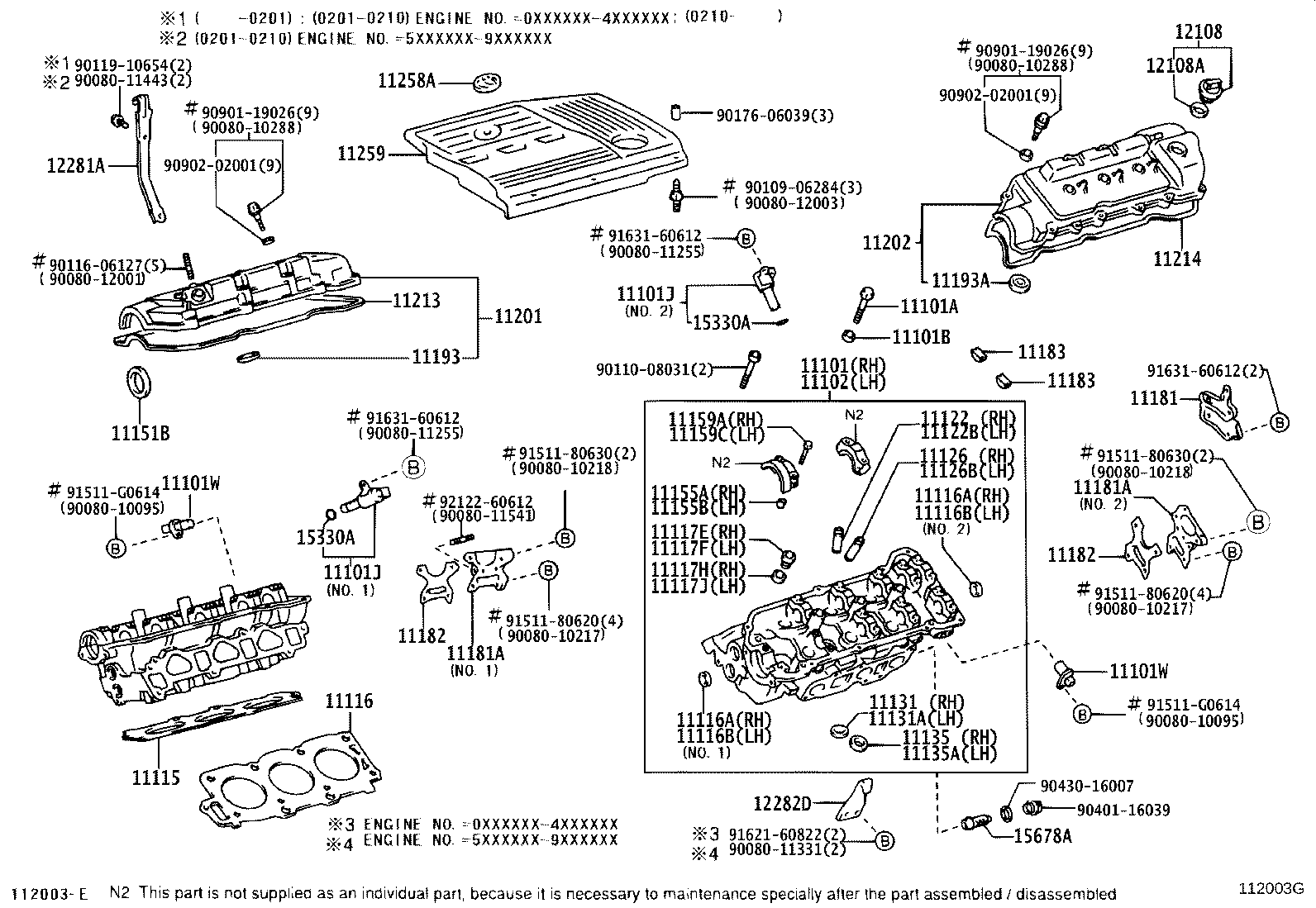

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101J 11101J 11101W 11101W 11102 11115 11116 11116A 11116A 11116B 11116B 11117E 11117F 11117H 11117J 11122 11122B 11126 11126B 11131 11131A 11135 11135A 11151B 11155A 11155B 11159A 11159C 11181 11181A 11181A 11182 11182 11183 11183 11193 11193A 11201 11202 11213 11214 11258A 11259 12108 12108A 12281A 12282D 15330A 15330A 15678A 9008010095 9008010095 9008010217 9008010217 9008010218 9008010218 9008010288 9008010288 9008011255 9008011255 9008011331 9008011443 9008011541 9008012001 9008012003 9010906284 9011008031 9011606127 9011910654 9017606039 9040116039 9043016007 9090119026 9090119026 9090202001 9090202001 9151180620 9151180620 9151180630 9151180630 91511G0614 91511G0614 9162160822 9163160612 9163160612 9163160612 9212260612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29437

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02117

1MZFE..MCU2#

 16
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11031

1MZFE..MCU2#

 16
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-20010

1MZFE..MCU2#

NO.1

 1
15340-20011

1MZFE..MCU2#

NO.2,(J)

 1
15330-20011

1MZFE..MCU2#

NO.1,(J)

 1
15340-20010

1MZFE..MCU2#

NO.2

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-20010

1MZFE..MCU2#

NO.1

 1
15340-20011

1MZFE..MCU2#

NO.2,(J)

 1
15330-20011

1MZFE..MCU2#

NO.1,(J)

 1
15340-20010

1MZFE..MCU2#

NO.2

 1
11101W - SENSOR, CRANK POSITION, NO.1
90919-05026

1MZFE..MCU2#

 2
90919-05026

1MZFE..MCU25

 2
11101W - SENSOR, CRANK POSITION, NO.1
90919-05026

1MZFE..MCU2#

 2
90919-05026

1MZFE..MCU25

 2
11102 - HEAD, CYLINDER, LH
11102-29057

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11115 - GASKET, CYLINDER HEAD
11115-20030

1MZFE..MCU2#

 1
11115-20031

1MZFE..MCU2#

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-20030

1MZFE..MCU2#

 1
11116-20031

1MZFE..MCU2#

 1
11116A - PLUG, TIGHT, NO.1
96411-63000

1MZFE..MCU2#

NO.1

 2
96411-62500

1MZFE..MCU2#

NO.2

 1
11116A - PLUG, TIGHT, NO.1
96411-63000

1MZFE..MCU2#

NO.1

 2
96411-62500

1MZFE..MCU2#

NO.2

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

1MZFE..MCU2#

NO.2

 1
96411-63000

1MZFE..MCU2#

NO.1

 2
11116B - PLUG, TIGHT, NO.2
96411-62500

1MZFE..MCU2#

NO.2

 1
96411-63000

1MZFE..MCU2#

NO.1

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-24013

1MZFE..MCU2#

 2
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-24013

1MZFE..MCU2#

 2
11117H - GASKET(FOR WATER HOLE)
90430-24246

1MZFE..MCU2#

 2
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246

1MZFE..MCU2#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-20020

1MZFE..MCU2#

O/S 0.05

 6
11122-20020

1MZFE..MCU2#

STD

 6
11122B - BUSH, INTAKE VALVE GUIDE, NO.2
11122-20020

1MZFE..MCU2#

STD

 6
11123-20020

1MZFE..MCU2#

O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11127-20020

1MZFE..MCU2#

O/S 0.05

 6
11126-20020

1MZFE..MCU2#

STD

 6
11126B - BUSH, EXHAUST VALVE GUIDE, NO.2
11126-20020

1MZFE..MCU2#

STD

 6
11127-20020

1MZFE..MCU2#

O/S 0.05

 6
11131 - SEAT, INTAKE VALVE
11132-62030

1MZFE..MCU2#

O/S 0.03,ENGINE NO.=0XXXXXX-4XXXXXX

 6
11131-62030

1MZFE..MCU2#

STD,ENGINE NO.=0XXXXXX-4XXXXXX

 6
11132-62050

1MZFE..MCU2#

O/S 0.03

 6
11131-62050

1MZFE..MCU2#

STD

 6
11131A - SEAT, INTAKE VALVE, NO.2
11132-62030

1MZFE..MCU2#

O/S 0.03,ENGINE NO.=0XXXXXX-4XXXXXX

 6
11131-62050

1MZFE..MCU2#

STD

 6
11132-62050

1MZFE..MCU2#

O/S 0.03

 6
11131-62030

1MZFE..MCU2#

STD,ENGINE NO.=0XXXXXX-4XXXXXX

 6
11135 - SEAT, EXHAUST VALVE
11135-20040

1MZFE..MCU2#

STD

 6
11136-20040

1MZFE..MCU2#

O/S 0.03

 6
11135A - SEAT, EXHAUST VALVE, NO.2
11135-20040

1MZFE..MCU2#

STD

 6
11136-20040

1MZFE..MCU2#

O/S 0.03

 6
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-38034

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 2
90311-38034

1MZFE..MCU2#

 2
11155A - PIN, RING W/HEAD
90253-10004

1MZFE..MCU2#

 19
11155B - PIN, RING
90253-10004

1MZFE..MCU2#

 19
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1MZFE..MCU2#

 20
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1MZFE..MCU2#

 20
11181 - PLATE, CYLINDER HEAD, REAR
11181-0A020

1MZFE..MCU2#

(L)

 1
11181-20040

1MZFE..MCU2#

(J)

 1
11181A - COVER, CYLINDER HEAD, REAR
11108-20010

1MZFE..MCU2#

NO.1

 1
11109-20010

1MZFE..MCU2#

NO.2

 1
11181A - COVER, CYLINDER HEAD, REAR
11108-20010

1MZFE..MCU2#

NO.1

 1
11109-20010

1MZFE..MCU2#

NO.2

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-20020

1MZFE..MCU2#

 2
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-20020

1MZFE..MCU2#

 2
11183 - PLUG, SEMICIRCULAR
11183-20010

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 2
11183-20010

1MZFE..MCU2#

 2
11183 - PLUG, SEMICIRCULAR
11183-20010

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 2
11183-20010

1MZFE..MCU2#

 2
11193 - GASKET, SPARK PLUG TUBE
11193-16010

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 3
11193A - GASKET, SPARK PLUG TUBE, LH
11193-16010

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-20040

1MZFE..MCU2#

 1
11201-20060

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11201-20080

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-20050

1MZFE..MCU2#

 1
11202-20051

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-20030

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-20030

1MZFE..MCU2#

ENGINE NO.=0XXXXXX-4XXXXXX

 1
11258A - FASTENER, V-BANK COVER
11258-20020

1MZFE..MCU2#

 1
11259 - COVER, V-BANK
11259-20070

1MZFE..MCU2#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-46030

1MZFE..MCU2#

 1
12180-46031

1MZFE..MCU2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-20020

1MZFE..MCU2#

 1
12281A - HANGER, ENGINE, NO.1
12281-20050

1MZFE..MCU2#

 1
12282D - HANGER, ENGINE, NO.2
12282-20020

1MZFE..MCU2#

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

1MZFE..MCU2#

 2
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

1MZFE..MCU2#

 2
15678A - FILTER, OIL CONTROL VALVE
15678-20010

1MZFE..MCU2#

 2
Common parts
90080-10095
90080-10217
90080-10218
90080-10288
90080-11255
90080-11331
90080-11443
90080-11541
90080-12001
90080-12003
90109-06284
90110-08031
90116-06127
90119-10654
90176-06039
90401-16039
90430-16007
90901-19026
90902-02001
91511-80620
91511-80630
91511-G0614
91621-60822
91631-60612
92122-60612
