MCU23L-BRANKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )MCU2#

Click highlighted areas on diagram

U151E,151F

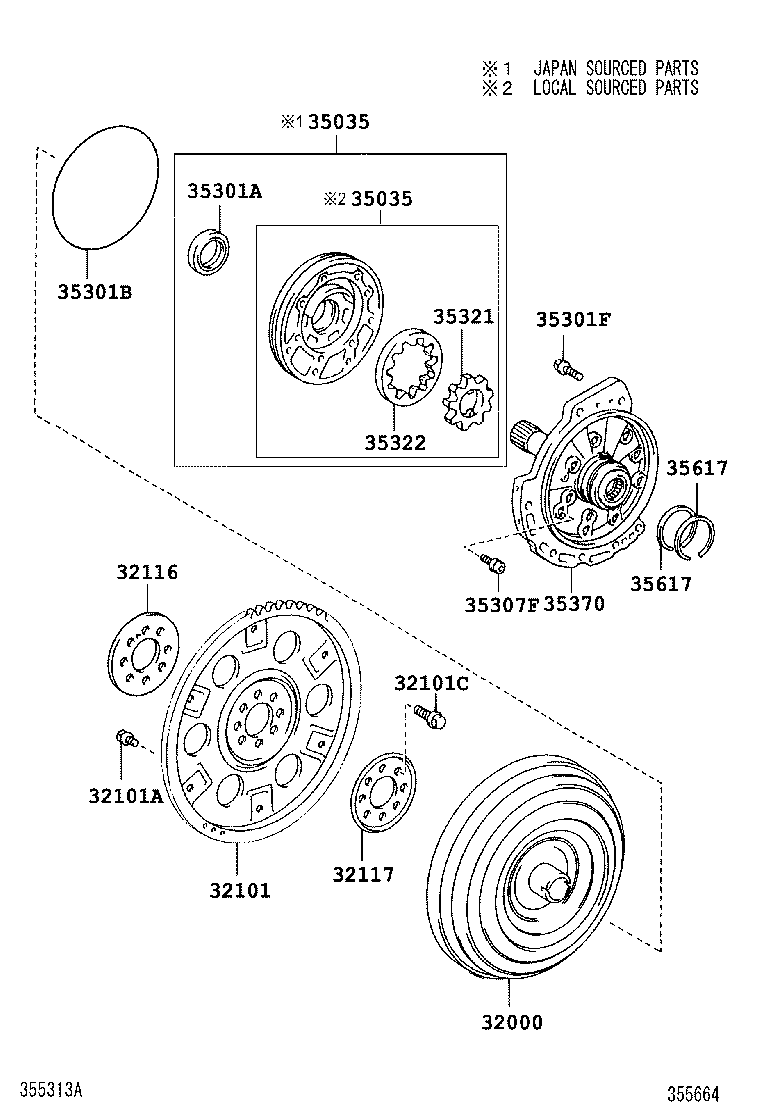

diagram 32000 32101 32101A 32101C 32116 32117 35035 35035 35301A 35301B 35301F 35307F 35321 35322 35370 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-28140

MCU2#

 1
32000-08010

MCU2#

(L)

 1
32000-48040

MCU2#

(J)

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-33010

MCU2#

 1
32101-48010

MCU2#

(J)

 1
32101-06010

MCU2#

(L)

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

ACU2#,MCU2#

*9-1.25PX12.4-7.3,GREEN

 1
90119-09025

ACU2#,MCU2#

*9-1.25PX12.4-8.4,YELLOW

 5
90119-09025

ACU2#,MCU2#

*9-1.25PX12.4-8.4,YELLOW

 5
90109-09001

ACU2#,MCU2#

*9-1.25PX12.4-7.3,GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ACU25,MCU2#

*10-1.25PX18-13

 8
90105-A0022

MCU2#

*10-1.25PX18-13,(L)

 8
90105-10048

MCU2#

*10-1.25PX18-13,(J)

 8
90105-12184

ACU2#,MCU2#

*12-1.25PX22-16

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020

MCU2#

 1
32116-32020

MCU2#

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

MCU2#

 1
32117-32020

MCU2#

 1
35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR
35035-28010

ACU2#,MCU2#

 1
35035-08010

MCU2#

(L)

 1
35035-33020

MCU2#

(J)

 1
35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR
35035-28010

ACU2#,MCU2#

 1
35035-08010

MCU2#

(L)

 1
35035-33020

MCU2#

(J)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90080-31068

MCU2#

(L)

 1
90311-38064

ACU2#,MCU2#

 1
90311-38083

MCU2#

(J)

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99099

ACU2#,MCU2#

 1
90301-99099

MCU2#

(J)

 1
90080-30078

MCU2#

(L)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08050

ACU2#,MCU2#

*8-1.25PX28-28

 7
90105-08050

ACU2#,MCU2#

*8-1.25PX28-28

 7
90080-10236

MCU2#

*8-1.25PX28-28,TOYOTA:REFER 35-01

 7
90105-08198

MCU2#

*8-1.25PX28-28,AISIN:REFER 35-01

 7
35307F - BOLT (FOR STATOR SHAFT)
90148-60027

MCU2#

(J)

 11
90148-60027

ACU2#,MCU2#

 11
90080-14044

MCU2#

(L)

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-28060

ACU2#,MCU2#

T=10.715,MARK 1

 1
35321-28070

ACU2#,MCU2#

T=10.715,MARK 2

 1
35321-28090

ACU2#,MCU2#

T=10.715,MARK 4

 1
35321-33080

MCU2#

T=11.715,MARK C,(J)

 1
35321-28080

ACU2#,MCU2#

T=10.715,MARK 3

 1
35321-33060

MCU2#

T=11.715,MARK A,(J)

 1
35321-08020

MCU2#

T=11.715,MARK B,(L)

 1
35321-08010

MCU2#

T=11.715,MARK A,(L)

 1
35321-33090

MCU2#

T=11.715,MARK D,(J)

 1
35321-28100

ACU2#,MCU2#

T=10.715,MARK 5

 1
35321-08030

MCU2#

T=11.715,MARK C,(L)

 1
35321-33100

MCU2#

T=11.715,MARK E,(J)

 1
35321-33070

MCU2#

T=11.715,MARK B,(J)

 1
35321-08050

MCU2#

T=11.715,MARK E,(L)

 1
35321-08040

MCU2#

T=11.715,MARK D,(L)

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-28080

ACU2#,MCU2#

T=10.715,MARK 3

 1
35322-28070

ACU2#,MCU2#

T=10.715,MARK 2

 1
35322-33070

MCU2#

T=11.715,MARK B,(J)

 1
35322-28060

ACU2#,MCU2#

T=10.715,MARK 1

 1
35322-33060

MCU2#

T=11.715,MARK A,(J)

 1
35322-28100

ACU2#,MCU2#

T=10.715,MARK 5

 1
35322-28090

ACU2#,MCU2#

T=10.715,MARK 4

 1
35322-33080

MCU2#

T=11.715,MARK C,(J)

 1
35322-33100

MCU2#

T=11.715,MARK E,(J)

 1
35322-08010

MCU2#

T=11.715,MARK A,(L)

 1
35322-08040

MCU2#

T=11.715,MARK D,(L)

 1
35322-08020

MCU2#

T=11.715,MARK B,(L)

 1
35322-08030

MCU2#

T=11.715,MARK C,(L)

 1
35322-08050

MCU2#

T=11.715,MARK E,(L)

 1
35322-33090

MCU2#

T=11.715,MARK D,(J)

 1
35370 - SHAFT ASSY, STATOR
35370-28010

ACU2#,MCU2#

 1
35370-28010

MCU2#

(J)

 1
35370-06010

MCU2#

(L)

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ACU2#,MCU2#

 2
35613-21010

ACU2#,MCU2#

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ACU2#,MCU2#

 2
35613-21010

ACU2#,MCU2#

 2
