MCU23L-BRANKA (2003)
Toyota Highlander
Production
Aug 2003
-
May 2007
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )3MZFE

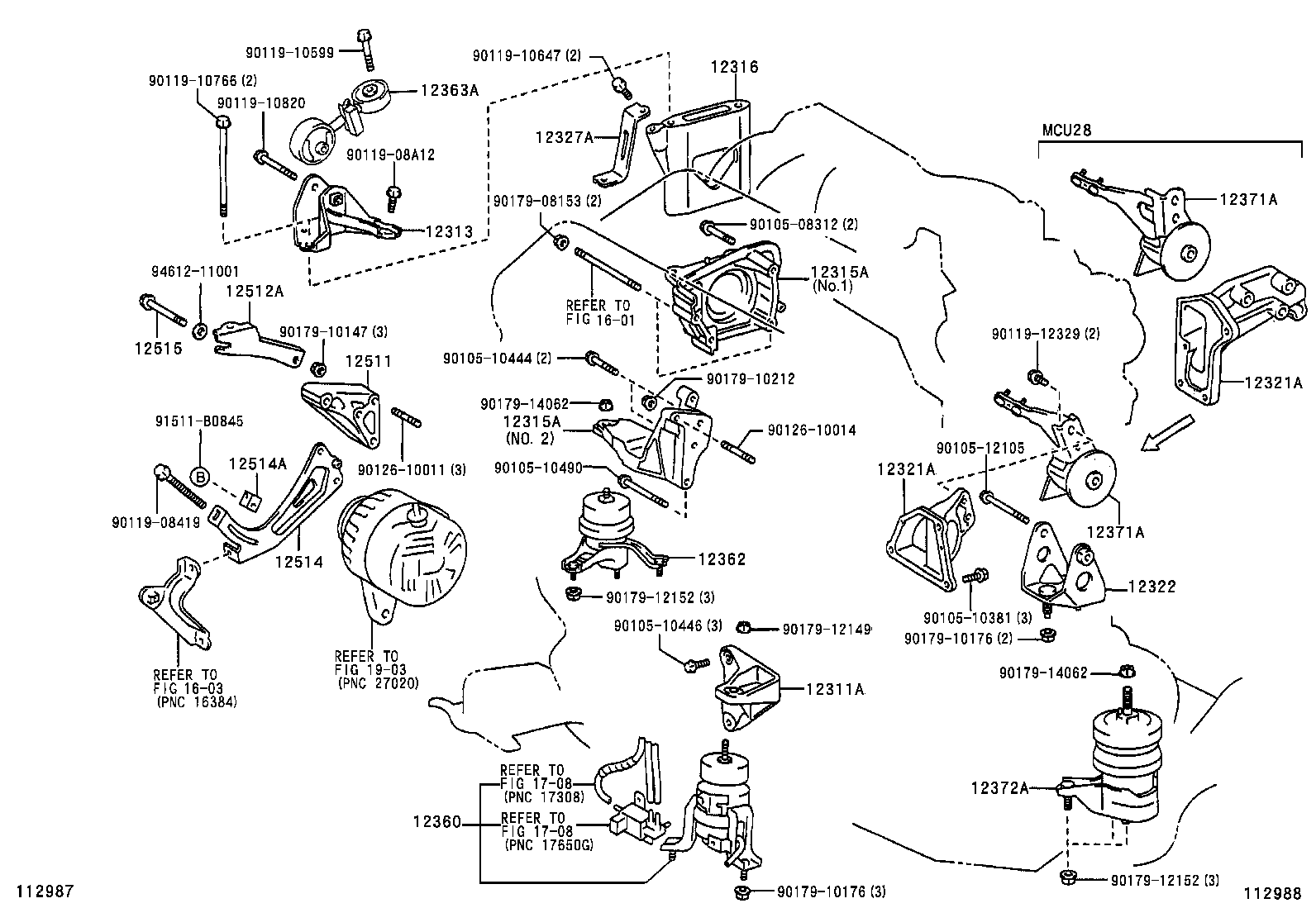

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-20070 |
3MZFE..MCU23 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-20060 |
3MZFE..MCU2# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-20020 |
3MZFE..MCU2# NO.1 |
1 | ||
| 12315-20040 |
3MZFE..MCU2# NO.2 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-20020 |
3MZFE..MCU2# NO.1 |
1 | ||
| 12315-20040 |
3MZFE..MCU2# NO.2 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-20020 |
3MZFE..MCU2# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-20100 |
3MZFE..MCU23 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-20100 |
3MZFE..MCU23 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-20040 |
3MZFE..MCU2# |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-20020 |
3MZFE..MCU2# |
1 | ||
| 12327-20030 |
3MZFE..MCU2# |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-20160 |
3MZFE..MCU23 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-20040 |
3MZFE..MCU23 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-20110 |
3MZFE..MCU2# |
1 | ||
| 12363-20111 |
3MZFE..MCU2# |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-20100 |
3MZFE..MCU23 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-20100 |
3MZFE..MCU23 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-20060 |
3MZFE..MCU23 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-20020 |
3MZFE..MCU2# |
1 | ||
| 12512A - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-20020 |
3MZFE..MCU2# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-20010 |
3MZFE..MCU2# |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-20010 |
3MZFE..MCU2# |
1 | ||
| 12515 - BOLT, ALTERNATOR THROUGH | ||||
| 12515-20010 |
3MZFE..MCU2# |
1 | ||
| Common parts | ||||
| 90105-08312 | ||||
| 90105-10381 | ||||
| 90105-10444 | ||||
| 90105-10446 | ||||
| 90105-10490 | ||||
| 90105-12105 | ||||
| 90119-08419 | ||||
| 90119-08A12 | ||||
| 90119-10599 | ||||
| 90119-10647 | ||||
| 90119-10766 | ||||
| 90119-10820 | ||||
| 90119-12329 | ||||
| 90126-10011 | ||||
| 90126-10014 | ||||
| 90179-08153 | ||||
| 90179-10147 | ||||
| 90179-10176 | ||||
| 90179-10212 | ||||
| 90179-12149 | ||||
| 90179-12152 | ||||
| 90179-14062 | ||||
| 91511-B0845 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1603 | ||||
| 1708 | ||||
| 1903 | ||||
