MCU20L-BWPNKA (2000)

Toyota Highlander

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)MCU2#

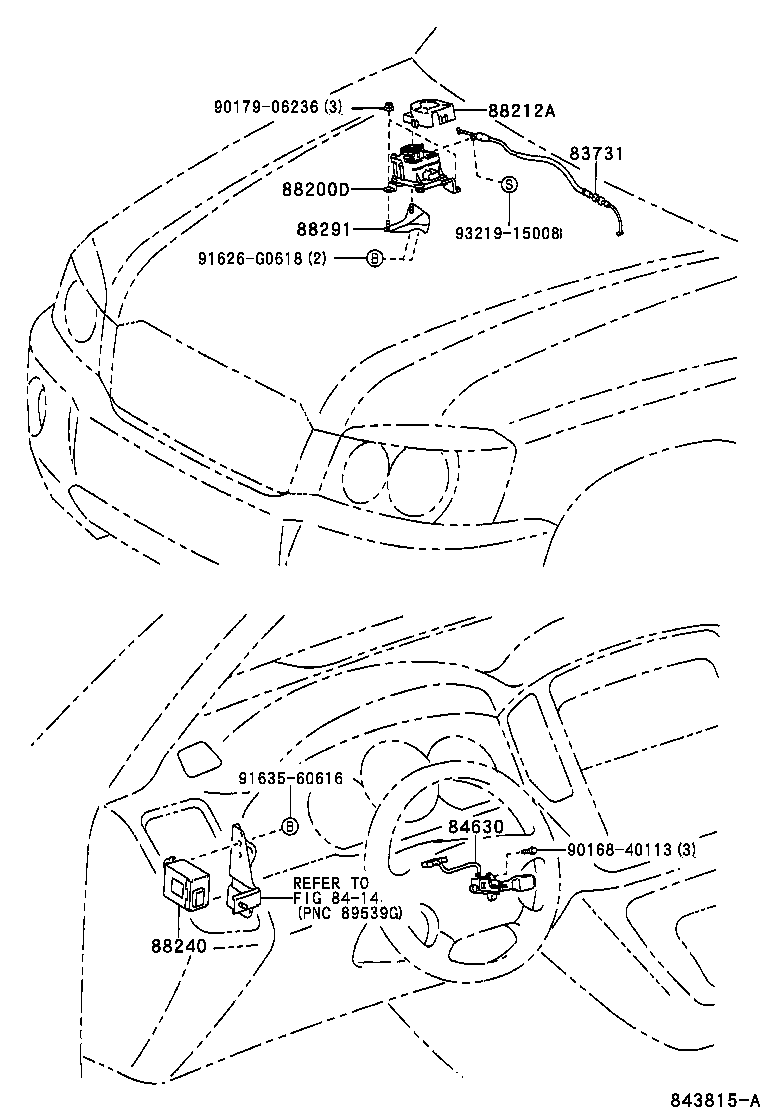

Click highlighted areas on diagram

diagram 83731 8414 84630 88200D 88212A 88240 88291 9016840113 9017906236 91626G0618 9163560616 9321915008
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-48020

MCU2#

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28070

ACU2#,MCU2#

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-48020

MCU2#

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-35110

MCU2#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-48020

MCU2#

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-48020

ACU2#,MCU2#

 1
Common parts
90168-40113
90179-06236
91626-G0618
91635-60616
93219-15008
Linked diagrams
8414
