MCU20L-BWPNKA (2000)
Toyota Highlander
Production
Nov 2000
-
Aug 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0011-0308)

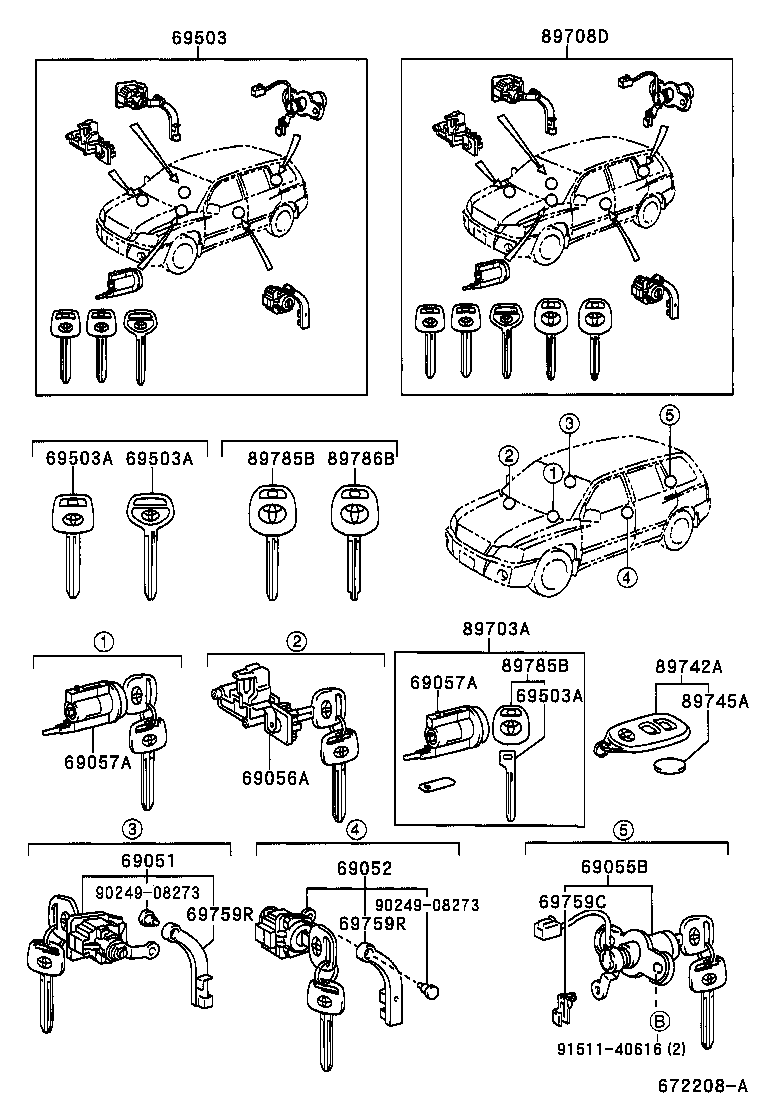

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-48040 |
ACU2#,MCU2# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-48040 |
ACU2#,MCU2# |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-48060 |
MCU2# W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
1 | ||
| 69055-48040 |
ACU2#,MCU2# |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-48030 |
ACU2#,MCU2# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-48040 |
ACU2#,MCU2# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-48040 |
ACU2#,MCU2# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-48070 |
ACU2#,MCU2# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
ACU2#,MCU2# SUB KEY |
1 | ||
| 90999-00199 |
ACU2#,MCU2# MASTER KEY,W(*68) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
ACU2#,MCU2# SUB KEY |
1 | ||
| 90999-00199 |
ACU2#,MCU2# MASTER KEY,W(*68) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
ACU2#,MCU2# SUB KEY |
1 | ||
| 90999-00199 |
ACU2#,MCU2# MASTER KEY,W(*68) |
2 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24080 |
ACU2#,MCU2# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-50110 |
ACU2#,MCU2# RH |
1 | ||
| 69759-50120 |
ACU2#,MCU2# LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-50110 |
ACU2#,MCU2# RH |
1 | ||
| 69759-50120 |
ACU2#,MCU2# LH |
1 | ||
| 89703A - CYLINDER & KEY SET, IGNITION W/TRANSPONDER | ||||
| 89703-48040 |
ACU2#,MCU2# |
1 | ||
| 89708D - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER | ||||
| 89708-48050 |
ACU2#,MCU2# W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
1 | ||
| 89708-48040 |
MCU2# W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-20200 |
ACU2#,MCU2# |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
ACU2#,MCU2# |
2 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-26020 |
ACU2#,MCU2# |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-26020 |
ACU2#,MCU2# |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60050 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90249-08273 | ||||
| 91511-40616 | ||||
