MCU20L-BWPNKA (2000)

Toyota Highlander

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )1MZFE,3MZFE

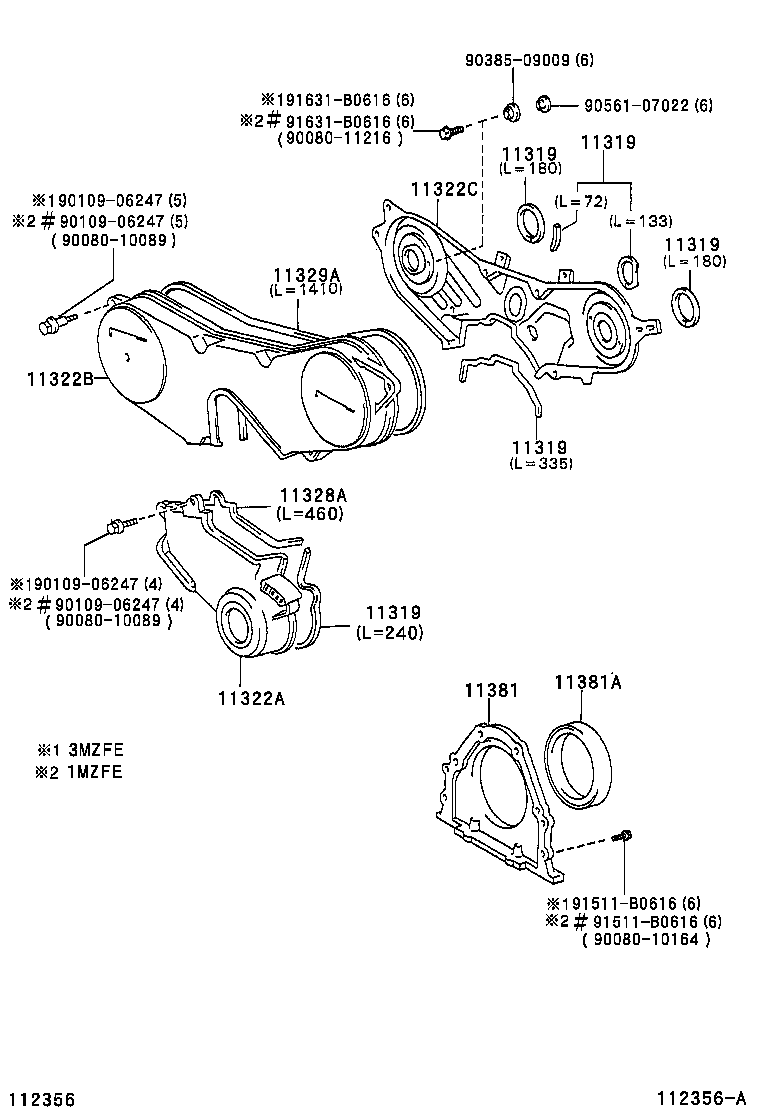

Click highlighted areas on diagram

diagram 11319 11319 11319 11319 11319 11322A 11322B 11322C 11328A 11329A 11381 11381A 9008010089 9008010089 9008010164 9008011216 9010906247 9010906247 9010906247 9010906247 9038509009 9056107022 91511B0616 91511B0616 91631B0616 91631B0616
Part # Description Qty Price
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

1MZFE..MCU2#

 5
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

1MZFE..MCU2#

 5
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

1MZFE..MCU2#

 5
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

1MZFE..MCU2#

 5
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

1MZFE..MCU2#

 5
11322A - COVER, TIMING BELT, NO.1
11321-20030

1MZFE..MCU2#

 1
11321-20030

1MZFE..MCU20

(J)

 1
11321-0A020

1MZFE..MCU20

(L)

 1
11322B - COVER, TIMING BELT, NO.2
11303-20040

1MZFE..MCU2#

 1
11303-20040

1MZFE..MCU20

(J)

 1
11303-0A031

1MZFE..MCU20

(L)

 1
11322C - COVER, TIMING BELT, NO.3
11323-20030

1MZFE..MCU2#

 1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-20020

1MZFE..MCU2#

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-20010

1MZFE..MCU2#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-20010

1MZFE..MCU20

(J)

 1
11381-20010

1MZFE..MCU2#

 1
11381-0A010

1MZFE..MCU20

(L)

 1
11381A - SEAL, ENGINE REAR OIL
90311-92008

1MZFE..MCU2#

 1
90311-92008

1MZFE..MCU20

(J)

 1
90080-31053

1MZFE..MCU20

(L)

 1
90311-92008

1MZFE..MCU2#

 1
Common parts
90080-10089
90080-10164
90080-11216
90109-06247
90385-09009
90561-07022
91511-B0616
91631-B0616
