GSU75L-ARZNHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

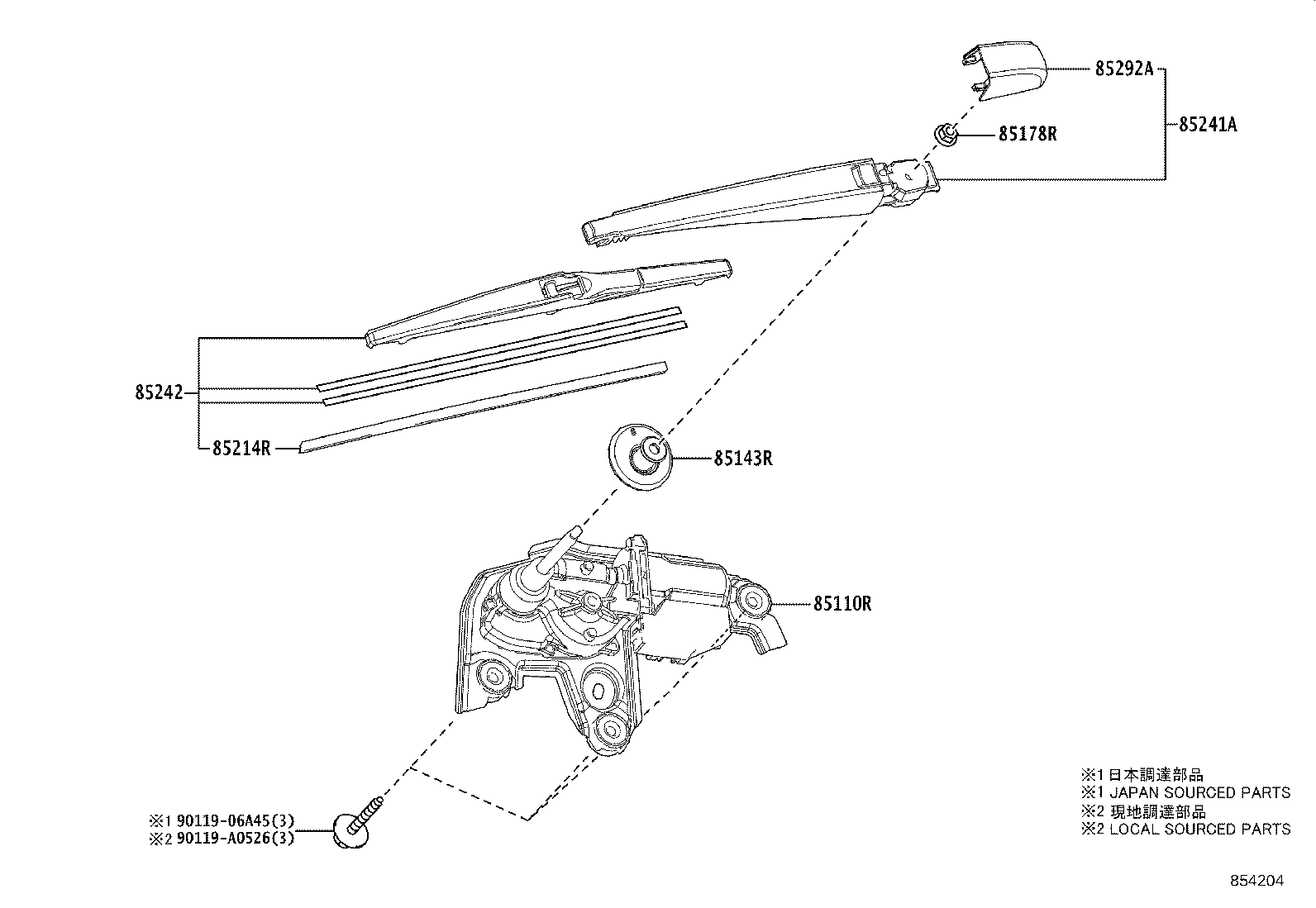

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A 9011906A45 90119A0526
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0E120

AXUH7#,GSU7#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-0R010

AXUH7#,GSU7#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90182-A0012

AXUH7#,GSU7#

 1
85214R - RUBBER, REAR WIPER
85214-42060

AXUH7#,GSU7#

 1
85241A - ARM, REAR WIPER
85241-0E080

AXUH7#,GSU7#

 1
85242 - BLADE, RR WIPER
85242-0E110

AXUH7#,GSU7#

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0E040

AXUH7#,GSU7#

 1
Common parts
90119-06A45
90119-A0526
