GSU75L-ARZNHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

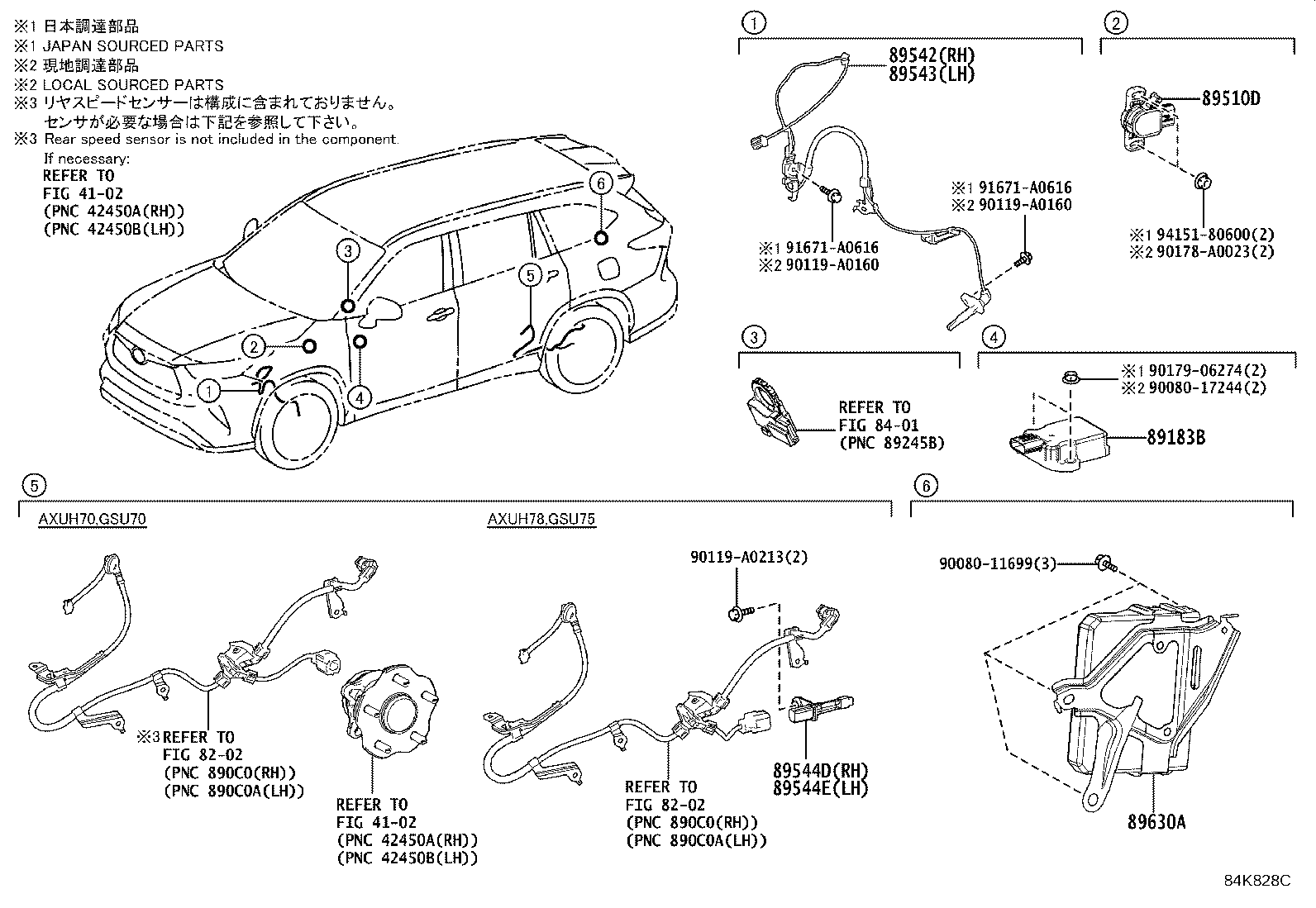

Click highlighted areas on diagram

diagram 4102 4102 8202 8202 8401 89183B 89510D 89542 89543 89544D 89544E 89630A 9008011699 9008017244 90119A0160 90119A0160 90119A0213 90178A0023 9017906274 91671A0616 91671A0616 9415180600
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-0E070

AXUH7#,GSU7#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0E070

AXUH7#,GSU7#

 1
89544D - SENSOR, SKID CONTROL, REAR RH
89544-0E040

AXUH78,GSU75

 1
89544E - SENSOR, SKID CONTROL, REAR LH
89544-0E040

AXUH78,GSU75

 1
89630A - COMPUTER ASSY, 4WD
89630-48070

GSU75..M,N

 1
89630-48071

GSU75..M,N

 1
89630-48081

GSU75..G,S

 1
89630-48080

GSU75..G

 1
Common parts
90080-11699
90080-17244
90119-A0160
90119-A0213
90178-A0023
90179-06274
91671-A0616
94151-80600
Linked diagrams
4102
8202
8401
