GSU75L-ARZNHA (2019)
Toyota Highlander
Production
Dec 2019
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )GSU7#

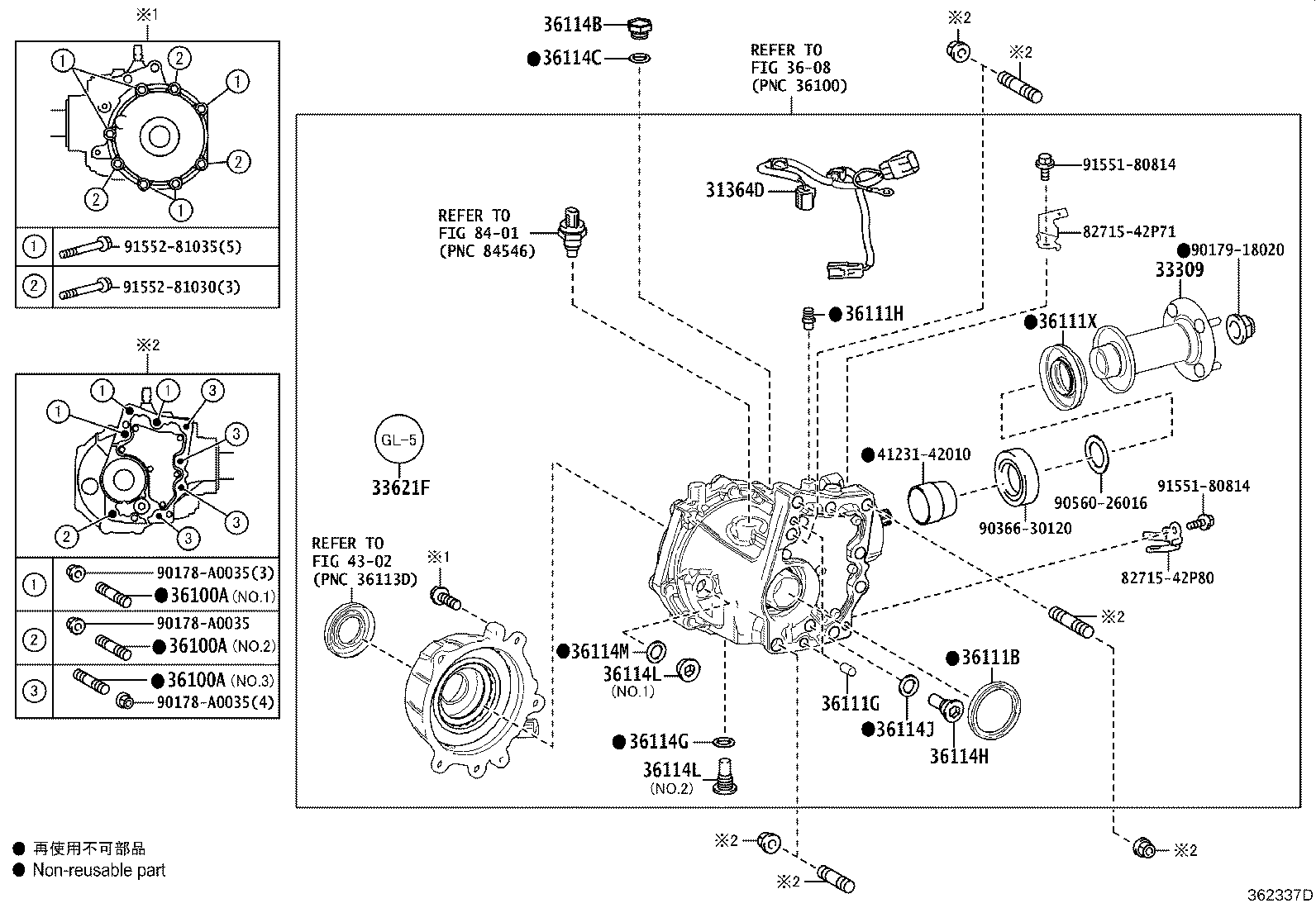

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31364D - WIRE, CLUTCH CONTROL SOLENOID | ||||
| 31364-48020 |
GSU75 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-48010 |
GSU75 |
1 | ||
| 33621F - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-48020 |
GSU75 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GSU75 S=22 & 22,L=73,NO.1 |
3 | ||
| 90116-12041 |
GSU75 S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12052 |
GSU75 S=22 & 22,L=53,NO.2 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GSU75 S=22 & 22,L=73,NO.1 |
3 | ||
| 90116-12041 |
GSU75 S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12052 |
GSU75 S=22 & 22,L=53,NO.2 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GSU75 S=22 & 22,L=73,NO.1 |
3 | ||
| 90116-12041 |
GSU75 S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12052 |
GSU75 S=22 & 22,L=53,NO.2 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
GSU75 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
GSU75 L=20,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03031 |
GSU75 |
1 | ||
| 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 | ||||
| 90311-37005 |
GSU75 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
GSU75 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GSU75 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
GSU75 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18046 |
GSU75 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GSU75 |
1 | ||
| 36114L - PLUG, FILLER(FOR TRANSFER) | ||||
| 90341-18035 |
GSU75 NO.2 |
1 | ||
| 90341-18023 |
GSU75 NO.1 |
1 | ||
| 36114L - PLUG, FILLER(FOR TRANSFER) | ||||
| 90341-18035 |
GSU75 NO.2 |
1 | ||
| 90341-18023 |
GSU75 NO.1 |
1 | ||
| 36114M - GASKET (FOR TRANSFER FILLER PLUG) | ||||
| 12157-10010 |
GSU75 |
1 | ||
| Common parts | ||||
| 41231-42010 | ||||
| 82715-42P71 | ||||
| 82715-42P80 | ||||
| 90178-A0035 | ||||
| 90179-18020 | ||||
| 90366-30120 | ||||
| 90560-26016 | ||||
| 91551-80814 | ||||
| 91552-81030 | ||||
| 91552-81035 | ||||
| Linked diagrams | ||||
| 3608 | ||||
| 4302 | ||||
| 8401 | ||||
