GSU75L-ARZMHA (2019)
Toyota Highlander
ILLUST NO. 1 OF20(1912- )GSU7#

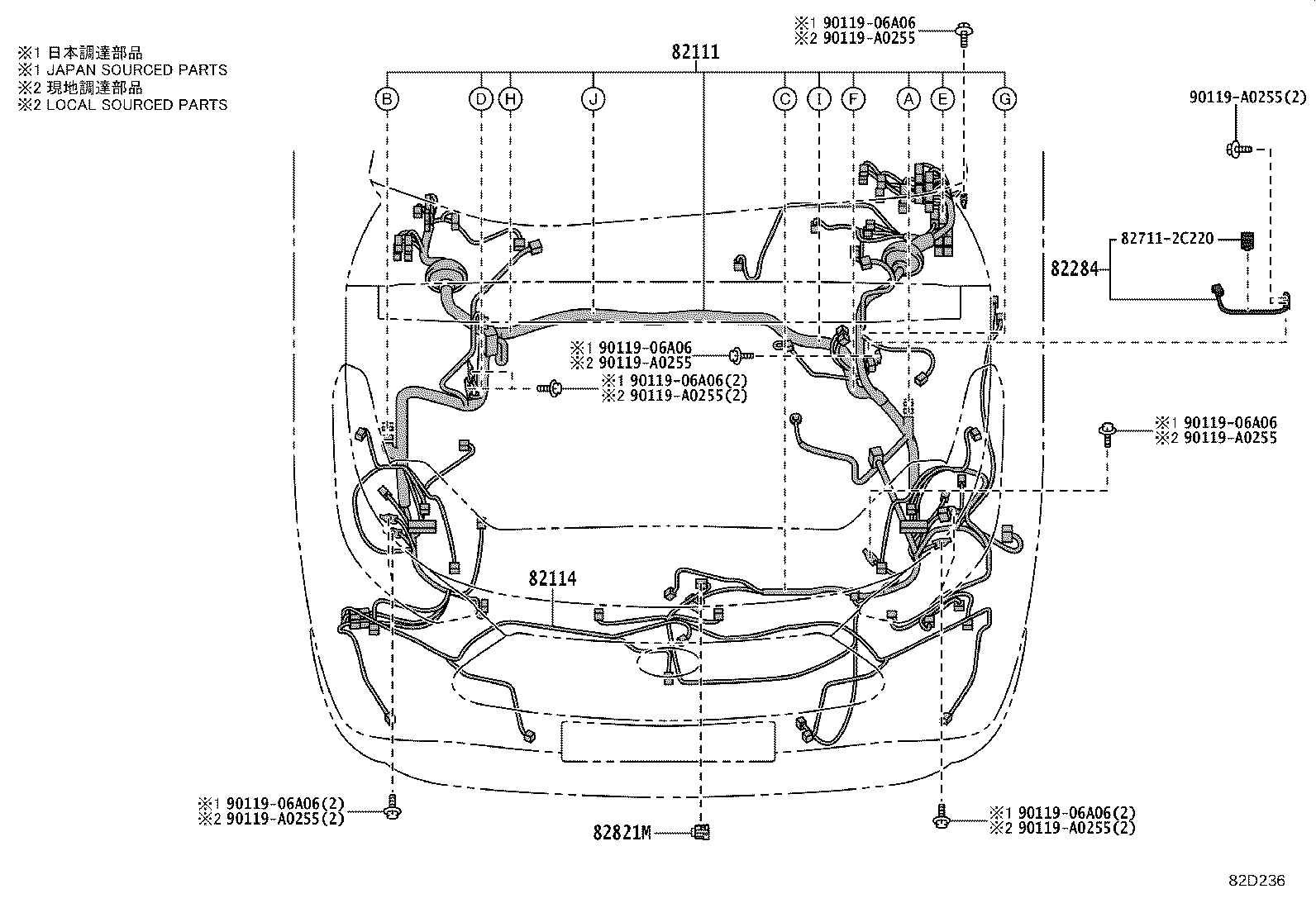

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0EU20 |
GSU7#..M,N ADDITIONAL HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0EZ10 |
GSU7#..G |
1 | ||
| 82111-0EZ10 |
GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82111-0EU10 |
GSU7#..M,N |
1 | ||
| 82111-0EU10 |
GSU75..M,N CANADA SPEC |
1 | ||
| 82111-0EZ40 |
GSU7#..S ADDITIONAL HEATER-WITH(PTC HEATER)&AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82111-0EZ20 |
GSU7#..S ADDITIONAL HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0EU20 |
GSU75..M,N CANADA SPEC&ADDITIONAL HEATER-WITH(PTC HEATER) |
1 | ||
| 82115-0E260 |
GSU75..M,N ADDITIONAL HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0EZ30 |
GSU7#..S |
1 | ||
| 82111-0EW40 |
GSU7#..G |
1 | ||
| 82111-0EU40 |
GSU7#..G PLATINUM PACKAGE&HEADLAMP-PROJECTOR & *AHB & *AFLS&AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82115-0E250 |
GSU7#..M,N |
1 | ||
| 82111-0EZ50 |
GSU7#..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82111-0EZ11 |
GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0E090 |
AXUH7#,GSU7#..G |
1 | ||
| 82114-0E220 |
AXUH7#,GSU7#..M,N |
1 | ||
| 82114-0E310 |
GSU7#..S |
1 | ||
| 82114-0E100 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-0E030 |
GSU7# |
1 | ||
| Common parts | ||||
| 82711-2C220 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
ILLUST NO. 5 OF20(1912- )GSU7#
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

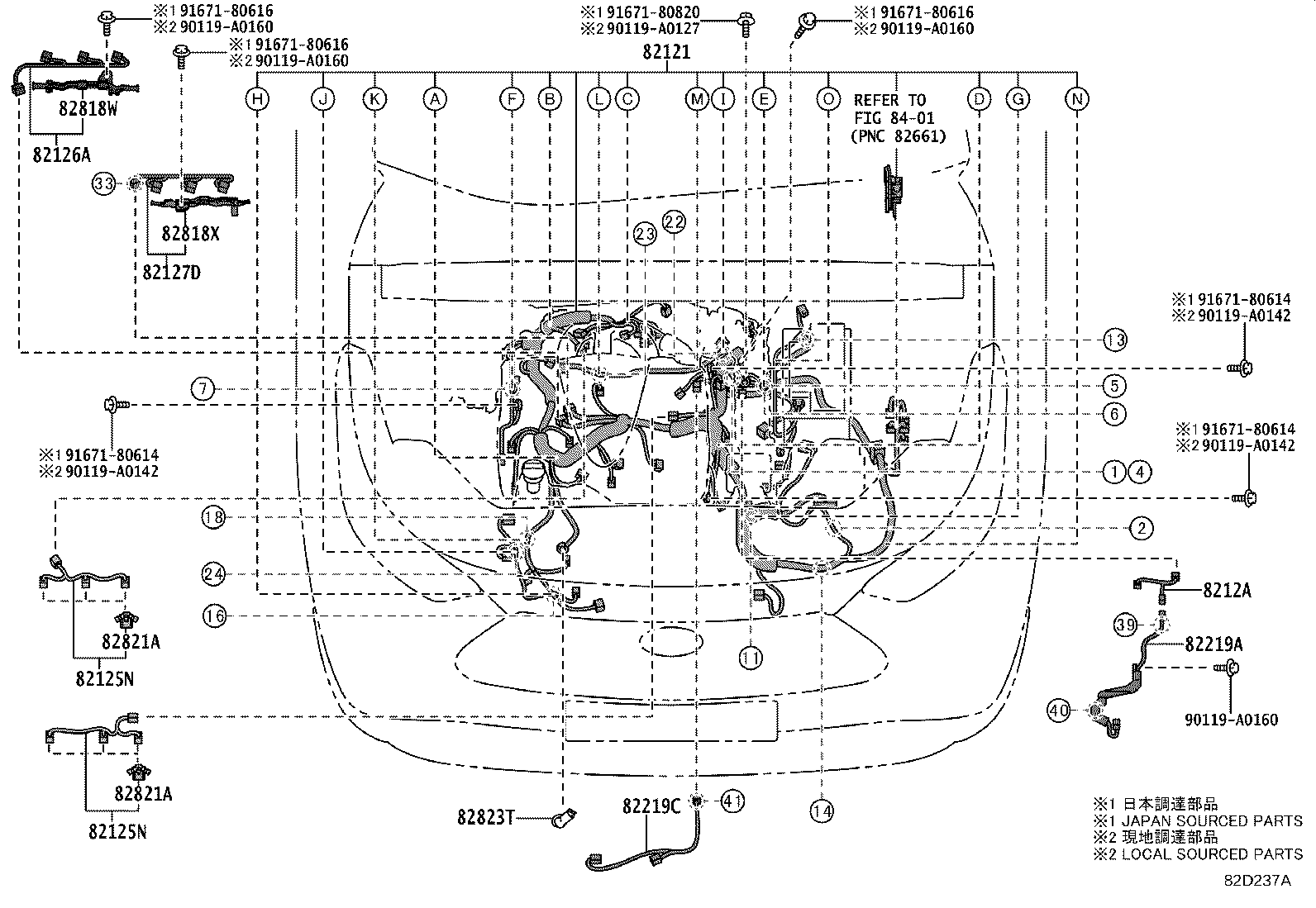

| 82121 - WIRE, ENGINE | ||||
| 82121-0E451 |
GSU75 |
1 | ||
| 82121-0E450 |
GSU75 |
1 | ||
| 82121-0E452 |
GSU75 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSU7# |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSU7# |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-08021 |
GSU7# |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-08021 |
GSU7# |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-06010 |
GSU7# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-0E060 |
GSU7# |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-0E050 |
GSU7# |

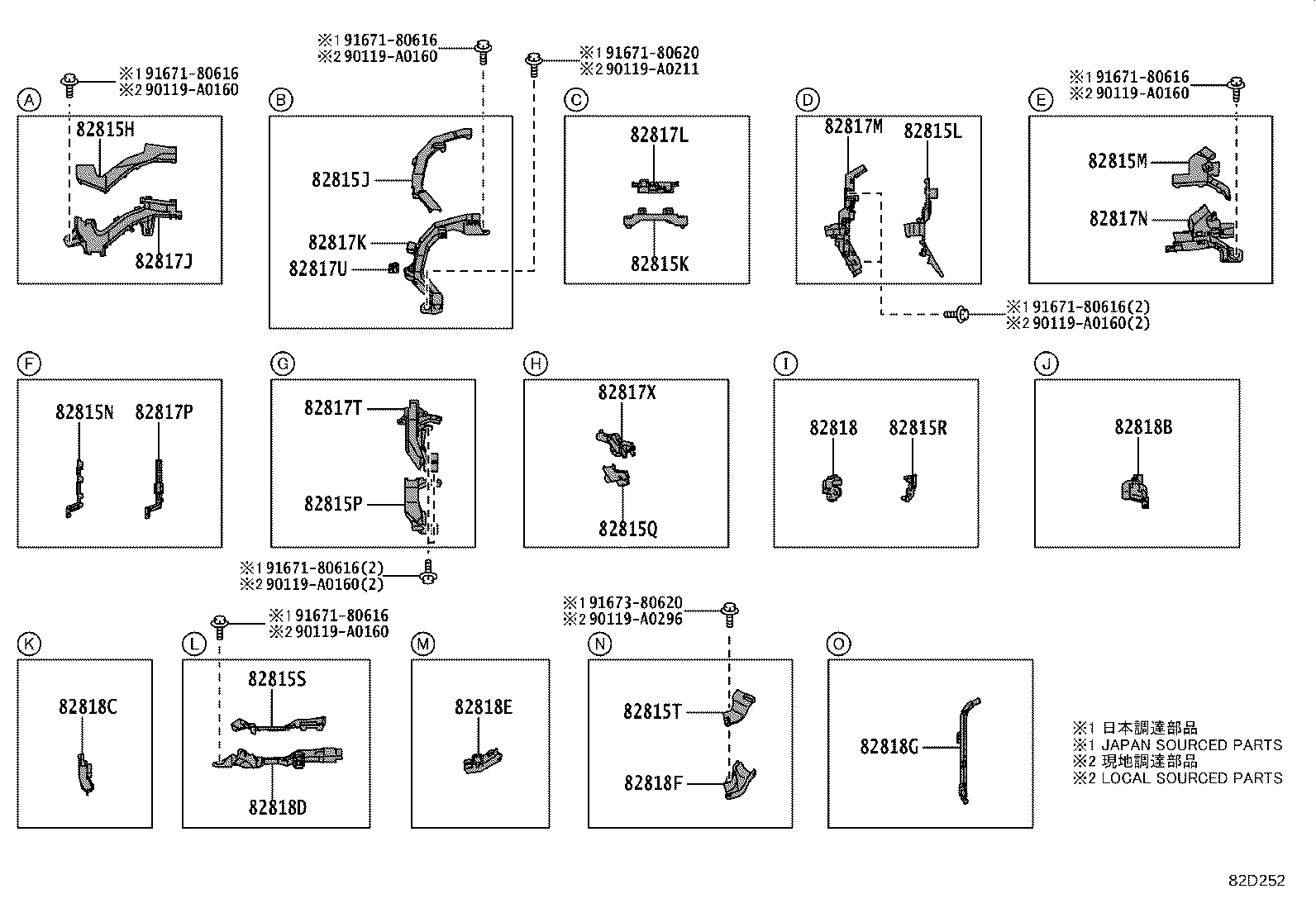

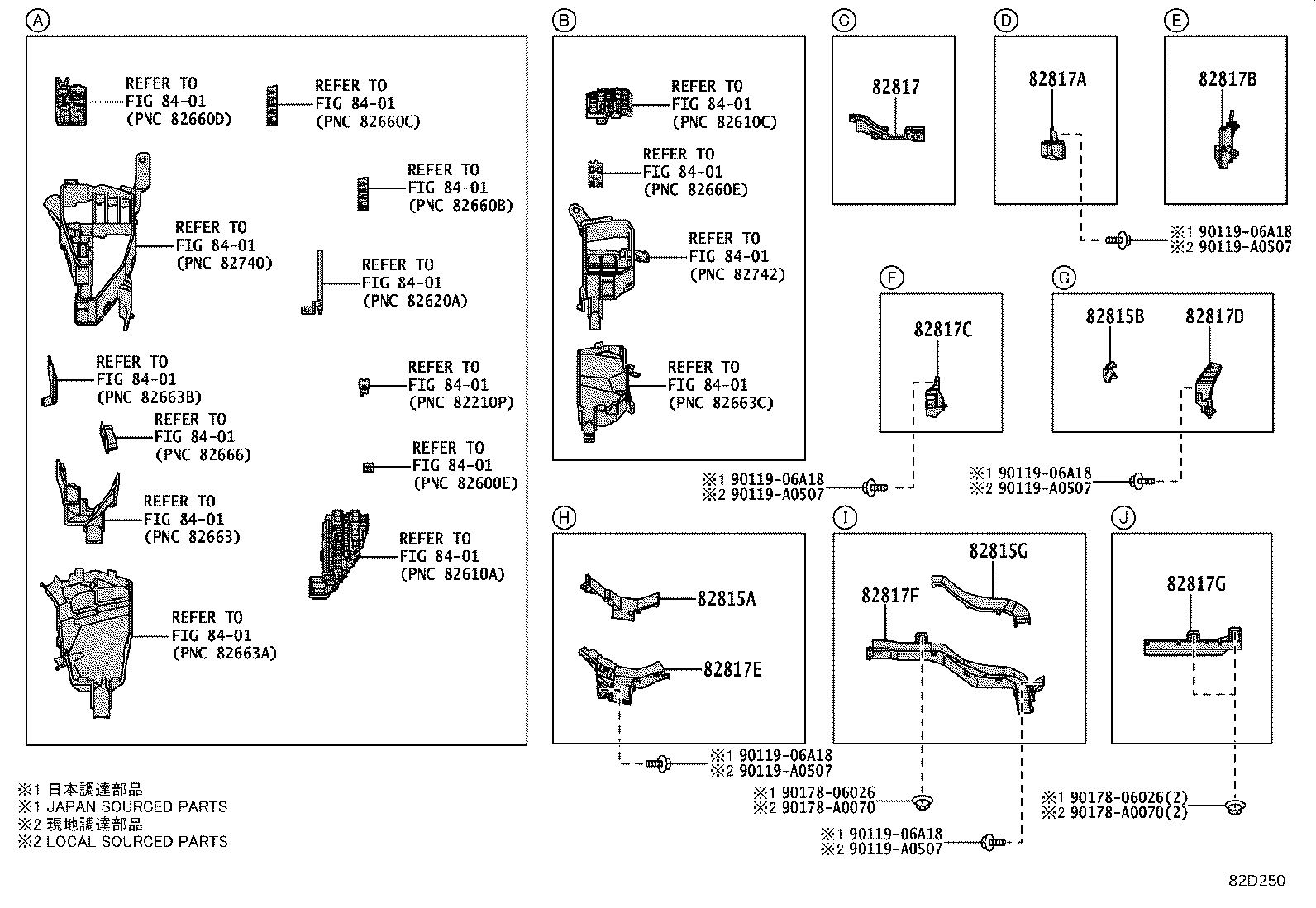

1 | ||
| 82818W - PROTECTOR, WIRING HARNESS, NO.19 | ||||
| 82817-30R30 |
GSU7# |
1 | ||
| 82818X - PROTECTOR, WIRING HARNESS, NO.20 | ||||
| 82817-30R30 |
GSU7# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-48240 |
GSU7# |
6 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-48240 |
GSU7# |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-34010 |
GSU7# |
1 | ||
| Common parts | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF20(1912- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0EN80 |
GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82141-0EN70 |
GSU75..M,N |
1 | ||
| 82141-0EV90 |
GSU7#..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82141-0EN60 |
GSU7#..G |
1 | ||
| 82141-0EN80 |
GSU7#..G PLATINUM PACKAGE&AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82141-0EZ40 |
GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82141-0EW00 |
GSU7#..S |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0E640 |
GSU7# ADDITIONAL HEATER-WITH(PTC HEATER) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0E030 |
AXUH7#,GSU7# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0E030 |
AXUH7#,GSU7# |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-0E280 |
AXUH7#,GSU7# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0E160 |
GSU75 |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-0E320 |
GSU7#..G WIRELESS CHARGER-WITH (ILA) |
1 | ||
| 82176-0E200 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82176-0E400 |
GSU7#..G TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82176-0E360 |
AXUH7#,GSU7#..M,S WIRELESS CHARGER-WITH (ILA) |
1 | ||
| 82176-0E220 |
GSU7#..G |
1 | ||
| 82176-0E390 |
GSU7#..G TELEVISION & DVD PLAYER-WITH&WIRELESS CHARGER-WITH (ILA) |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.10 OF20(1912- )

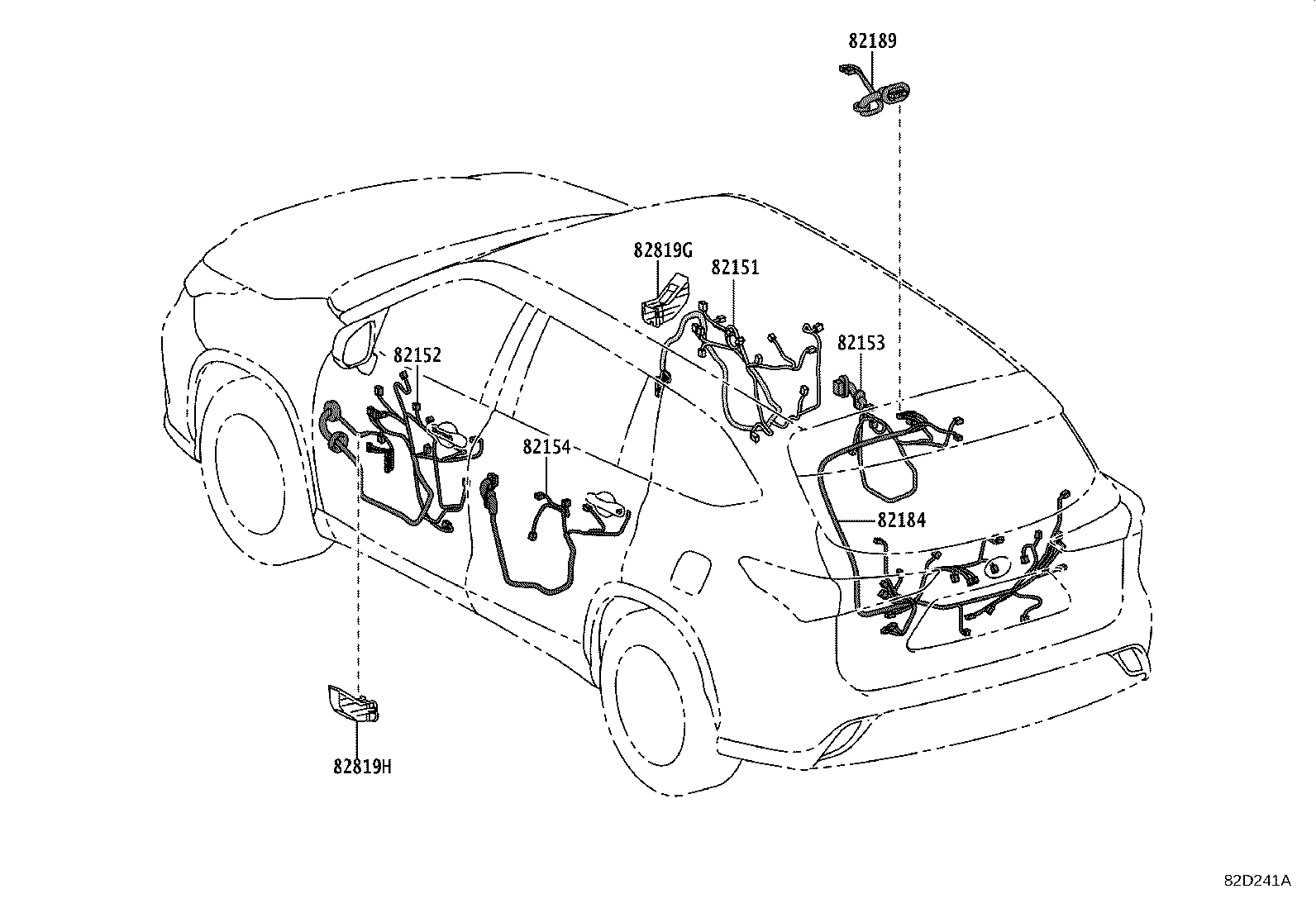

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0E580 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82151-0E550 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82151-0E570 |
AXUH7#,GSU7#..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0E550 |
AXUH7#,GSU7#..G |
1 | ||
| 82152-0E530 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82152-0E520 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0E160 |
AXUH7#,GSU7#..G |
1 | ||
| 82153-0E150 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0E160 |
AXUH7#,GSU7#..G |
1 | ||
| 82154-0E150 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0E630 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82184-0E670 |
AXUH7#,GSU7#..G PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82184-0E660 |
AXUH7#,GSU7#..G |
1 | ||
| 82184-0E760 |
GSU7#..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-0E080 |
AXUH7#,GSU7#..M,N,S |
1 | ||
| 82189-0E110 |
AXUH7#,GSU7#..G |
1 | ||
| 82189-0E110 |
GSU7#..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82189-0E120 |
AXUH7#,GSU7#..G PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-0E680 |
AXUH7#,GSU7# |
1 | ||
| 82819H - PROTECTOR, WIRING HARNESS, NO.24 | ||||
| 82817-0E680 |
AXUH7#,GSU7# |
1 | ||
ILLUST NO.11 OF20(1912- )GSU7#

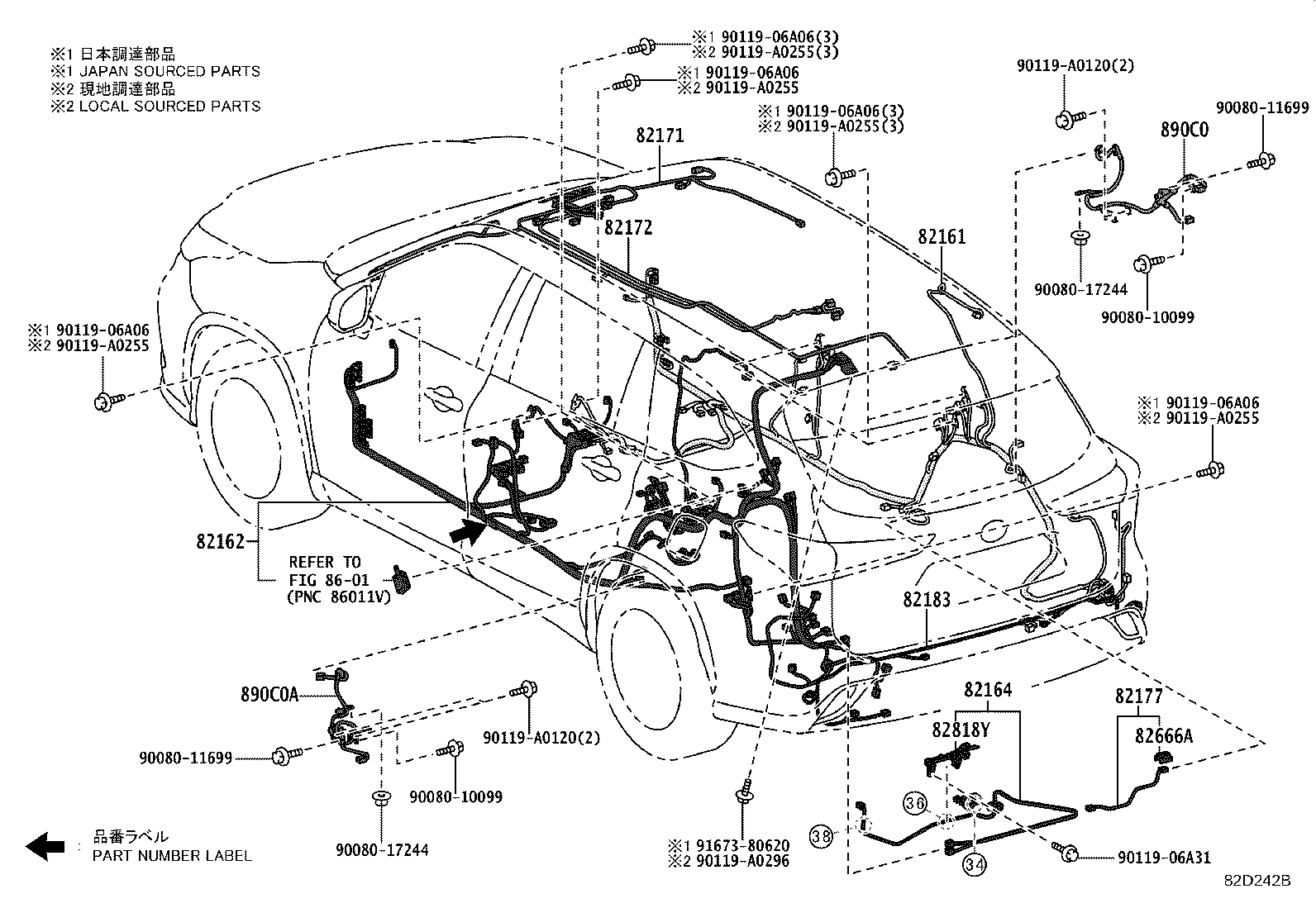

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0EG61 |
GSU7#..M,S |
1 | ||
| 82161-0EG71 |
GSU7#..G |
1 | ||
| 82161-0EG60 |
GSU7#..M |
1 | ||
| 82161-0EP60 |
GSU7#..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82161-0EG70 |
GSU7#..G |
1 | ||
| 82161-0EG71 |
GSU7#..G PLATINUM PACKAGE&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82161-0EP80 |
GSU7#..G |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0EF50 |
GSU75..M,N P/N LABEL=821620EF50 |
1 | ||
| 82162-0EF30 |
GSU75..G P/N LABEL=821620EF30 |
1 | ||
| 82162-0EF31 |
GSU75..G P/N LABEL=821620EF31 |
1 | ||
| 82162-0EF40 |
GSU75..G AUDIO-12.3"(EMV) DECKLESS JBL11SP,P/N LABEL=821620EF40 |
1 | ||
| 82162-0EF41 |
GSU75..G AUDIO-12.3"(EMV) DECKLESS JBL11SP,P/N LABEL=821620EF41 |
1 | ||
| 82162-0EM70 |
GSU75..S |
1 | ||
| 82162-0EF51 |
GSU75..M P/N LABEL=821620EF51 |
1 | ||
| 82162-0EF31 |
GSU75..S AUDIO-8"T2(AVN)DECKLESS JBL11SP,P/N LABEL=821620EF31 |
1 | ||
| 82162-0EF32 |
GSU75..S AUDIO-8"T2(AVN)DECKLESS JBL11SP |
1 | ||
| 82162-0EF42 |
GSU75..G AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82162-0EF52 |
GSU75..M |
1 | ||
| 82162-0EM71 |
GSU75..S |
1 | ||
| 82162-0EF32 |
GSU75..G |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0E260 |
GSU75..G,S |
1 | ||
| 82164-0E250 |
GSU75..M,N |
1 | ||
| 82164-0E290 |
GSU75..G HEADLAMP-PROJECTOR & *AHB & *AFLS |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0EJ70 |
GSU7#..G,M,S |
1 | ||
| 82171-0EL00 |
AXUH7#,GSU7#..G PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3"(EMV) DECKLESS JBL11SP&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0EK50 |
GSU7#..G PLATINUM PACKAGE&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82171-0EK90 |
AXUH7#,GSU7#..G PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82171-0EL90 |
AXUH7#,GSU7#..G PLATINUM PACKAGE&MOON ROOF-WITH(PANORAMA ROOF)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82171-0EL40 |
GSU7#..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-0EL70 |
GSU7#..G PLATINUM PACKAGE&MOON ROOF-WITH(PANORAMA ROOF)&AUDIO-12.3"(EMV) DECKLESS JBL11SP |
1 | ||
| 82171-0EJ80 |
GSU7#..G TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0EK10 |
GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0EK80 |
GSU7#..G PLATINUM PACKAGE&AUDIO-12.3"(EMV) DECKLESS JBL11SP&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-0E080 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82177 - WIRE, REAR BODY | ||||
| 82177-0E020 |
AXUH7#,GSU7# |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-0E130 |
AXUH7#,GSU7#..G |
1 | ||
| 82183-0E191 |
GSU7#..G TOWING PACKAGE-5000LBS WITH(ILA HITCH) |
1 | ||
| 82183-0E190 |
GSU7#..G TOWING PACKAGE-5000LBS WITH(ILA HITCH) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-21040 |
AXUH7#,GSU7# |
1 | ||
| 82818Y - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-0EC20 |
GSU75..G HEADLAMP-PROJECTOR & *AHB & *AFLS |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-0E070 |
AXUH78,GSU75 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-0E080 |
AXUH78,GSU75 |
1 | ||
| Common parts | ||||
| 90080-10099 | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-06A06 | ||||
| 90119-06A31 | ||||
| 90119-A0120 | ||||
| 90119-A0255 | ||||
| 90119-A0296 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO.14 OF20(1912- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

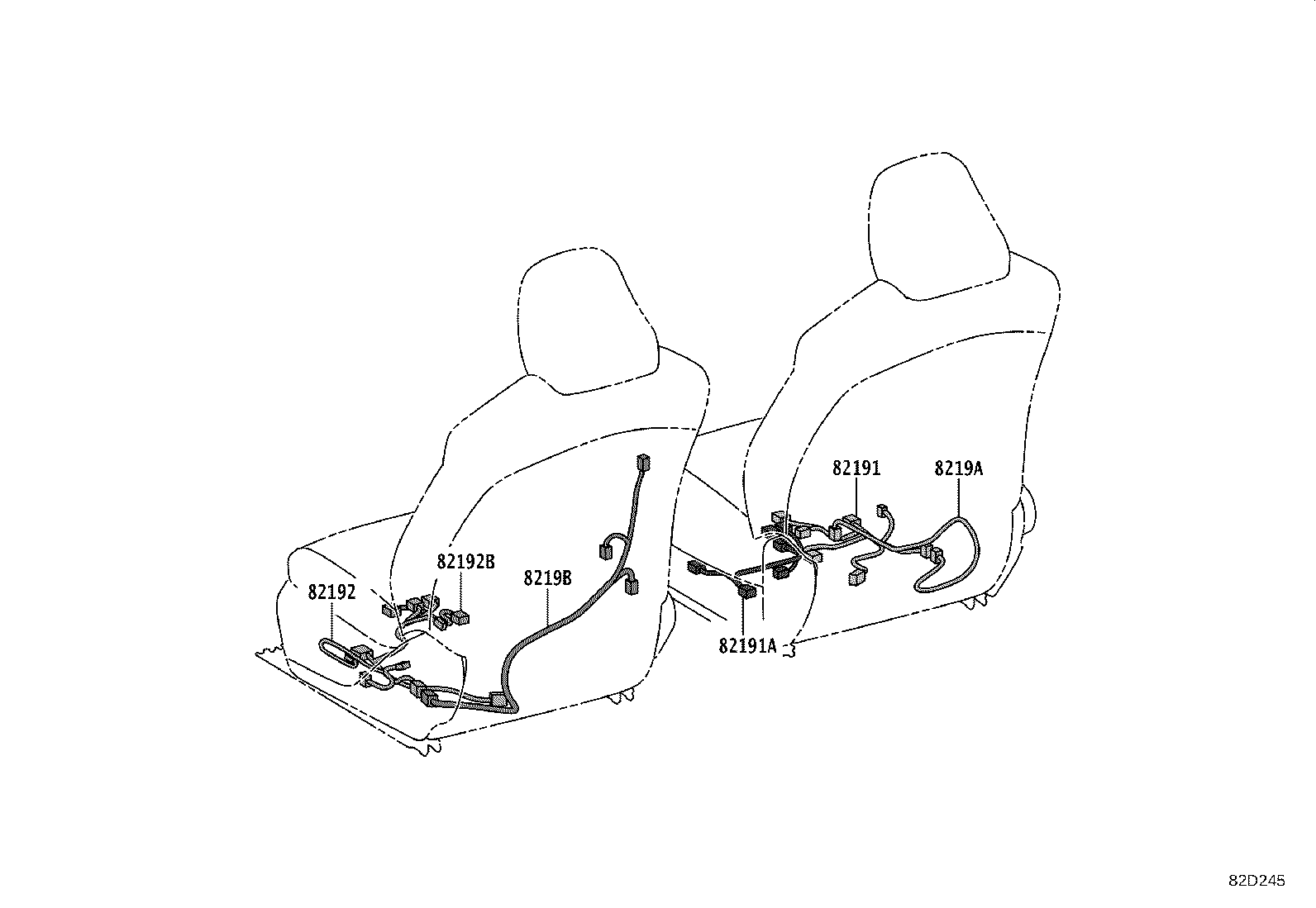

| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0E370 |
AXUH7#,GSU7#..M,S |
1 | ||
| 82191-0E380 |
AXUH7#,GSU7#..G |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-0R050 |
AXUH7#,GSU7#..G,M,S |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0E360 |
AXUH7#,GSU7#..M,S |
1 | ||
| 82192-0R140 |
AXUH7#,GSU7#..G |
1 | ||
| 82192B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 82192-0R130 |
AXUH7#,GSU7# |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-0E120 |
AXUH7#,GSU7#..M,S |
1 | ||
| 8219A-0E140 |
AXUH7#,GSU7#..G |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0E110 |
AXUH7#,GSU7#..M,S |
1 | ||
| 8219B-0E160 |
AXUH7#,GSU7#..G |
1 | ||
ILLUST NO.15 OF20(1912- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-0E120 |
AXUH70,GSU7#..G PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82193-0E130 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||
| 82193-0E100 |
AXUH78..M;AXUH70,GSU7#..G,M REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82193-0E110 |
AXUH7#,GSU7#..G,M,S |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-0E120 |
AXUH70,GSU7#..G PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82193-0E130 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||
| 82193-0E100 |
AXUH78..M;AXUH70,GSU7#..G,M REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82193-0E110 |
AXUH7#,GSU7#..G,M,S |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-0E090 |
AXUH70,GSU7#..G PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82194-0E090 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||
| 82194-0E080 |
AXUH7#,GSU7# |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-0E090 |
AXUH70,GSU7#..G PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT |
1 | ||
| 82194-0E090 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||
| 82194-0E080 |
AXUH7#,GSU7# |
1 | ||
ILLUST NO.18 OF20(1912- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-0E040 |
GSU7# |
1 | ||
| Common parts | ||||
| 90119-A0255 | ||||

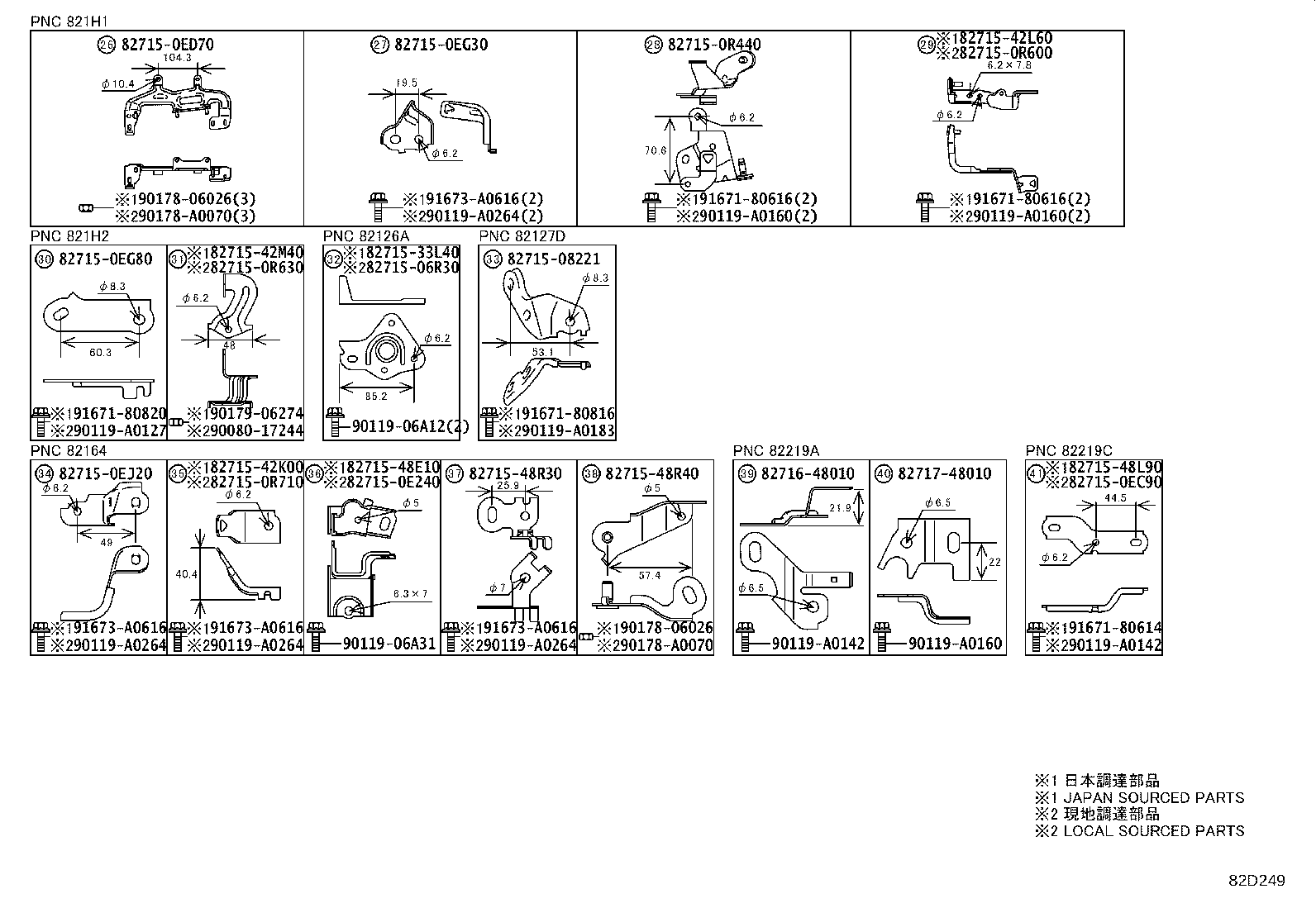

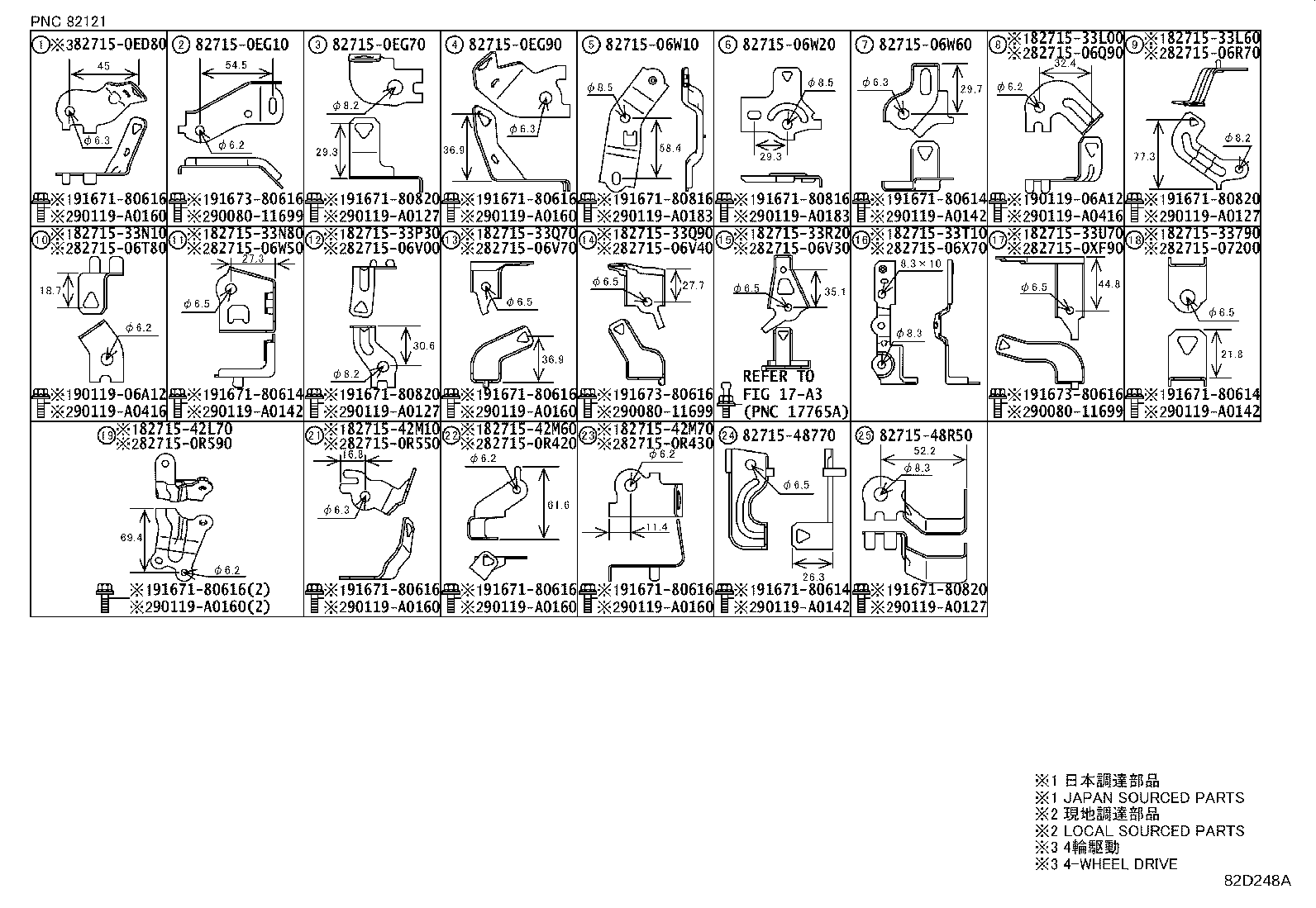

ILLUST NO.16 OF20(1912- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-06Q90 | ||||
| 82715-06R70 | ||||
| 82715-06T80 | ||||
| 82715-06V00 | ||||
| 82715-06V30 | ||||
| 82715-06V40 | ||||
| 82715-06V70 | ||||
| 82715-06W10 | ||||
| 82715-06W20 | ||||
| 82715-06W50 | ||||
| 82715-06W60 | ||||
| 82715-06X70 | ||||
| 82715-07200 | ||||
| 82715-0ED80 | ||||
| 82715-0EG10 | ||||
| 82715-0EG70 | ||||
| 82715-0EG90 | ||||
| 82715-0R420 | ||||
| 82715-0R430 | ||||
| 82715-0R550 | ||||
| 82715-0R590 | ||||
| 82715-0XF90 | ||||
| 82715-33790 | ||||
| 82715-33L00 | ||||
| 82715-33L60 | ||||
| 82715-33N10 | ||||
| 82715-33N80 | ||||
| 82715-33P30 | ||||
| 82715-33Q70 | ||||
| 82715-33Q90 | ||||
| 82715-33R20 | ||||
| 82715-33T10 | ||||
| 82715-33U70 | ||||
| 82715-42L70 | ||||
| 82715-42M10 | ||||
| 82715-42M60 | ||||
| 82715-42M70 | ||||
| 82715-48770 | ||||
| 82715-48R50 | ||||
| 90080-11699 | ||||
| 90119-06A12 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0416 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
ILLUST NO.17 OF20(1912- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-06R30 | ||||
| 82715-08221 | ||||
| 82715-0E240 | ||||
| 82715-0EC90 | ||||
| 82715-0ED70 | ||||
| 82715-0EG30 | ||||
| 82715-0EG80 | ||||
| 82715-0EJ20 | ||||
| 82715-0R440 | ||||
| 82715-0R600 | ||||
| 82715-0R630 | ||||
| 82715-0R710 | ||||
| 82715-33L40 | ||||
| 82715-42K00 | ||||
| 82715-42L60 | ||||
| 82715-42M40 | ||||
| 82715-48E10 | ||||
| 82715-48L90 | ||||
| 82715-48R30 | ||||
| 82715-48R40 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90080-17244 | ||||
| 90119-06A12 | ||||
| 90119-06A31 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0264 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
| 90179-06274 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-A0616 | ||||
ILLUST NO. 2 OF20(1912- )GSU7#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E600 |
AXUH7#,GSU7# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E540 |
GSU7# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0E580 |
GSU7# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0EB50 |
AXUH7#,GSU7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0EB60 |
AXUH7#,GSU7# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0ED20 |
AXUH7#,GSU7# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0EA40 |
GSU7# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0EA20 |
AXUH7#,GSU7# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0EA80 |
AXUH7#,GSU7# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0EA60 |
GSU7# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-0EA90 |
GSU7# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-A0507 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF20(1912- )GSU7#
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-08090 |
GSU7# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-0E480 |
GSU7# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-0E490 |
GSU7# |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-0E500 |
GSU7# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-0E510 |
GSU7# |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33A20 |
GSU7# |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33A40 |
GSU7# |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33C20 |
GSU7# |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-42540 |
AXUH7#,GSU7# |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-0EA00 |
GSU7# |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-33C70 |
GSU7# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-08430 |
GSU7# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0E870 |
GSU7# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-0E880 |
GSU7# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-0E890 |
GSU7# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-0EA00 |
GSU7# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33Q30 |
GSU7# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33Q50 |
GSU7# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33V70 |
GSU7# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33W40 |
GSU7# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42F60 |
AXUH7#,GSU7# |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-48A10 |
GSU7# |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-48D10 |
GSU7# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0EE60 |
GSU7# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-42G60 |
GSU7# |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33X10 |
GSU7# |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33Z10 |
GSU7# |
1 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90119-A0211 | ||||
| 90119-A0296 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91673-80620 | ||||

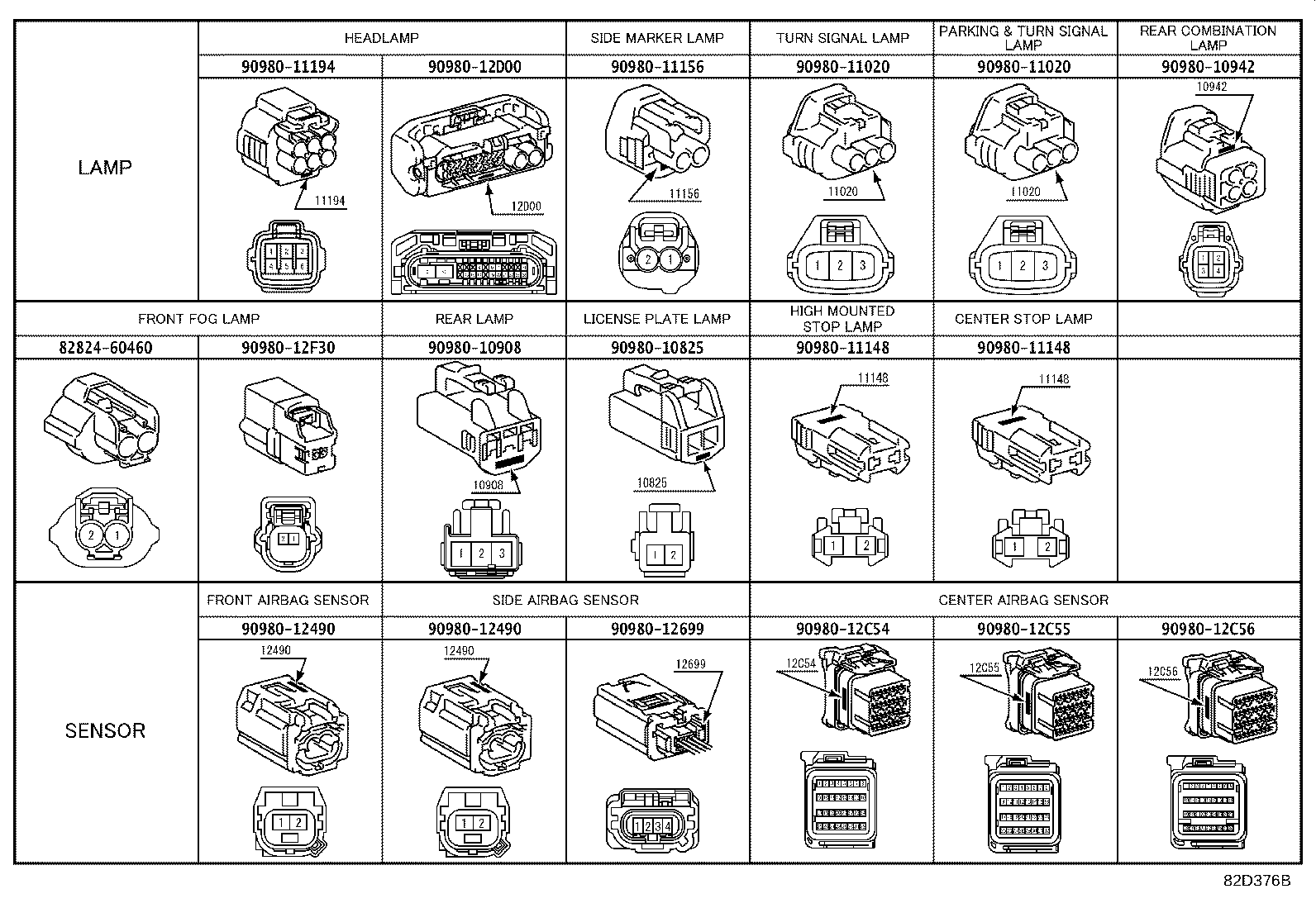

ILLUST NO.19 OF20(1912- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D00 | ||||
| 90980-12F30 | ||||

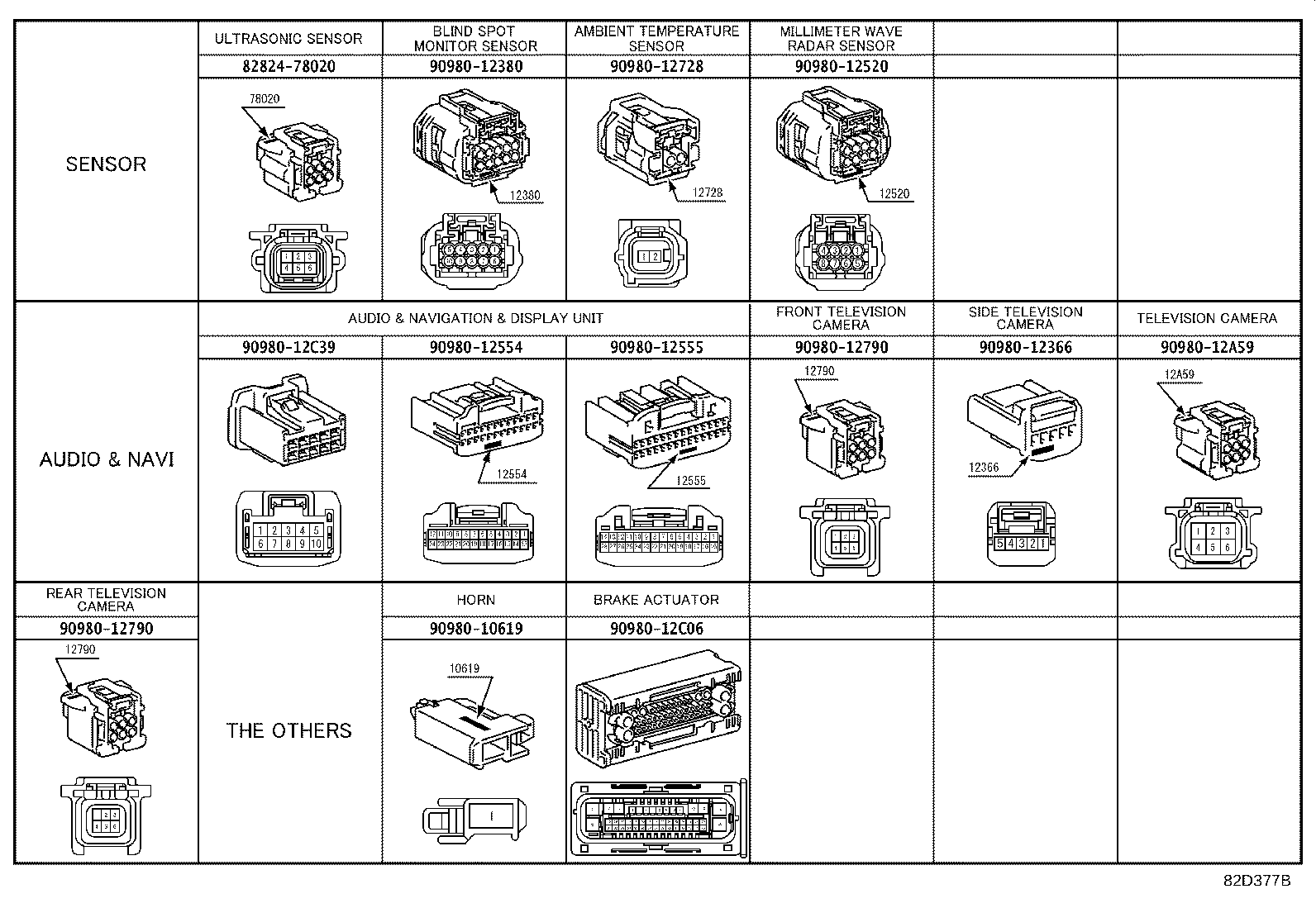

ILLUST NO.20 OF20(1912- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-12366 | ||||
| 90980-12380 | ||||
| 90980-12520 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C06 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
