GSU75L-ARZMHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )2GRFKS

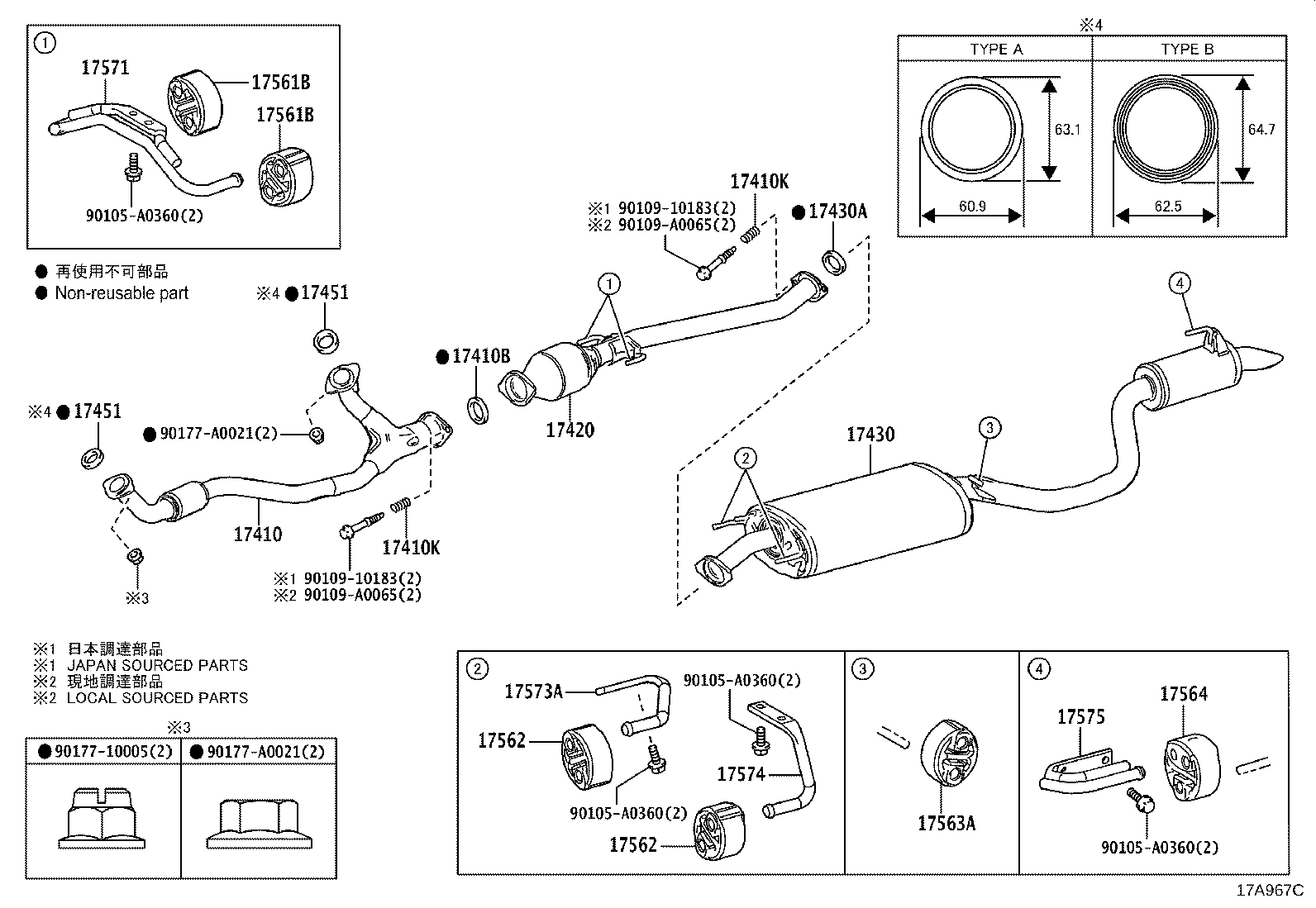

Click highlighted areas on diagram

diagram 17410 17410B 17410K 17410K 17420 17430 17430A 17451 17451 17561B 17561B 17562 17562 17563A 17564 17571 17573A 17574 17575 90105A0360 90105A0360 90105A0360 90105A0360 9010910183 9010910183 90109A0065 90109A0065 9017710005 90177A0021 90177A0021
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0P620

2GRFKS..GSU7#

 1
17410B - GASKET, EXHAUST PIPE
17451-0P022

2GRFKS..GSU7#

 1
17410K - SPRING, EXHAUST PIPE
90501-A0006

2GRFKS..GSU7#

(L)

 2
90501-35035

2GRFKS..GSU7#

(J)

 2
17410K - SPRING, EXHAUST PIPE
90501-A0006

2GRFKS..GSU7#

(L)

 2
90501-35035

2GRFKS..GSU7#

(J)

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0P580

2GRFKS..GSU7#

 1
17420-0P530

2GRFKS..GSU7#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P600

2GRFKS..GSU7#..G,M,N

 1
17430-0P630

2GRFKS..GSU7#..S

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17451-0V040

2GRFKS..GSU7#

 1
17451 - GASKET, EXHAUST PIPE
90917-A6005

2GRFKS..GSU7#

TYPE B:REFER ILLUST.

 1
90080-43036

2GRFKS..GSU7#

TYPE A:REFER ILLUST.

 1
17451 - GASKET, EXHAUST PIPE
90917-A6005

2GRFKS..GSU7#

TYPE B:REFER ILLUST.

 1
90080-43036

2GRFKS..GSU7#

TYPE A:REFER ILLUST.

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0P041

2GRFKS..GSU7#

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0P041

2GRFKS..GSU7#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0S011

A25AFXS,2GRFKS..AXUH7#,GSU7#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0S011

A25AFXS,2GRFKS..AXUH7#,GSU7#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0S011

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0S021

2GRFKS..GSU7#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0P230

2GRFKS..GSU7#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-0P180

2GRFKS..GSU7#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-0P170

2GRFKS..GSU7#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0P150

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
Common parts
90105-A0360
90109-10183
90109-A0065
90177-10005
90177-A0021
