GSU75L-ARZGHA (2019)
Toyota Highlander

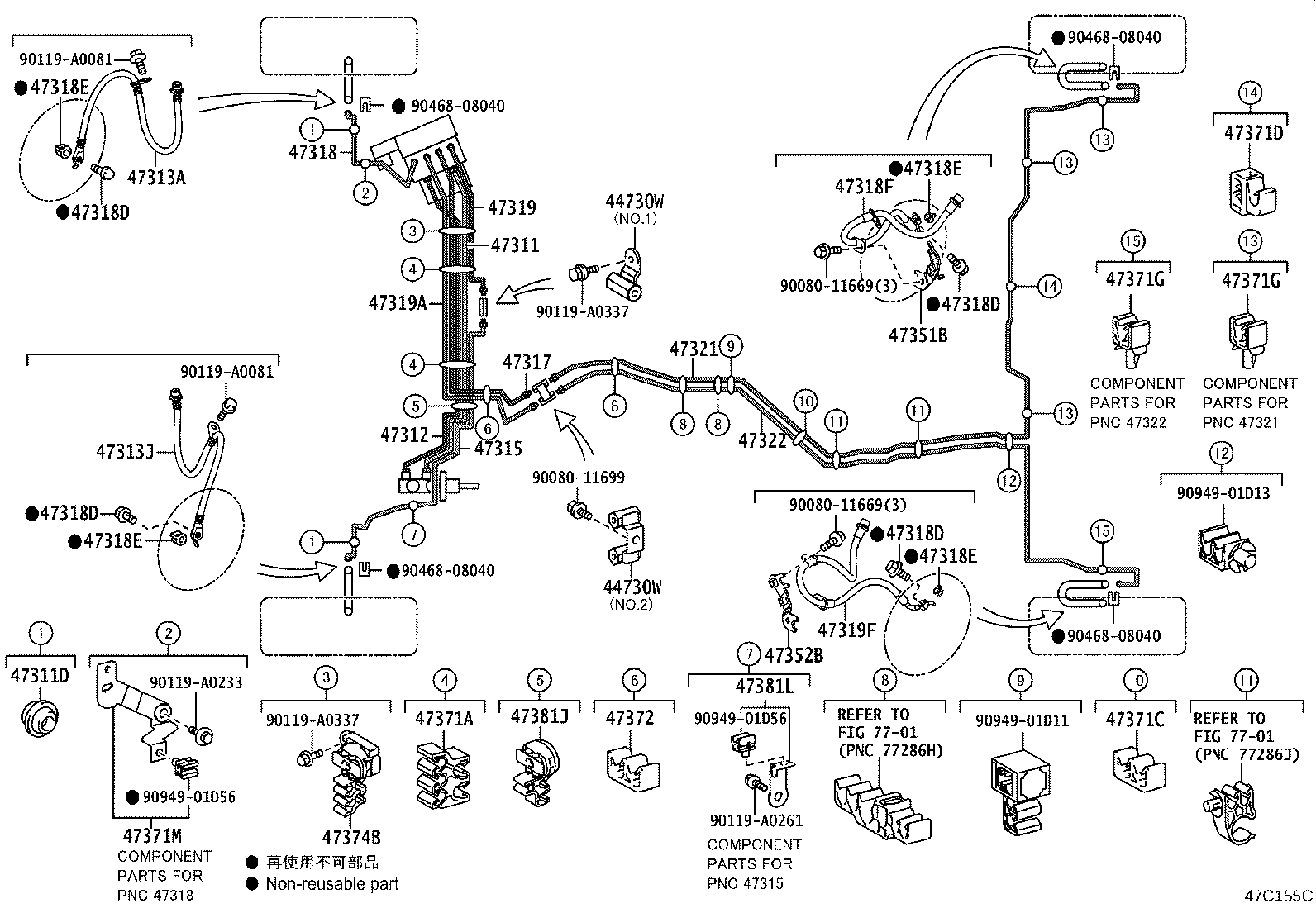

ILLUST NO. 1 OF 2(1912- )GSU7#
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
GSU7# NO.1 |
1 | ||
| 90412-A0011 |
GSU7# NO.2 |
1 | ||
| 90412-A0015 |
GSU7# NO.1 |
1 | ||
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
GSU7# NO.1 |
1 | ||
| 90412-A0011 |
GSU7# NO.2 |
1 | ||
| 90412-A0015 |
GSU7# NO.1 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0E040 |
GSU7# |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
AXUH7#,GSU7# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0E010 |
GSU7# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2119 |
AXUH7#,GSU7# |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2120 |
AXUH7#,GSU7# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0E090 |
GSU7# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0E160 |
GSU7# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47313-0E010 |
AXUH7#,GSU7# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH7#,GSU7# (J) |
2 | ||
| 90401-A0001 |
AXUH7#,GSU7# (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH7#,GSU7# (J) |
2 | ||
| 90401-A0001 |
AXUH7#,GSU7# (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH7#,GSU7# (J) |
2 | ||
| 90401-A0001 |
AXUH7#,GSU7# (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH7#,GSU7# (J) |
2 | ||
| 90401-A0001 |
AXUH7#,GSU7# (L) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH7#,GSU7# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH7#,GSU7# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH7#,GSU7# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH7#,GSU7# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2121 |
AXUH7#,GSU7# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47314-0E010 |
GSU7# |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47318-0E160 |
GSU7# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2122 |
AXUH7#,GSU7# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0E070 |
AXUH7#,GSU7# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0E070 |
AXUH7#,GSU7# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-0E040 |
AXUH7#,GSU7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-0E040 |
AXUH7#,GSU7# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E40 |
AXUH7#,GSU7# |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00903 |
AXUH7#,GSU7# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01C82 |
AXUH7#,GSU7# |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E01 |
AXUH7#,GSU7# |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E01 |
AXUH7#,GSU7# |
4 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 47371-0E040 |
AXUH7#,GSU7# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00903 |
AXUH7#,GSU7# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-48030 |
AXUH7#,GSU7# |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 47371-48190 |
AXUH7#,GSU7# |
1 | ||
| 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 | ||||
| 47371-0R020 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-11669 | ||||
| 90080-11699 | ||||
| 90119-A0081 | ||||
| 90119-A0233 | ||||
| 90119-A0261 | ||||
| 90119-A0337 | ||||
| 90468-08040 | ||||
| 90949-01D11 | ||||
| 90949-01D13 | ||||
| 90949-01D56 | ||||
| Linked diagrams | ||||
| 7701 | ||||

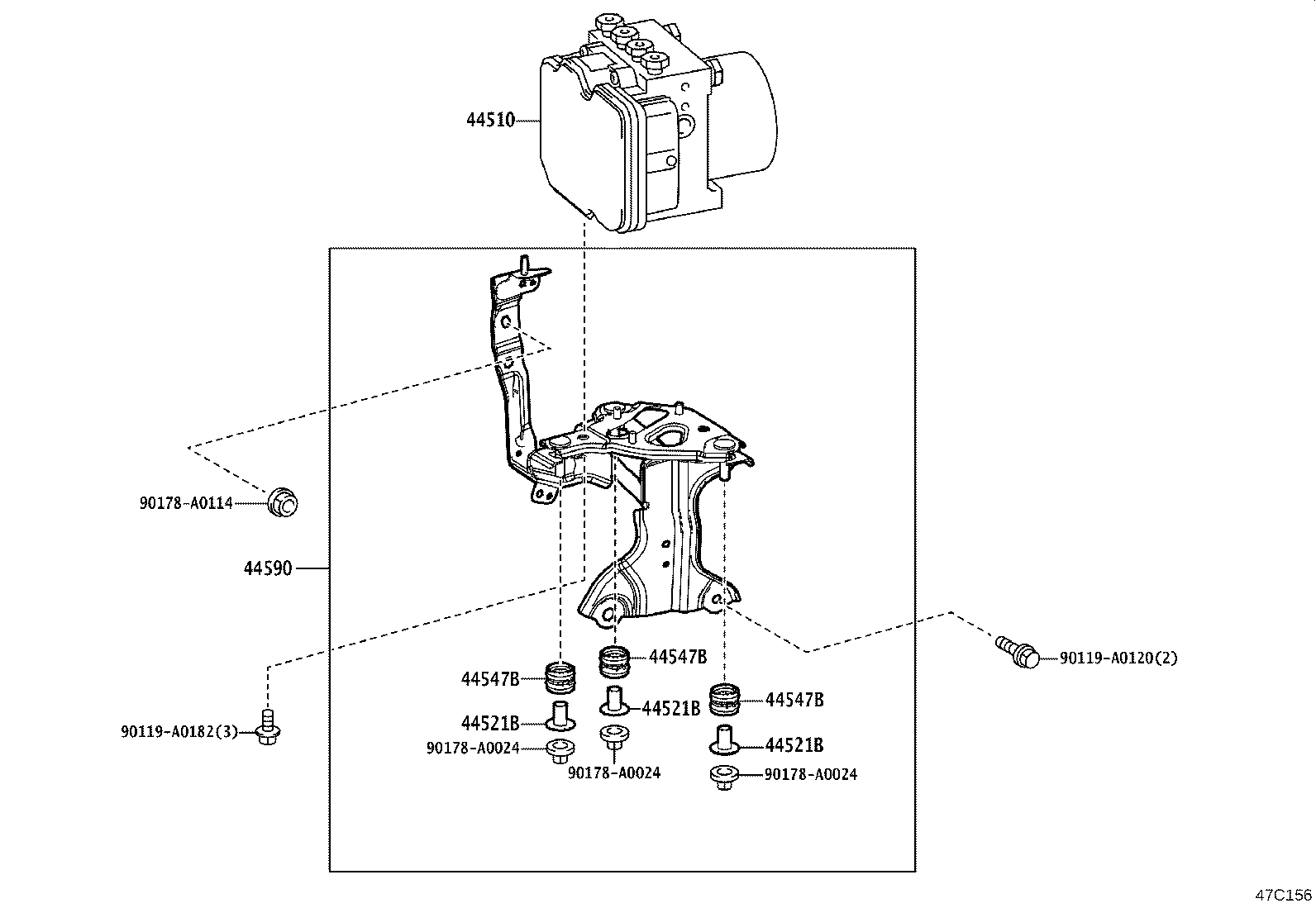

ILLUST NO. 2 OF 2(1912- )
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0E340 |
GSU7#..G |
1 | ||
| 44050-0E580 |
GSU7#..S |
1 | ||
| 44050-0E330 |
GSU7#..M,N |
1 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
AXUH7#,GSU7# |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
AXUH7#,GSU7# |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
AXUH7#,GSU7# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-48010 |
AXUH7#,GSU7# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-48010 |
AXUH7#,GSU7# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-48010 |
AXUH7#,GSU7# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0E120 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90119-A0120 | ||||
| 90119-A0182 | ||||
| 90178-A0024 | ||||
| 90178-A0114 | ||||
