GSU75L-ARZGHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )GSU7#

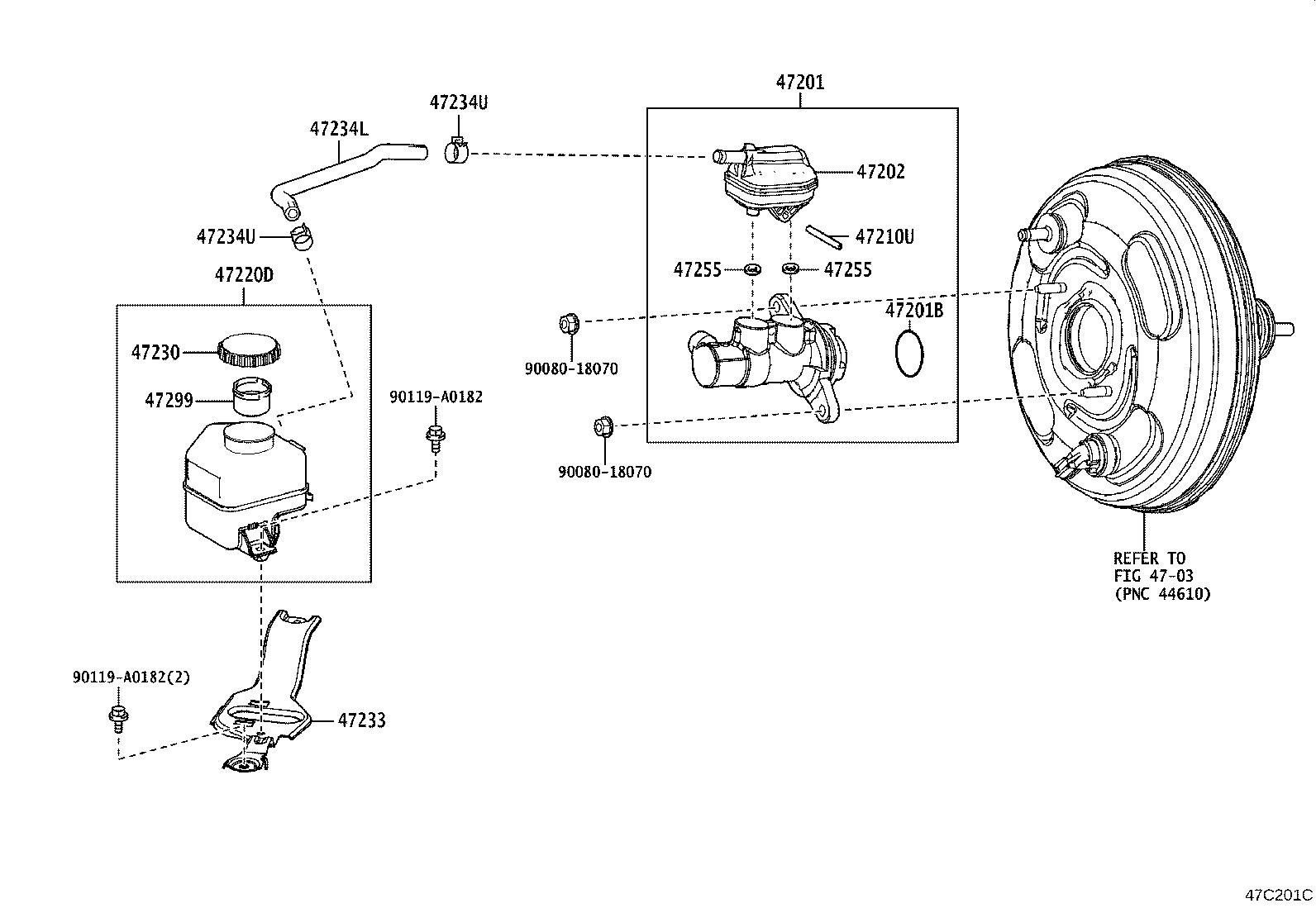

Click highlighted areas on diagram

diagram 4703 47201 47201B 47202 47210U 47220D 47230 47233 47234L 47234U 47234U 47255 47255 47299 9008018070 9008018070 90119A0182 90119A0182
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0E040

GSU7#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

GSU7#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48200

GSU7#

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-15803

GSU7#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0E140

GSU7#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

AXUH7#,GSU7#

 1
47233 - BRACKET, RESERVOIR
47233-0E140

GSU7#

 1
47234L - HOSE, RESERVOIR, NO.1
47234-0E140

GSU7#

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
90466-A0017

AXUH7#,GSU7#

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
90466-A0017

AXUH7#,GSU7#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

GSU7#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

GSU7#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

GSU7#

 1
Common parts
90080-18070
90119-A0182
Linked diagrams
4703
