GSU75L-ARZGHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )2GRFKS

Click highlighted areas on diagram

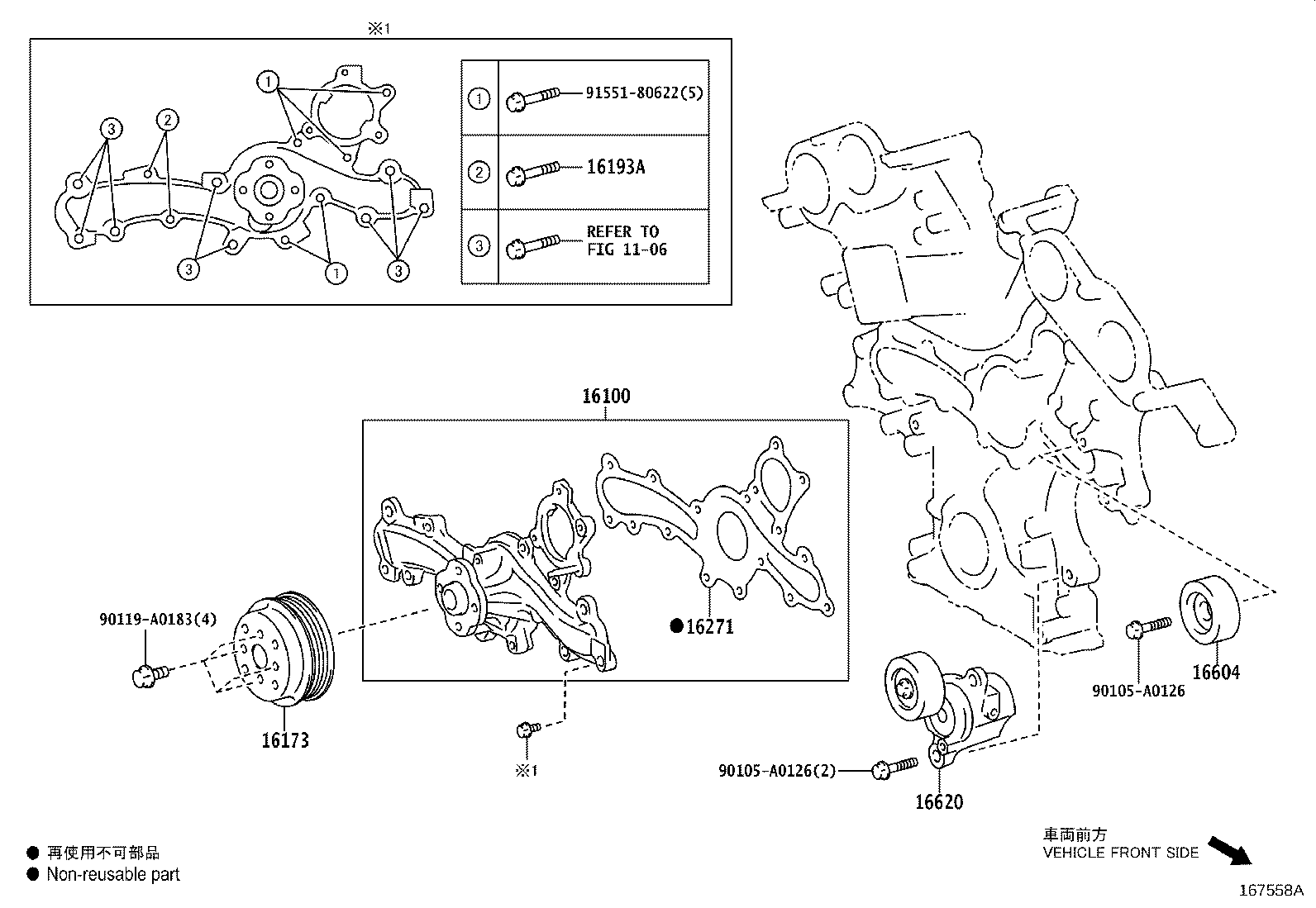

diagram 1106 16100 16173 16193A 16271 16604 16620 90105A0126 90105A0126 90119A0183 9155180622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09690

2GRFKS..GSU7#

 1
16173 - PULLEY, WATER PUMP
16173-0P010

2GRFKS..GSU7#

 1
16173-0P011

2GRFKS..GSU7#

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-0P040

2GRFKS..GSU7#

(L)

 2
16193-31080

2GRFKS..GSU7#

(J)

 2
16271 - GASKET, WATER PUMP
16271-0P030

2GRFKS..GSU7#

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31030

2GRFKS..GSU7#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0P030

2GRFKS..GSU7#

 1
Common parts
90105-A0126
90119-A0183
91551-80622
Linked diagrams
1106
