GSU70L-ARZSHA (2020)

Toyota Highlander

Production Sep 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

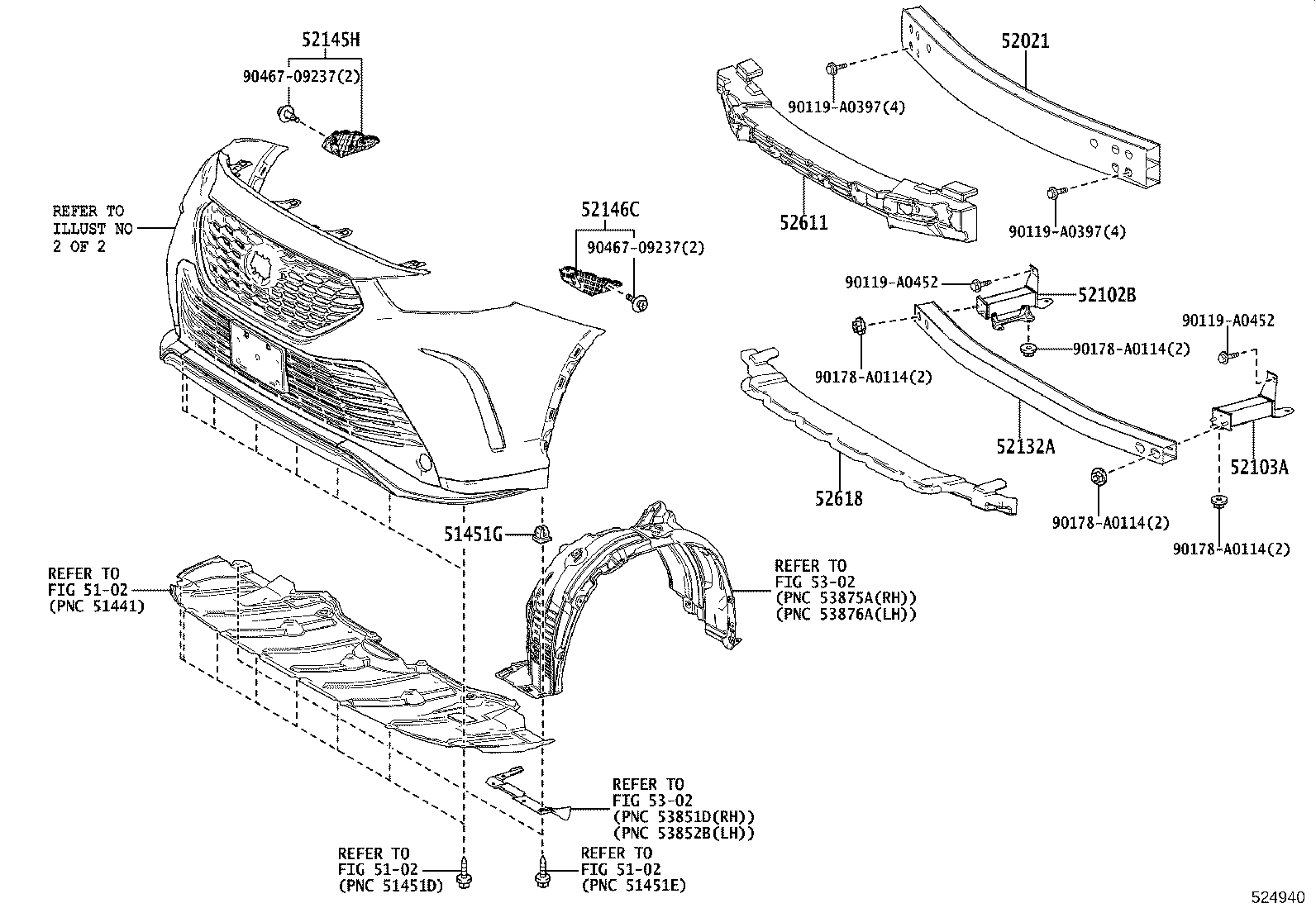

ILLUST NO. 1 OF 2(2009- )S

Click highlighted areas on diagram

diagram 5102 5102 5102 51451G 52021 52102B 52103A 52132A 52145H 52146C 52611 52618 5302 5302 90119A0397 90119A0397 90119A0452 90119A0452 90178A0114 90178A0114 90178A0114 90178A0114 9046709237 9046709237
Part # Description Qty Price
51451G - GROMMET, NO.2
90189-06237

AXUH7#,GSU7#

 2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0E090

AXUH7#,GSU7#

 1
52102B - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52102-0E010

AXUH7#,GSU7#

 1
52103A - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52103-0E010

AXUH7#,GSU7#

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-0E010

AXUH7#,GSU7#

 1
52145H - STAY, FRONT BUMPER SIDE, RH
52145-0E100

AXUH7#,GSU7#

 1
52146C - STAY, FRONT BUMPER SIDE, LH
52146-0E100

AXUH7#,GSU7#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0E140

AXUH7#,GSU7#..G,M,N

 1
52611-0E160

GSU7#..S

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0E030

AXUH7#,GSU7#

 1
Common parts
90119-A0397
90119-A0452
90178-A0114
90467-09237
Linked diagrams
5102
5302

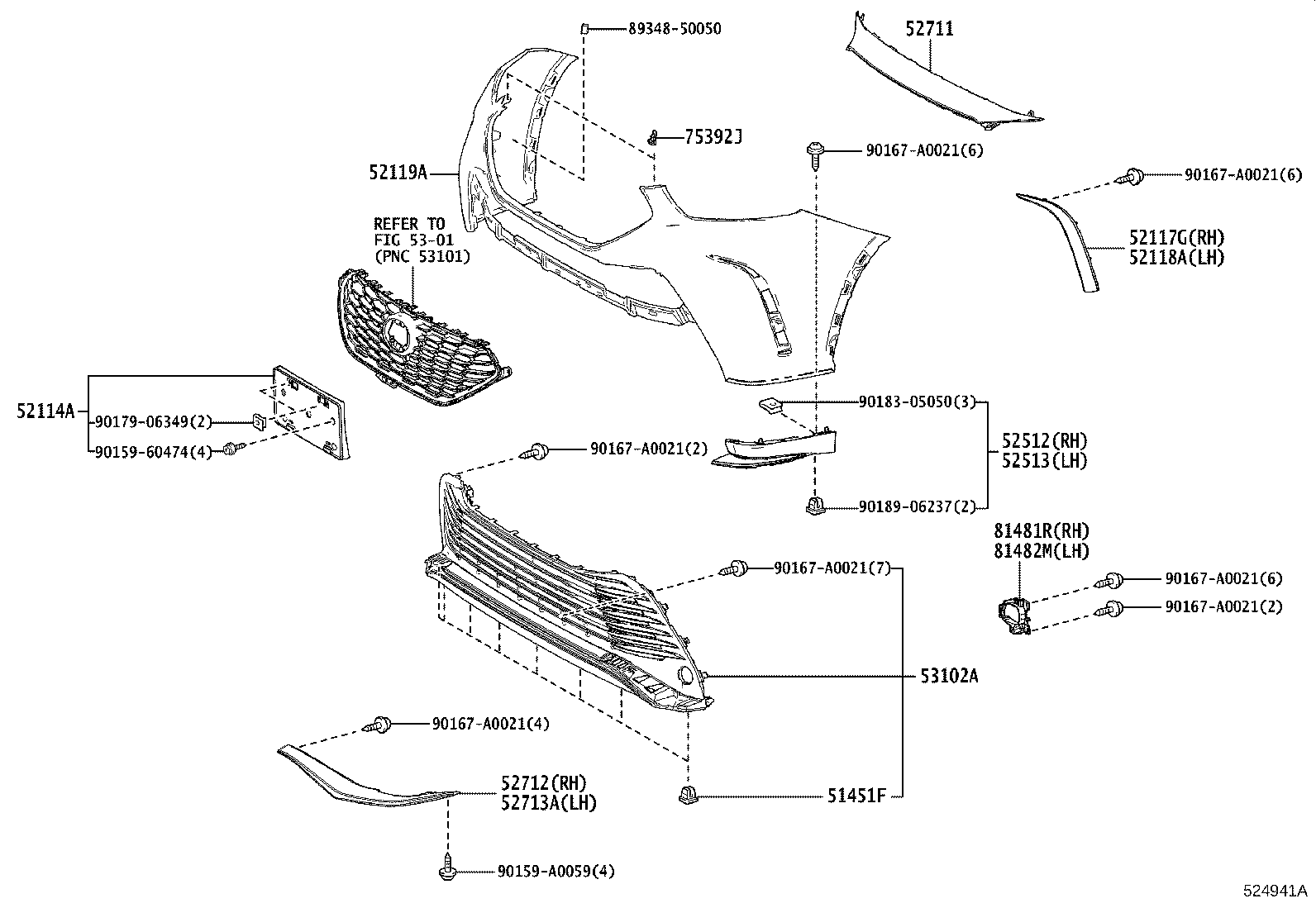

ILLUST NO. 2 OF 2(2009- )S

Click highlighted areas on diagram

diagram 51451F 52114A 52117G 52118A 52119A 52512 52513 52711 52712 52713A 5301 53102A 75392J 81481R 81482M 8934850050 9015960474 90159A0059 90167A0021 90167A0021 90167A0021 90167A0021 90167A0021 90167A0021 90167A0021 9017906349 9018305050 9018906237
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06237

AXUH7#,GSU7#

 8
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-0E200

GSU7#..S

LICENSE PLATE BRACKET-WITH

 1
52114-0E160

AXUH7#,GSU7#..G,M,N

LICENSE PLATE BRACKET-WITH

 1
52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH
52117-0E030

GSU7#..S

 1
52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH
52118-0E030

GSU7#..S

 1
52119A - COVER, FRONT BUMPER
52119-0E950

AXUH7#,GSU7#..M,N

PAINT REQ.

 1
52119-0E955

GSU7#..S

PAINT REQ.

 1
52119-0E951

AXUH7#,GSU7#..G

PAINT REQ.

 1
52512 - FILLER, FRONT BUMPER, RH
52512-0E010

GSU7#..S

 1
52513 - FILLER, FRONT BUMPER, LH
52513-0E010

GSU7#..S

 1
52711 - MOULDING, FRONT BUMPER
52711-0E901

GSU7#..S

PAINT REQ.

 1
52711-0E900

AXUH7#,GSU7#..G,M,N

PAINT REQ.

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-0E060

GSU7#..S

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-0E060

GSU7#..S

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-0E200

GSU7#..S

NO PAINT REQ.

 1
75392J - RETAINER, OUTSIDE MOULDING
75392-35220

AXUH7#,GSU7#

 2
81481R - BRACKET, FOG LAMP, RH
81481-0E230

GSU7#..S

 1
81482M - BRACKET, FOG LAMP, LH
81482-0E230

GSU7#..S

 1
Common parts
89348-50050
90159-60474
90159-A0059
90167-A0021
90179-06349
90183-05050
90189-06237
Linked diagrams
5301
