GSU70L-ARZNHA (2019)
Toyota Highlander

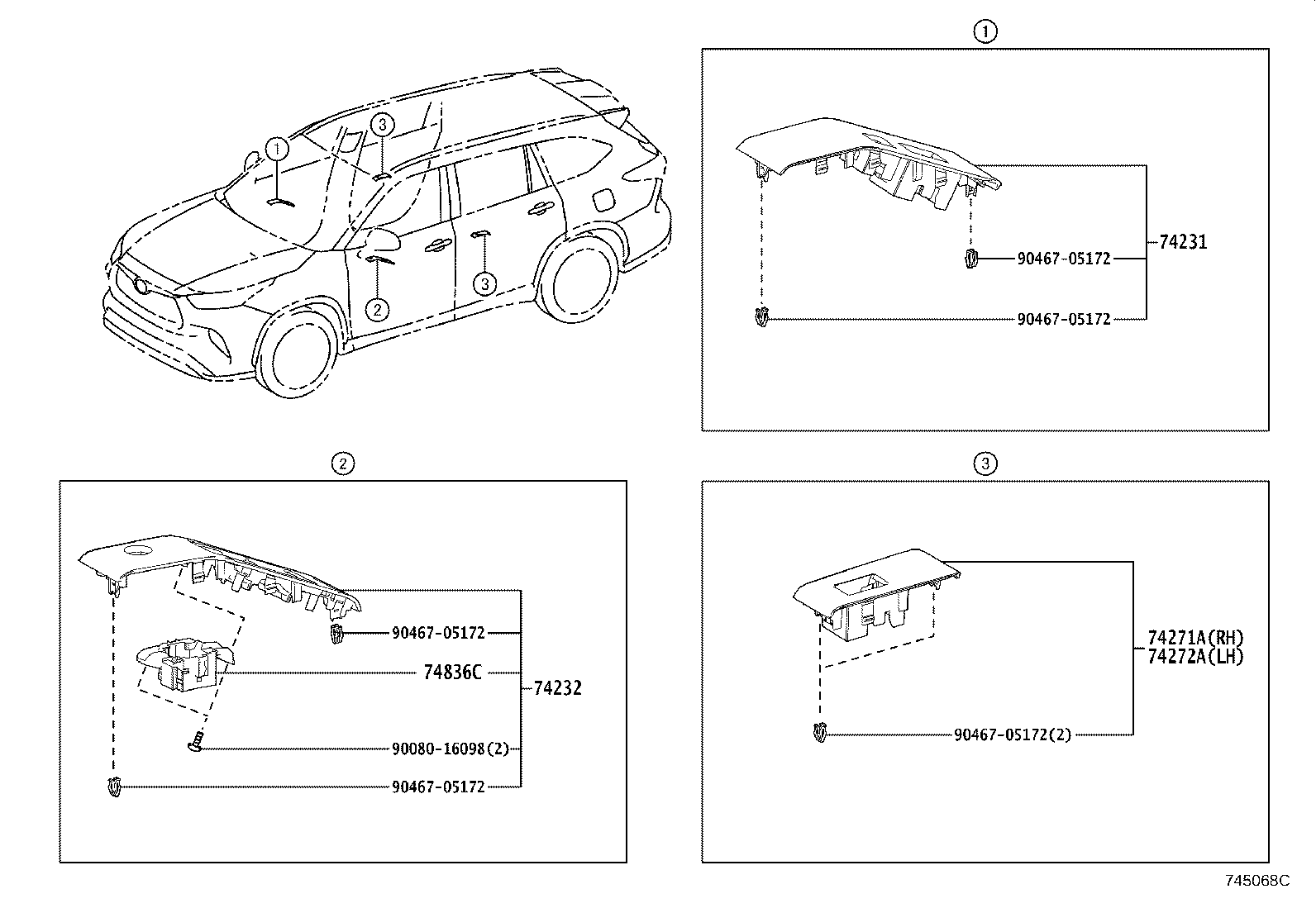

ILLUST NO. 1 OF 2(1912- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0E110 |
AXUH7#,GSU7# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0E130 |
AXUH7#,GSU7# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0E080 |
AXUH7#,GSU7# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0E080 |
AXUH7#,GSU7# |
1 | ||
| 74836C - BRACKET, SEPARATOR, LOWER LH | ||||
| 74836-0E010 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90467-05172 | ||||
ILLUST NO. 2 OF 2(1912- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0E140B0 |
AXUH7#,GSU7#..M LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 74310-0E140C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
1 | ||
| 74310-0E140B0 |
AXUH7#,GSU7#..N LT. GRAY,TRIM1#,2# |
1 | ||
| 74310-0E140C0 |
GSU7#..S BLACK,TRIM2#,3# |
1 | ||
| 74310-0E140B0 |
AXUH7#,GSU7#..G LT. GRAY,TRIM1#,2#,40 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0E140B0 |
AXUH7#,GSU7#..N LT. GRAY,TRIM1#,2# |
1 | ||
| 74320-0E140B0 |
AXUH7#,GSU7#..G LT. GRAY,TRIM1#,2#,40 |
1 | ||
| 74320-0E140B0 |
AXUH7#,GSU7#..M LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 74320-0E140C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
1 | ||
| 74320-0E140C0 |
GSU7#..S BLACK,TRIM2#,3# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020C2 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
2 | ||
| 74317-60020B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
2 | ||
| 74317-60020B1 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
2 | ||
| 74317-60020B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-47010B3 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
2 | ||
| 74348-47010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
2 | ||
| 74348-47010C0 |
GSU7#..S BLACK,TRIM2#,3# |
2 | ||
| 74348-47010B3 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
2 | ||
| 74348-47010B3 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0E070C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
2 | ||
| 74610-0E070C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
2 | ||
| 74610-0E070C0 |
GSU7#..S BLACK,TRIM2#,3# |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0E070C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
2 | ||
| 74610-0E070C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
2 | ||
| 74610-0E070C0 |
GSU7#..S BLACK,TRIM2#,3# |
2 | ||
| 74610-0E070B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-06160B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74612-06160C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06160C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-06160B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74612-06160C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06160C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-06160B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74612-06160C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06160C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-06160B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74612-06160C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74612-06160B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06160C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74611-06170C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74611-06170C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74611-06170C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74611-06170C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74611-06170C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74611-06170C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74611-06170C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 74611-06170C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 74611-06170B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
4 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-0E080B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
1 | ||
| 74610-0E080B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
1 | ||
| 74610-0E080B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
1 | ||
| 74610-0E080C0 |
GSU7#..S BLACK,TRIM2#,3# |
1 | ||
| 74610-0E080C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
1 | ||
| 74610-0E080C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-0E090B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
1 | ||
| 74610-0E090B0 |
AXUH7#,GSU7#..N LT.GRAY,TRIM1#,2# |
1 | ||
| 74610-0E090B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
1 | ||
| 74610-0E090C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
1 | ||
| 74610-0E090C0 |
GSU7#..S BLACK,TRIM2#,3# |
1 | ||
| 74610-0E090C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
1 | ||
| Common parts | ||||
| 90149-50009 | ||||
