GSU70L-ARZMHA (2019)
Toyota Highlander
ILLUST NO. 1 OF 5(1912- )
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0E590 |
AXUH7#,GSU7#..M,S |
1 | ||
| 55900-0E550 |
AXUH7#,GSU7#..G |
1 | ||
| 55900-0E760 |
GSU70..M MEXICO SPEC |
1 | ||
| 55900-0E770 |
GSU70..G MEXICO SPEC |
1 | ||
| 55900-0E710 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0E590 |
AXUH7#,GSU7#..M,S |
1 | ||
| 55900-0E550 |
AXUH7#,GSU7#..G |
1 | ||
| 55900-0E760 |
GSU70..M MEXICO SPEC |
1 | ||
| 55900-0E770 |
GSU70..G MEXICO SPEC |
1 | ||
| 55900-0E710 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0E590 |
AXUH7#,GSU7#..M,S |
1 | ||
| 55900-0E550 |
AXUH7#,GSU7#..G |
1 | ||
| 55900-0E760 |
GSU70..M MEXICO SPEC |
1 | ||
| 55900-0E770 |
GSU70..G MEXICO SPEC |
1 | ||
| 55900-0E710 |
AXUH7#,GSU7#..G AUDIO-12.3"(EMV) DECKLESS JBL11SP&BACK MONITOR-PANORAMIC VIEW MONITOR |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
ILLUST NO. 2 OF 5(1912- )
REAR HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-0E690 |
AXUH7#,GSU7# |
1 | ||
| 55900-0E680 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-0E690 |
AXUH7#,GSU7# |
1 | ||
| 55900-0E680 |
AXUH7#,GSU7#..G PLATINUM PACKAGE |
1 | ||

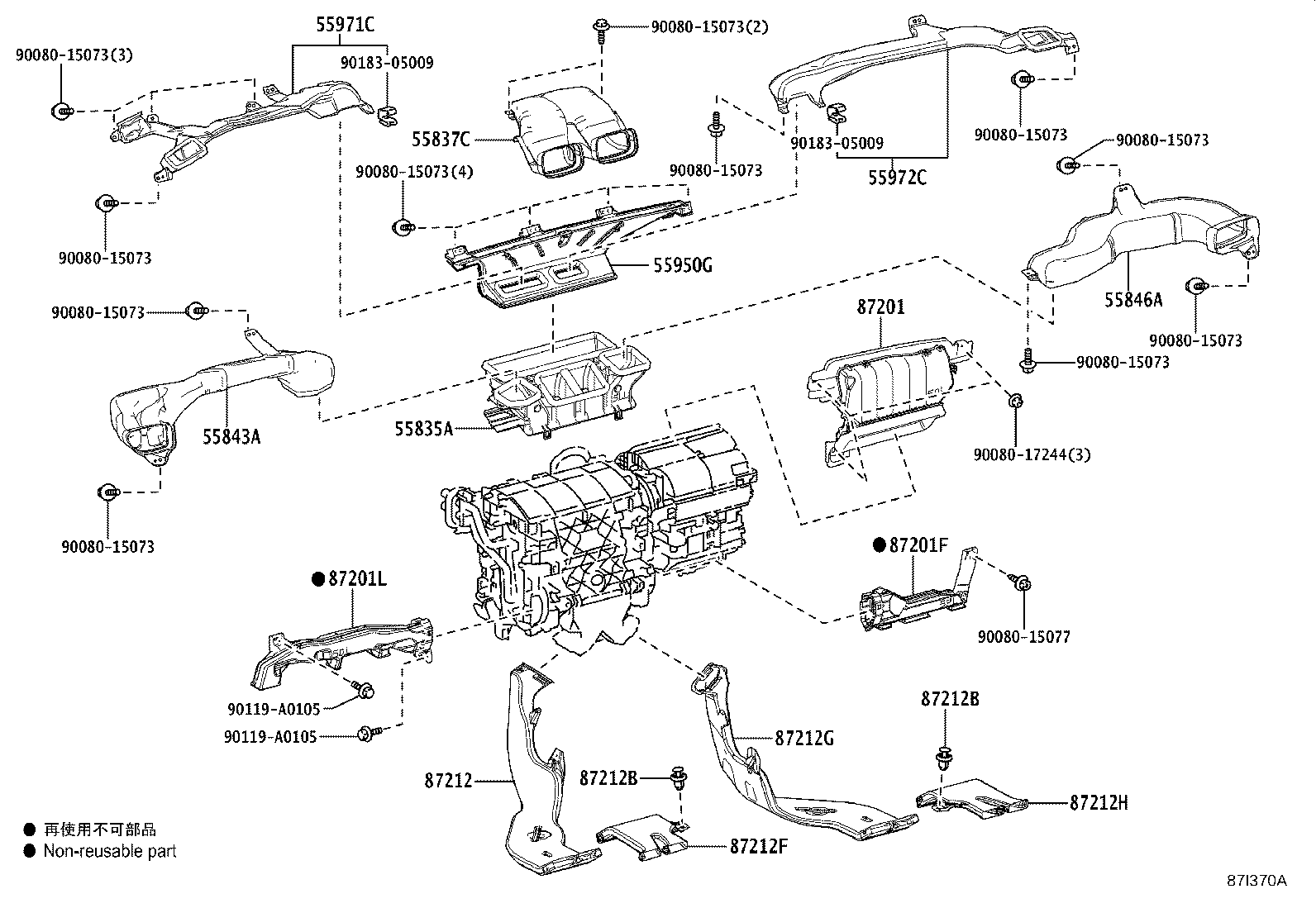

ILLUST NO. 3 OF 5(1912- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 87201-0E150 |
AXUH7#,GSU7# |
1 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-0E090 |
AXUH7#,GSU7# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0E100 |
AXUH7#,GSU7# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-0E090 |
AXUH7#,GSU7# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0E080 |
AXUH7#,GSU7# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-0E090 |
AXUH7#,GSU7# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-0E090 |
AXUH7#,GSU7# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-0E140 |
AXUH7#,GSU7# |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-0E360 |
AXUH7#,GSU7# |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87201-0E350 |
AXUH7#,GSU7# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-0E100 |
AXUH7#,GSU7# |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-07215 |
AXUH7#,GSU7# |
2 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-07215 |
AXUH7#,GSU7# |
2 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87216-0R010 |
AXUH7#,GSU7# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-0E100 |
AXUH7#,GSU7# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87215-0R030 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90080-17244 | ||||
| 90119-A0105 | ||||
| 90183-05009 | ||||
ILLUST NO. 4 OF 5(1912- )
REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-07220 |
AXUH7#,GSU7# |
4 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-07220 |
AXUH7#,GSU7# |
4 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 62974-0E050 |
AXUH7#,GSU7# |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87211-0E120 |
AXUH7#,GSU7# |
1 | ||
| 87217F - DUCT, AIR, REAR SIDE NO.3 | ||||
| 87217-0E060 |
AXUH7#,GSU7# |
1 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 63610-0E010B0 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,2#,4# |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 63610-0E010B0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41 |
2 | ||
| 63610-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 63610-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXUH7#,GSU7#..G LT.GRAY,TRIM1#,2#,40 |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..G BLACK,TRIM41 |
4 | ||
| 88571-0E010B1 |
AXUH7#,GSU7#..M LT.GRAY,TRIM1#,20,4# |
4 | ||
| 88571-0E010C0 |
GSU7#..S BLACK,TRIM2#,3# |
4 | ||
| 88571-0E010C0 |
AXUH7#,GSU7#..M BLACK,TRIM20 |
4 | ||
| Common parts | ||||
| 90468-04194 | ||||
| Linked diagrams | ||||
| 6402 | ||||

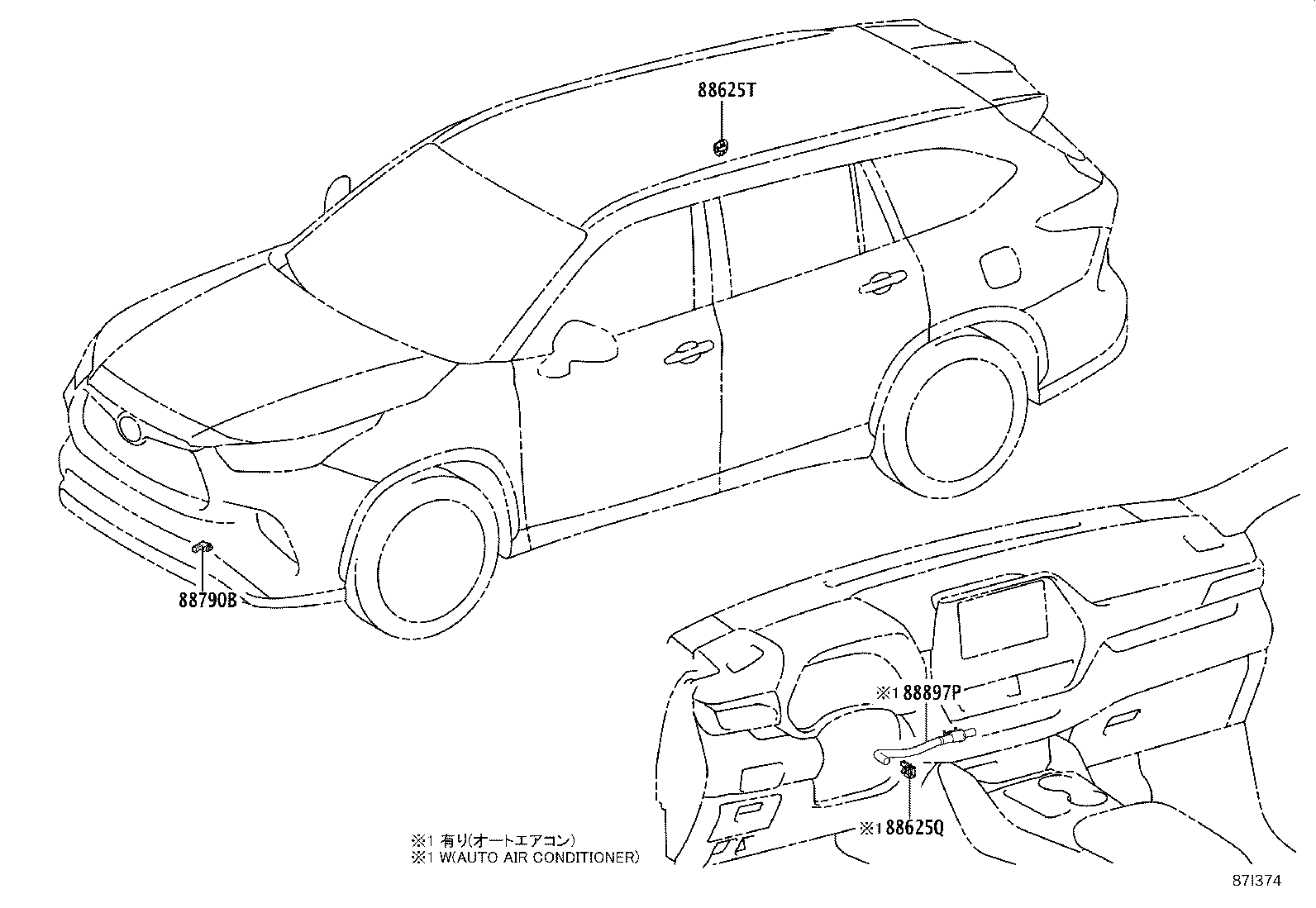

ILLUST NO. 5 OF 5(1912- )GSU7#
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-06040 |
AXUH7#,GSU7# |
1 | ||
| 88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2) | ||||
| 88625-45020C1 |
AXUH7#,GSU7#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 88625-45020C1 |
GSU7#..S BLACK,TRIM2#,3# |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-06020 |
AXUH7#,GSU7# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-0E290 |
AXUH7#,GSU7# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
