GSU70L-ARZMHA (2019)

Toyota Highlander

Production Dec 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )GSU7#..G

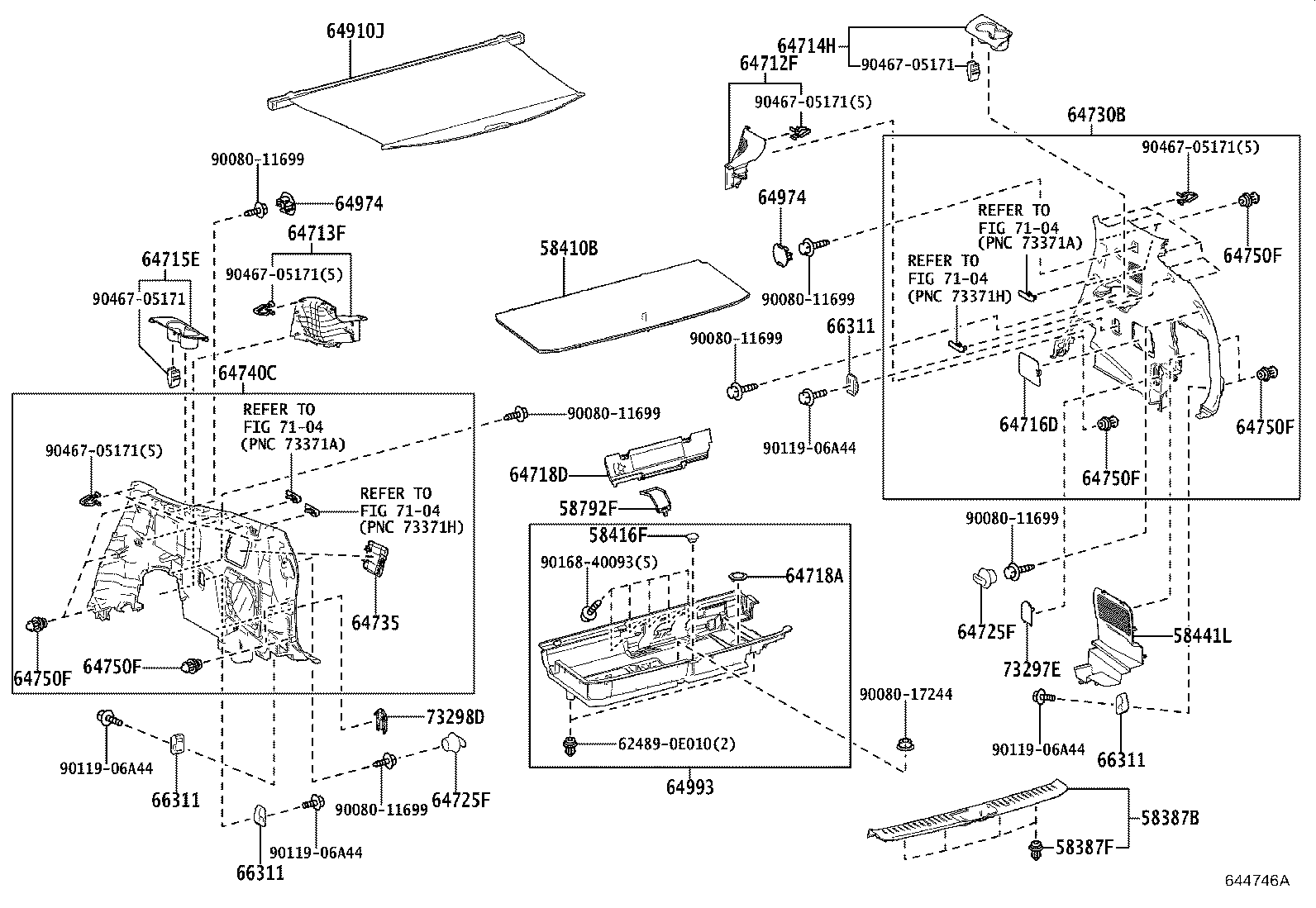

Click highlighted areas on diagram

diagram 58387B 58387F 58410B 58416F 58441L 58792F 624890E010 64712F 64713F 64714H 64715E 64716D 64718A 64718D 64725F 64725F 64730B 64735 64740C 64750F 64750F 64750F 64750F 64750F 64910J 64974 64974 64993 66311 66311 66311 66311 7104 7104 7104 7104 73297E 73298D 9008011699 9008011699 9008011699 9008011699 9008011699 9008011699 9008017244 9011906A44 9011906A44 9011906A44 9011906A44 9016840093 9046705171 9046705171 9046705171 9046705171 9046705171 9046705171
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-0E090C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58387-0E090C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
62489-0E010

AXUH7#,GSU7#

 4
58410B - BOARD ASSY, DECK
58410-0E090C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58410-0E090C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58416F - BRACKET, DECK BOARD, NO.1
58416-33020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58416-33020C1

GSU7#..S

BLACK,TRIM2#,3#

 1
58441L - COVER, BATTERY SERVICE HOLE
58441-0E040C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58441-0E040C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58792F - SUPPORT, JACK CARRIER
58792-0E040

AXUH7#,GSU7#

 1
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-0E060C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64712-0E060C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-0E060C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64713-0E060C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64714H - COVER, DECK SIDE TRIM, NO.1
64714-0E080C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64714-0E080C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64715E - COVER, DECK SIDE TRIM, NO.2
64715-0E080C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64715-0E080C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64716D - COVER, DECK TRIM, REAR
64716-0E050C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64716-0E050C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-48010

AXUH7#,GSU7#

 1
64718D - COVER, DECK TRIM SERVICE HOLE
64718-0E040C0

GSU7#

BLACK

 1
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-48020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64725-48020C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-48020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64725-48020C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-0E120C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64730-0E121C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64730-0E121C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-0E040C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64735-0E040C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-0E131C0

GSU7#..M

BLACK,TRIM1#,2#,4#

 1
64740-0E140C0

GSU7#..G

BLACK,TRIM1#,2#,4#

 1
64740-0E131C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64740-0E130C0

GSU7#..M

BLACK,TRIM1#,2#,4#

 1
64740-0E141C0

GSU7#..G

BLACK,TRIM1#,2#,4#

 1
64740-0E141C0

GSU7#..S

AUDIO-8"T2(AVN)DECKLESS JBL11SP,BLACK,TRIM2#,3#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64910J - COVER ASSY, TONNEAU
64910-0E090C0

AXUH7#,GSU7#..G

BLACK,TRIM1#,2#,4#

 1
64974 - COVER, DECK TRIM POCKET
64974-0E010C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64974-0E010C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64974 - COVER, DECK TRIM POCKET
64974-0E010C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64974-0E010C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64993 - BOX, DECK FLOOR, REAR
64993-0E170C0

GSU7#

BLACK

 1
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
73297E - COVER, DECK TRIM SIDE BELT HOLE, RH
73297-0E030C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
73297-0E030C0

GSU7#..S

BLACK,TRIM2#,3#

 1
73298D - COVER,DECK TRIM SIDE BELT HOLE, LH
73297-0E030C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
73297-0E030C0

GSU7#..S

BLACK,TRIM2#,3#

 1
Common parts
62489-0E010
90080-11699
90080-17244
90119-06A44
90168-40093
90467-05171
Linked diagrams
7104

(1912- )GSU7#..M,N,S

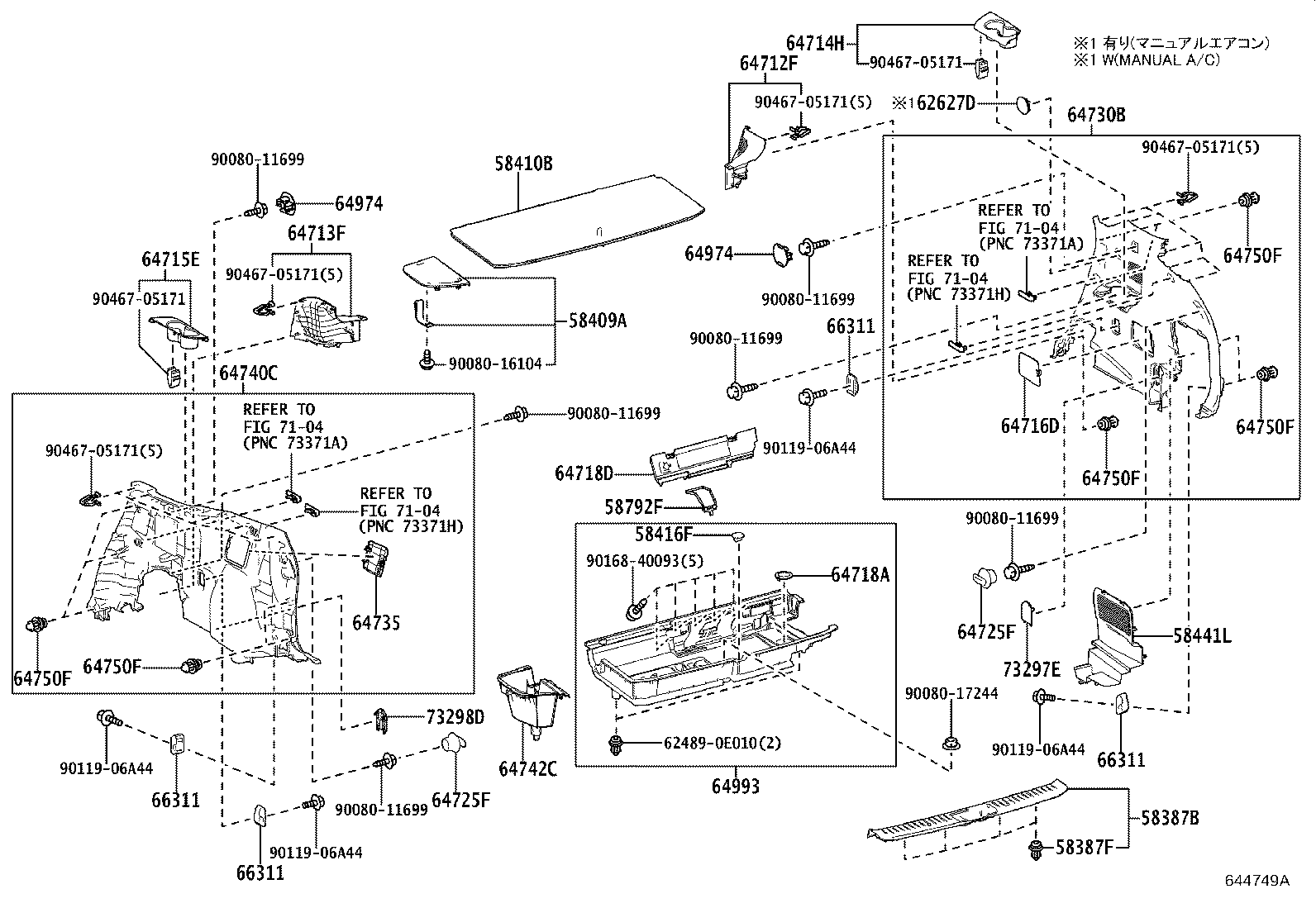

Click highlighted areas on diagram

diagram 58387B 58387F 58409A 58410B 58416F 58441L 58792F 624890E010 62627D 64712F 64713F 64714H 64715E 64716D 64718A 64718D 64725F 64725F 64730B 64735 64740C 64742C 64750F 64750F 64750F 64750F 64750F 64974 64974 64993 66311 66311 66311 66311 7104 7104 7104 7104 73297E 73298D 9008011699 9008011699 9008011699 9008011699 9008011699 9008011699 9008016104 9008017244 9011906A44 9011906A44 9011906A44 9011906A44 9016840093 9046705171 9046705171 9046705171 9046705171 9046705171 9046705171
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-0E090C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58387-0E090C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
62489-0E010

AXUH7#,GSU7#

 4
58409A - BOARD SUB-ASSY, DECK, NO.3
58409-0E070C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58409-0E070C0

AXUH7#,GSU7#..M

BLACK,TRIM1#,2#,4#

 1
58410B - BOARD ASSY, DECK
58410-0E090C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58410-0E090C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58416F - BRACKET, DECK BOARD, NO.1
58416-33020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58416-33020C1

GSU7#..S

BLACK,TRIM2#,3#

 1
58441L - COVER, BATTERY SERVICE HOLE
58441-0E040C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
58441-0E040C0

GSU7#..S

BLACK,TRIM2#,3#

 1
58792F - SUPPORT, JACK CARRIER
58792-0E040

AXUH7#,GSU7#

 1
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-0E060C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64712-0E060C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-0E060C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64713-0E060C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64714H - COVER, DECK SIDE TRIM, NO.1
64714-0E080C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64714-0E080C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64715E - COVER, DECK SIDE TRIM, NO.2
64715-0E080C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64715-0E080C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64716D - COVER, DECK TRIM, REAR
64716-0E050C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64716-0E050C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-48010

AXUH7#,GSU7#

 1
64718D - COVER, DECK TRIM SERVICE HOLE
64718-0E040C0

GSU7#

BLACK

 1
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-48020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64725-48020C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-48020C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64725-48020C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-0E120C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64730-0E121C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64730-0E121C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-0E040C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64735-0E040C0

GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-0E131C0

GSU7#..M

BLACK,TRIM1#,2#,4#

 1
64740-0E140C0

GSU7#..G

BLACK,TRIM1#,2#,4#

 1
64740-0E131C0

GSU7#..S

BLACK,TRIM2#,3#

 1
64740-0E130C0

GSU7#..M

BLACK,TRIM1#,2#,4#

 1
64740-0E141C0

GSU7#..G

BLACK,TRIM1#,2#,4#

 1
64740-0E141C0

GSU7#..S

AUDIO-8"T2(AVN)DECKLESS JBL11SP,BLACK,TRIM2#,3#

 1
64742C - BOX, DECK SIDE TRIM, LH
64742-0E080C0

GSU7#..M,N,S

BLACK

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
62489-0E010

AXUH7#,GSU7#

 10
64974 - COVER, DECK TRIM POCKET
64974-0E010C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64974-0E010C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64974 - COVER, DECK TRIM POCKET
64974-0E010C1

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 2
64974-0E010C1

GSU7#..S

BLACK,TRIM2#,3#

 2
64993 - BOX, DECK FLOOR, REAR
64993-0E170C0

GSU7#

BLACK

 1
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
66311 - HOOK, ROPE
66311-0E010C2

GSU7#..S

BLACK,TRIM2#,3#

 4
66311-0E010C2

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 4
73297E - COVER, DECK TRIM SIDE BELT HOLE, RH
73297-0E030C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
73297-0E030C0

GSU7#..S

BLACK,TRIM2#,3#

 1
73298D - COVER,DECK TRIM SIDE BELT HOLE, LH
73297-0E030C0

AXUH7#,GSU7#..G,M

BLACK,TRIM1#,2#,4#

 1
73297-0E030C0

GSU7#..S

BLACK,TRIM2#,3#

 1
Common parts
62489-0E010
90080-11699
90080-16104
90080-17244
90119-06A44
90168-40093
90467-05171
Linked diagrams
7104
