AXUH78L-ARXNHA (2020)
Toyota Highlander

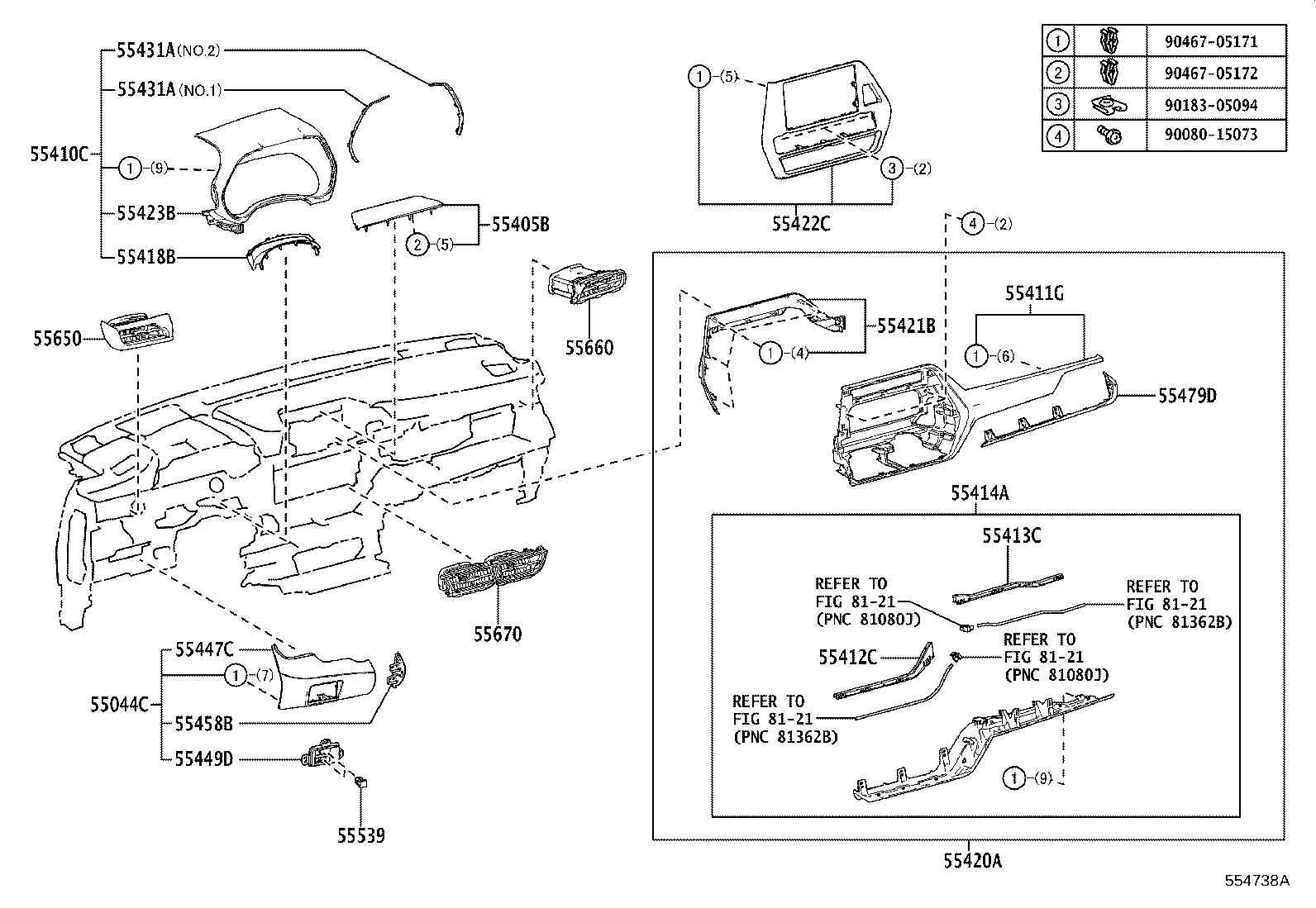

ILLUST NO. 2 OF 3(2009- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55044-0E070B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY, GRAY 166,TRIM1# |
1 | ||
| 55044-0E070C0 |
AXUH7#,GSU7# BLACK, GRAY 166,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0E060C1 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E100C0 |
AXUH7#,GSU7#..N BLACK,TRIM1#,2# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-0E150 |
AXUH7#,GSU7#..G,S |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-0E120 |
AXUH7#,GSU7#..G,S |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-0E130 |
AXUH7#,GSU7#..G,S |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E070C0 |
AXUH7#,GSU7#..N BLACK,TRIM1#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E290 |
AXUH7#,GSU7#..M,N |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-0E050 |
AXUH7#,GSU7#..G,S |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E050 |
AXUH7#,GSU7# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-0E110C0 |
AXUH7#,GSU7#..N BLACK,TRIM1#,2# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-0E030 |
AXUH7#,GSU7#..M,S NO.1 |
1 | ||
| 55431-0E040 |
AXUH7#,GSU7#..M,S NO.2 |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-0E030 |
AXUH7#,GSU7#..M,S NO.1 |
1 | ||
| 55431-0E040 |
AXUH7#,GSU7#..M,S NO.2 |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0E060B1 |
AXUH7#..G,N;GSU7#..G,M,N GRAY, GRAY 166,TRIM1# |
1 | ||
| 55447-0E060C1 |
AXUH7#,GSU7# BLACK, GRAY 166,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E290 |
AXUH7#,GSU7# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0E050C0 |
AXUH7#..G,N;GSU7#..G,M,N BLACK,TRIM2# |
1 | ||
| 55458-0E050B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-0E020 |
AXUH7#,GSU7#..M,N |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60350 |
GSU7#;AXUH7#..M,N |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E110 |
AXUH7#,GSU7#..M,N |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E090 |
AXUH7#,GSU7# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E110 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 8121 | ||||

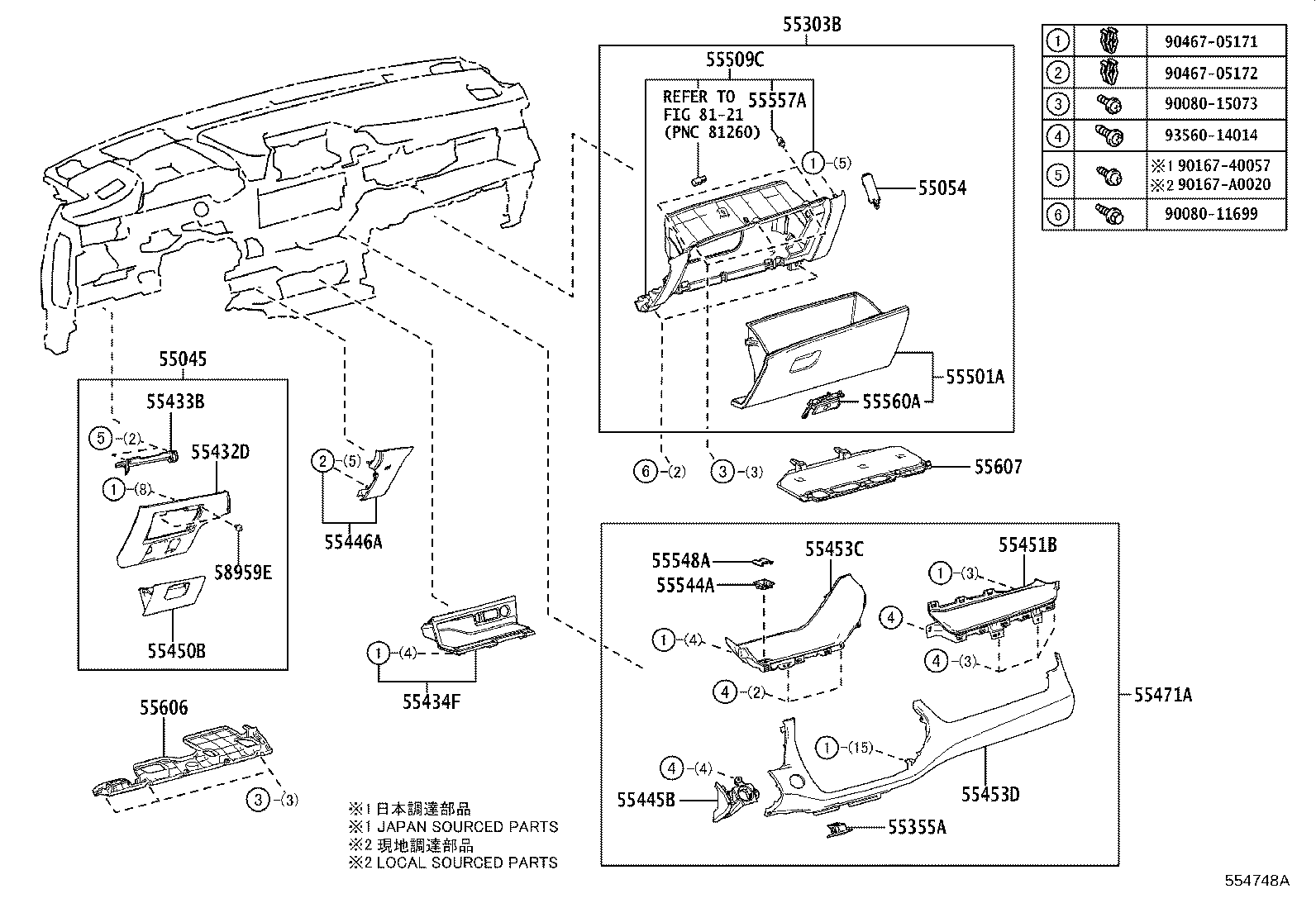

ILLUST NO. 3 OF 3(2009- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E160C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXUH7#,GSU7# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E090C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-0E080C0 |
AXUH7#..G,N;GSU7#..G,M,N BLACK,TRIM2# |
1 | ||
| 55355-0E080B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY,TRIM1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0E230C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55455-0E150 |
AXUH7#,GSU7# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E110 |
AXUH7#,GSU7# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E070B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY,TRIM1# |
1 | ||
| 55445-0E070C0 |
AXUH7#..G,N;GSU7#..G,M,N BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E080C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E070C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55451B - COVER, INSTRUMENT PANEL SAFETY PAD | ||||
| 554B3-0E030B0 |
AXUH7#..N;GSU7#..M,N GRAY,TRIM1# |
1 | ||
| 554B3-0E030C0 |
AXUH7#..N;GSU7#..M,N BLACK,TRIM2# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-0E150B0 |
AXUH7#..N;GSU7#..M,N GRAY,TRIM1# |
1 | ||
| 55453-0E150C0 |
AXUH7#..N;GSU7#..M,N BLACK,TRIM2# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55456-0E050B1 |
AXUH7#..G,N;GSU7#..G,M,N GRAY, GRAY 166,TRIM1# |
1 | ||
| 55456-0E050C1 |
AXUH7#,GSU7# BLACK, GRAY 166,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E080B0 |
AXUH7#..N;GSU7#..M,N GRAY, GRAY 166,TRIM1# |
1 | ||
| 55471-0E080C0 |
AXUH7#,GSU7#..M,N,S BLACK, GRAY 166,TRIM2# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0E050C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-0E020C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55544A - RETAINER, INSTRUMENT PANEL HOLE COVER | ||||
| 55544-0E020C0 |
AXUH7#..G,N;GSU7#..G,M,N BLACK,TRIM2# |
1 | ||
| 55544-0E020B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-0E080B0 |
AXUH7#..G,N;GSU7#..G,M,N GRAY,TRIM1# |
1 | ||
| 55548-0E080C0 |
AXUH7#..G,N;GSU7#..G,M,N BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXUH7#,GSU7# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-0E020C0 |
AXUH7#,GSU7#..G,M,N BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E060 |
AXUH7#,GSU7# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E130 |
AXUH7#,GSU7# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AXUH7#,GSU7# |
2 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90167-40057 | ||||
| 90167-A0020 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
