AXUH78L-ARXNHA (2020)

Toyota Highlander

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )S

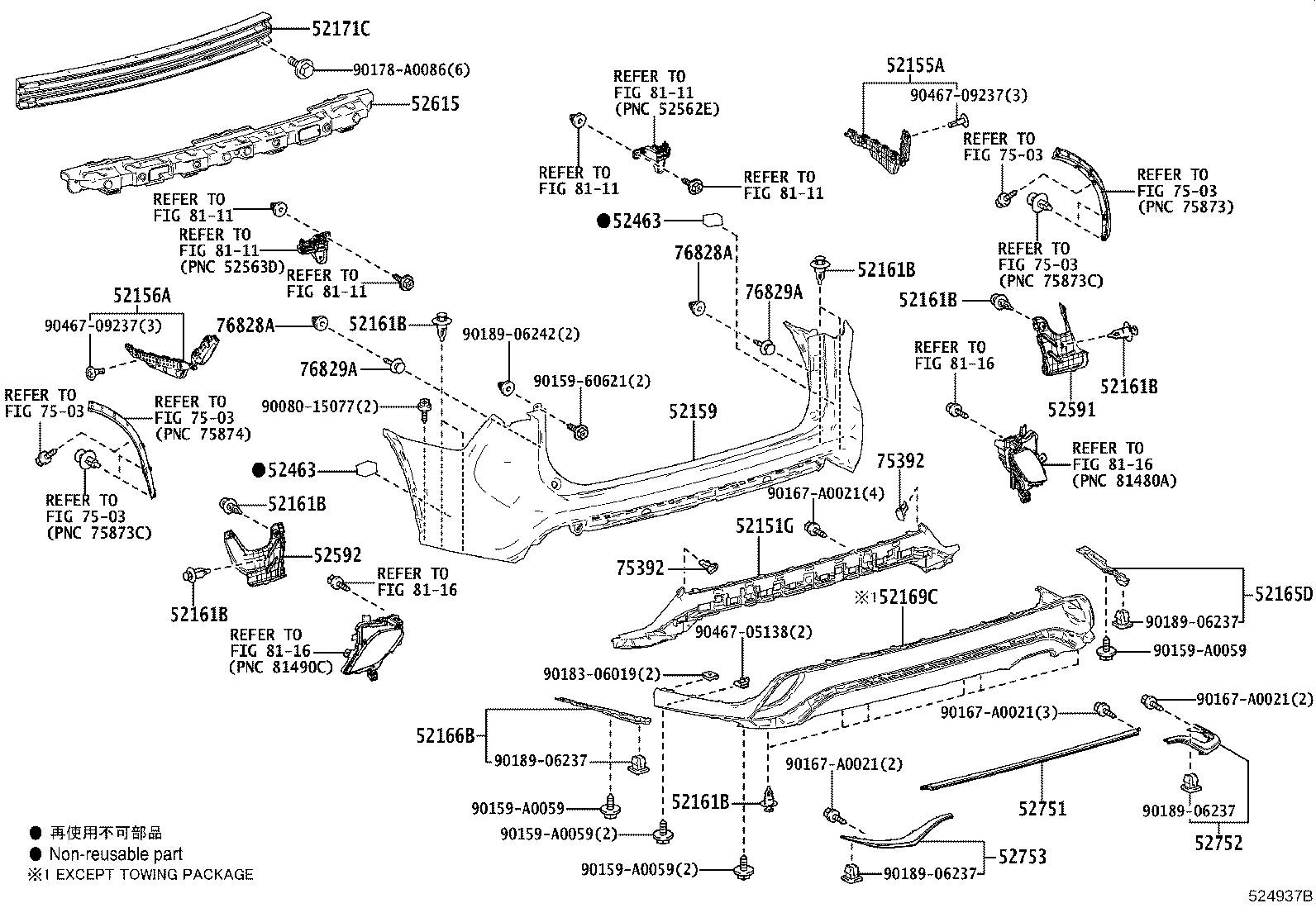

Click highlighted areas on diagram

diagram 52151G 52155A 52156A 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52165D 52166B 52169C 52171C 52463 52463 52591 52592 52615 52751 52752 52753 7503 7503 7503 7503 7503 7503 75392 75392 76828A 76828A 76829A 76829A 8111 8111 8111 8111 8111 8111 8116 8116 8116 8116 9008015077 9015960621 90159A0059 90159A0059 90159A0059 90159A0059 90167A0021 90167A0021 90167A0021 90167A0021 90178A0086 9018306019 9018906237 9018906237 9018906237 9018906237 9018906242 9046705138 9046709237 9046709237
Part # Description Qty Price
52151G - EXTENSION, REAR BUMPER
52151-0E090

AXUH7#,GSU7#..M,N

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0E100

AXUH7#,GSU7#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0E100

AXUH7#,GSU7#

 1
52159 - COVER, REAR BUMPER
52159-0E922

AXUH7#,GSU7#..M,N,S

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52161B - PIECE, REAR BUMPER
52161-02020

AXUH78,GSU75..G,M,N

CANADA SPEC

 4
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 10
52161-02020

AXUH7#,GSU7#..G,M,N

 11
52169C - COVER, REAR BUMPER, LOWER
52169-0E110

AXUH7#,GSU7#..G,M,N

NO PAINT REQ.

 1
52171C - REINFORCEMENT, REAR BUMPER
52171-0E130

AXUH7#,GSU7#

 1
52463 - PAD, REAR BUMPER, LH
52463-07010

AXUH7#,GSU7#

NO PAINT REQ.

 2
52463 - PAD, REAR BUMPER, LH
52463-07010

AXUH7#,GSU7#

NO PAINT REQ.

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0E090

AXUH7#,GSU7#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0E090

AXUH7#,GSU7#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-0E110

AXUH7#,GSU7#

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

AXUH7#,GSU7#..G,M,N

 6
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

AXUH7#,GSU7#..G,M,N

 6
76828A - RETAINER, BACK DOOR GARNISH, NO.3
76828-60030

AXUH7#,GSU7#

 2
76828A - RETAINER, BACK DOOR GARNISH, NO.3
76828-60030

AXUH7#,GSU7#

 2
76829A - RETAINER, BACK DOOR GARNISH
76829-60020

AXUH7#,GSU7#

 2
76829A - RETAINER, BACK DOOR GARNISH
76829-60020

AXUH7#,GSU7#

 2
Common parts
90080-15077
90159-60621
90159-A0059
90167-A0021
90178-A0086
90183-06019
90189-06237
90189-06242
90467-05138
90467-09237
Linked diagrams
7503
8111
8116
