AXUH78L-ARXMHA (2020)

Toyota Highlander

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

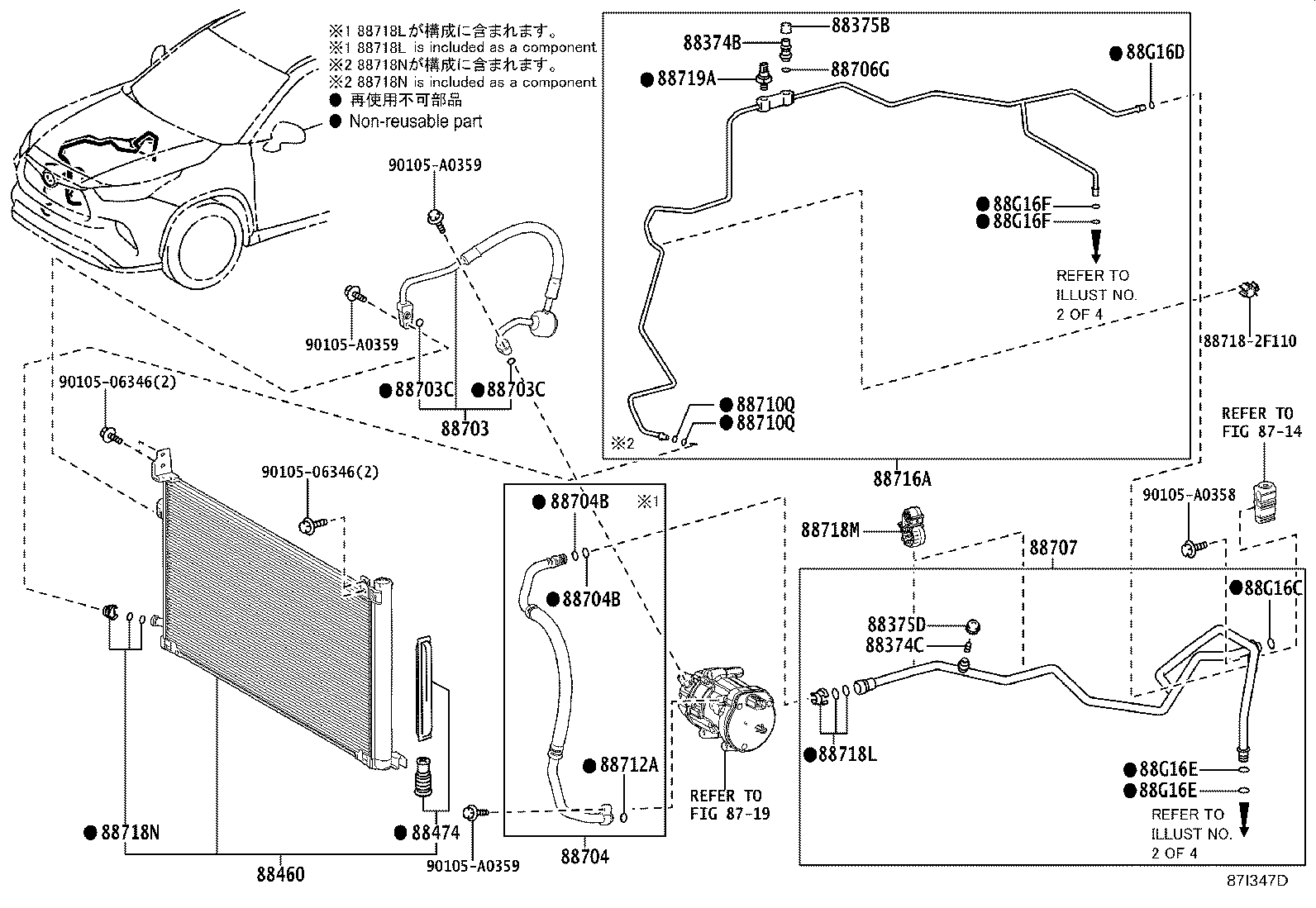

ILLUST NO. 1 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88703 88703C 88703C 88704 88704B 88704B 88706G 88707 88710Q 88710Q 88712A 88716A 887182F110 88718L 88718M 88718N 88719A 88G16C 88G16D 88G16E 88G16E 88G16F 88G16F 9010506346 9010506346 90105A0358 90105A0359 90105A0359 90105A0359
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXUH7#,GSU7#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXUH7#,GSU7#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30320

AXUH7#,GSU7#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

AXUH7#,GSU7#

 1
88460 - CONDENSER ASSY, COOLER
884A0-48010

AXUH7#

 1
884A0-08010

AXUH7#

 1
88474 - DRYER, COOLER
88474-47020

AXUH7#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-0E160

AXUH7#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0E330

AXUH7#

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

AXUH7#,GSU7#

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

AXUH7#,GSU7#

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90069-08011

AXUH7#,GSU7#

ID=6.7,OD=10.3

 1
90099-14122

AXUH7#,GSU7#

ID=10.6,OD=14.16

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0E050

AXUH7#

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14158

AXUH7#,GSU7#

ID=6.7,OD=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14158

AXUH7#,GSU7#

ID=6.7,OD=10.3

 2
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90069-08009

AXUH7#,GSU7#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-0E610

AXUH7#

 1
88718L - CLAMP, PIPING
88718-52280

AXUH7#,GSU7#

 1
88718M - CLAMP, PIPING
88718-42120

AXUH7#

 2
88718N - CLAMP, PIPING
88718-1E150

AXUH7#,GSU7#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXUH7#,GSU7#

 1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90069-08011

AXUH7#,GSU7#

ID=6.7,OD=10.3

 1
88G16E - RING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
90069-08009

AXUH7#

ID=13.4,OD=18.2

 2
88G16E - RING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
90069-08009

AXUH7#

ID=13.4,OD=18.2

 2
88G16F - RING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
90069-08011

AXUH7#

ID=6.7,OD=10.3

 2
88G16F - RING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
90069-08011

AXUH7#

ID=6.7,OD=10.3

 2
Common parts
88718-2F110
90105-06346
90105-A0358
90105-A0359
Linked diagrams
8714
8719

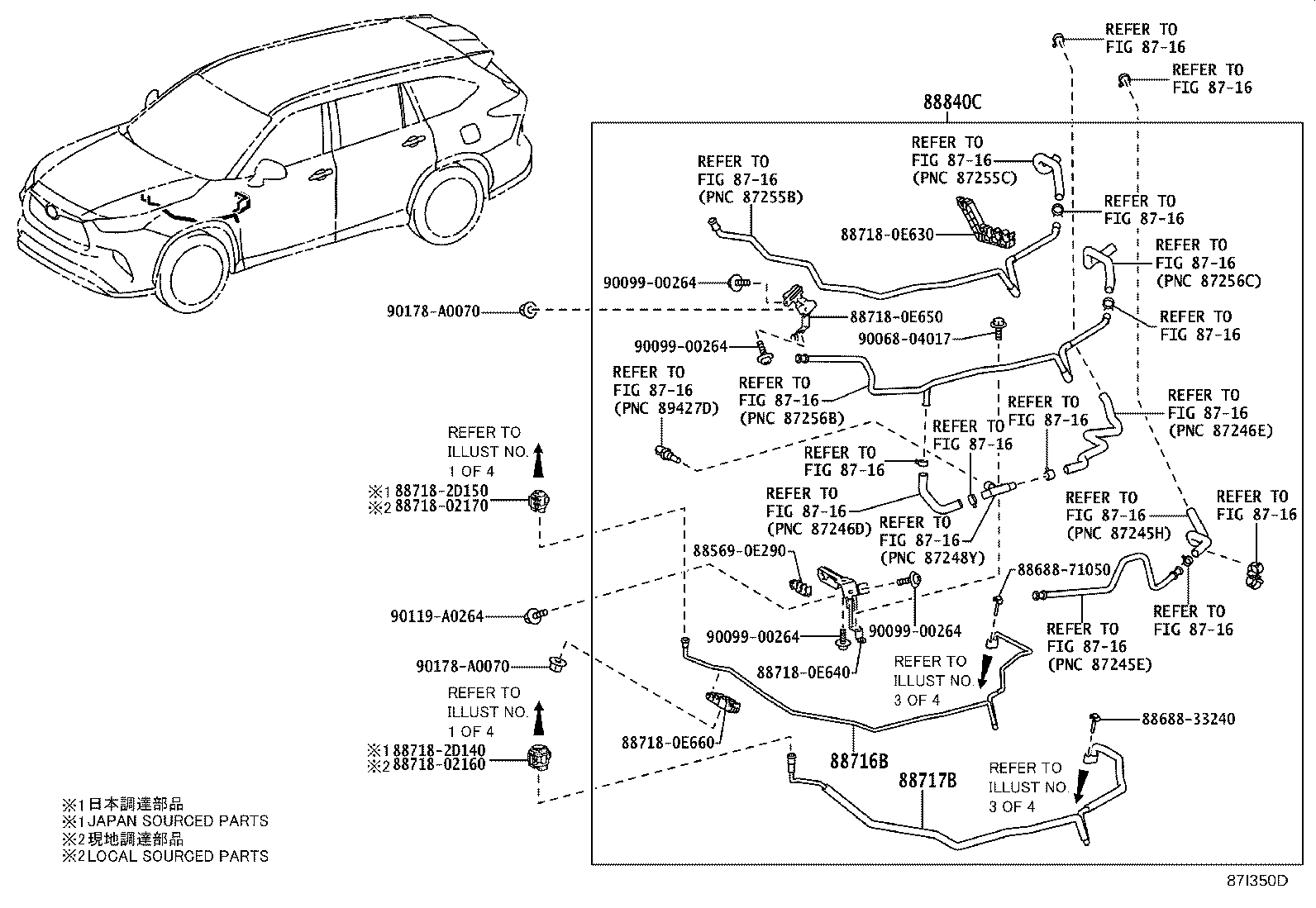

ILLUST NO. 2 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

REAR 1/3

diagram 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 885690E290 8868833240 8868871050 88716B 88717B 8871802160 8871802170 887180E630 887180E640 887180E650 887180E660 887182D140 887182D150 88840C 9006804017 9009900264 9009900264 9009900264 9009900264 90119A0264 90178A0070 90178A0070
Part # Description Qty Price
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0E560

AXUH7#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-0E330

AXUH7#

 1
88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1
88710-0E550

AXUH7#

 1
Common parts
88569-0E290
88688-33240
88688-71050
88718-02160
88718-02170
88718-0E630
88718-0E640
88718-0E650
88718-0E660
88718-2D140
88718-2D150
90068-04017
90099-00264
90119-A0264
90178-A0070
Linked diagrams
8716

ILLUST NO. 4 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

REAR 3/3

diagram 8714 885690E290 88706G 88707D 88720B 9008015077 9008015077 9009900264 9009900264 9009900264 9009900968 90105A0144 90119A0105 90119A0105 90466A0029 90466A0029 90466A0041 90466A0041 9613842501 9613842501
Part # Description Qty Price
88706G - RING, O(FOR LIQUID TUBE)
90069-08011

AXUH7#,GSU7#

ID=6.7,OD=10.3

 1
90099-14122

AXUH7#,GSU7#

ID=10.6,OD=14.16

 1
88707D - RING, O(FOR SUCTION TUBE)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88720B - HOSE & ACCESSORY, AIR CONDITIONER
88710-0E520

AXUH7#

 1
Common parts
88569-0E290
90080-15077
90099-00264
90099-00968
90105-A0144
90119-A0105
90466-A0029
90466-A0041
96138-42501
Linked diagrams
8714
