AXUH78L-ARXMHA (2020)

Toyota Highlander

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

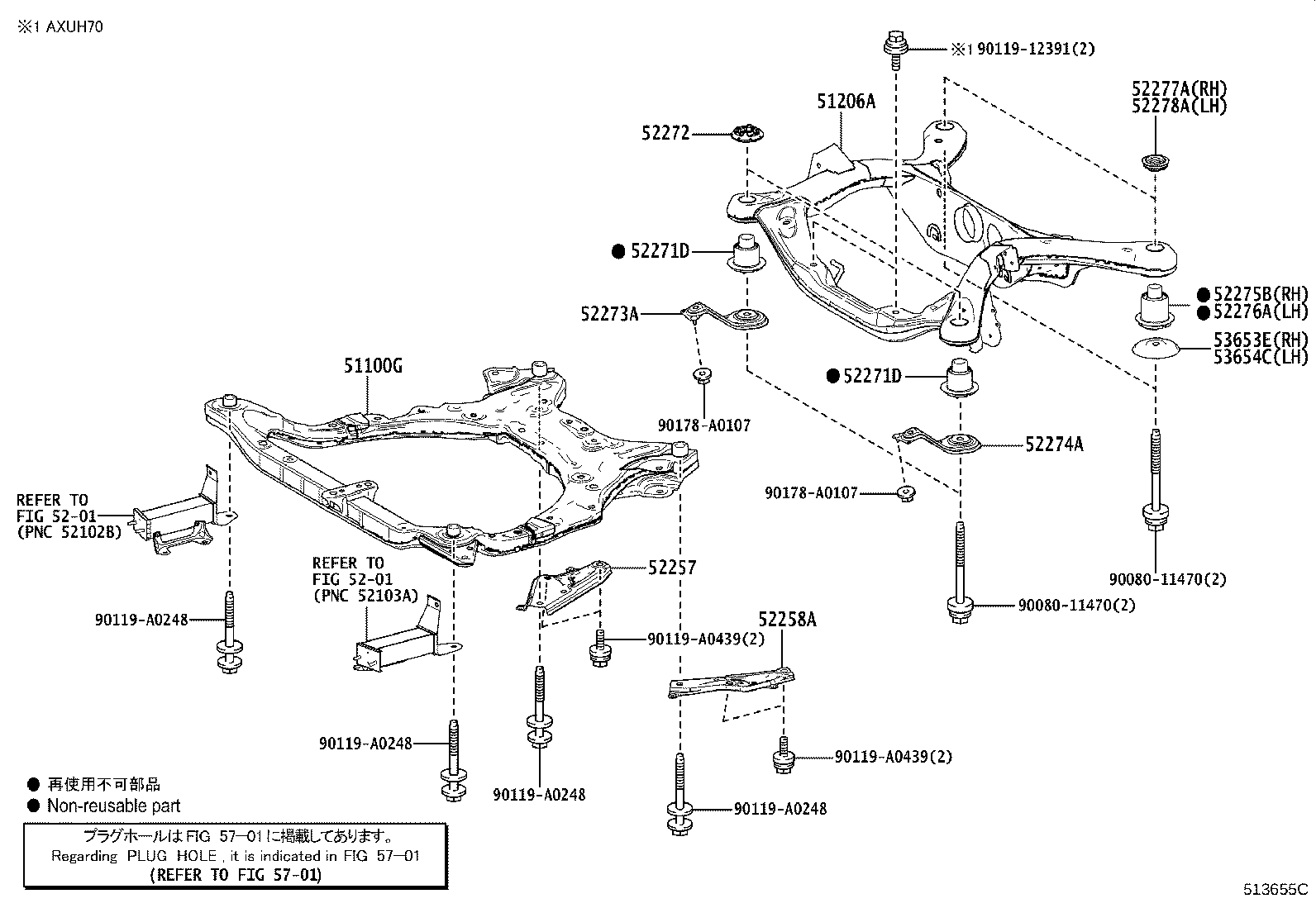

ILLUST NO. 1 OF 2(2002- )AXUH7#

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

diagram 51100G 51206A 5201 5201 52257 52258A 52271D 52271D 52272 52273A 52274A 52275B 52276A 52277A 52278A 53653E 53654C 5701 9008011470 9008011470 9011912391 90119A0248 90119A0248 90119A0248 90119A0248 90119A0439 90119A0439 90178A0107 90178A0107
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-0E081

AXUH7#,GSU7#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-0E082

AXUH7#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-0R040

AXUH7#,GSU7#

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-0R040

AXUH7#,GSU7#

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-0E090

AXUH7#,GSU7#

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-0E090

AXUH7#,GSU7#

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-0E090

AXUH7#,GSU7#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-0E050

AXUH7#,GSU7#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274-0E030

AXUH7#,GSU7#

 1
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-0E080

AXUH7#,GSU7#

 1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-0E030

AXUH7#,GSU7#

 1
52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52277-0E080

AXUH7#,GSU7#

 1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52277-0E080

AXUH7#,GSU7#

 1
53653E - BRACE, REAR SUSPENSION, LOWER RH
53653-0E010

AXUH7#,GSU7#

 1
53654C - BRACE, REAR SUSPENSION, LOWER LH
53653-0E010

AXUH7#,GSU7#

 1
Common parts
90080-11470
90119-12391
90119-A0248
90119-A0439
90178-A0107
Linked diagrams
5201
5701

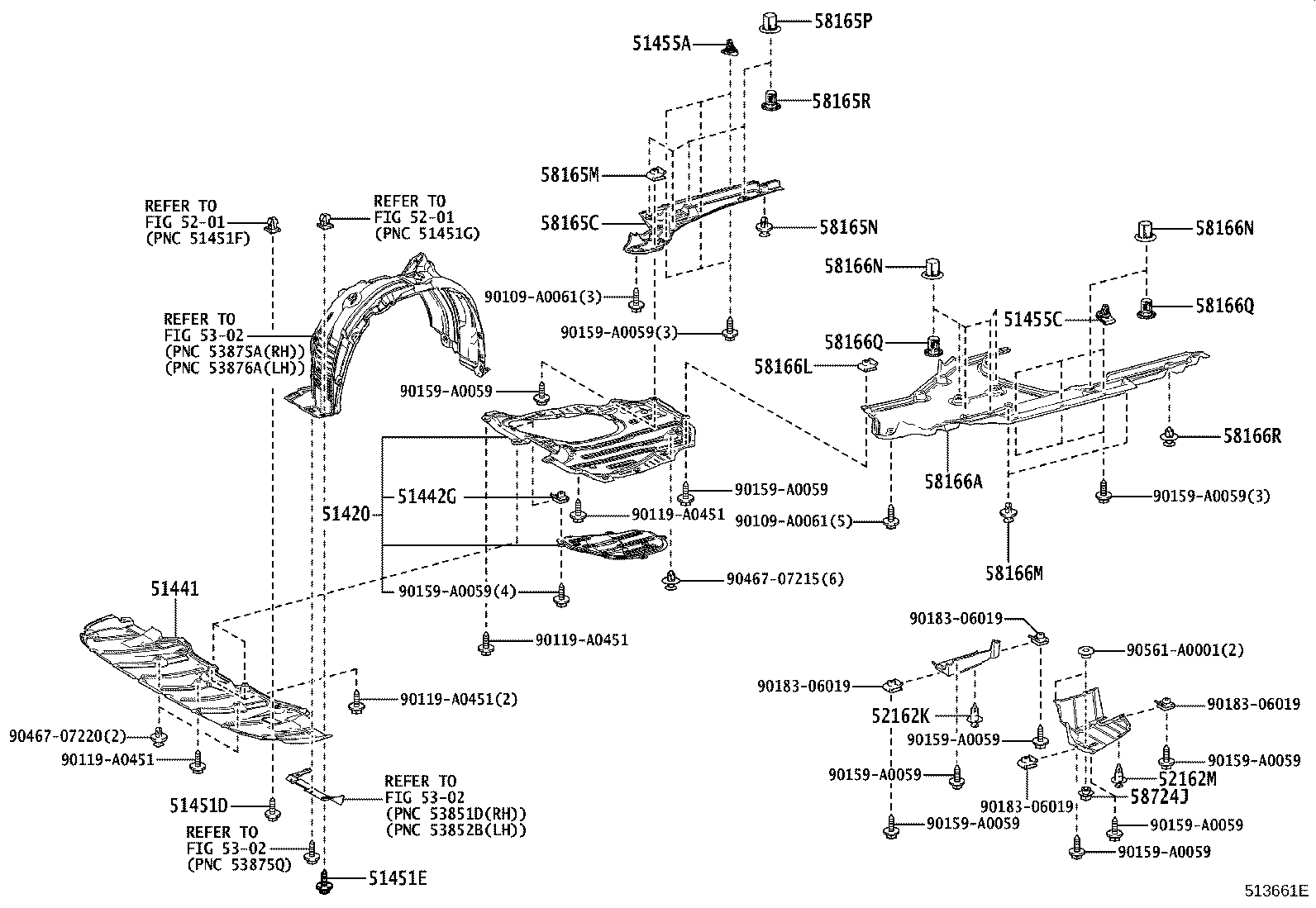

ILLUST NO. 2 OF 2(2002- )AXUH7#

Click highlighted areas on diagram

UNDER COVER

diagram 51420 51441 51442G 51451D 51451E 51455A 51455C 5201 5201 52162K 52162M 5302 5302 5302 58165C 58165M 58165N 58165P 58165R 58166A 58166L 58166M 58166N 58166N 58166Q 58166Q 58166R 58723G 58724H 58724J 90109A0061 90109A0061 90119A0243 90119A0451 90119A0451 90119A0451 90119A0451 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 9018306019 9018306019 9046707215 9046707220 90561A0001
Part # Description Qty Price
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-0E040

AXUH7#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-0E100

AXUH7#,GSU7#..G,M,N

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-A0036

AXUH7#

 4
51451D - SCREW, NO.1
90159-A0059

AXUH7#,GSU7#

 8
51451E - SCREW, NO.2
90159-A0059

AXUH7#,GSU7#

 2
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E020

AXUH7#,GSU7#

 3
51455C - SEAL, ENGINE UNDER COVER, NO.2
51455-0E020

AXUH7#

 3
52162K - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 1
52162M - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 2
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58165C - COVER, FRONT FLOOR, RH
58165-0E080

AXUH7#

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#,GSU7#

 1
58165P - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 4
58165R - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 4
58166A - COVER, FRONT FLOOR, LH
58166-0E070

AXUH7#

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#

 2
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 5
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 5
58166Q - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 5
58166Q - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 5
58166R - CLIP, FRONT FLOOR COVER, NO.5
90467-10216

AXUH7#

 1
58723G - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58723-0E080

AXUH7#,GSU7#

 1
58723-0E080

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58724H - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58724-0E100

AXUH7#,GSU7#

 1
58724-0E100

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58724J - CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
90467-14053

AXUH7#,GSU7#

 2
Common parts
90109-A0061
90119-A0243
90119-A0451
90159-A0059
90183-06019
90467-07215
90467-07220
90561-A0001
Linked diagrams
5201
5302

ILLUST NO. 2 OF 2(2002- )AXUH7#

Click highlighted areas on diagram

UNDER COVER(TOWING PACKAGE)

diagram 51420 51441 51442G 51451D 51451E 51455A 51455C 5201 5201 52162K 52162M 5302 5302 5302 58165C 58165M 58165N 58165P 58165R 58166A 58166L 58166M 58166N 58166N 58166Q 58166Q 58166R 58724J 90109A0061 90109A0061 90119A0451 90119A0451 90119A0451 90119A0451 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 9018306019 9018306019 9018306019 9018306019 9046707215 9046707220 90561A0001
Part # Description Qty Price
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-0E040

AXUH7#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-0E100

AXUH7#,GSU7#..G,M,N

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-A0036

AXUH7#

 4
51451D - SCREW, NO.1
90159-A0059

AXUH7#,GSU7#

 8
51451E - SCREW, NO.2
90159-A0059

AXUH7#,GSU7#

 2
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E020

AXUH7#,GSU7#

 3
51455C - SEAL, ENGINE UNDER COVER, NO.2
51455-0E020

AXUH7#

 3
52162K - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 1
52162M - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 2
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58165C - COVER, FRONT FLOOR, RH
58165-0E080

AXUH7#

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#,GSU7#

 1
58165P - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 4
58165R - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 4
58166A - COVER, FRONT FLOOR, LH
58166-0E070

AXUH7#

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#

 2
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 5
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 5
58166Q - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 5
58166Q - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 5
58166R - CLIP, FRONT FLOOR COVER, NO.5
90467-10216

AXUH7#

 1
58724J - CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
90467-14053

AXUH7#,GSU7#

 2
Common parts
90109-A0061
90119-A0451
90159-A0059
90183-06019
90467-07215
90467-07220
90561-A0001
Linked diagrams
5201
5302

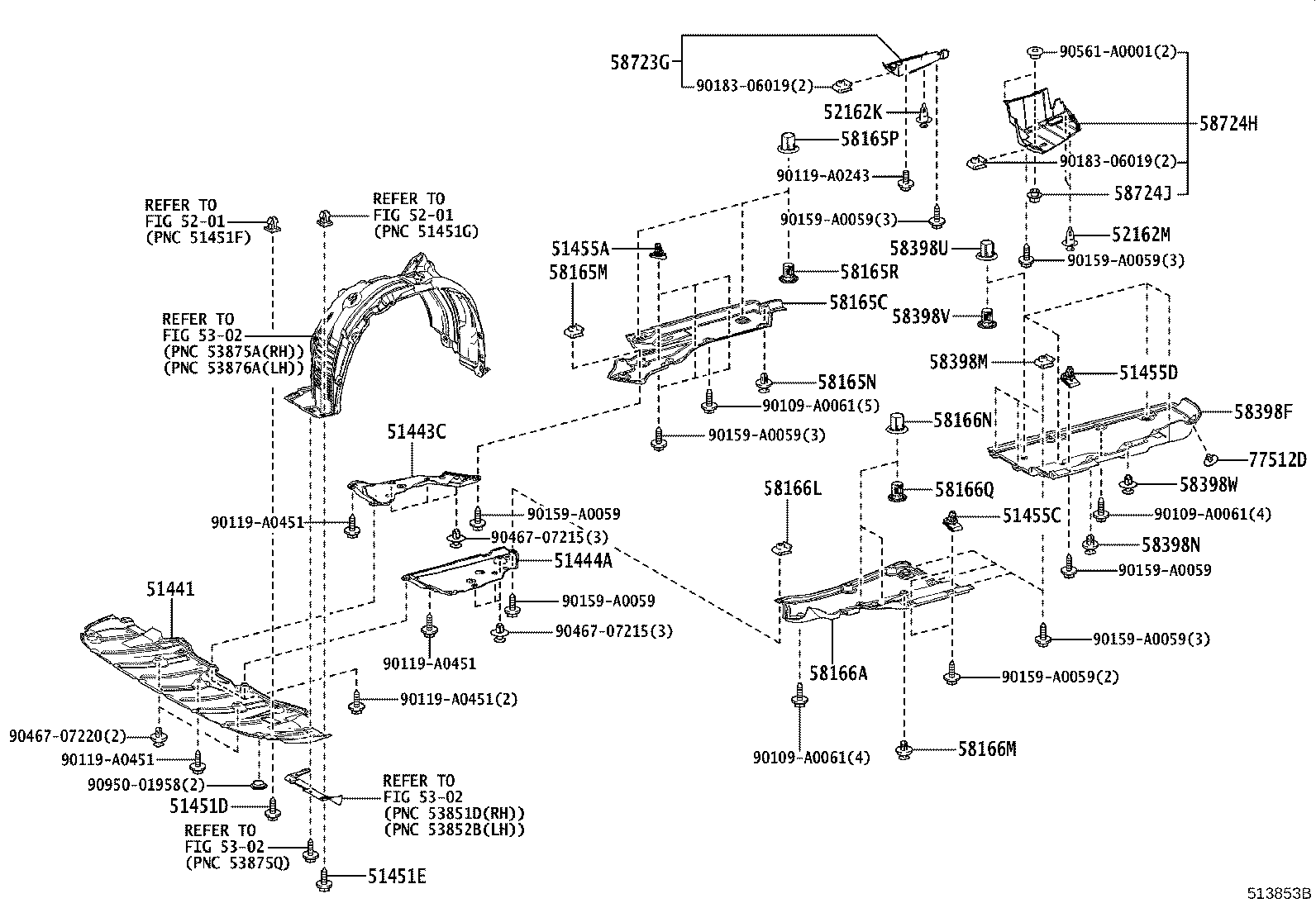

ILLUST NO. 2 OF 2(2009- )S

Click highlighted areas on diagram

UNDER COVER

diagram 51441 51443C 51444A 51451D 51451E 51455A 51455C 51455D 5201 5201 52162K 52162M 5302 5302 5302 58165C 58165M 58165N 58165P 58165R 58166A 58166L 58166M 58166N 58166Q 58398F 58398M 58398N 58398U 58398V 58398W 58723G 58724H 58724J 77512D 90109A0061 90109A0061 90109A0061 90119A0243 90119A0451 90119A0451 90119A0451 90119A0451 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 90159A0059 9018306019 9018306019 9046707215 9046707215 9046707220 90561A0001 9095001958
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-0E100

AXUH7#,GSU7#..G,M,N

 1
51451D - SCREW, NO.1
90159-A0059

AXUH7#,GSU7#

 8
51451E - SCREW, NO.2
90159-A0059

AXUH7#,GSU7#

 2
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E020

AXUH7#,GSU7#

 3
51455C - SEAL, ENGINE UNDER COVER, NO.2
51455-0E020

AXUH7#

 3
52162K - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 1
52162M - PIECE, REAR BUMPER
52161-02020

AXUH7#,GSU7#

 2
52161-02020

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58165C - COVER, FRONT FLOOR, RH
58165-0E080

AXUH7#

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#,GSU7#

 1
58165P - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 4
58165R - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 4
58166A - COVER, FRONT FLOOR, LH
58166-0E070

AXUH7#

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-A0036

AXUH7#,GSU7#

(L)

 1
90179-06104

AXUH7#,GSU7#

(J)

 1
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-07220

AXUH7#

 2
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-17026A0

AXUH7#

SUPER WHITE 2

 5
58166Q - CLIP, FRONT FLOOR COVER, NO.4
90467-17027C0

AXUH7#

BLACK

 5
58723G - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58723-0E080

AXUH7#,GSU7#

 1
58723-0E080

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58724H - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58724-0E100

AXUH7#,GSU7#

 1
58724-0E100

AXUH7#

TOWING PACKAGE-3500LBS WITH(ILA HITCH)

 1
58724J - CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
90467-14053

AXUH7#,GSU7#

 2
Common parts
90109-A0061
90119-A0243
90119-A0451
90159-A0059
90183-06019
90467-07215
90467-07220
90561-A0001
90950-01958
Linked diagrams
5201
5302
