AXUH78L-ARXMHA (2020)

Toyota Highlander

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )AXUH7#

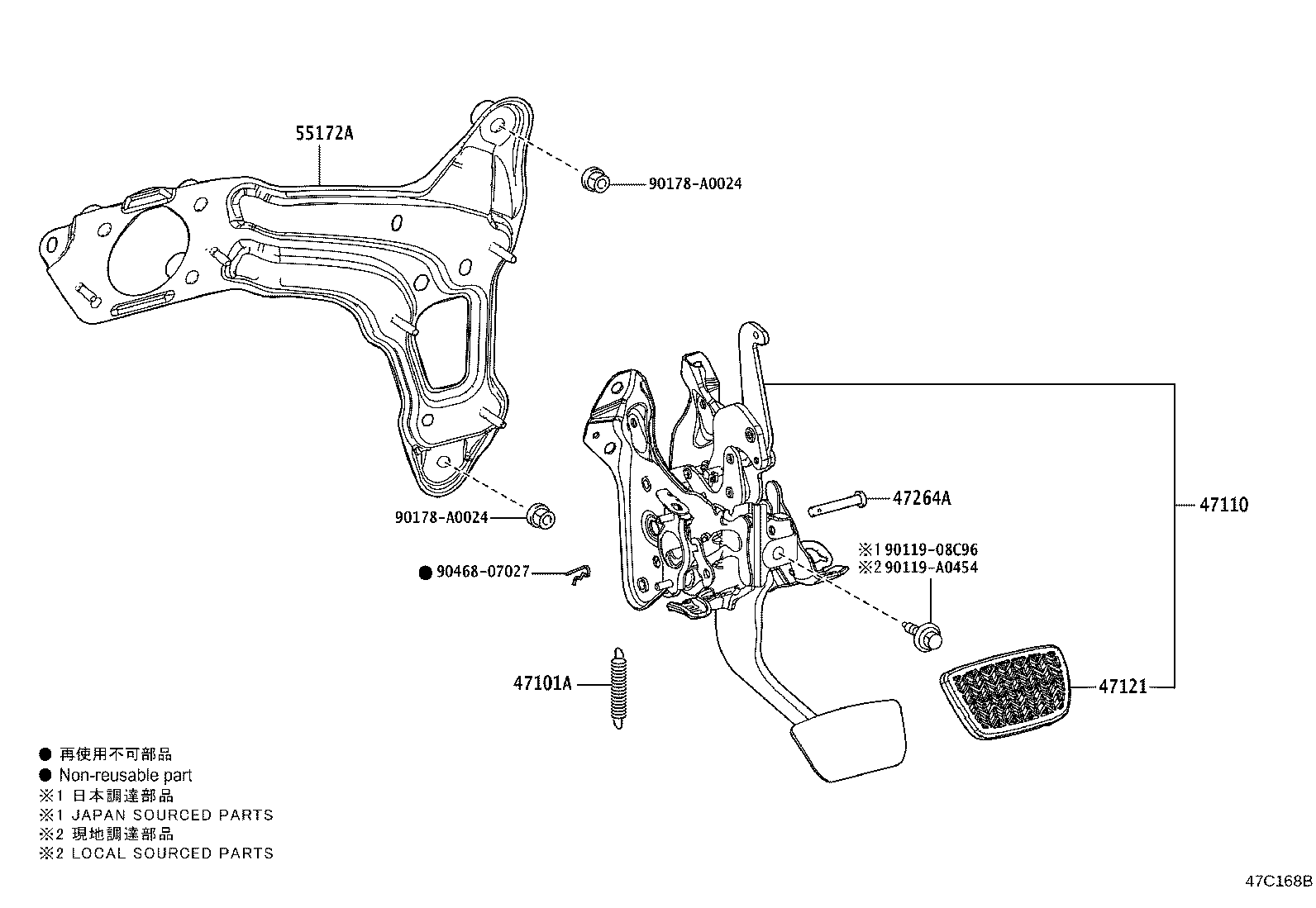

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55172A 9011908C96 90119A0454 90178A0024 90178A0024 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXUH7#,GSU7#

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0E150

AXUH7#

 1
47121 - PAD, BRAKE PEDAL
47121-48010

AXUH7#,GSU7#

 1
47264A - PIN(FOR PUSH ROD)
90240-08078

AXUH7#

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-0E050

AXUH7#,GSU7#

 1
Common parts
90119-08C96
90119-A0454
90178-A0024
90468-07027
