AXUH70L-ARXNHA (2020)

Toyota Highlander

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

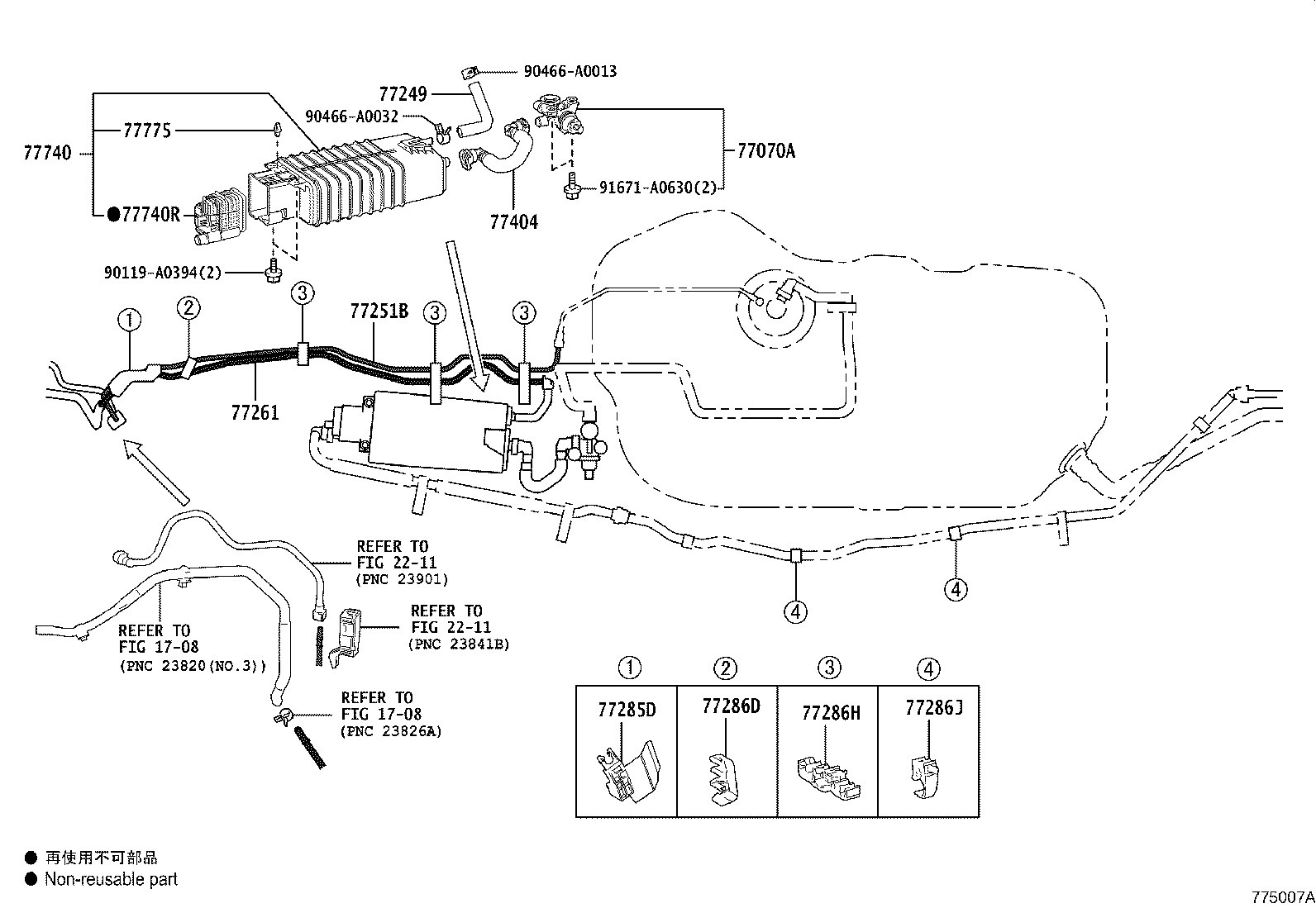

ILLUST NO. 3 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 77070A 77249 77251B 77261 77285D 77286D 77286H 77286J 77404 77740 77740R 77775 90119A0394 90466A0013 90466A0032 91671A0630
Part # Description Qty Price
77070A - VALVE ASSY, CLOSE TANK
77070-48010

AXUH7#

 1
77249 - HOSE, FUEL EMISSION
77249-0R060

AXUH7#

 1
77251B - TUBE, FUEL MAIN
77251-0E190

AXUH7#

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-0E190

AXUH7#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0E110

AXUH7#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77285-0R060

AXUH7#

 1
77286H - CLAMP, FUEL TUBE, NO.3
77285-0R040

AXUH7#,GSU7#

 3
77286J - CLAMP, FUEL TUBE, NO.4
77285-0R090

AXUH7#,GSU7#

 2
77404 - HOSE SUB-ASSY, FUEL TANK VENT
77404-0E100

AXUH7#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-06240

AXUH7#

 1
77740R - PUMP SUB-ASSY, LEAK DETECTION
90910-AF006

AXUH7#,GSU7#

 1
77775 - GUIDE, CHARCOAL CANISTER OUTLET
77775-33010

AXUH7#,GSU7#

 1
Common parts
90119-A0394
90466-A0013
90466-A0032
91671-A0630
Linked diagrams
1708
2211

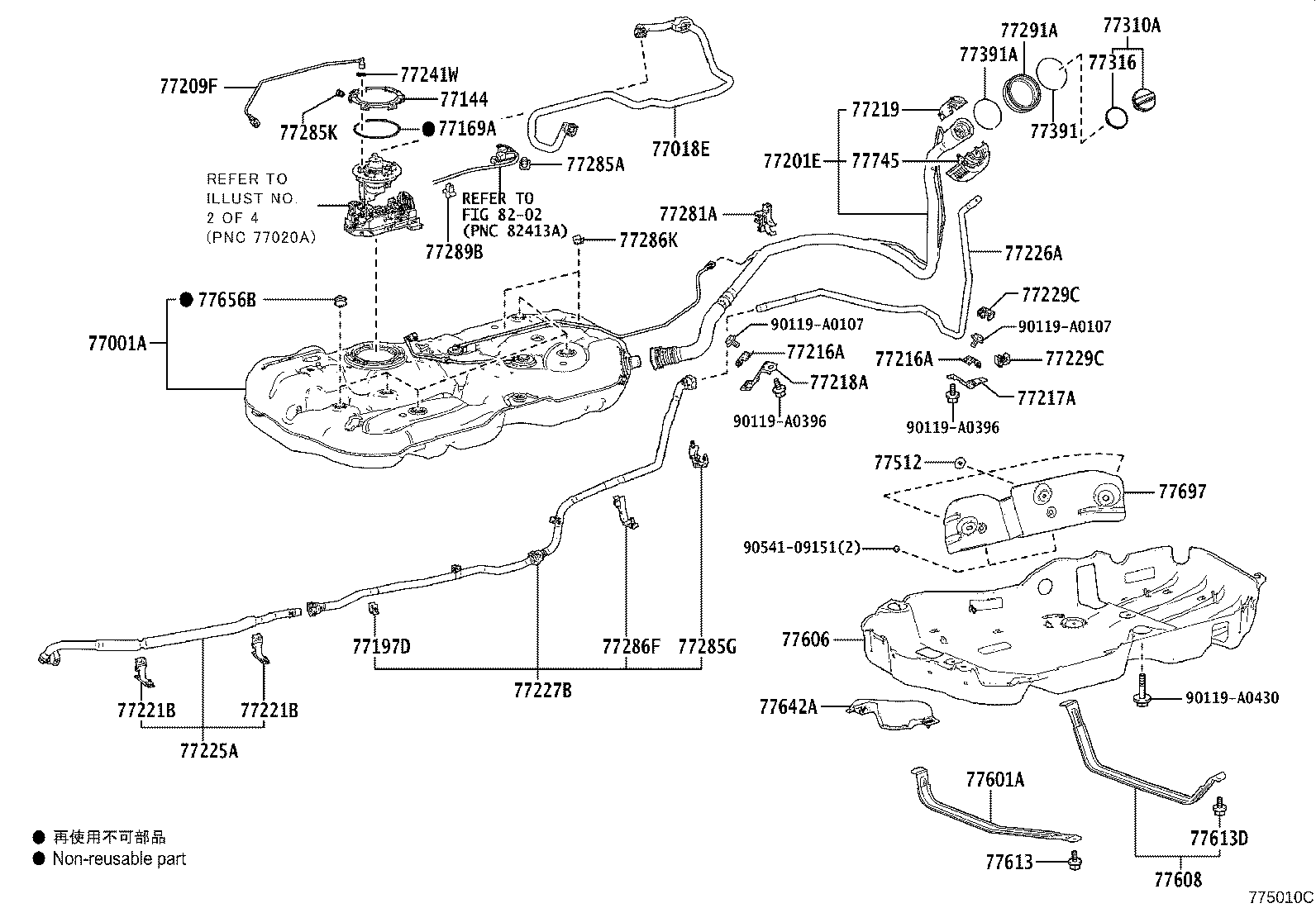

ILLUST NO. 1 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

FUEL TANK

diagram 77001A 77018E 77144 77169A 77197D 77201E 77209F 77216A 77216A 77217A 77218A 77219 77221B 77221B 77225A 77226A 77227B 77229C 77229C 77241W 77281A 77285A 77285G 77285K 77286F 77286K 77289B 77291A 77310A 77316 77391 77391A 77512 77601A 77606 77608 77613 77613D 77642A 77656B 77697 77745 8202 90119A0107 90119A0107 90119A0396 90119A0396 90119A0430 9054109151
Part # Description Qty Price
77001A - TANK SUB-ASSY, FUEL
77001-0E160

AXUH7#

 1
77001-0E162

AXUH7#

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-0E080

AXUH7#

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-06040

AXUH7#,GSU7#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0R030

AXUH7#,GSU7#

 1
77197D - CLAMP, EVAPORATION VENT TUBE, NO.2
77197-42010

AXUH7#,GSU7#

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0E170

AXUH7#

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0E140

AXUH7#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-0E070

AXUH7#,GSU7#

 2
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-0E070

AXUH7#,GSU7#

 2
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-0E070

AXUH7#,GSU7#

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-0E120

AXUH7#

 1
77219 - COVER, FUEL TANK FILLER PIPE
77219-0E010

AXUH7#,GSU7#

 1
77221B - CLAMP, BREATHR TUBE
77285-42200

AXUH7#

 2
77221B - CLAMP, BREATHR TUBE
77285-42200

AXUH7#

 2
77225A - TUBE, FUEL TANK BREATHER, NO.5
77227-0R040

AXUH7#

 1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-0E110

AXUH7#,GSU7#

 1
77227B - TUBE, FUEL TANK BREATHER, NO.7
77227-0E090

AXUH7#

 1
77229C - CLAMP, BREATHER TUBE
77229-0E070

AXUH7#,GSU7#

 2
77229C - CLAMP, BREATHER TUBE
77229-0E070

AXUH7#,GSU7#

 2
77241W - CLIP, TUBE JOINT
77241-06020

AXUH7#

 2
77281A - CLAMP, FUEL FILLER PIPE
77281-0E170

AXUH7#,GSU7#

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-0E100

AXUH7#

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-0E070

AXUH7#

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-06240

AXUH7#,GSU7#

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-0E110

AXUH7#,GSU7#

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-30180

AXUH7#

 2
77289B - CLAMP, FUEL TUBE, NO.3
77289-33080

AXUH7#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0E090

AXUH7#,GSU7#

 1
77310A - CAP ASSY, FUEL TANK
77300-06090

AXUH7#

 1
77300-53040

AXUH7#

 1
77316 - GASKET, FUEL TANK CAP
77316-75020

AXUH7#

 1
77316-06090

AXUH7#

 1
77391 - RING, FUEL INLET BOX
77391-02041

AXUH7#,GSU7#

 1
77391A - RING, FUEL INLET BOX
77391-0E020

AXUH7#,GSU7#

 1
77512 - BRACKET, FUEL TANK, REAR
77512-35140

AXUH7#

 3
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-0E080

AXUH7#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-0E060

AXUH7#

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77602-0E090

AXUH7#

 1
77613 - BOLT, FUEL TANK BAND SET
90119-A0430

AXUH7#,GSU7#

 1
77613D - BOLT, FUEL TANK BAND SET, NO.2
90119-A0509

AXUH7#,GSU7#

 2
77642A - PROTECTOR, FUEL TANK, NO.2
77642-0E020

AXUH7#

 1
77656B - CUSHION, FUEL TANK, NO.6
77656-06030

AXUH7#

 5
77697 - INSULATOR, FUEL TANK HEAT, NO.1
77697-0E010

AXUH7#

 1
77745 - FILTER, CHARCOAL CANISTER, NO.1
77745-0E010

AXUH7#,GSU7#

 1
Common parts
90119-A0107
90119-A0396
90119-A0430
90541-09151
Linked diagrams
8202

ILLUST NO. 2 OF 4(2002- )AXUH7#

Click highlighted areas on diagram

FUE SUCTION TUBE(PUMP & GAGE)

diagram 23070 23221 23225A 23280K 23283B 77020A 77024A 77103 77173 77175 77785B 8401 90301A0021
Part # Description Qty Price
23070 - VALVE ASSY, FUEL MAIN
23070-25020

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
23221 - PUMP, FUEL
23221-25030

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
23225A - SPACER, FUEL PUMP
23225-F0010

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-15024

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
23283B - HOLDER, FUEL PRESSURE REGULATOR
23283-F0010

A25AFXS,2GRFKS..AXUH7#,GSU7#

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0E161

AXUH7#

 1
77020-0E160

AXUH7#

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0R050

AXUH7#

 1
77103 - SUB-TANK SUB-ASSY, FUEL
77103-0E040

AXUH7#,GSU7#

 1
77173 - BRACKET, FUEL GAGE
77173-0E021

AXUH7#

 1
77173-0E020

AXUH7#

 1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-0R010

AXUH7#,GSU7#

 1
77785B - HARNESS, FUEL PUMP, NO.2
77785-0R040

AXUH7#

 1
Common parts
90301-A0021
Linked diagrams
8401
