ACU25L-BRPNKA (2003)
Toyota Highlander
Production
Aug 2003
-
May 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0011- )ACU2#

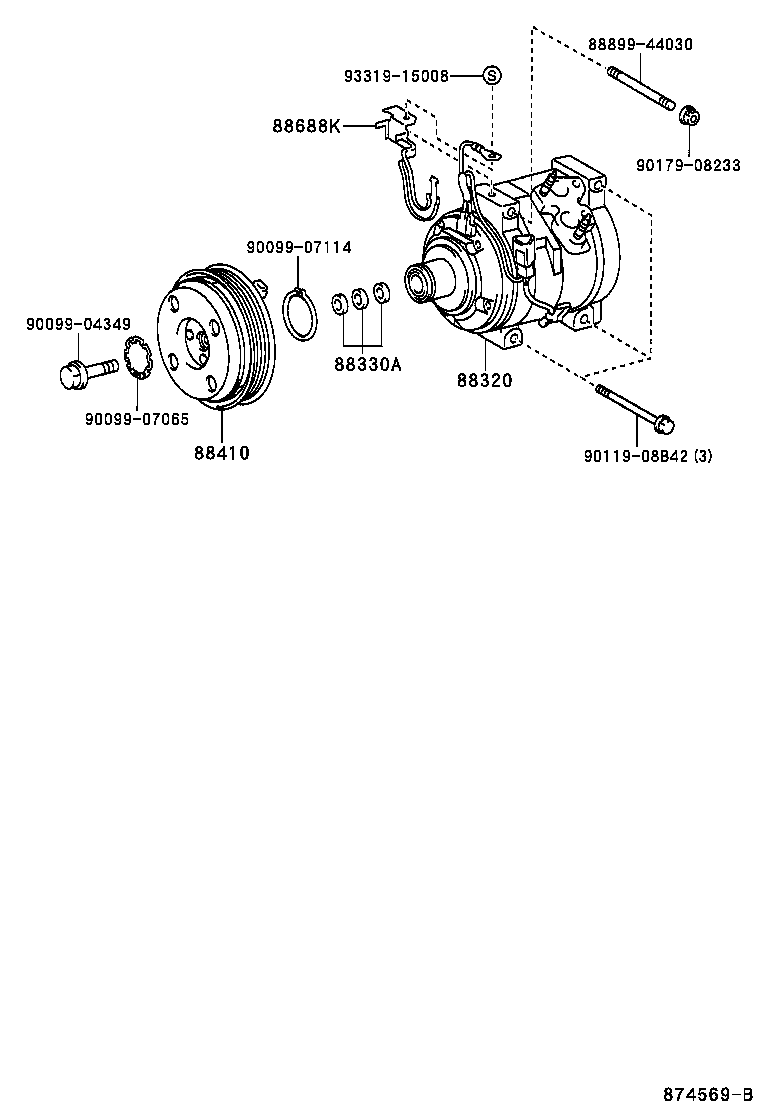

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48080 |
ACU2# |
1 | ||
| 88320-48080 |
ACU2# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACU2#,MCU2# |
1 | ||
| 88335-14020 |
ACU2#,MCU2# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-48030 |
ACU2# |
1 | ||
| 88410-YC020 |
ACU2# |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-48070 |
ACU2# |
1 | ||
| 88688-48070 |
ACU2# |
1 | ||
| Common parts | ||||
| 88899-44030 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90179-08233 | ||||
| 93319-15008 | ||||
