ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0011- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

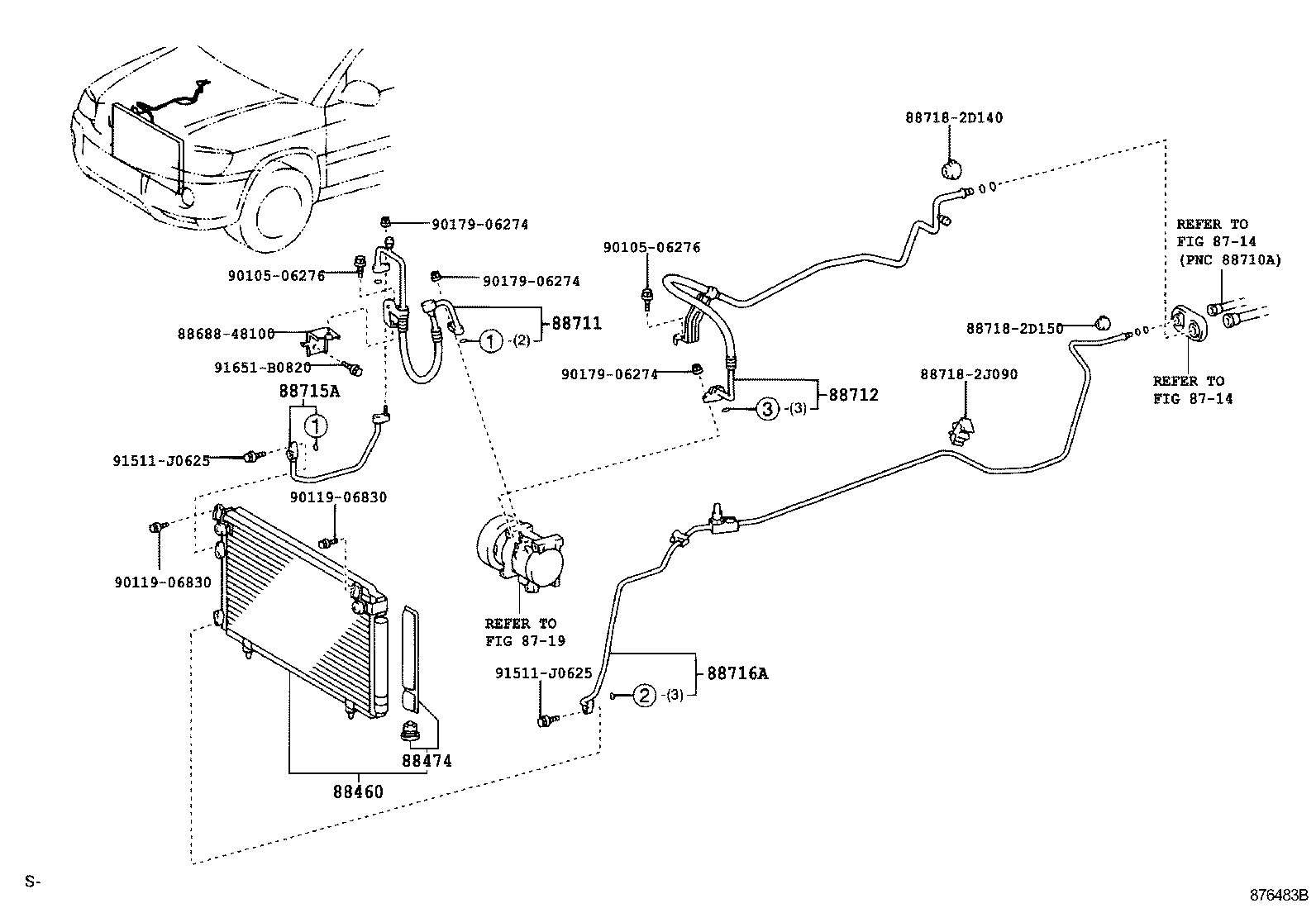

ILLUST NO. 1 OF 2(0308- )ACU2#

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88474 8868848100 88711 88712 88715A 88716A 887182D140 887182D150 887182J090 9010506276 9010506276 9011906830 9011906830 9017906274 9017906274 9017906274 91511J0625 91511J0625 91651B0820
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-48020

ACU2#,MCU2#

 1
88460-48020

ACU2#,MCU2#

 1
88474 - DRYER, COOLER
88474-47010

ACU2#,MCU2#

 1
88474-47010

ACU2#,MCU2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-48060

ACU2#

 1
88703-48060

ACU2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-48050

ACU2#

 1
88704-48030

ACU2#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88705-48030

ACU2#,MCU2#

 1
88705-48030

ACU2#,MCU2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-48080

ACU2#,MCU2#

 1
88710-48170

ACU2#,MCU2#

 1
Common parts
88688-48100
88718-2D140
88718-2D150
88718-2J090
90105-06276
90119-06830
90179-06274
91511-J0625
91651-B0820
Linked diagrams
8714
8719
