ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

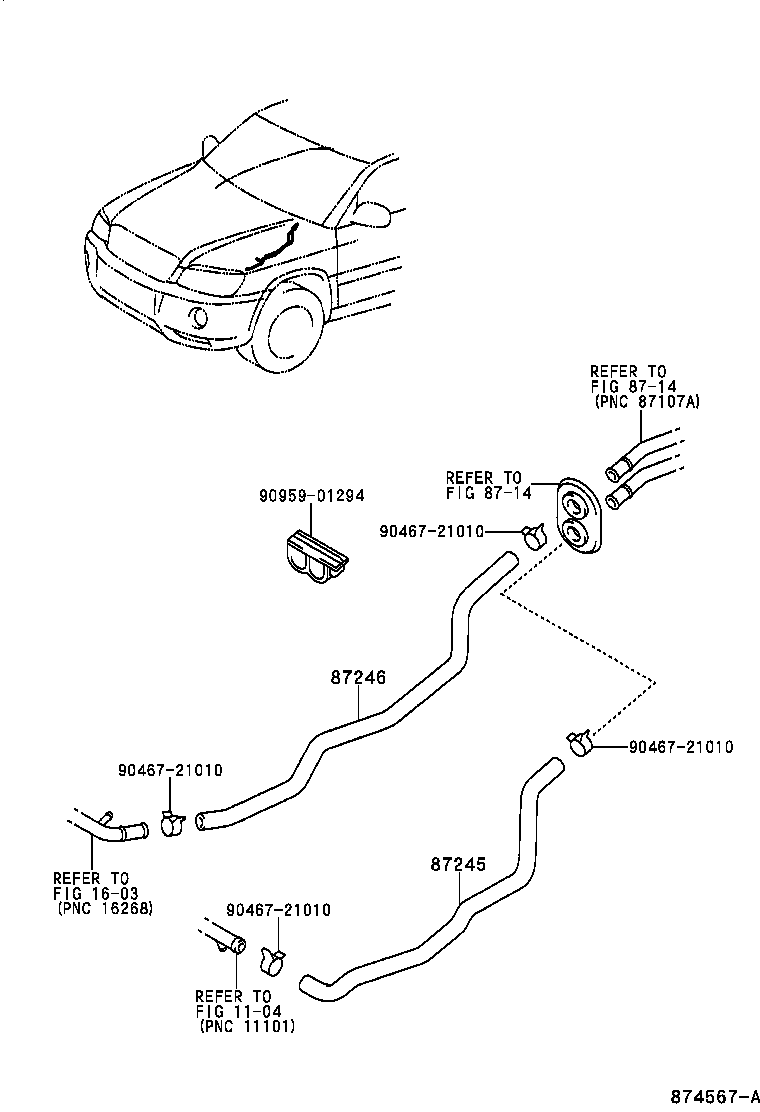

ILLUST NO. 1 OF 2(0011- )ACU2#

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8714 8714 87245 87246 9046721010 9046721010 9046721010 9046721010 9095901294
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-48160

ACU2#

 1
87245-48340

ACU2#

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-48170

ACU2#

 1
87245-48350

ACU2#

 1
Common parts
90467-21010
90959-01294
Linked diagrams
1104
1603
8714

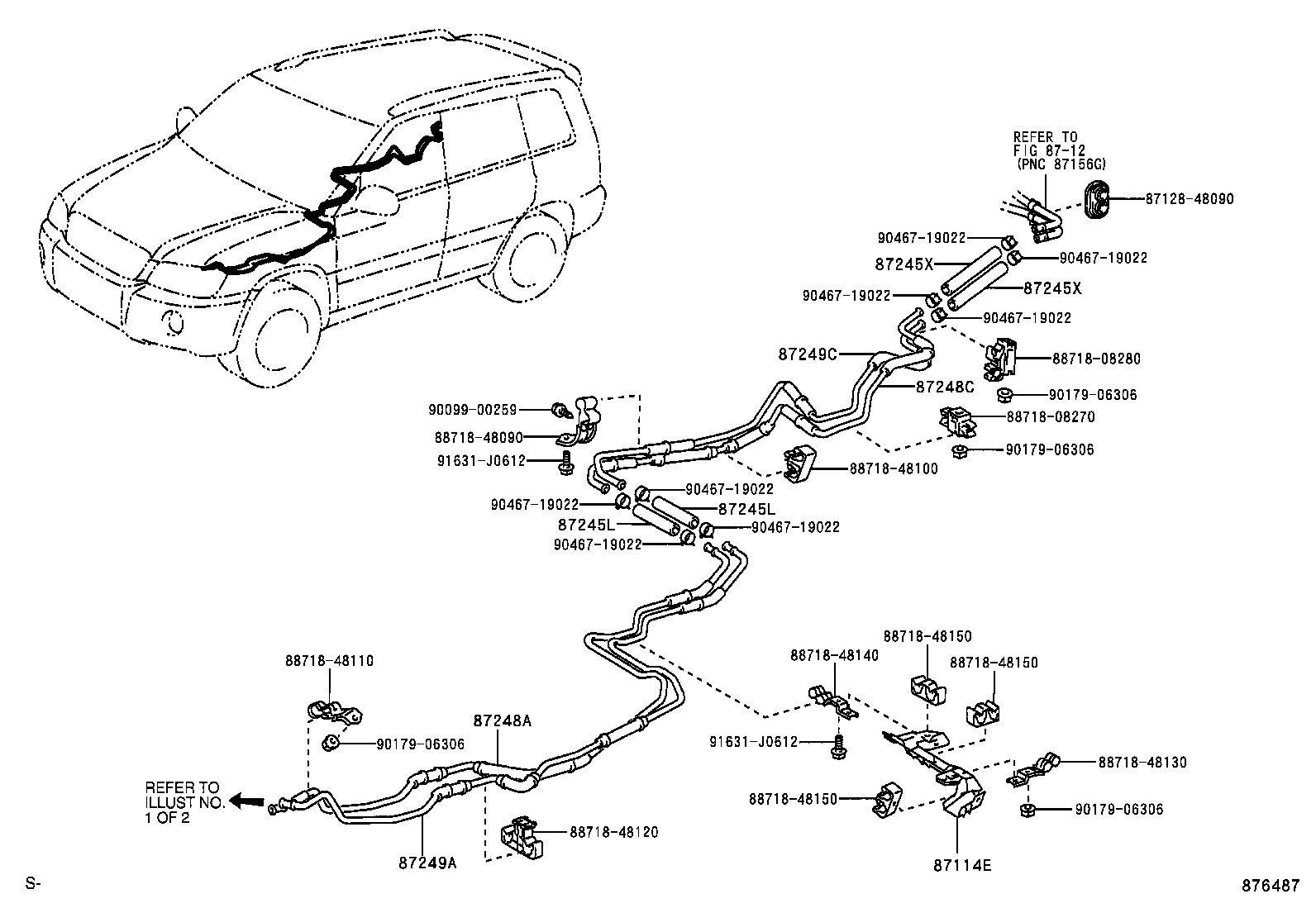

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

REAR

diagram 87114E 8712 8712848090 87245L 87245L 87245X 87245X 87248A 87248C 87249A 87249C 8871808270 8871808280 8871848090 8871848100 8871848110 8871848120 8871848130 8871848140 8871848150 8871848150 8871848150 9009900259 9017906306 9017906306 9017906306 9017906306 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 91631J0612 91631J0612
Part # Description Qty Price
87114E - COVER, HEATER, NO.1
87114-48010

ACU2#,MCU2#..07S

 1
87245L - HOSE, HEATER WATER, L
99556-20200

ACU2#,MCU2#..07S

 2
87245L - HOSE, HEATER WATER, L
99556-20200

ACU2#,MCU2#..07S

 2
87245X - HOSE, HEATER WATER
99556-20200

ACU2#,MCU2#..07S

L=200

 2
87245X - HOSE, HEATER WATER
99556-20200

ACU2#,MCU2#..07S

L=200

 2
87248A - PIPE, HEATER WATER INLET, A
87208-48020

ACU2#,MCU2#..07S

 1
87248C - PIPE, HEATER WATER INLET, C
87208-48050

ACU2#,MCU2#..07S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-48030

ACU2#,MCU2#..07S

 1
87249C - PIPE, HEATER WATER OUTLET, C
87208-48060

ACU2#,MCU2#..07S

 1
Common parts
87128-48090
88718-08270
88718-08280
88718-48090
88718-48100
88718-48110
88718-48120
88718-48130
88718-48140
88718-48150
90099-00259
90179-06306
90467-19022
91631-J0612
Linked diagrams
8712

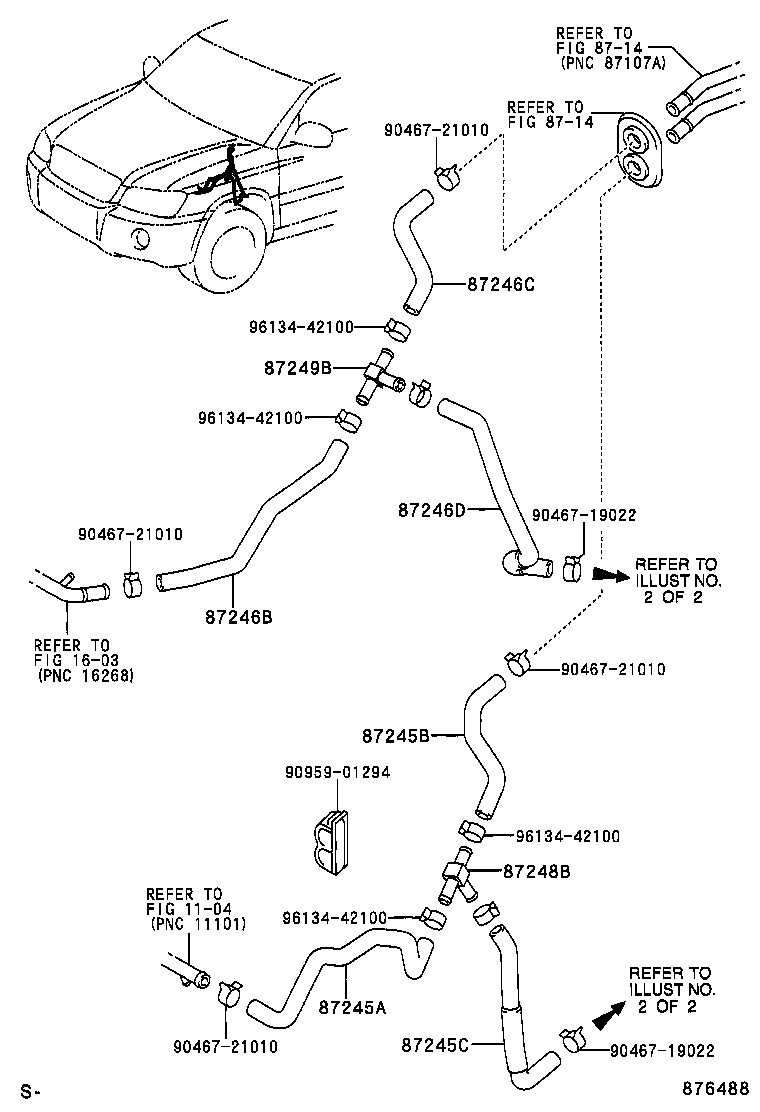

ILLUST NO. 1 OF 2(0308- )ACU2#

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram 1104 1603 8714 8714 87245A 87245B 87245C 87246B 87246C 87246D 87248B 87249B 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9095901294 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-48570

ACU2#..07S

 1
87245B - HOSE, HEATER WATER, INLET B
87245-48560

ACU2#..07S

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-48580

ACU2#..07S

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-48600

ACU2#..07S

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-48590

ACU2#..07S

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-48610

ACU2#..07S

 1
87248B - PIPE, HEATER WATER INLET, B
87248-28040

ACU2#,MCU2#..07S

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-28040

ACU2#,MCU2#..07S

 1
Common parts
90467-19022
90467-21010
90959-01294
96134-42100
Linked diagrams
1104
1603
8714
