ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

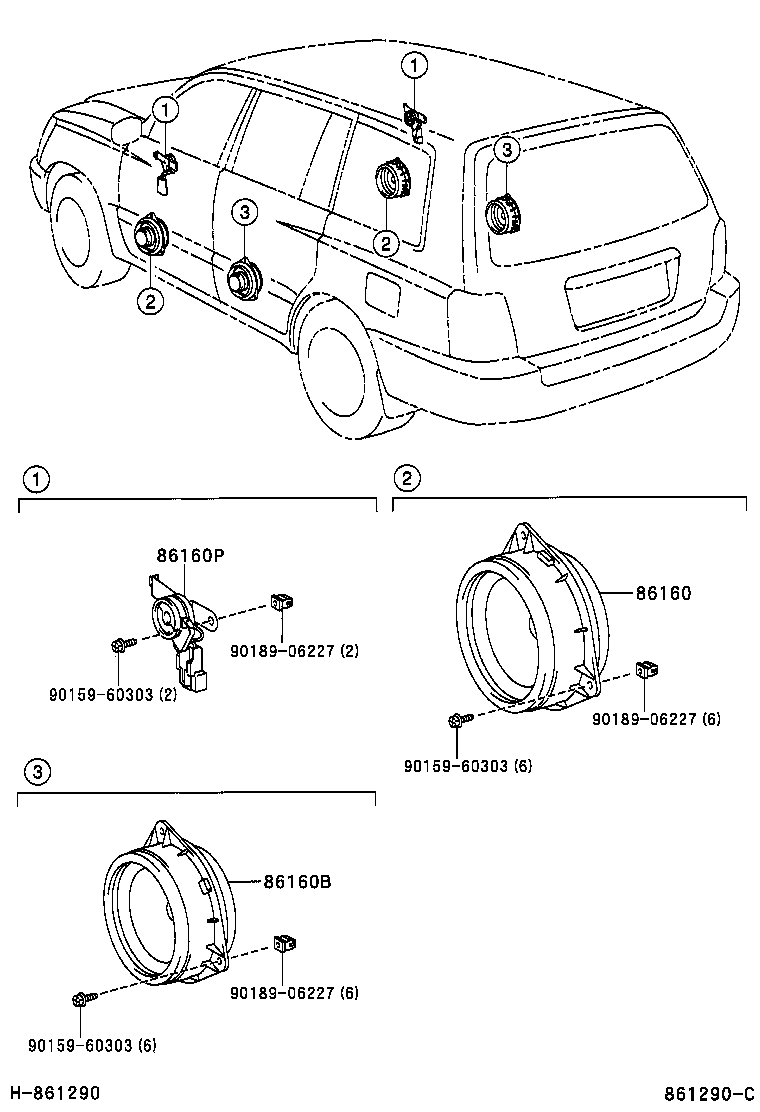

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9015960303 9015960303 9015960303 9018906227 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-48160

ACU2#,MCU2#

 2
86160-0W110

MCU2#;ACU2#..07S

W(JBL PREMIUM SOUND SYSTEM)

 2
86160-48160

ACU2#,MCU2#

 2
86160B - SPEAKER ASSY, REAR
86160-0W120

MCU2#;ACU2#..07S

W(JBL PREMIUM SOUND SYSTEM),RH

 1
86160-0W140

MCU2#;ACU2#..07S

W(JBL PREMIUM SOUND SYSTEM),LH

 1
86160-48170

ACU2#,MCU2#

 2
86160-48170

ACU2#,MCU2#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-48150

ACU2#,MCU2#

LH

 1
86160-48150

ACU2#,MCU2#

LH

 1
86160-0W470

MCU2#;ACU2#..07S

W(JBL PREMIUM SOUND SYSTEM),LH

 1
86160-48140

ACU2#,MCU2#

RH

 1
86160-48140

ACU2#,MCU2#

RH

 1
86160-0W460

MCU2#;ACU2#..07S

W(JBL PREMIUM SOUND SYSTEM),RH

 1
Common parts
90159-60303
90189-06227
