ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

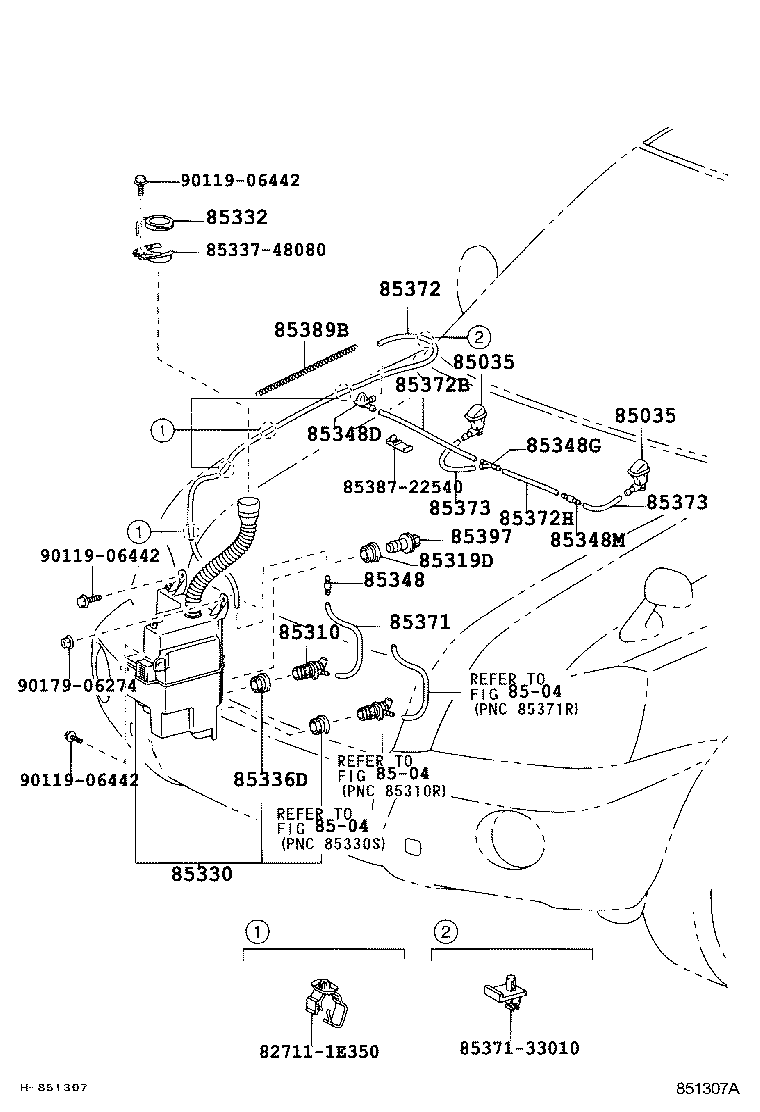

Click highlighted areas on diagram

diagram 827111E350 85035 85035 8504 8504 8504 85310 85319D 85330 85332 85336D 8533748080 85348 85348D 85348G 85348M 85371 8537133010 85372 85372B 85372H 85373 85373 8538722540 85389B 85397 9011906442 9011906442 9011906442 9017906274
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-48050

ACU2#,MCU2#

 2
85381-48020

ACU2#,MCU2#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-48050

ACU2#,MCU2#

 2
85381-48020

ACU2#,MCU2#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

ACU2#,MCU2#

 1
85330-20470

ACU2#,MCU2#

 1
85319D - PACKING, FRONT WASHER
85319-33230

ACU2#,MCU2#

 1
85319-33230

ACU2#,MCU2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-48040

ACU2#,MCU2#

 1
85315-48060

ACU2#,MCU2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-48060

ACU2#,MCU2#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-60300

ACU2#,MCU2#

 1
85336-30160

ACU2#,MCU2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22480

ACU2#,MCU2#

 1
85375-10260

ACU2#,MCU2#

 1
85375-10260

ACU2#,MCU2#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-33070

ACU2#,MCU2#

 1
85375-33070

ACU2#,MCU2#

 1
85375-33070

ACU2#,MCU2#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-12250

ACU2#,MCU2#

 1
85334-22470

ACU2#,MCU2#

 1
85348-12250

ACU2#,MCU2#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

ACU2#,MCU2#

 1
85375-10260

ACU2#,MCU2#

 1
85348-12250

ACU2#,MCU2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ACU2#,MCU2#

*H,L=290

 1
90099-33075

ACU2#,MCU2#

L=150

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ACU2#,MCU2#

L=1450

 1
90099-33080

ACU2#,MCU2#

L=1450

 1
90099-33075

ACU2#,MCU2#

*H,L=1000

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ACU2#,MCU2#

*H,L=510

 1
90099-33080

ACU2#,MCU2#

*H,L=630

 1
90099-33080

ACU2#,MCU2#

*H,L=510

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ACU2#,MCU2#

*H,L=390

 1
90099-33080

ACU2#,MCU2#

*H,L=510

 1
90099-33080

ACU2#,MCU2#

*H,L=390

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACU2#,MCU2#

*H,L=210

 2
90099-33080

ACU2#,MCU2#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACU2#,MCU2#

*H,L=210

 2
90099-33080

ACU2#,MCU2#

*H,L=210

 2
85389B - PROTECTOR, WINDSHIELD WASHER
85389-48150

ACU2#,MCU2#

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-33230

ACU2#,MCU2#

 1
85397-33230

ACU2#,MCU2#

 1
Common parts
82711-1E350
85337-48080
85371-33010
85387-22540
90119-06442
90179-06274
Linked diagrams
8504
