ACU25L-BRPNKA (2003)
Toyota Highlander
Production
Aug 2003
-
May 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )

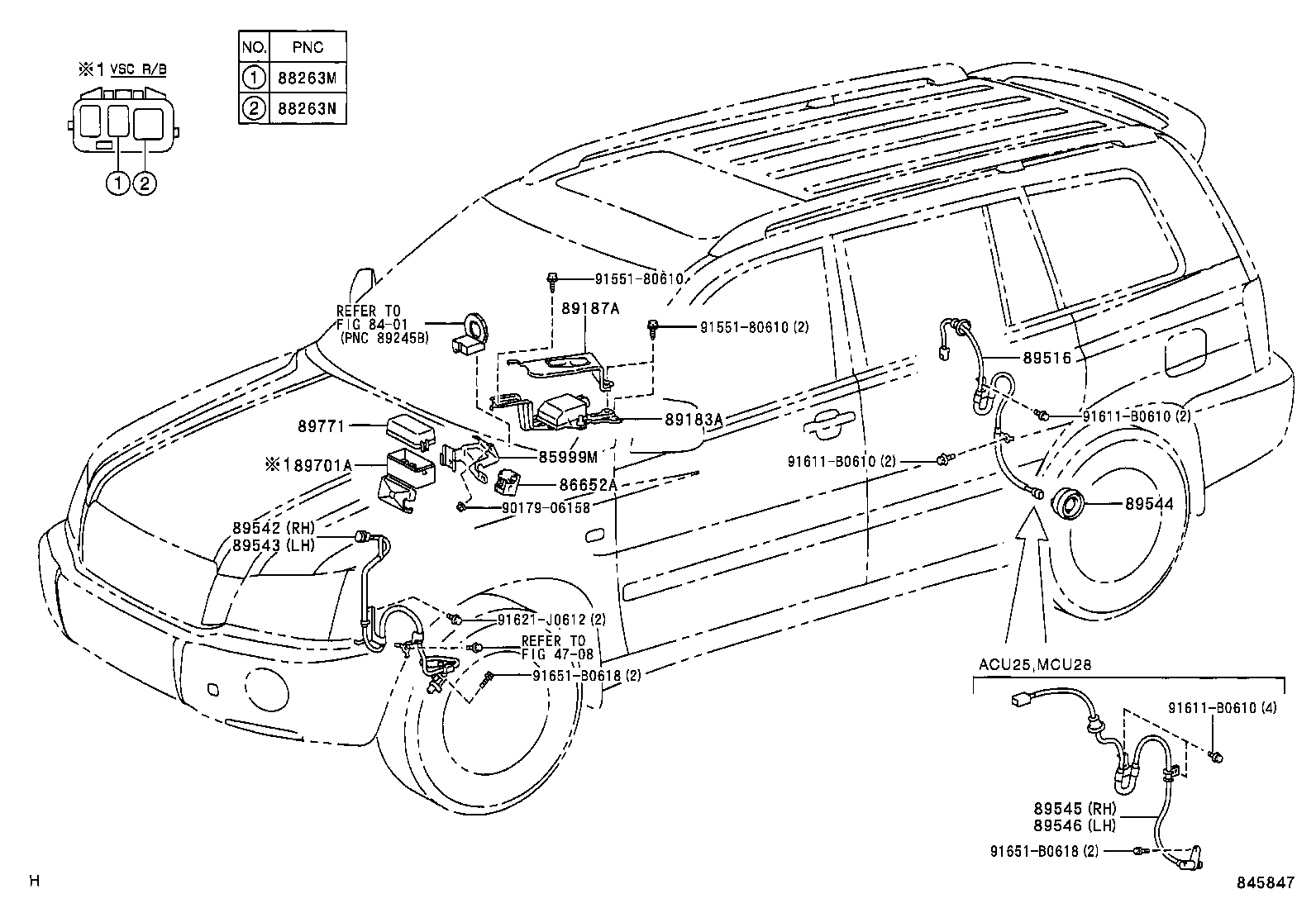

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-48040 |
ACU2#,MCU2# |
1 | ||
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
ACU2#,MCU2# |
1 | ||
| 86652-51010 |
ACU2#,MCU2# |
1 | ||
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
ACU2#,MCU2# |
1 | ||
| 88263-32070 |
ACU2#,MCU2# |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-30150 |
ACU2#,MCU2# W(VSC) |
1 | ||
| 88263-32070 |
ACU2#,MCU2# |
1 | ||
| 88263-21010 |
ACU2#,MCU2# |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-48010 |
ACU2#,MCU2# |
1 | ||
| 89183-50010 |
ACU2#,MCU2# |
1 | ||
| 89187A - PROTECTOR, YAWRATE SENSOR | ||||
| 89187-48010 |
ACU2#,MCU2# |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-48020 |
ACU2#,MCU2# |
1 | ||
| 89542-48030 |
ACU2#,MCU2# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-48020 |
ACU2#,MCU2# |
1 | ||
| 89543-48030 |
ACU2#,MCU2# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-48030 |
ACU25,MCU28 |
1 | ||
| 89545-48020 |
ACU25,MCU25 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-48030 |
ACU25,MCU28 |
1 | ||
| 89546-48020 |
ACU25,MCU25 |
1 | ||
| 89701A - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-21020 |
ACU2#,MCU2# |
1 | ||
| 89701-48010 |
ACU2#,MCU2# |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 89771-21020 |
ACU2#,MCU2# |
1 | ||
| 89771-48010 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91551-80610 | ||||
| 91611-B0610 | ||||
| 91621-J0612 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 4708 | ||||
| 8401 | ||||
