ACU25L-BRPNKA (2003)
Toyota Highlander

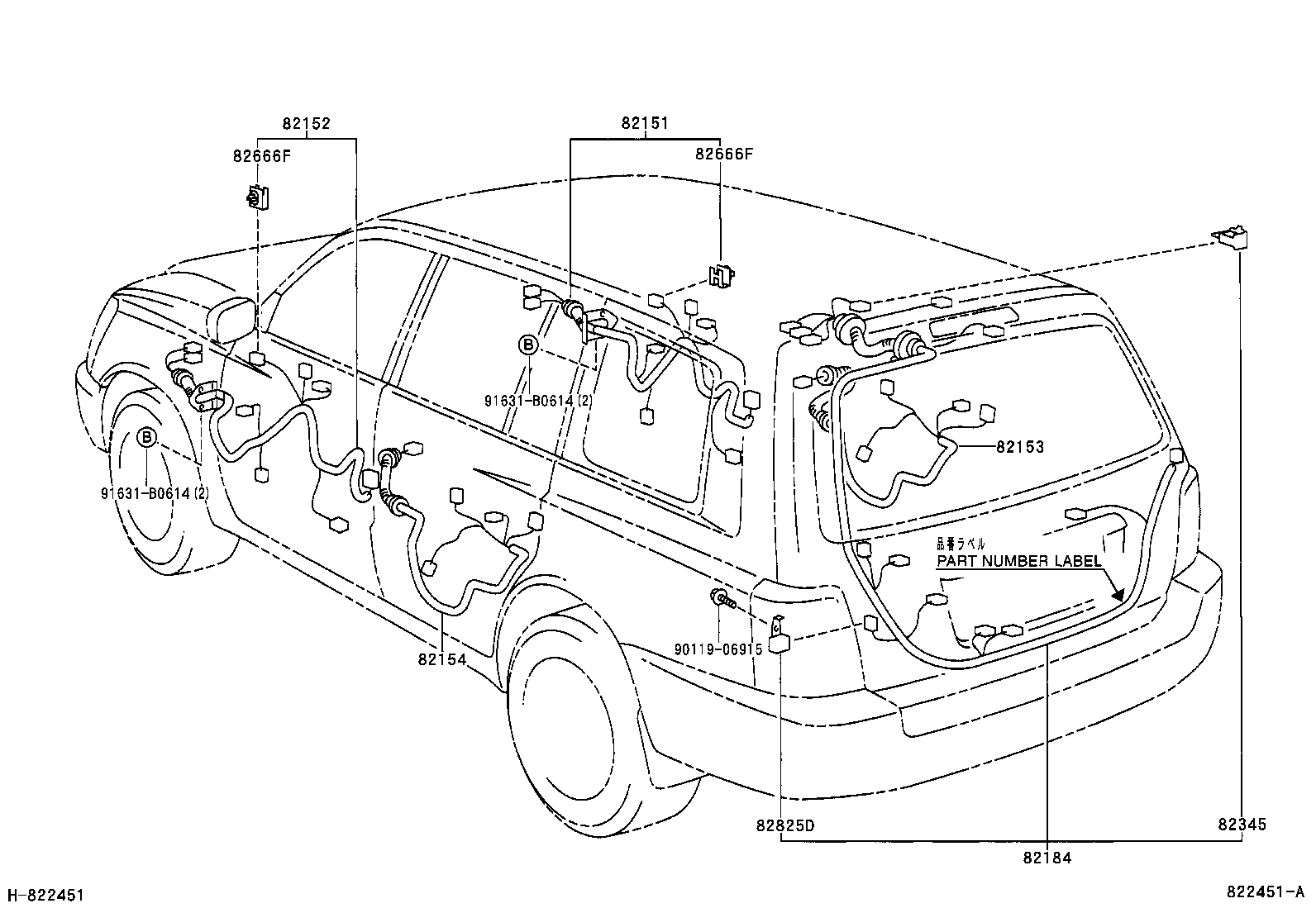

ILLUST NO. 5 OF10(0011- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-48090 |
ACU2#,MCU2# |
1 | ||
| 82151-48100 |
ACU2#,MCU2# W(HEATER MIRROR) |
1 | ||
| 82151-48090 |
ACU2#,MCU2# |
1 | ||
| 82151-48100 |
ACU2#,MCU2# W(HEATER MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-48100 |
ACU2#,MCU2# W(HEATER MIRROR) |
1 | ||
| 82152-48100 |
ACU2#,MCU2# W(HEATER MIRROR) |
1 | ||
| 82152-48090 |
ACU2#,MCU2# |
1 | ||
| 82152-48090 |
ACU2#,MCU2# |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-48040 |
ACU2#,MCU2# |
1 | ||
| 82153-48040 |
ACU2#,MCU2# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-48040 |
ACU2#,MCU2# |
1 | ||
| 82153-48040 |
ACU2#,MCU2# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-48080 |
ACU2#,MCU2# PART NUMBER LABEL=82184-48080 |
1 | ||
| 82184-48170 |
ACU2#,MCU2# PART NUMBER LABEL=82184-48170 |
1 | ||
| 82184-48060 |
ACU2#,MCU2# PART NUMBER LABEL=82184-48060 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
ACU2#,MCU2# |
1 | ||
| 82345-32010 |
ACU2#,MCU2# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-22080 |
ACU2#,MCU2# |
1 | ||
| 82666-22080 |
ACU2#,MCU2# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-22080 |
ACU2#,MCU2# |
1 | ||
| 82666-22080 |
ACU2#,MCU2# |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
ACU2#,MCU2# |
1 | ||
| 82824-20130 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0614 | ||||

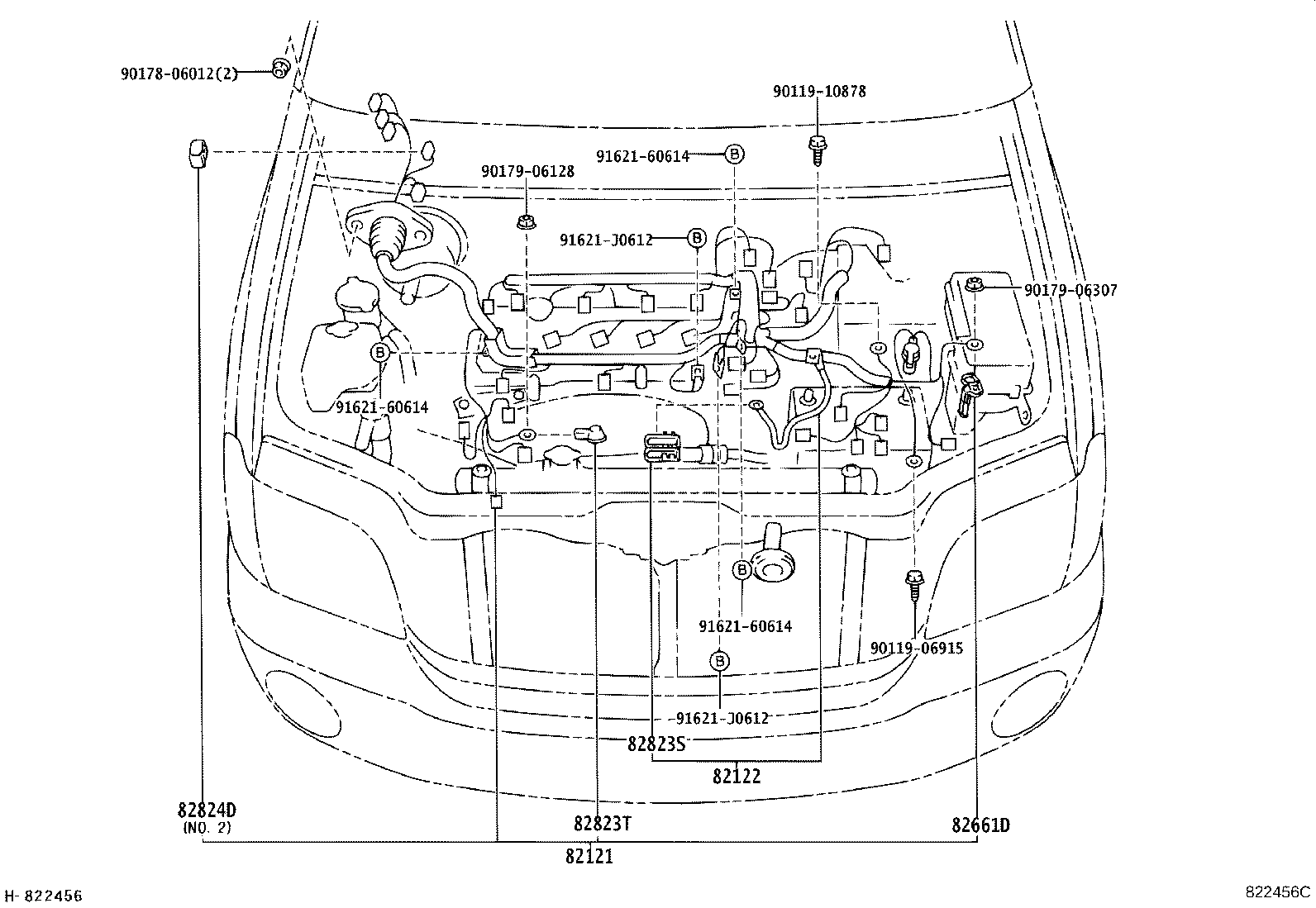

ILLUST NO. 2 OF10(0011- )ACU2#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-48110 |
ACU2# |
1 | ||
| 82121-48290 |
ACU2# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-48070 |
ACU2#,MCU2# |
1 | ||
| 82122-48010 |
ACU2#,MCU2# |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-48020 |
ACU2#,MCU2# |
1 | ||
| 82661-48020 |
ACU2#,MCU2# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
ACU2#,MCU2# |
1 | ||
| 82823-20080 |
ACU2#,MCU2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
ACU2#,MCU2# |
1 | ||
| 82823-22080 |
ACU2#,MCU2# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
ACU2#,MCU2# |
1 | ||
| 82824-50110 |
ACU2#,MCU2# NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10878 | ||||
| 90178-06012 | ||||
| 90179-06128 | ||||
| 90179-06307 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||

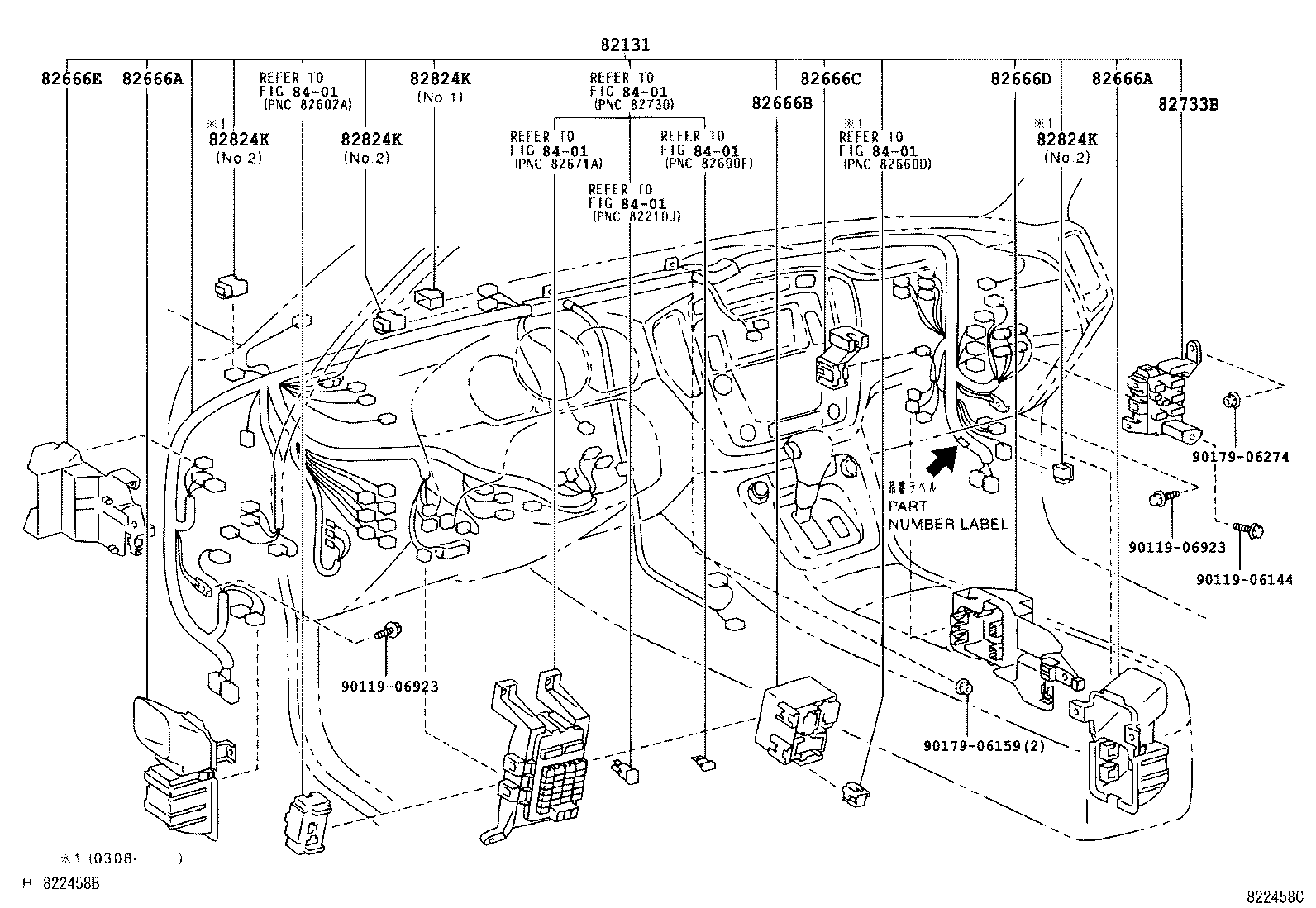

ILLUST NO. 3 OF10(0011- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-48400 |
ACU2# PART NUMBER LABEL=82131-48400 |
1 | ||
| 82131-48410 |
ACU2# PART NUMBER LABEL=82131-48410 |
1 | ||
| 82131-48390 |
ACU2# PART NUMBER LABEL=82131-48390 |
1 | ||
| 82131-48570 |
ACU2# PART NUMBER LABEL=82131-48570 |
1 | ||
| 82131-48420 |
ACU2# PART NUMBER LABEL=82131-48420 |
1 | ||
| 82131-48571 |
ACU2# PART NUMBER LABEL=82131-48571 |
1 | ||
| 82131-48560 |
ACU2# PART NUMBER LABEL=82131-48560 |
1 | ||
| 82131-48561 |
ACU2# PART NUMBER LABEL=82131-48561 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48010 |
ACU2#,MCU2# |
2 | ||
| 82666-48010 |
ACU2#,MCU2# |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48010 |
ACU2#,MCU2# |
2 | ||
| 82666-48010 |
ACU2#,MCU2# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-48150 |
ACU2#,MCU2# |
1 | ||
| 82666-48060 |
ACU2#,MCU2# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-48030 |
ACU2#,MCU2# COWL WIRE |
1 | ||
| 82666-48030 |
ACU2#,MCU2# COWL WIRE |
1 | ||
| 82666-60030 |
ACU2#,MCU2# FLOOR WIRE |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-48070 |
ACU2#,MCU2# |
1 | ||
| 82666-48070 |
ACU2#,MCU2# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-48080 |
ACU2#,MCU2# |
1 | ||
| 82666-48080 |
ACU2#,MCU2# |
1 | ||
| 82733B - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-48020 |
ACU2#,MCU2# |
1 | ||
| 82733-48020 |
ACU2#,MCU2# |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
1 | ||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
2 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
1 | ||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
2 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
1 | ||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
2 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
1 | ||
| 82824-30220 |
ACU2#,MCU2# NO.2 |
2 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| 82824-22080 |
ACU2#,MCU2# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90119-06923 | ||||
| 90179-06159 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

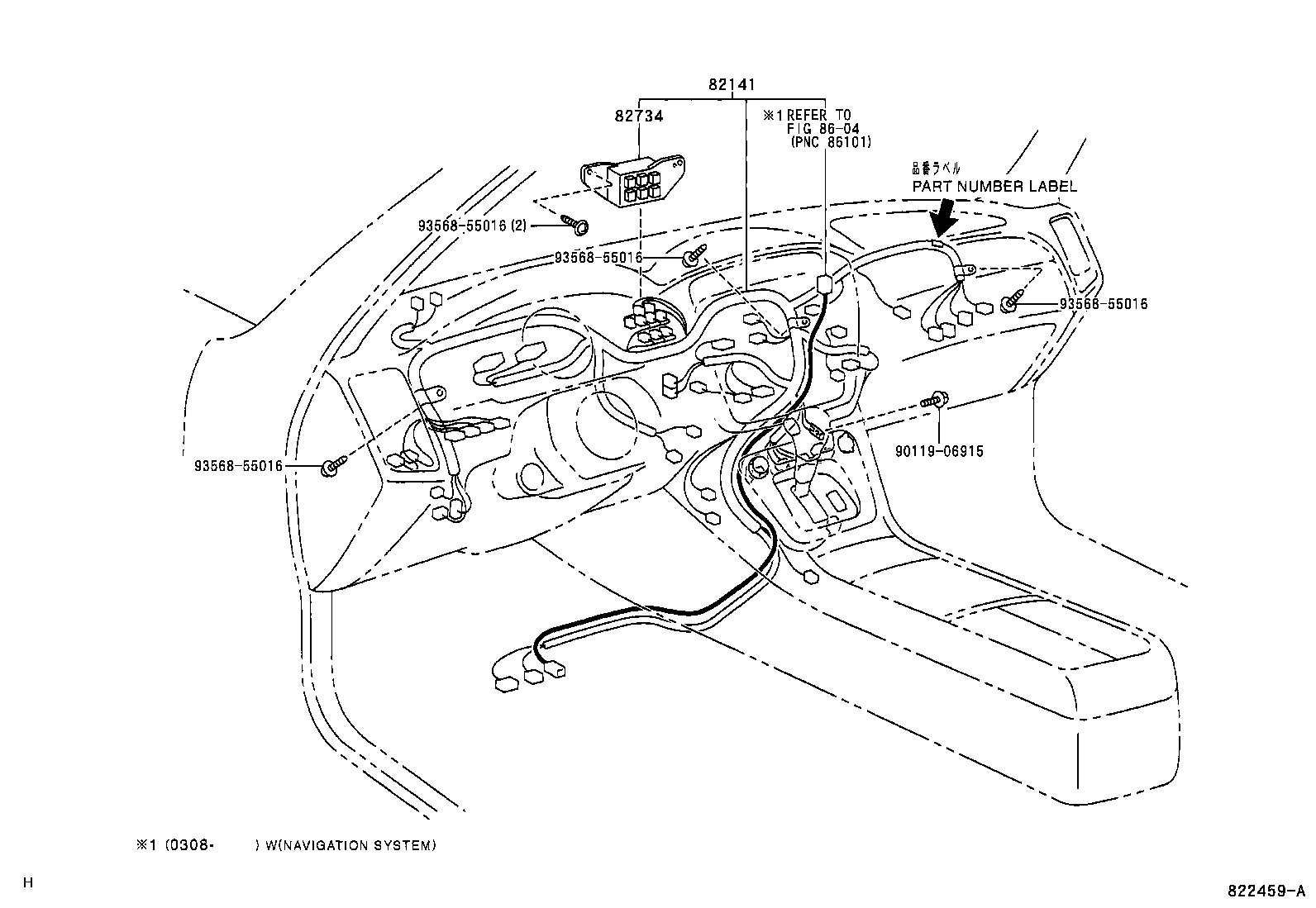

ILLUST NO. 4 OF10(0011- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-48320 |
ACU2#,MCU2# PART NUMBER LABEL=82141-48320 |
1 | ||
| 82141-48A50 |
ACU2#,MCU2# PART NUMBER LABEL=82141-48A50 |
1 | ||
| 82141-48310 |
ACU2#,MCU2# PART NUMBER LABEL=82141-48310 |
1 | ||
| 82141-48A40 |
ACU2#,MCU2# PART NUMBER LABEL=82141-48A40 |
1 | ||
| 82141-48A60 |
ACU2#,MCU2# PART NUMBER LABEL=82141-48A60 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-48020 |
ACU2#,MCU2# |
1 | ||
| 82734-48020 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8604 | ||||

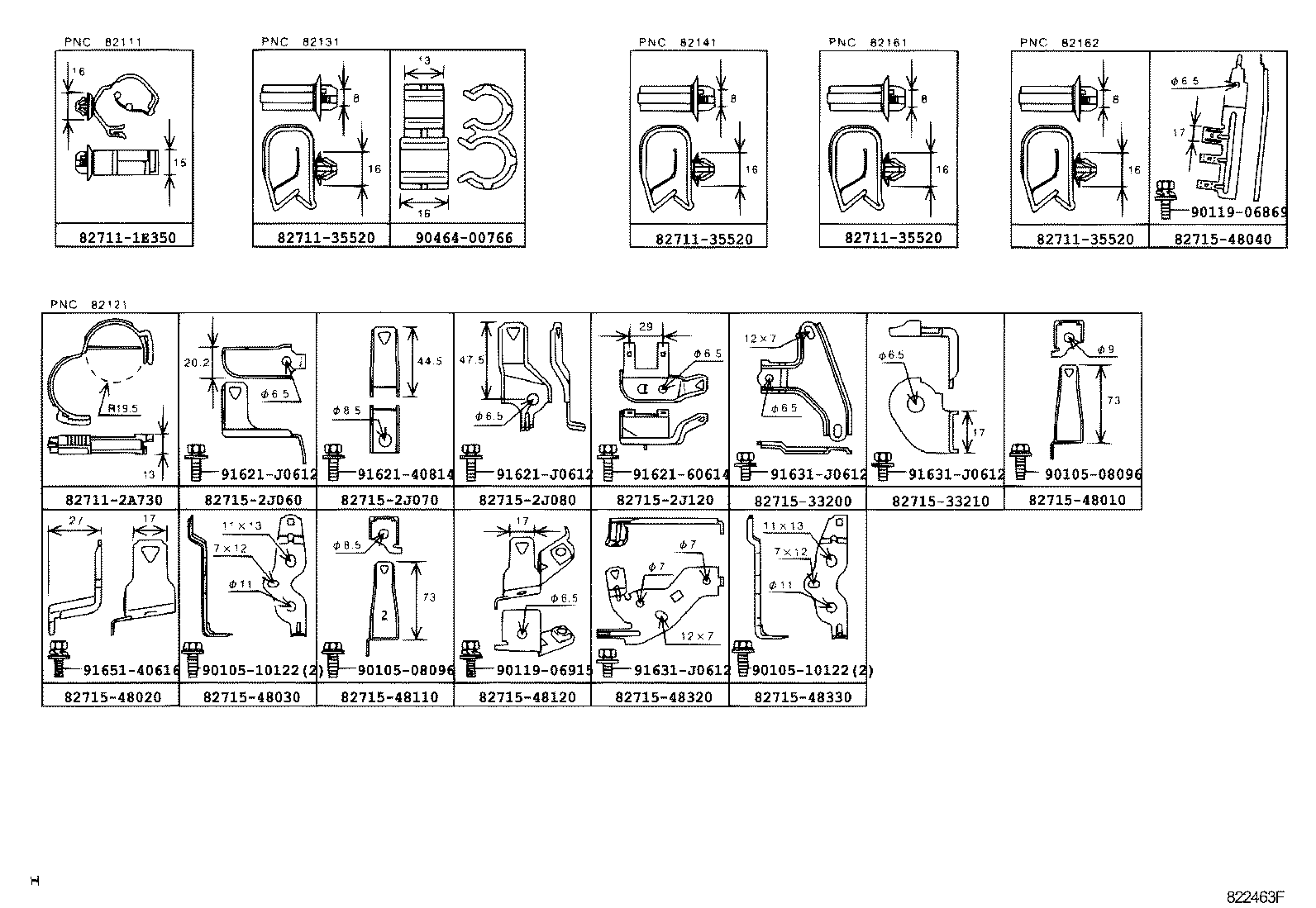

ILLUST NO. 8 OF10(0011- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-2A730 | ||||
| 82711-35520 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-2J120 | ||||
| 82715-33200 | ||||
| 82715-33210 | ||||
| 82715-48010 | ||||
| 82715-48020 | ||||
| 82715-48030 | ||||
| 82715-48040 | ||||
| 82715-48110 | ||||
| 82715-48120 | ||||
| 82715-48320 | ||||
| 82715-48330 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06869 | ||||
| 90119-06915 | ||||
| 90464-00766 | ||||
| 91621-40814 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-40616 | ||||

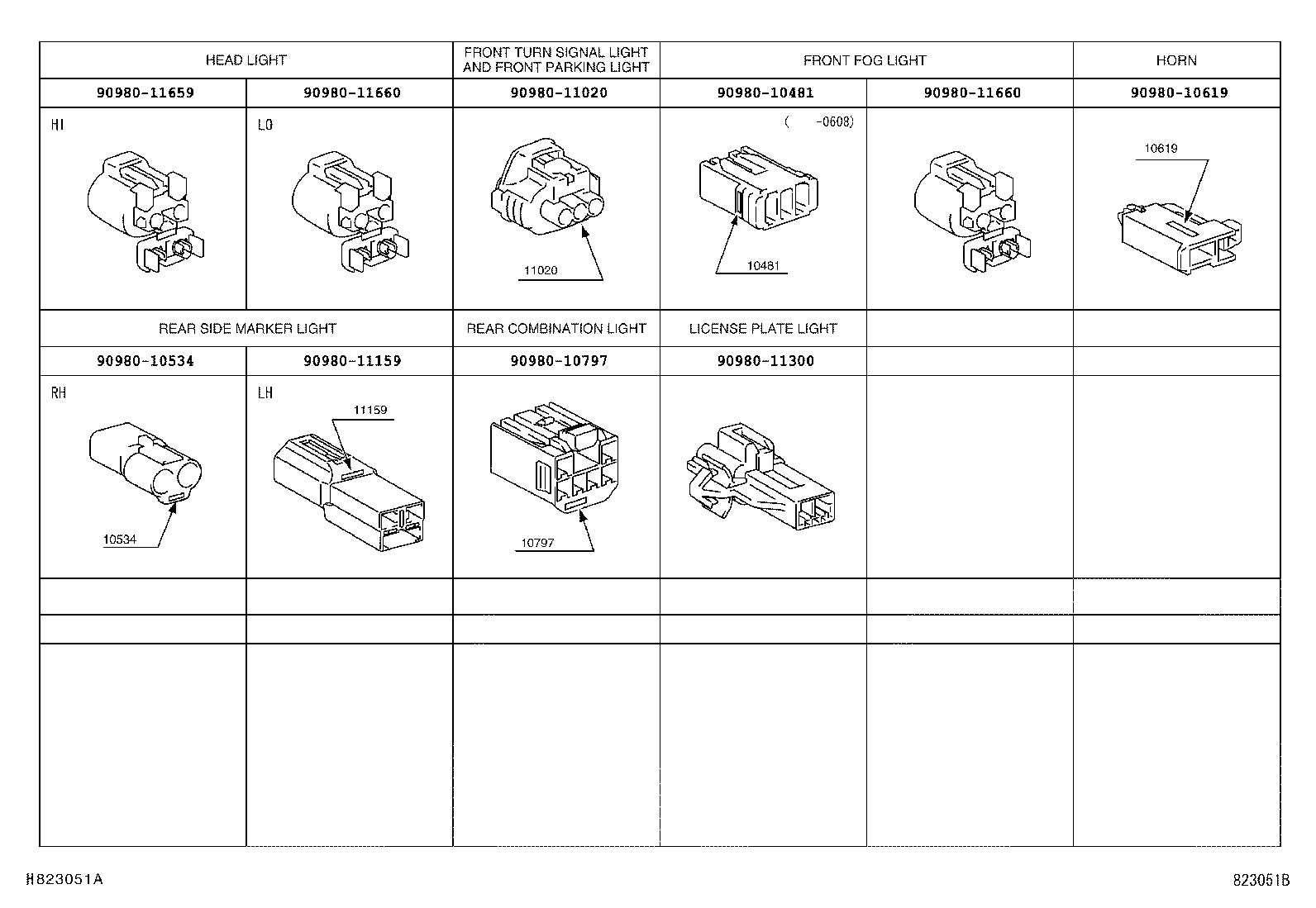

ILLUST NO.10 OF10(0011- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10534 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11020 | ||||
| 90980-11159 | ||||
| 90980-11300 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||

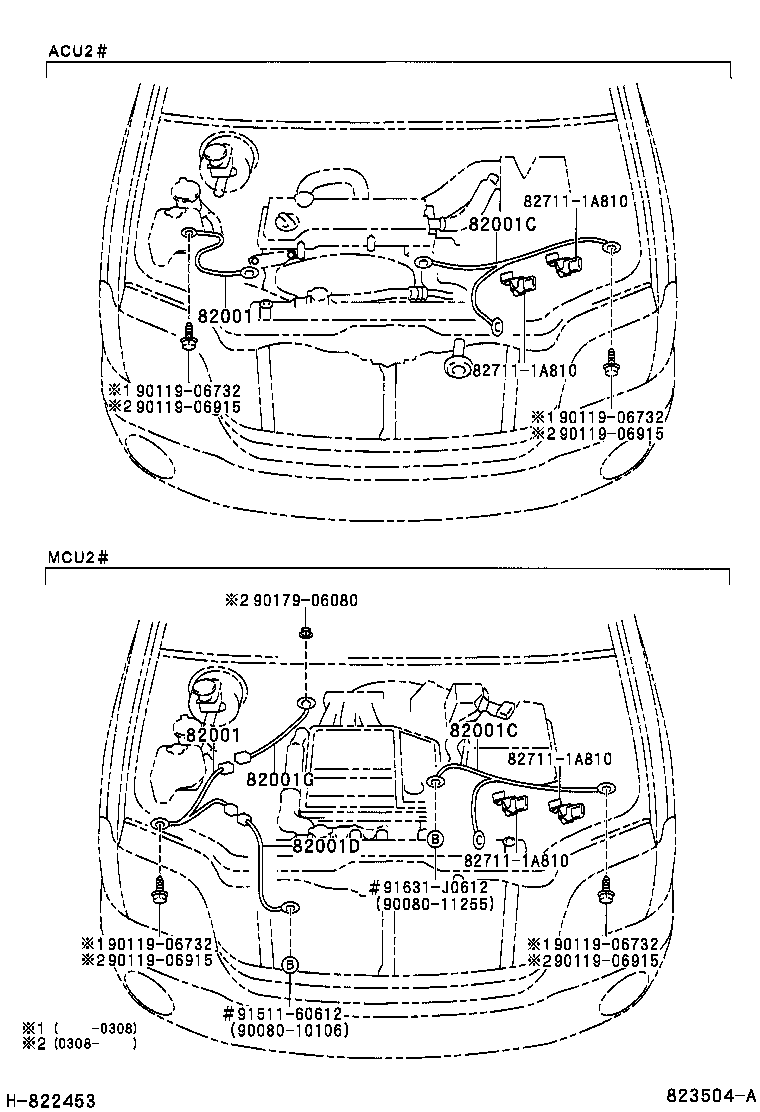

ILLUST NO. 9 OF10(0011- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35190 |
ACU2# |
1 | ||
| 90980-07415 |
ACU2# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35190 |
ACU2# |
1 | ||
| 90980-07415 |
ACU2# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07400 |
ACU2#,MCU2# |
1 | ||
| 90980-07414 |
ACU2# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07400 |
ACU2#,MCU2# |
1 | ||
| 90980-07414 |
ACU2# |
1 | ||
| Common parts | ||||
| 82711-1A810 | ||||
| 90080-10106 | ||||
| 90080-11255 | ||||
| 90119-06732 | ||||
| 90119-06915 | ||||
| 90179-06080 | ||||
| 91511-60612 | ||||
| 91631-J0612 | ||||

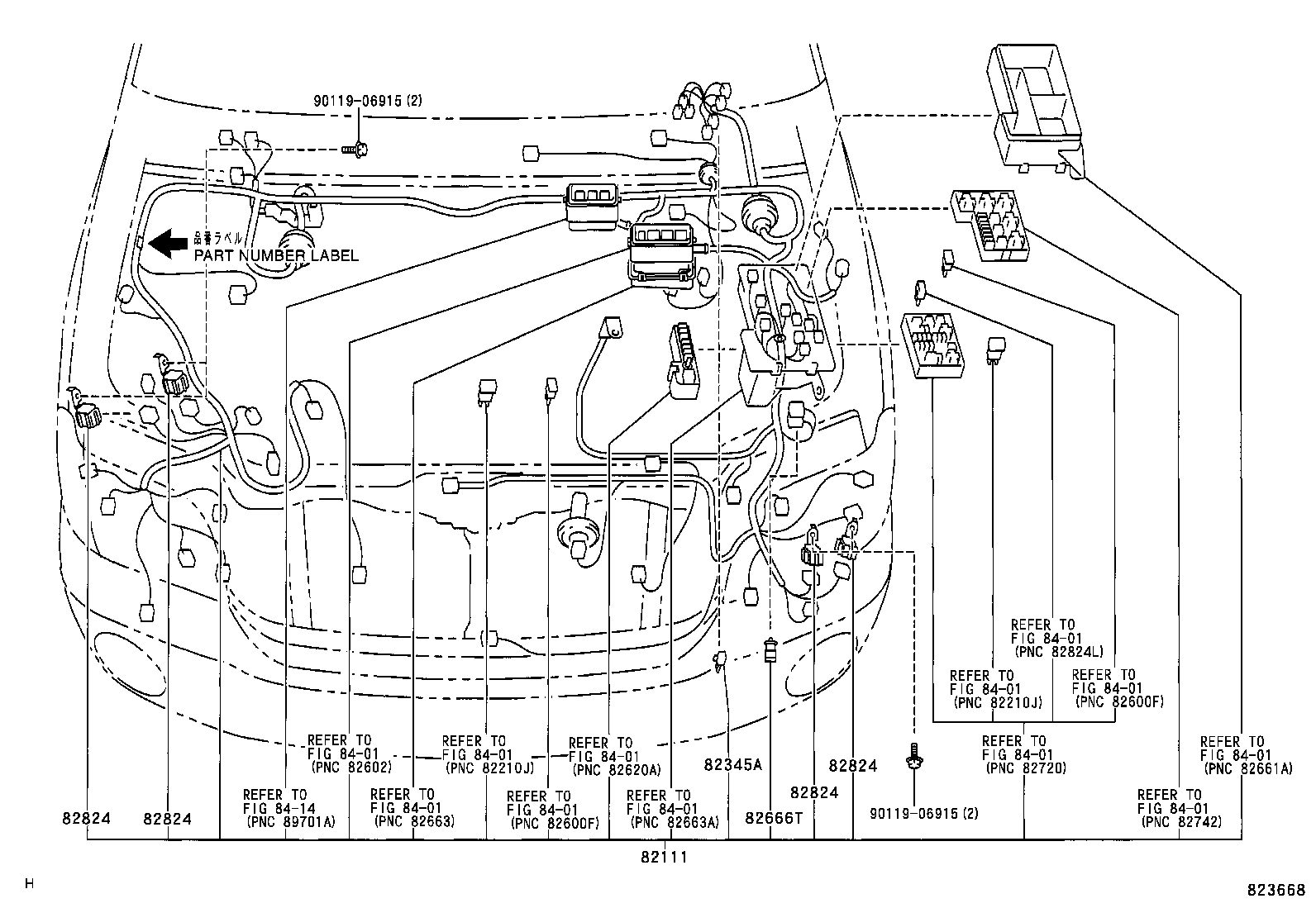

ILLUST NO. 1 OF10(0308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-48400 |
ACU2# PART NUMBER LABEL=82111-48400 |
1 | ||
| 82111-48410 |
ACU2# PART NUMBER LABEL=82111-48410 |
1 | ||
| 82111-48420 |
ACU2# PART NUMBER LABEL=82111-48420 |
1 | ||
| 82111-48B11 |
ACU2# PART NUMBER LABEL=82111-48B11 |
1 | ||
| 82111-48B10 |
ACU2# PART NUMBER LABEL=82111-48B10 |
1 | ||
| 82111-48390 |
ACU2# PART NUMBER LABEL=82111-48390 |
1 | ||
| 82111-48B20 |
ACU2# PART NUMBER LABEL=82111-48B20 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-20270 |
ACU2#,MCU2# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||

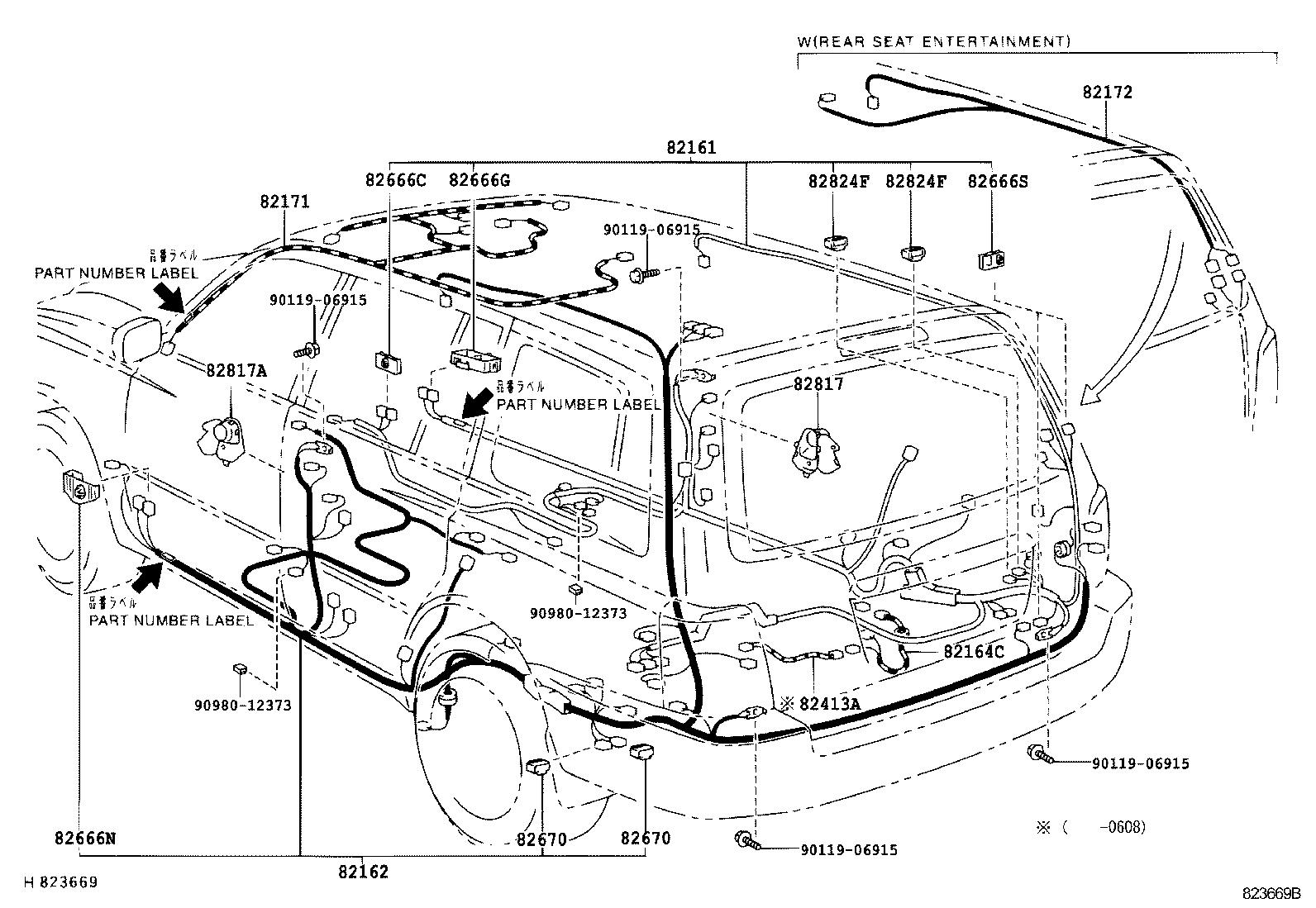

ILLUST NO. 6 OF10(0308- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-48410 |
ACU2#,MCU2# PART NUMBER LABEL=82161-48410 |
1 | ||
| 82161-48350 |
ACU2#,MCU2# PART NUMBER LABEL=82161-48350 |
1 | ||
| 82161-48380 |
ACU2#,MCU2# PART NUMBER LABEL=82161-48380 |
1 | ||
| 82161-48360 |
ACU2#,MCU2# PART NUMBER LABEL=82161-48360 |
1 | ||
| 82161-48400 |
ACU2#,MCU2# PART NUMBER LABEL=82161-48400 |
1 | ||
| 82161-48B00 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B00 |
1 | ||
| 82161-48B20 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B20 |
1 | ||
| 82161-48B10 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B10 |
1 | ||
| 82161-48B50 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B50 |
1 | ||
| 82161-48B30 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B30 |
1 | ||
| 82161-48B40 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82161-48B40 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48280 |
ACU2#,MCU2# PART NUMBER LABEL=82162-48280 |
1 | ||
| 82162-48270 |
ACU2#,MCU2# PART NUMBER LABEL=82162-48270 |
1 | ||
| 82162-48290 |
ACU2#,MCU2# PART NUMBER LABEL=82162-48290 |
1 | ||
| 82162-48780 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82162-48780 |
1 | ||
| 82162-48730 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82162-48730 |
1 | ||
| 82162-48740 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82162-48740 |
1 | ||
| 82162-48770 |
ACU2#,MCU2#..07S PART NUMBER LABEL=82162-48770 |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-48020 |
ACU2# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48080 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48080 |
1 | ||
| 82171-48070 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48070 |
1 | ||
| 82171-48100 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48100 |
1 | ||
| 82171-48280 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48280 |
1 | ||
| 82171-48290 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48290 |
1 | ||
| 82171-48300 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48300 |
1 | ||
| 82171-48090 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48090 |
1 | ||
| 82171-48270 |
ACU2#,MCU2# PART NUMBER LABEL=82171-48270 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-48030 |
ACU2#,MCU2# |
1 | ||
| 82172-48040 |
ACU2#,MCU2# W(*80,CURTAIN SHIELD) |
1 | ||
| 82172-48010 |
ACU2#,MCU2# |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-48010 |
ACU2#,MCU2# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-48030 |
ACU2#,MCU2# COWL WIRE |
1 | ||
| 82666-48030 |
ACU2#,MCU2# COWL WIRE |
1 | ||
| 82666-60030 |
ACU2#,MCU2# FLOOR WIRE |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-48020 |
ACU2#,MCU2# |
1 | ||
| 82666-48020 |
ACU2#,MCU2# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-48050 |
ACU2#,MCU2# |
1 | ||
| 82666-48050 |
ACU2#,MCU2# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-22070 |
ACU2#,MCU2# |
1 | ||
| 82666-22070 |
ACU2#,MCU2# W(REAR SEAT ENTERTAINMENT) |
2 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2A450 |
ACU2#,MCU2# |
1 | ||
| 82817-2A450 |
ACU2#,MCU2# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-2A460 |
ACU2#,MCU2# |
1 | ||
| 82817-2A460 |
ACU2#,MCU2# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ACU2#,MCU2# |
1 | ||
| 82824-50110 |
ACU2#,MCU2# |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ACU2#,MCU2# |
1 | ||
| 82824-50110 |
ACU2#,MCU2# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-12373 | ||||

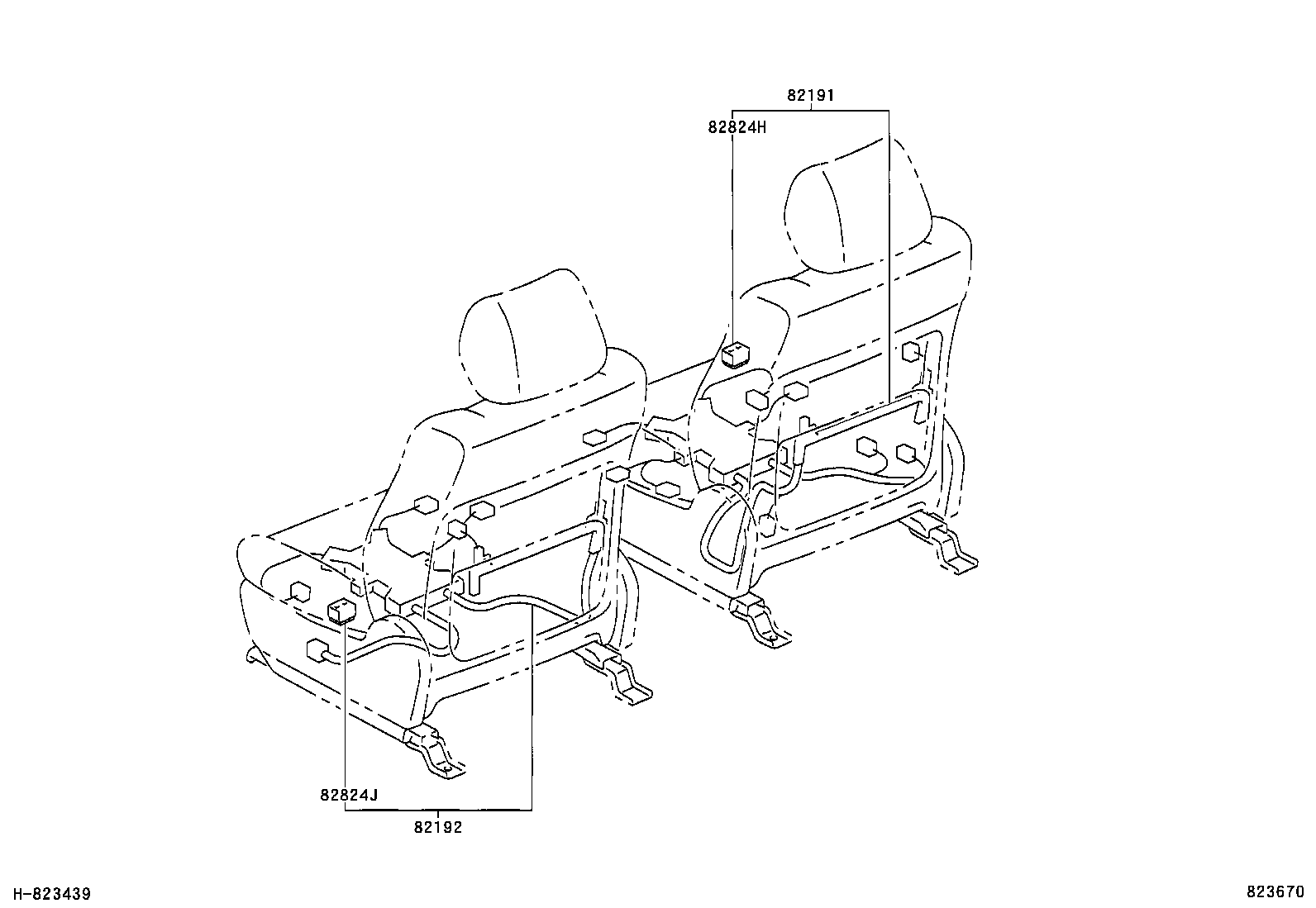

ILLUST NO. 7 OF10(0308- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48080 |
ACU2#,MCU2# |
1 | ||
| 82191-48250 |
ACU2#,MCU2# W(SEAT HEATER) |
1 | ||
| 82191-48240 |
ACU2#,MCU2# |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-48230 |
ACU2#,MCU2# |
1 | ||
| 82192-48250 |
ACU2#,MCU2# W(SEAT HEATER) |
1 | ||
| 82192-48090 |
ACU2#,MCU2# W(POWER SEAT) |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-48100 |
ACU2#,MCU2# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
